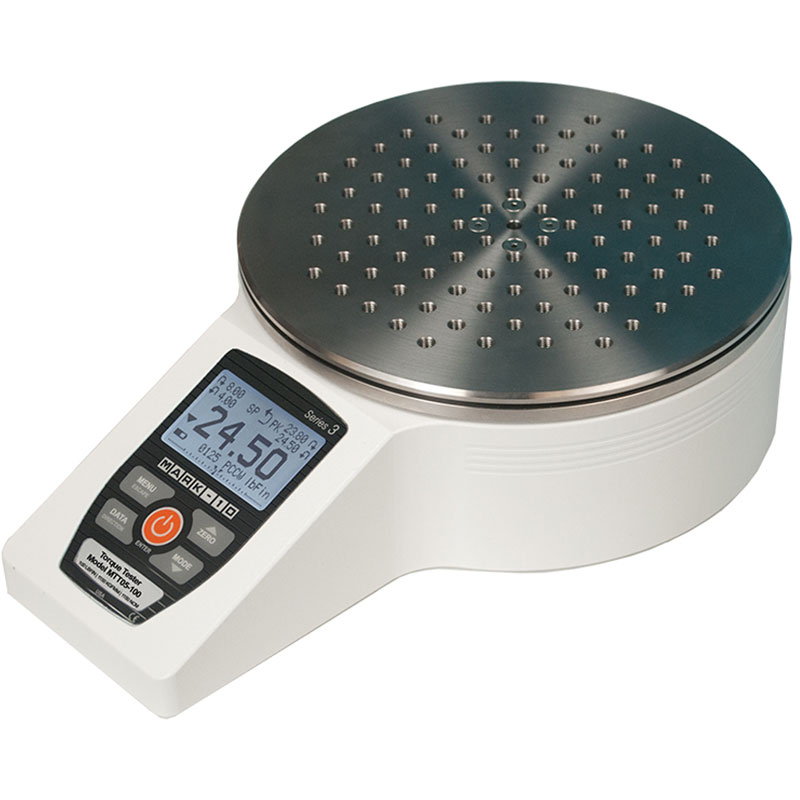

Series TT05 Torque Tester

£1,166.00

Manufactured by Mark-10

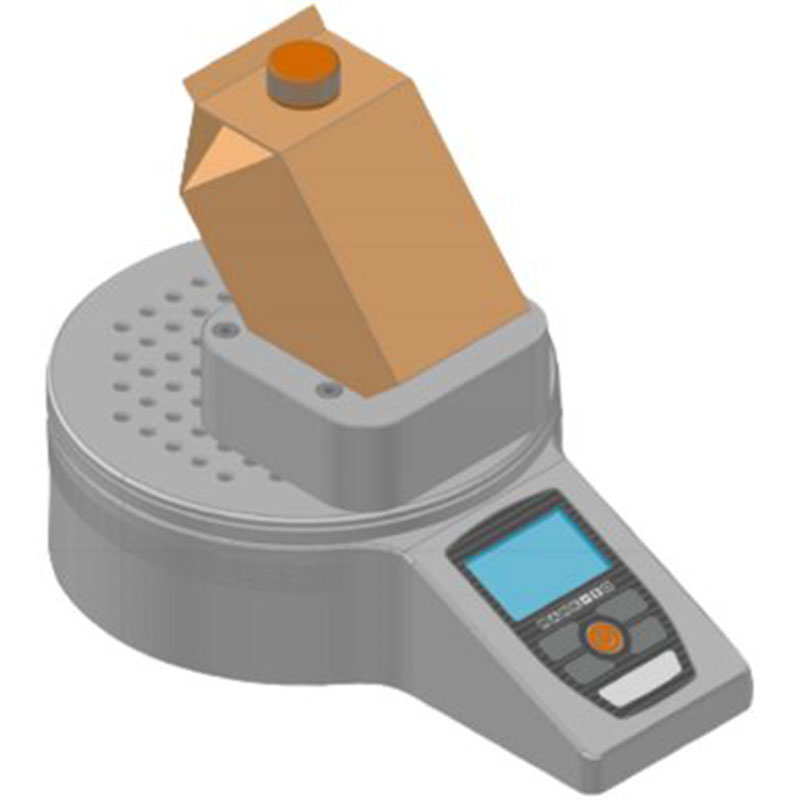

Used for applications like torque tool testing and tamper evident closure testing, the Series TT05 Digital Torque Tester measures torque up to 11.5 Nm.

It has an impressive accuracy of 0.3% and incredibly fast sampling rate of 7,000 Hz, ensuring reliable and consistent test results, even in quick-action applications.

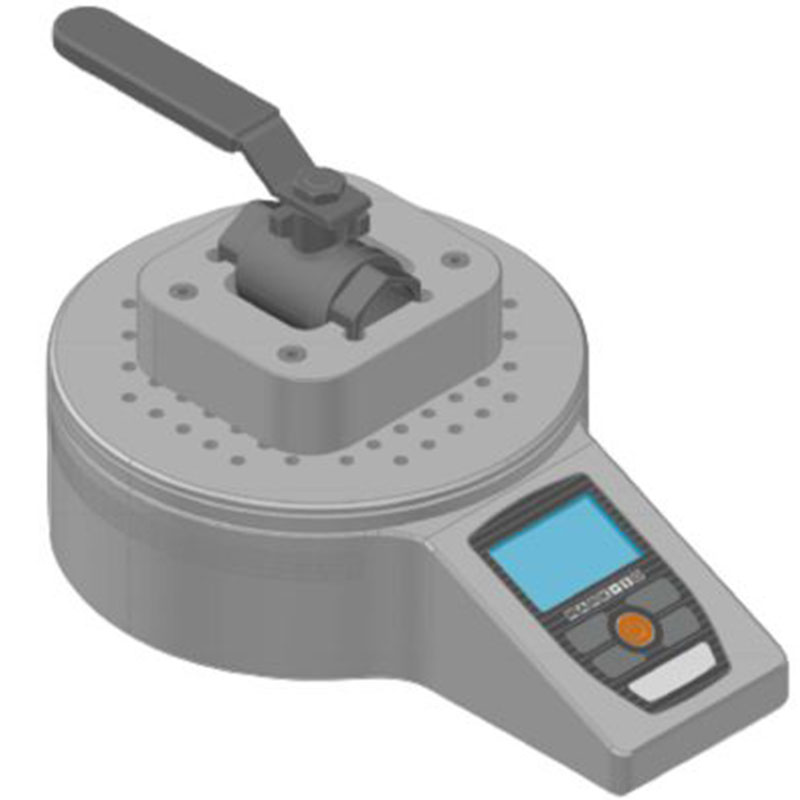

The stainless steel loading surface has a matrix of threaded holes (#10-32), ideal for accommodating specialised fixtures and attachments. These threaded holes are not drilled through the plate, providing protection from debris and liquid.

Benefits

Rugged design and simple, intuitive operation is ideal for use in laboratory and production environments.
First / second peak torque detection is useful for torque tool testing, tamper evident closure testing, and other applications.
Automatic output, data storage, and zeroing upon sample break helps automate testing processes.
Memory storage for 1,000 readings.
Programmable set point indicators and outputs for pass/fail determination.
Password protection prevents unauthorised changes.

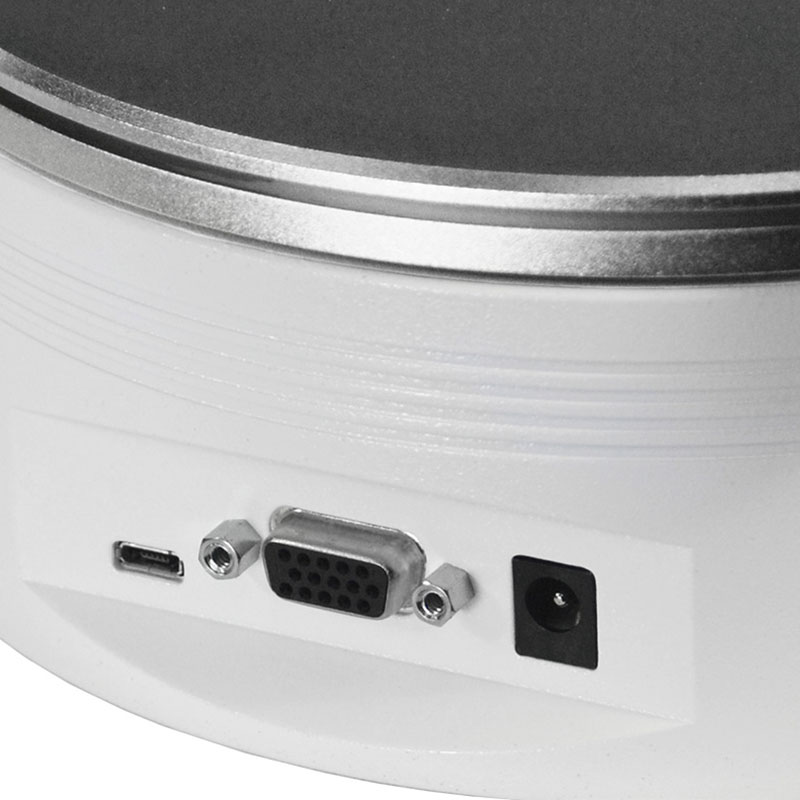

USB, RS-232, Mitutoyo, and analogue outputs.
Configurable audio alarms and key tones.
Five selectable areas of measurement.

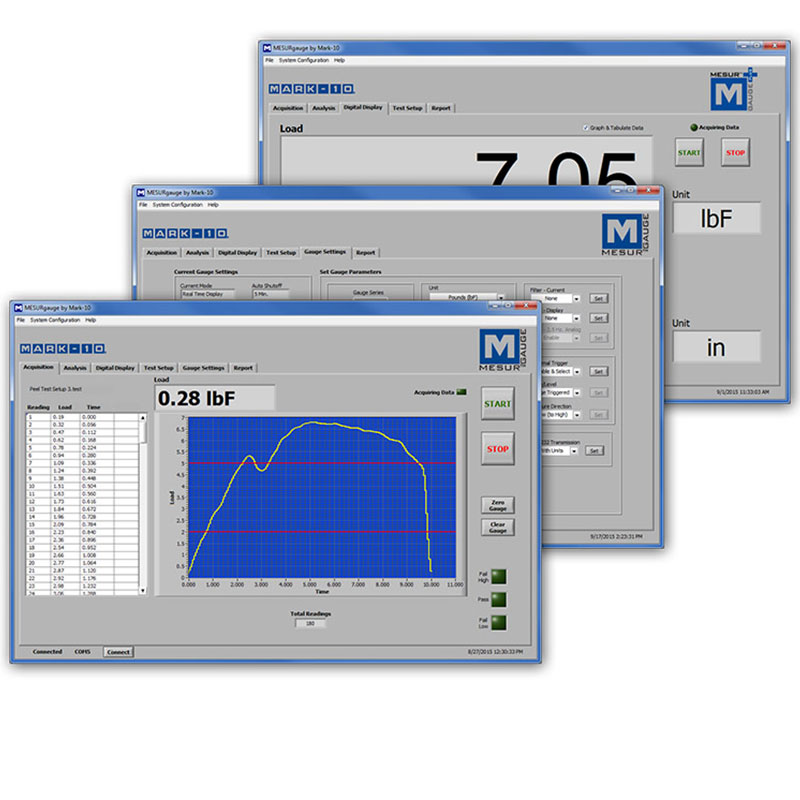

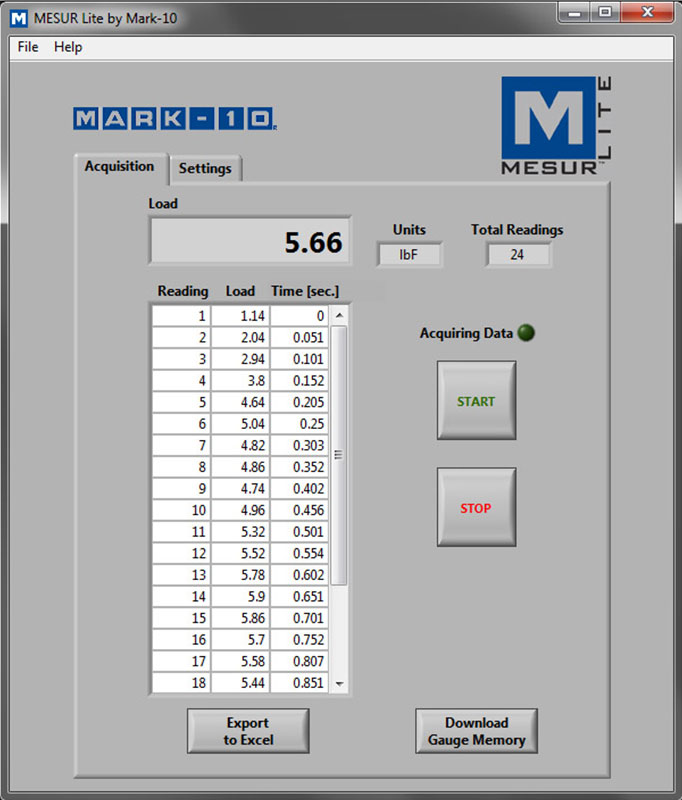

MESUR^®Lite data collection software is included, which tabulates continuous or single point data.
Data stored in the TT05’s memory can also be downloaded in bulk.
One-click export to Excel allows for further data manipulation.
Three year warranty.
Supported by AML in the UK.
Torque calibration service available.

The Series TTO5 Torque Testers include the following accessories:

1 x AC adapter
1 x battery
1 x USB cable
1 x certificate of calibration without data.

Important: Mark-10 equipment (other than the gauges) features open-access calibration. This means calibration adjustments are not locked out, giving you the freedom to use any standard-compliant calibration laboratory of your choice, saving you time and reducing lifetime ownership costs.

Series TT05 Universal Torque Tester Models

Capacity x Resolution

Model

lbFin

ozFin

kgFmm

Ncm

MTT05-12

12 x 0.005

192 x 0.1

14 x 0.01

135 x 0.1

1.35 x 0.001

MTT05-25

25 x 0.01

400 x 0.2

28 x 0.02

290 x 0.2

2.9 x 0.002

MTT05-50

50 x 0.02

800 x 0.5

58 x 0.05

570 x 0.5

5.7 x 0.005

MTT05-100

100 x 0.05

1600 x 1

116 x 0.1

1150 x 0.5

11.5 x 0.005

Technical Data

Accuracy:

±0.3% of full scale

Sampling rate:

7,000 Hz

Power:

AC or rechargeable battery. Multi-step low battery indicator is displayed, tester shuts off automatically when power is too low.

Battery life:

Backlight on: up to 7 hours of continuous use
Backlight off: up to 24 hours of continuous use

Measurement units:

ozFin, lbFin, kgFcm, Nm, Ncm

Output:

USB / RS-232: Configurable up to 115,200 baud.
Mitutoyo: Serial BCD suitable for all Mitutoyo SPC-compatible devices.
Analog: ±1 VDC, ±0.25% of full scale at capacity.
General purpose: Three open drain outputs, one input.
Set points: Three open drain lines, 40 VDC max., 100 mA DC max.

Safe overload:

150% of full scale (display shows “OVER” at 110% and above)

Weight:

9 lb [4.1 kg]

Shipping weight:

10 lb [4.5 kg]

Environmental requirements:

40°F – 100°F [5°C – 45°C], < 96% humidity (non-condensing)

Warranty:

3 years (see individual statement for further details)

HS code:

Model no.

HS code:

MTT05 (all models)

9024100000

CERT
CT002
15-1004
AC1111
AC1118
AC1030
AC1031
AC1032
AC1035

9024800000

ECCN:

EAR99

Country of origin:

USA
