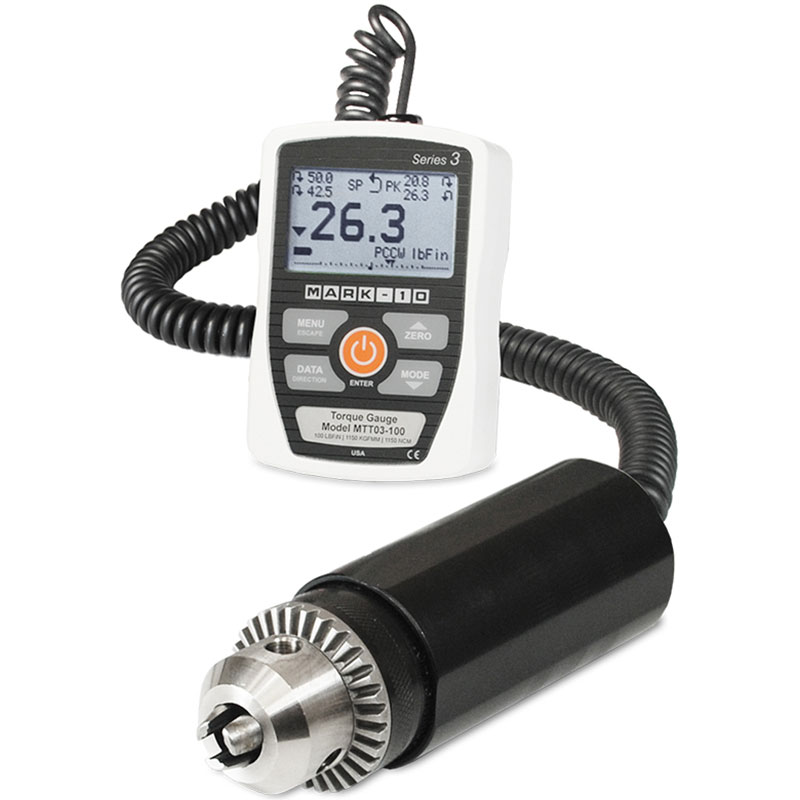

Series TT03 Torque Gauge

Manufactured by Mark-10

Designed for clockwise and counter-clockwise torque testing applications such as packaging testing, assembly verification, and component testing, the Series TT03 Digital Torque Gauge can measure up to 11.5 Nm.

A dedicated remote torque sensor with Jacobs chuck can be used to grip a sample, bit, or fixture.

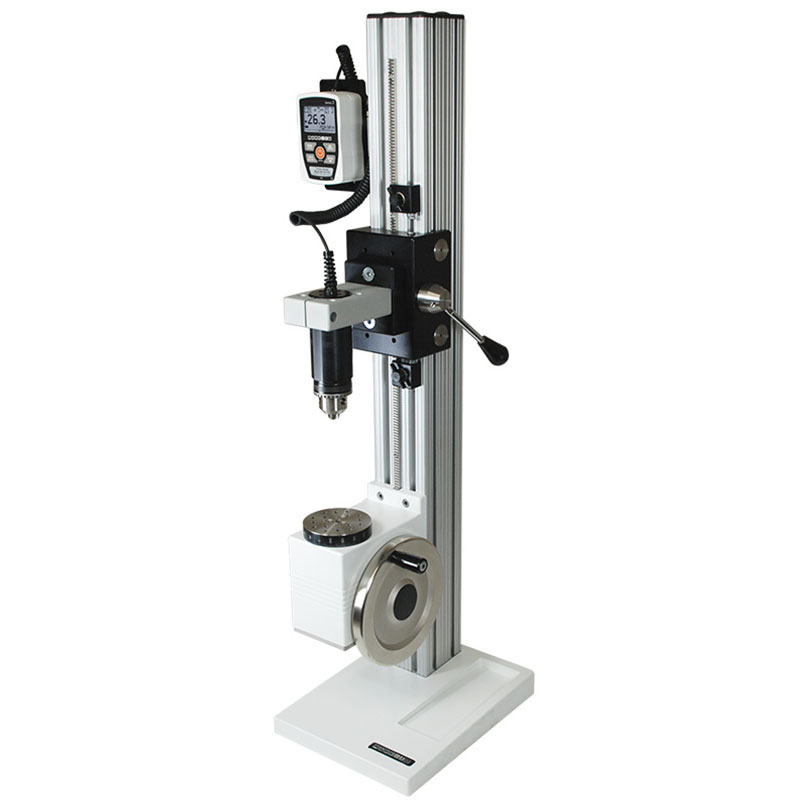

Available in six different capacities, these rotational torque gauges have rugged aluminium housing, allowing for handheld use or test stand mounting for more sophisticated testing requirements.

They are overload protected to 150% of capacity, and an analogue load bar is shown on the display for graphical representation of applied force.

Benefits

Sampling rate of 2,000 Hz, producing accurate results under a wide range of test conditions.
Set point indicators are provided for pass-fail testing.
Backlit graphic LCD displays large characters for easy reading.
Peak torque values saved and displayed.
Menu is available to access the gauges’ features and configurable parameters.

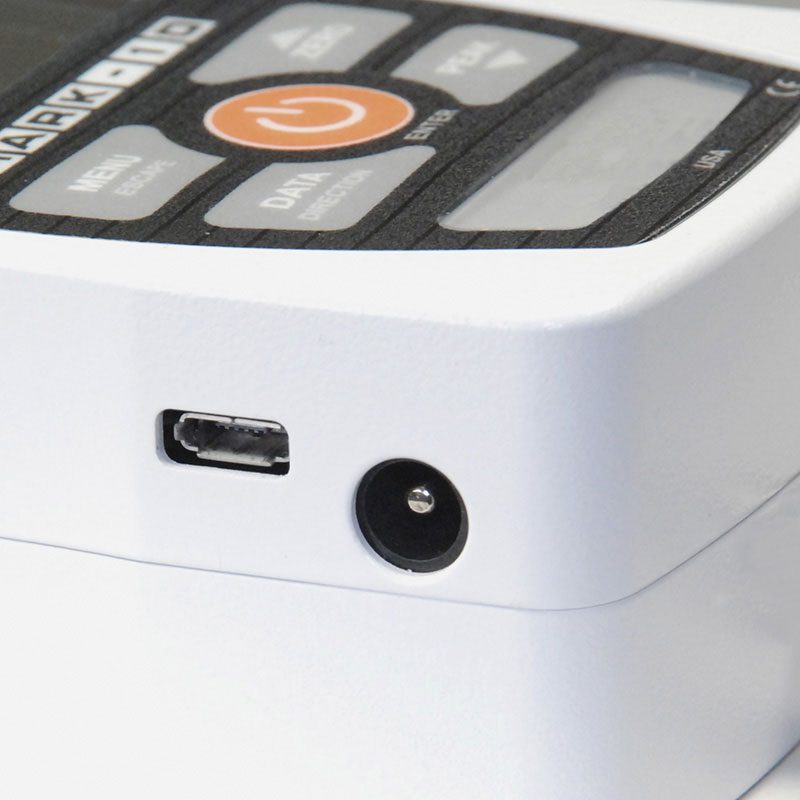

USB output is provided for data collection purposes.

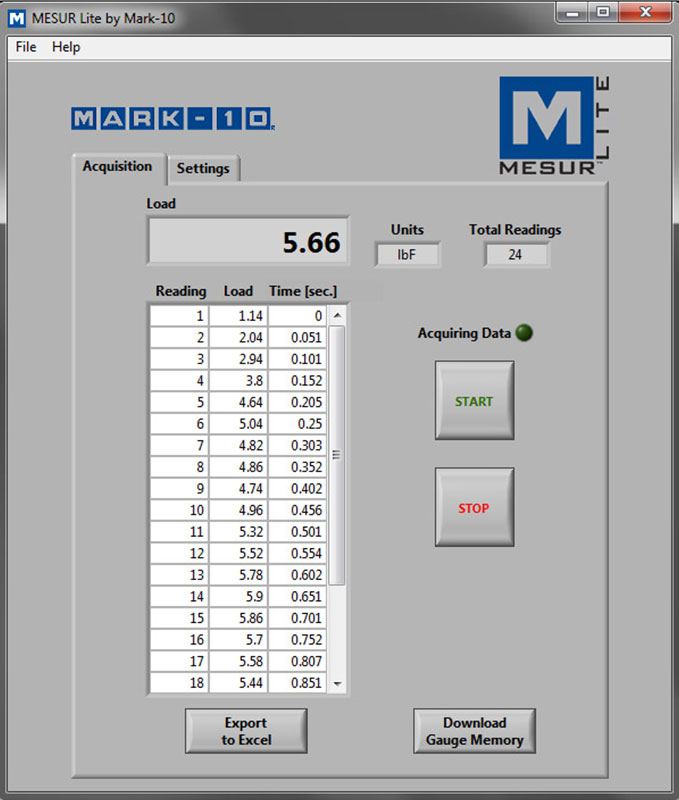

MESUR^®Lite data acquisition software is included, enabling tabulation of continuous or individual data points.
One-click export to Excel allows for further data manipulation.
Peak memory for clockwise and counter clockwise readings.
Configurable audio alarms and key tones.
Battery or AC operation.
Torque gauge calibration service available.

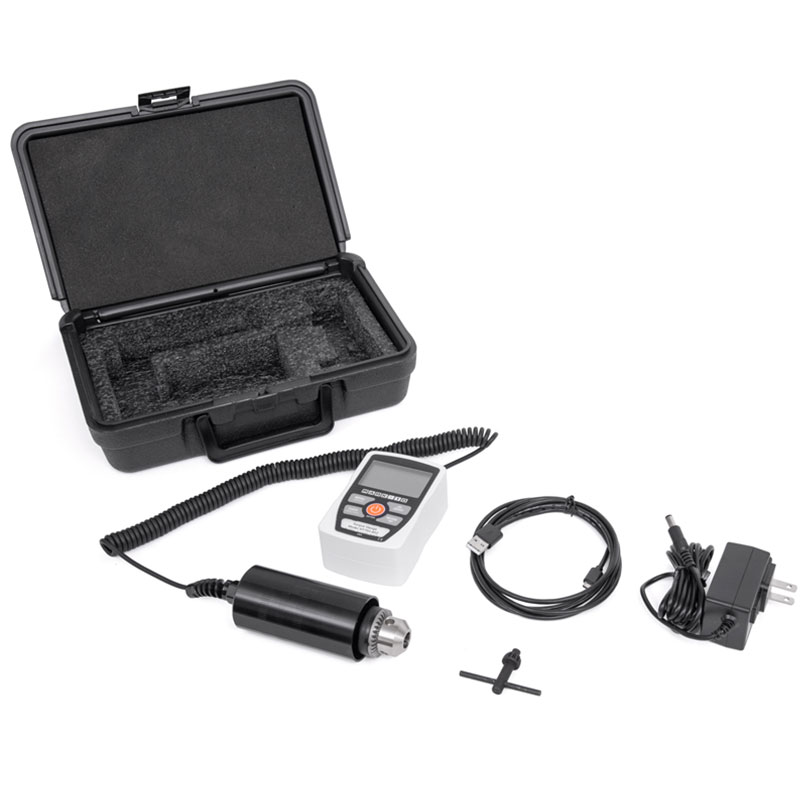

The Series TTO3 Torque Gauges include the following accessories:

1 x AC adapter
1 x battery
1 x carrying case
1 x chuck key
1 x USB cable
1 x certificate of calibration without data.

Series TT03 Torque Gauge Models

Capacity x Resolution

Model

ozFin

lbFin

kgFmm

Ncm

MTT03-10Z

10 x 0.01

–

7 x 0.005

MTT03-20Z

20 x 0.02

–

14 x 0.01

MTT03-50Z

50 x 0.05

–

36 x 0.05

MTT03-12

192 x 0.2

12 x 0.01

–

135 x 0.1

MTT03-50

800 x 0.5

50 x 0.05

–

570 x 0.5

MTT03-100

1600 x 1

100 x 0.1

–

1150 x 1

Technical Data

Accuracy:

±0.5% of full scale

Sampling rate:

2,000 Hz

Power:

AC or rechargeable battery. Multi-step low battery indicator is displayed, gauge shuts off automatically when power is too low.

Battery life:

Backlight on: up to 7 hours of continuous use
Backlight off: up to 24 hours of continuous use

Measurement units:

lbFin, ozFin, kgFmm, Ncm (depending on model)

USB Output:

Configurable to 115,200 baud

Safe overload:

150% of full scale (display shows “OVER” at 110% and above)

Weight:

1.8 lb [0.8 kg]

Shipping weight:

4 lb [1.8 kg]

Environmental requirements:

40°F – 100°F [5°C – 45°C], < 96% humidity (non-condensing)

Warranty:

3 years (see individual statement for further details)

HS code:

Model no.

HS code:

MTT03 (all models)

9024100000

CERT
15-1004
AC1111
AC1118
AC1030
AC1031
AC1032
AC1035
AC1123
AC1124

9024800000

ECCN:

EAR99

Country of origin:

USA
