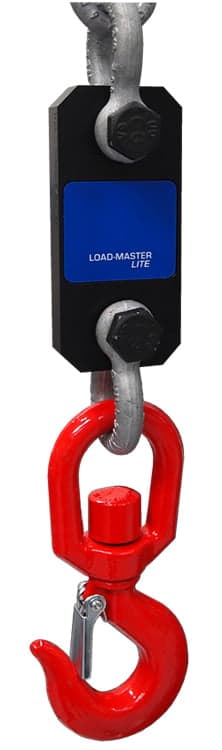

Force Logic – Load Master Lite
Manufactured by Force Logic
LOAD-MASTER LITE tension link load cells provide the ideal solution for proof load testing structures and rigging, load measurement of hoists and lifting equipment, and as crane scales for weighing suspended loads.
Ultra compact size and low weight relative to capacity yet retaining the same high safety factor throughout the range, rated capacities from 1tonne to 4.75tonne.
Select a variation to pay instantly
LOAD-MASTER LITE tension link load cells provide the ideal solution for proof load testing structures and rigging, load measurement of hoists and lifting equipment, and as crane scales for weighing suspended loads.
Ultra compact size and low weight relative to capacity yet retaining the same high safety factor throughout the range, rated capacities from 1tonne to 4.75tonne.
- Tension Load Cell
- Load Ranges 1000kg to 4750kg
- Fits standard shackle sizes
- Cabled (LML-C) or Wireless (LML-W) Options
| Load Ranges | 1000 , 2000 , 3250 , 4750 | kg |
| Display Units | kg (other unit on request) | |
| Battery Life | 250 Hours min. (continuous) | |
| Wireless Range | 100 Metres (line of sight) | |
| Accuracy Class | 0.25 % | % Applied Load |
| Overload Capacity | 150 % | % Capacity |
| Safety Factor (Ultimate Load) | 5 : 1 | |
| Operating temp. | 0 to +50 | °C |
| Environmental Sealing | IP54 | to BS EN60529 |
