Model M7I Digital Force / Torque Indicator
Manufactured by Mark-10

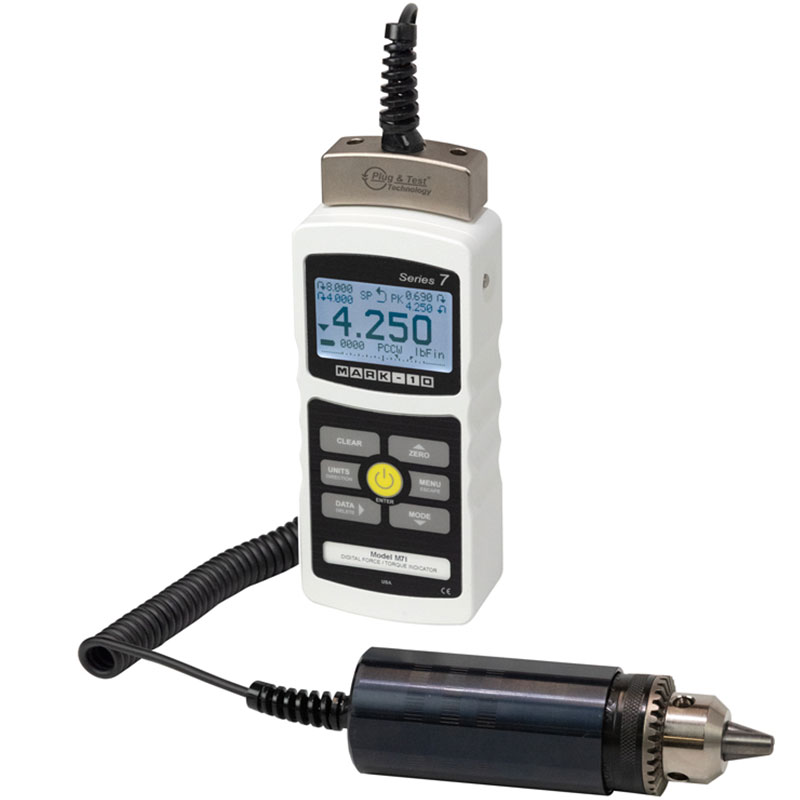

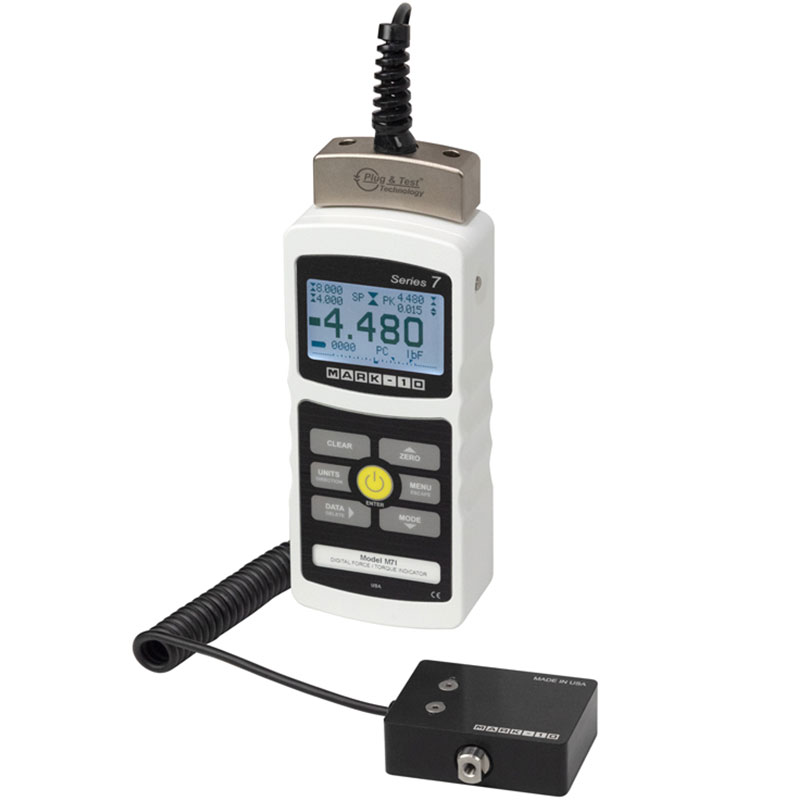

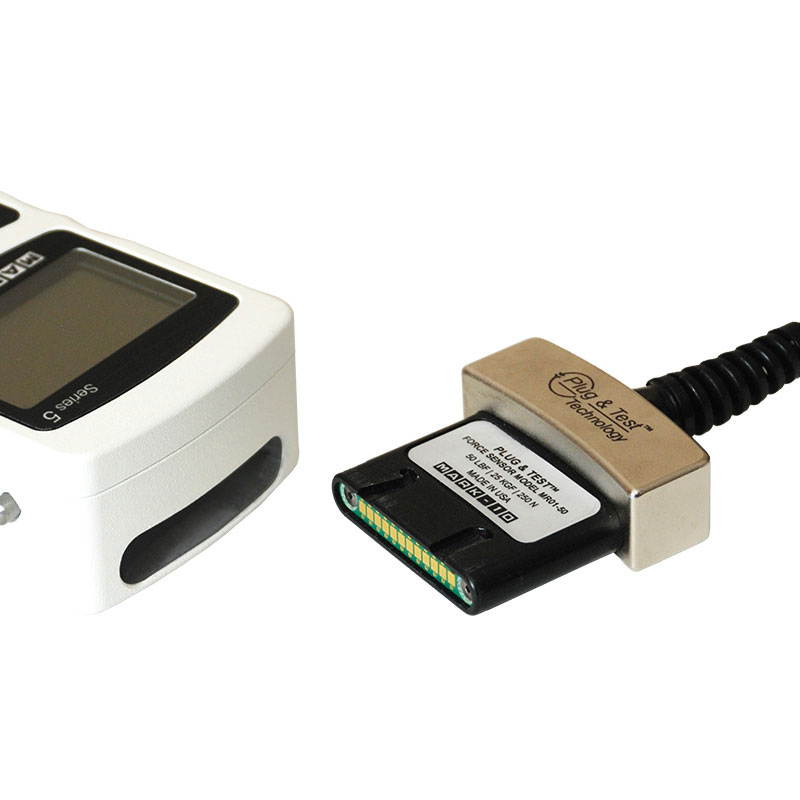

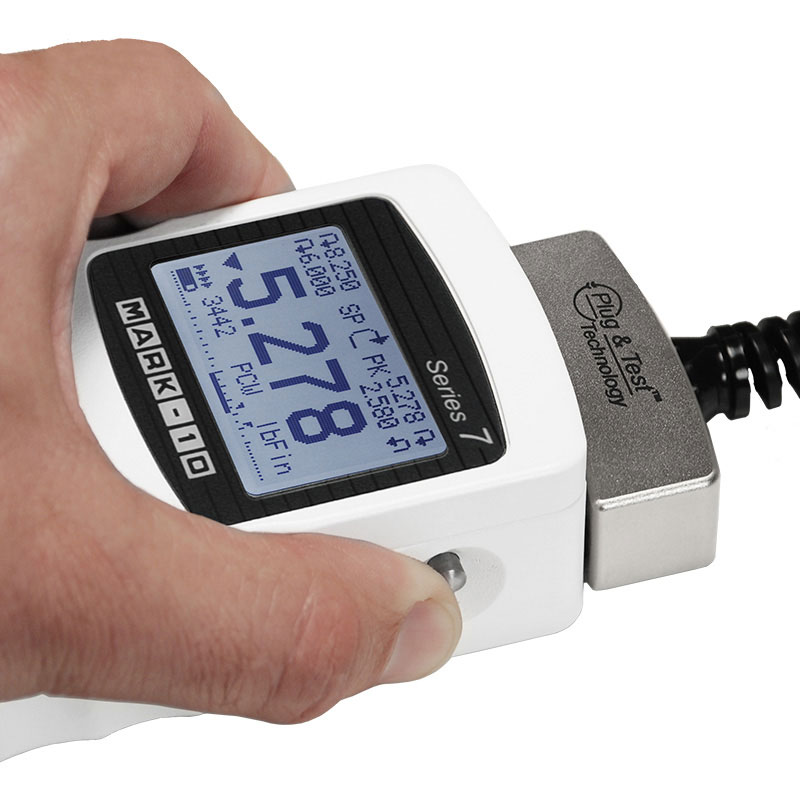

Like the M5I Advanced Digital Force / Torque Indicator, the M7I allows for interchangeable force and torque sensors through Plug & Test® technology. This means all calibration and configuration data is saved within the sensor’s smart connector (not the indicator), allowing for genuine interchangeability.
However, this advanced torque and force indicator doubles the sampling rate of the M5I, with 14,000 samples taken per second. In addition to producing reliable results for extremely quick-action tests, it also features high speed continuous data capture and storage, with memory for up to 5,000 readings (downloadable to a PC), at an acquisition rate of up to 14,000 Hz.
For productivity enhancement, the indicator also features automatic data output, data storage, and zeroing functions upon the completion of break detection, averaging, external trigger, and 1st / 2nd peak detection.
Please Note: Sensors are sold separately.
Benefits
- Designed to work with a wide range of Mark-10 remote force and torque sensors, including the Series R06 Wire Crimp Pull Sensors.
- High-speed 500 Hz data output rate.
- Five units of measurement, plus Coefficient of friction unit of measurement and a user-defined unit of measurement add flexibility for specialised applications.

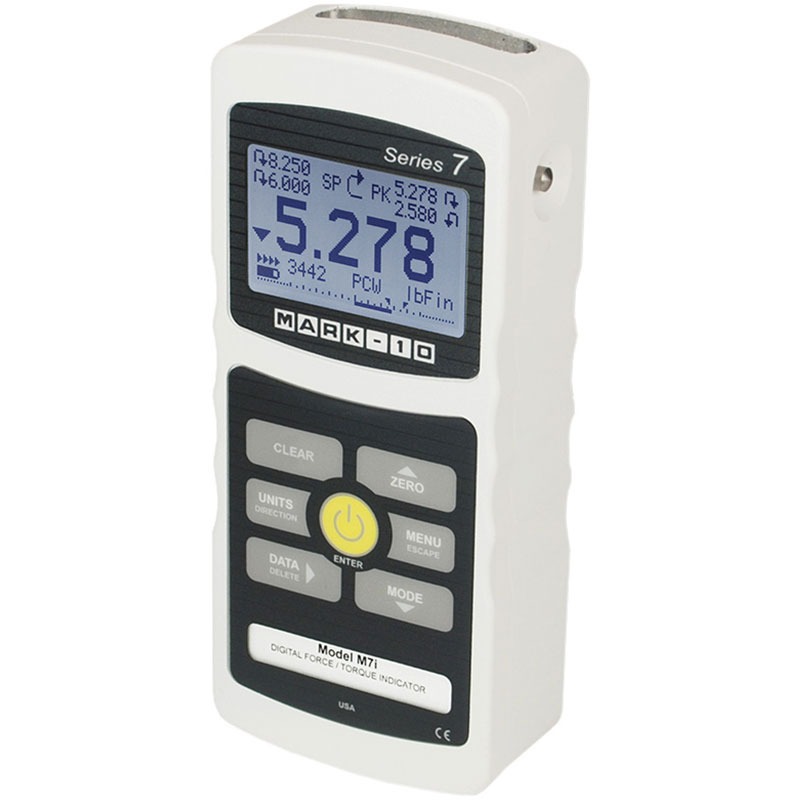

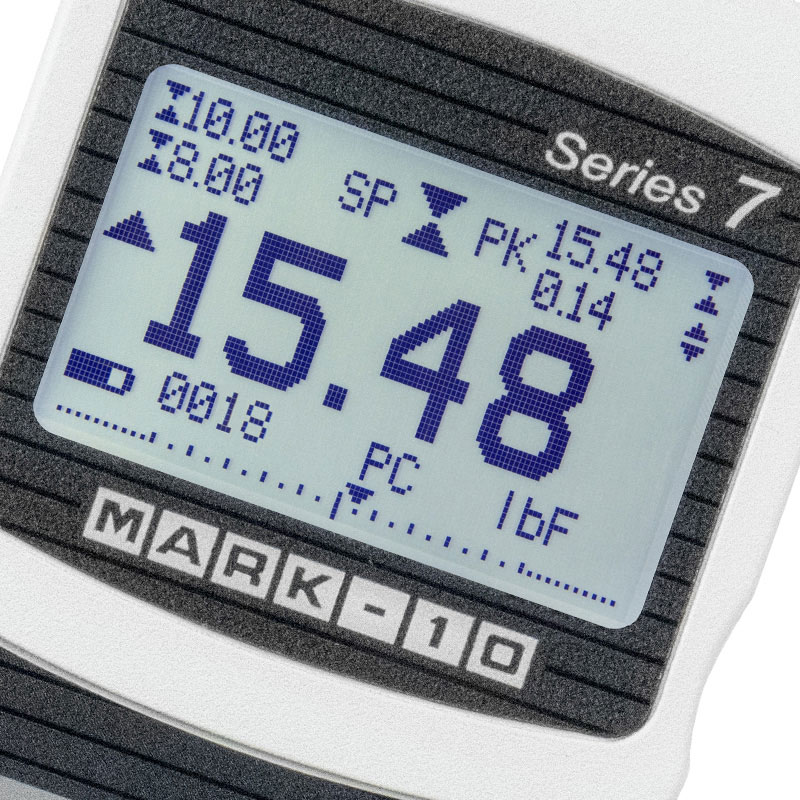

- Large, backlit graphics LCD displays large, legible characters.
- Simple menu navigation allows for quick access to the indicator’s many features and configurable parameters.
- Sensor password protection prevents use of an unauthorised sensor.
- Programmable footswitch command string.
- Programmable set points, with indicators and outputs.
- Averaging mode calculates average readings over time.
- External trigger mode makes switch activation testing simple and accurate.
- Data can be transferred to a PC or data collectors via USB, RS-232, Mitutoyo (Digimatic), or analogue outputs.

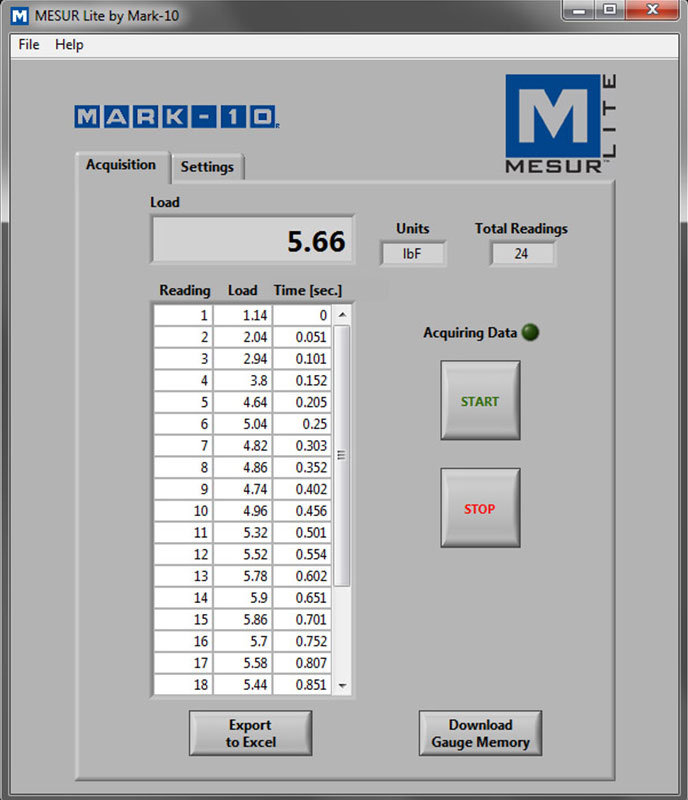

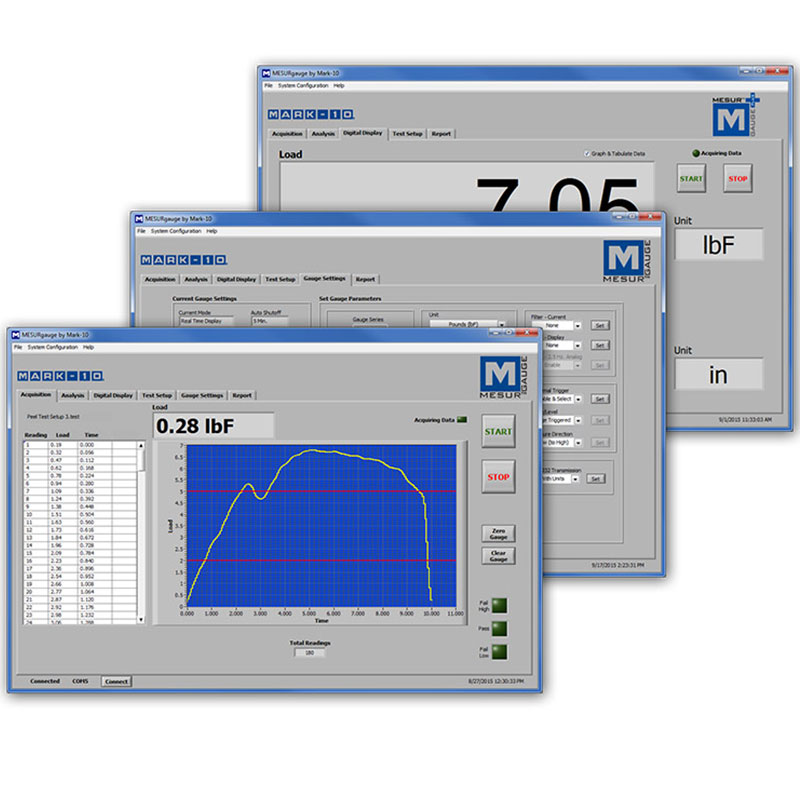

- MESUR®Lite data acquisition software is included, which tabulates continuous or single point data.
- Data saved in the indicator’s memory can be downloaded in bulk.
- One-click export to Excel easily allows for further data manipulation.
- Three year warranty.
- Supported by AML in the UK.

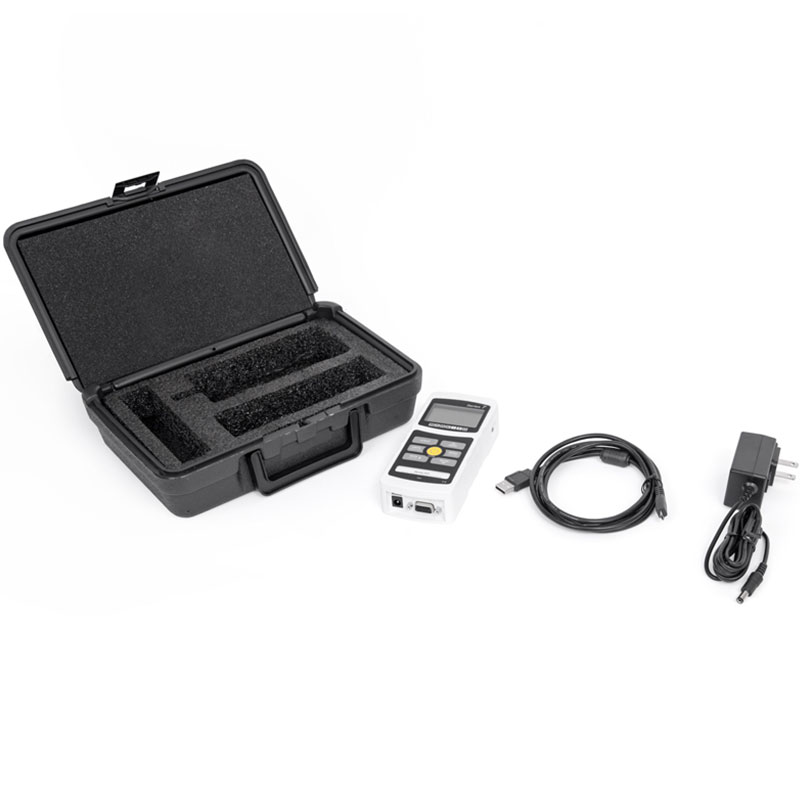

The M7I Force / Torque Indicator includes the following accessories:
- 1 x carrying case
- 1 x USB cable
- 1 x AC adapter
- 1 x battery
- 1 calibration certificate without data.
Important: Mark-10 equipment (other than the gauges) features open-access calibration. This means calibration adjustments are not locked out, giving you the freedom to use any standard-compliant calibration laboratory of your choice, saving you time and reducing lifetime ownership costs.

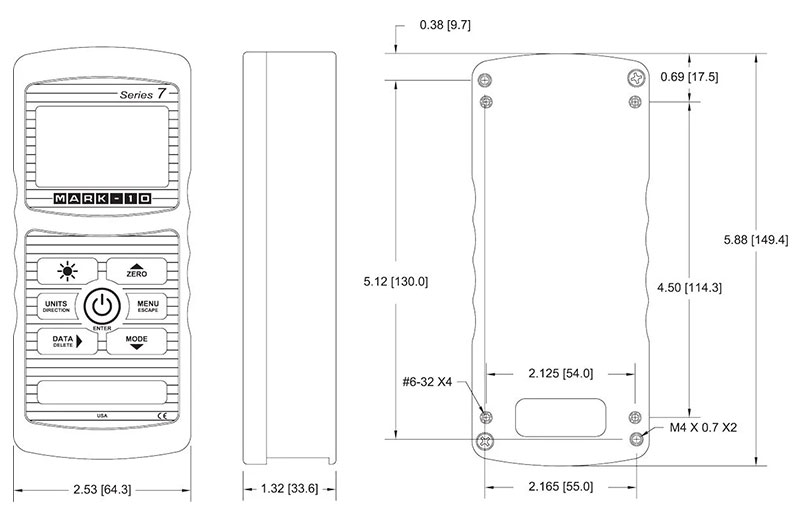

Dimensions
Technical Data
| Accuracy: | ±0.1% of full scale | |
| Sampling rate: | 14,000 Hz | |
| Data output rate: | up to 500 Hz* | |
| Power: | AC or rechargeable battery. Multi-step low battery indicator is displayed, gauge shuts off automatically when power is too low. | |
| Battery life: | Backlight on: up to 7 hours of continuous use Backlight off: up to 24 hours of continuous use |
|
| Outputs: | USB / RS-232: Configurable up to 230,400 baud. Automatic output available up to 250 Hz. Includes Gauge Control Language 2 for full computer control. Mitutoyo (Digimatic): Serial BCD suitable for all Mitutoyo SPC-compatible devices. Analog: ±1 VDC, ±2% of full scale at capacity. General purpose: Three open drain outputs, one input. Set points:Three open drain lines, 40 VDC max., 100 mA DC max. |
|
| Safe overload: | 150% of full scale (display shows “OVER” at 110% and above) | |
| Weight: | 0.7 lb (0.3 kg) | |
| Shipping weight: | 3 lb (1.4 kg) | |
| Environmental requirements: | 40 – 100°F, max. 96% humidity, non-condensing | |
| Warranty: | 3 years (see individual statement for further details) | |
| Conformance: | CE, UKCA | |
| HS code: | Model no. | HS code: |
| M7I (all models) | 9024100000 | |
| 15-1004 AC1109 AC1111 AC1118 AC1030 AC1031 AC1032 AC1035 AC1008 |
9024800000 | |
| ECCN: | EAR99 | |
| Country of origin: | USA | |
* Firmware version 2.3.2 or higher required.
