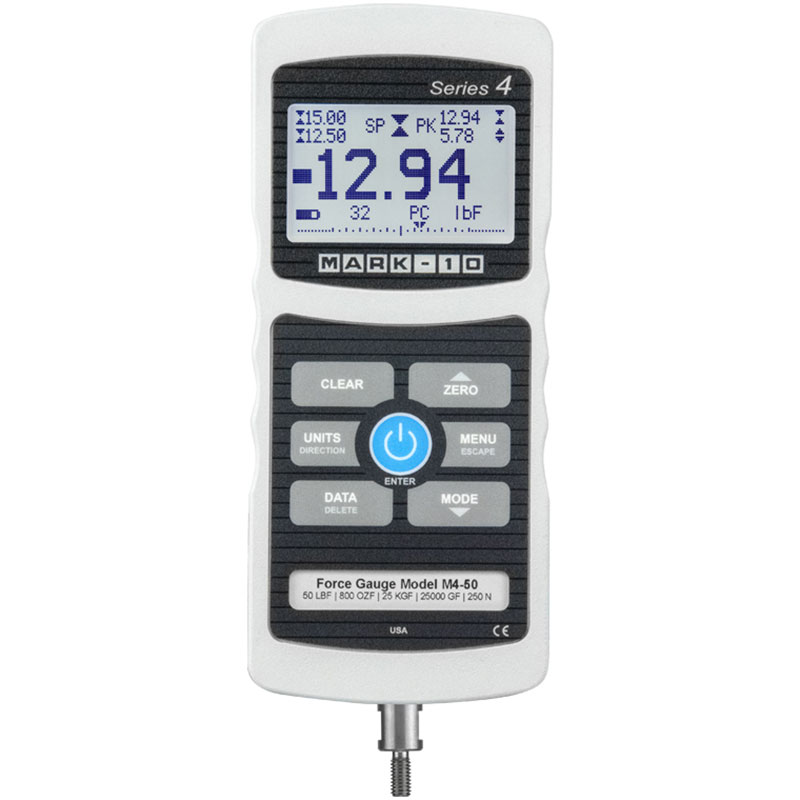

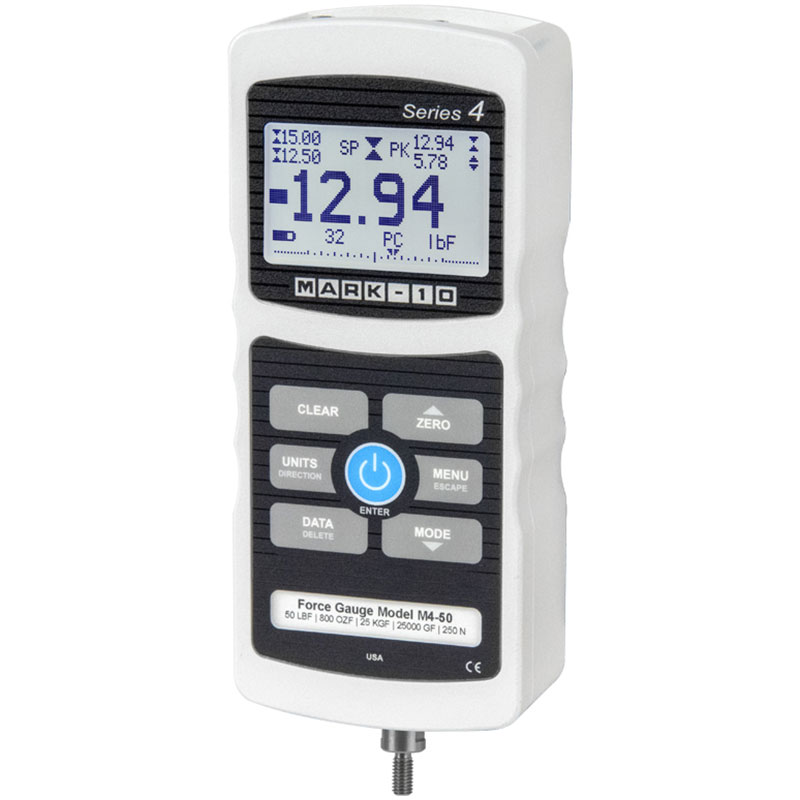

Series 4 Digital Force Gauge

Benefits

• Accuracy is ±0.2% of full scale, and resolution is 1/2000.
• Overload protected to 200% of capacity.

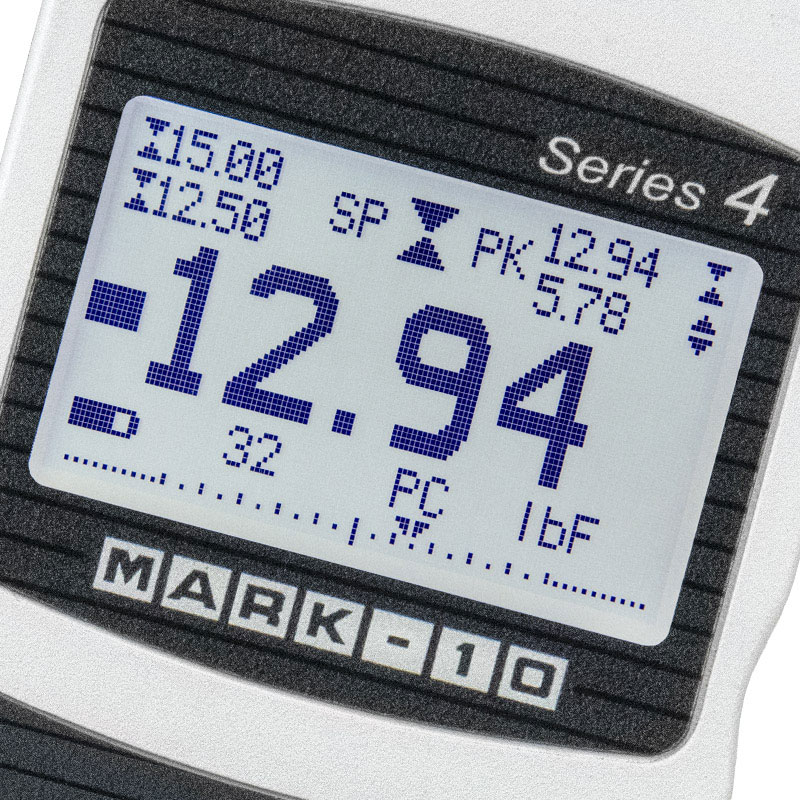

• Large, backlit graphics LCD displays large, legible characters.
• Simple menu navigation allows for quick access to the gauges’ many features and configurable parameters.
• On-board data memory for up to 50 readings is included, as are statistical calculations and output to a PC.
• Analogue load bar is shown on the display for graphical representation of applied force.

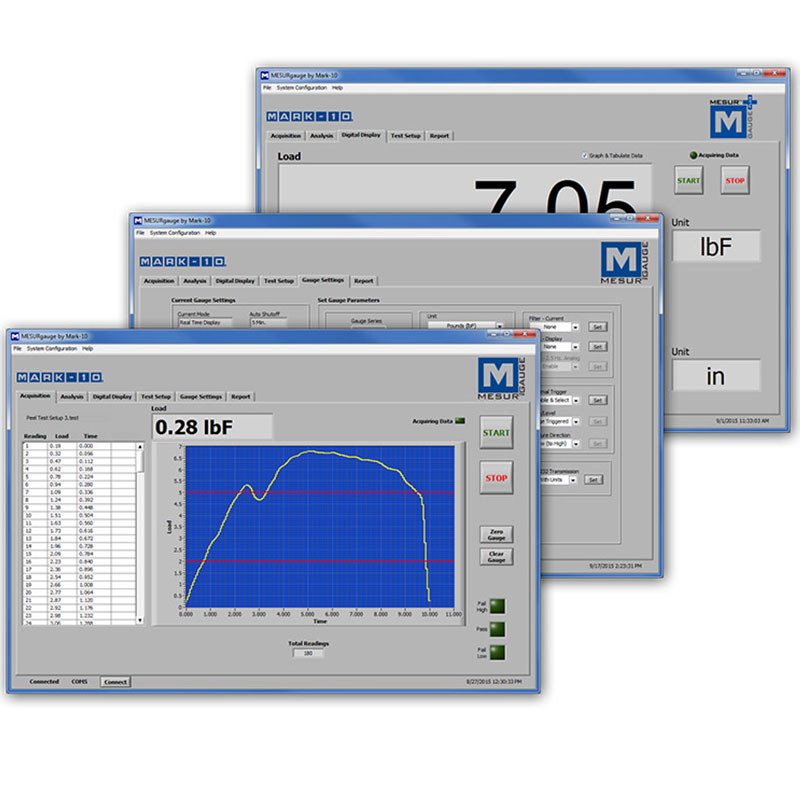

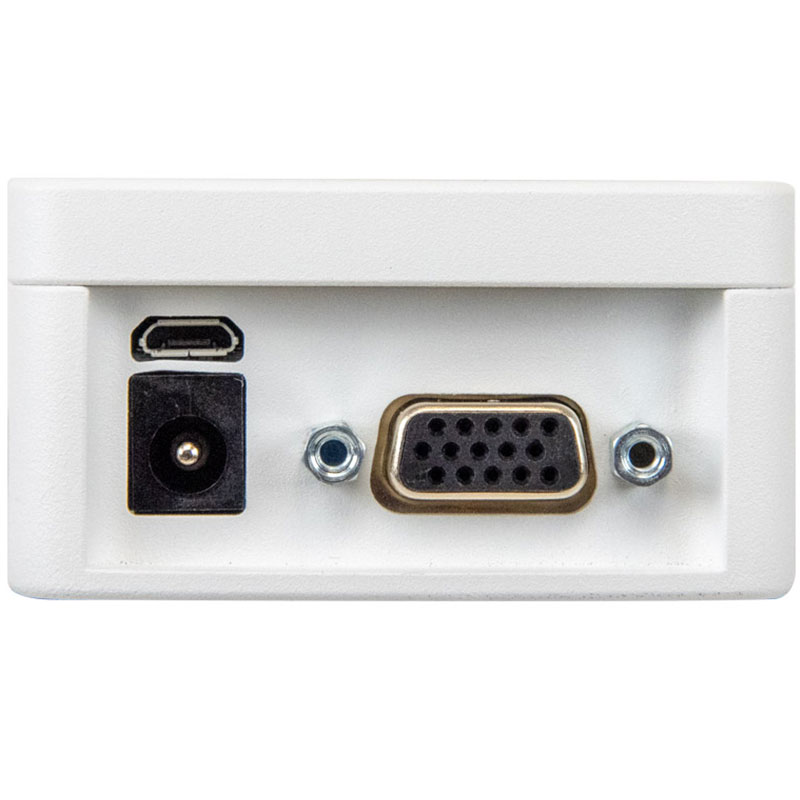

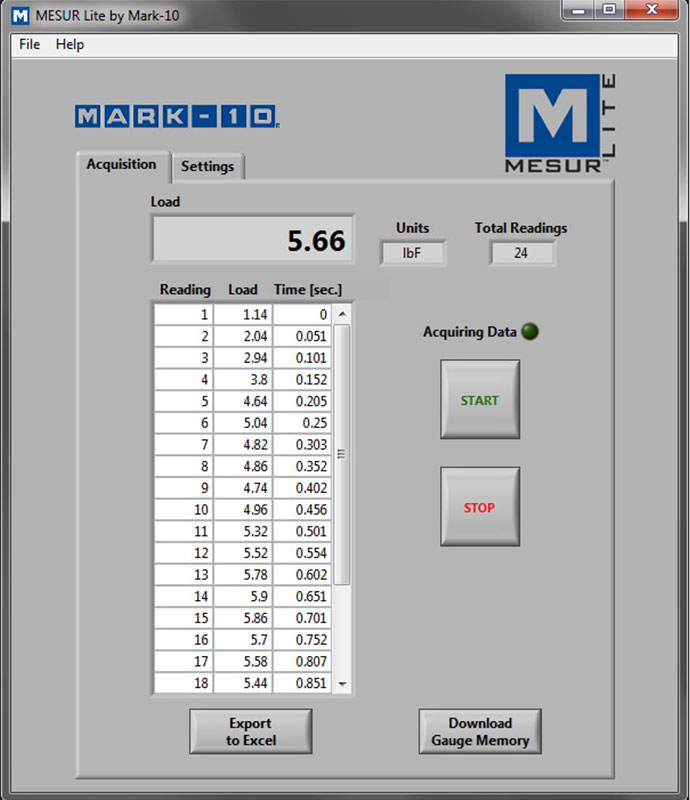

• Data can be transferred to a PC or other data collector via USB, RS-232, Mitutoyo (Digimatic), or analogue outputs.
• Integrated set points with indicators are ideal for pass-fail testing and for triggering external devices such as an alarm, relay, or test stand.
• Five selectable units of measurement.
• Password protection, configurable for individual keys and calibration.
• Three year warranty.

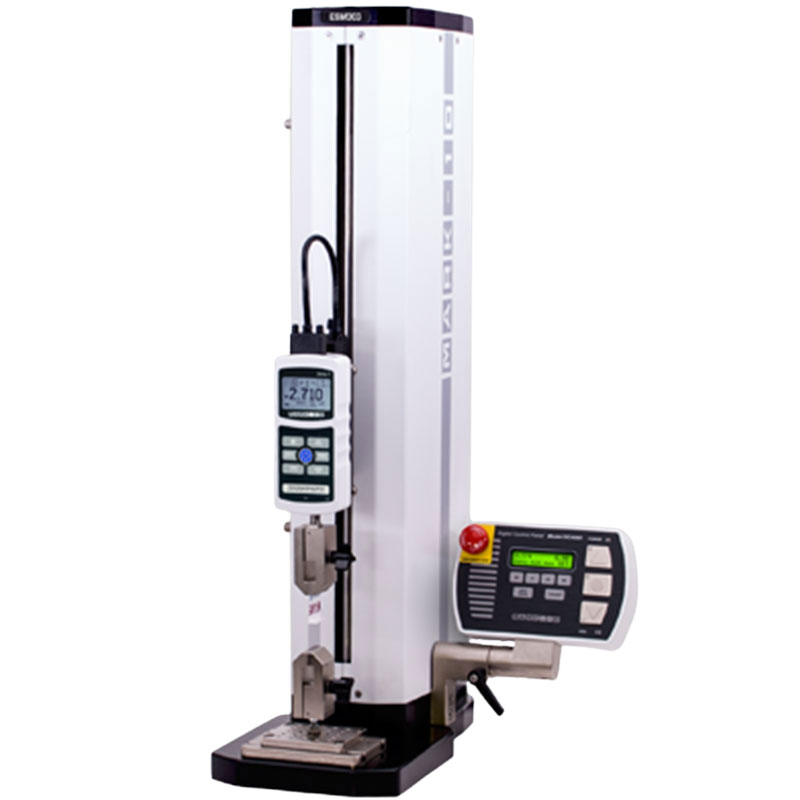

• Compatible with a wide range of gripping fixtures and test stands.
• Supported by AML in the UK.

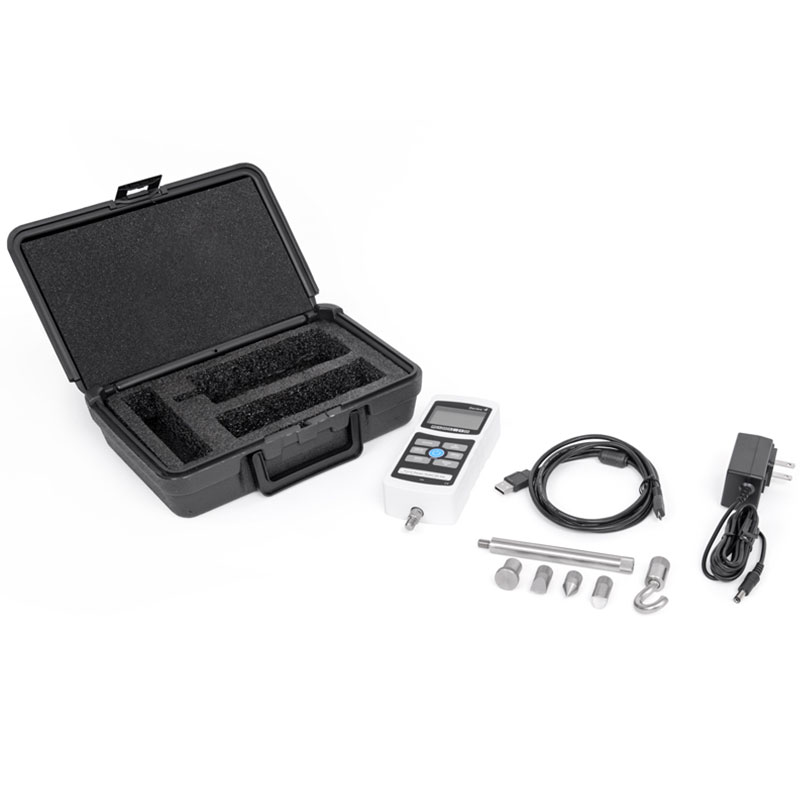

The Series 4 Digital Pull Force Gauges include the following accessories:

• 1 x extension rod*
• 1 x hook*
• 1 x cone*
• 1 x chisel*
• 1 x V-groove*
• 1 x flat*
• 1 x coupling*
• 1 x carrying case
• 1 x USB cable
• 1 x AC adapter
• 1 x battery
• 1 x certificate of calibration with data (Please Note: The instrument includes a built-in calibration mode that can be accessed by the user, but only after entering the provided passcode).

*The specific accessory depends on the force gauge model. See the table below for details.

Series 4 Digital Force Gauge Models – Capacity x Resolution

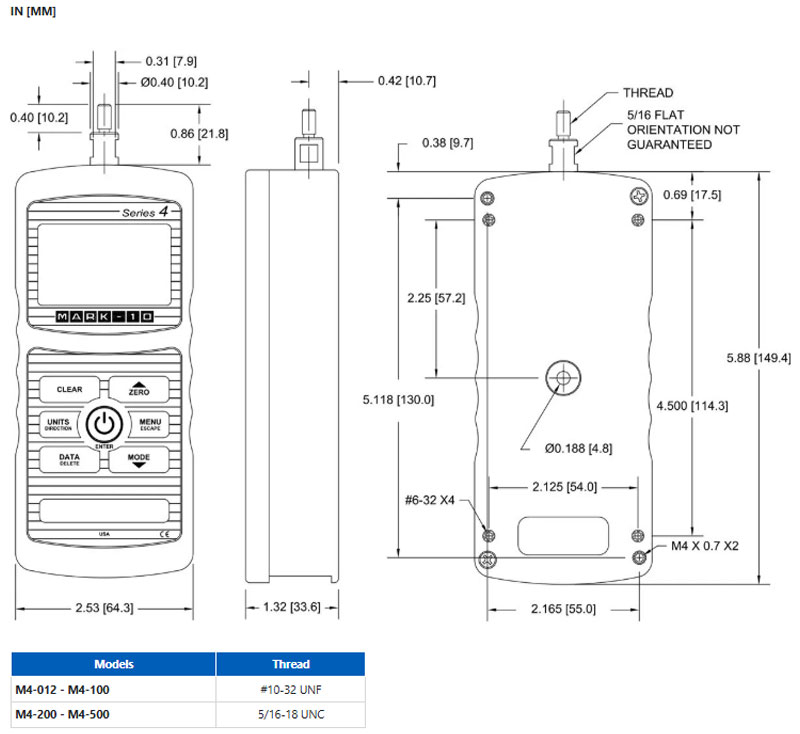

Dimensions

Technical Data
