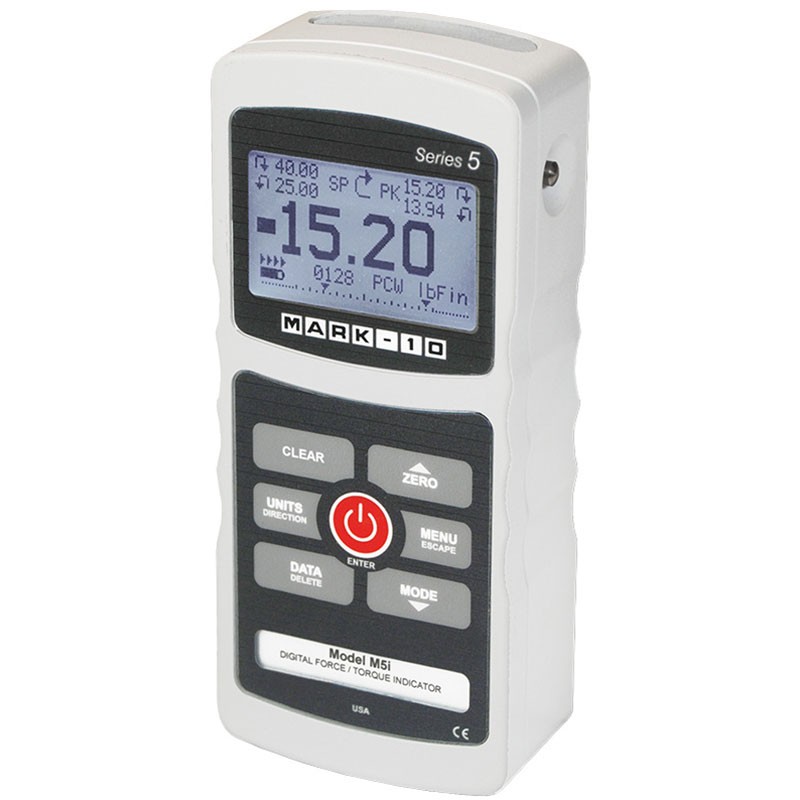

Model M5I Advanced Digital Force / Torque Indicator
Manufactured by Mark-10

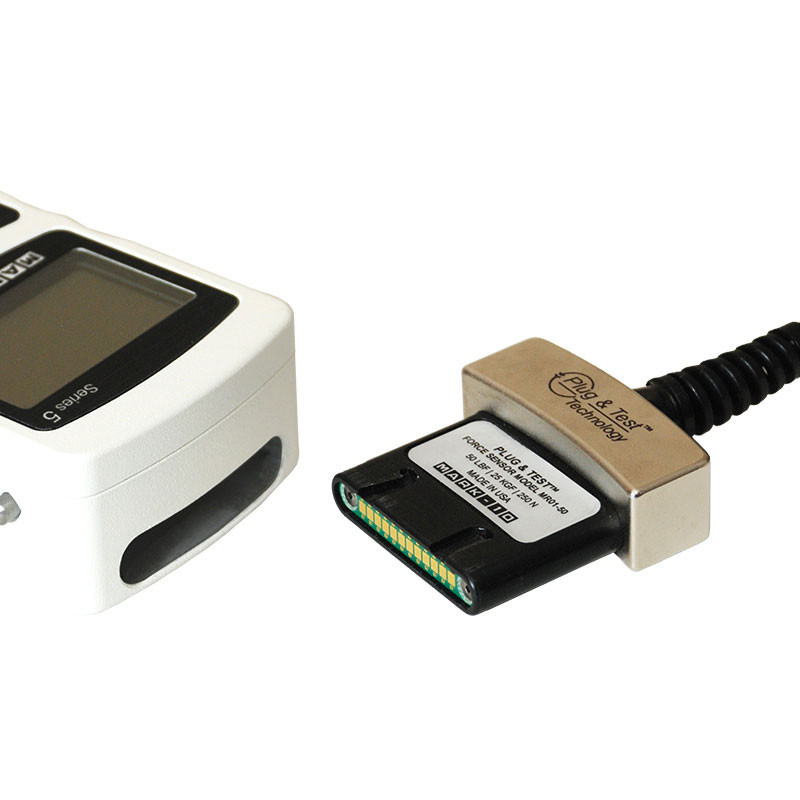

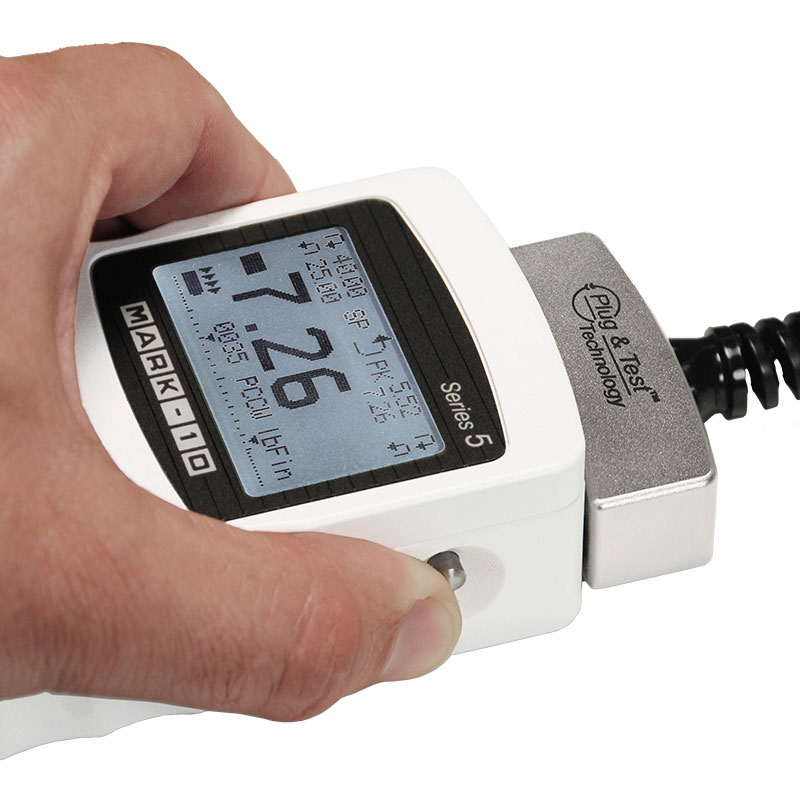

The M5I advanced digital force / torque indicator comes with exclusive Plug & Test® technology. This means all calibration and configuration data is saved within the sensor’s smart connector (not the indicator), allowing for true interchangeability.

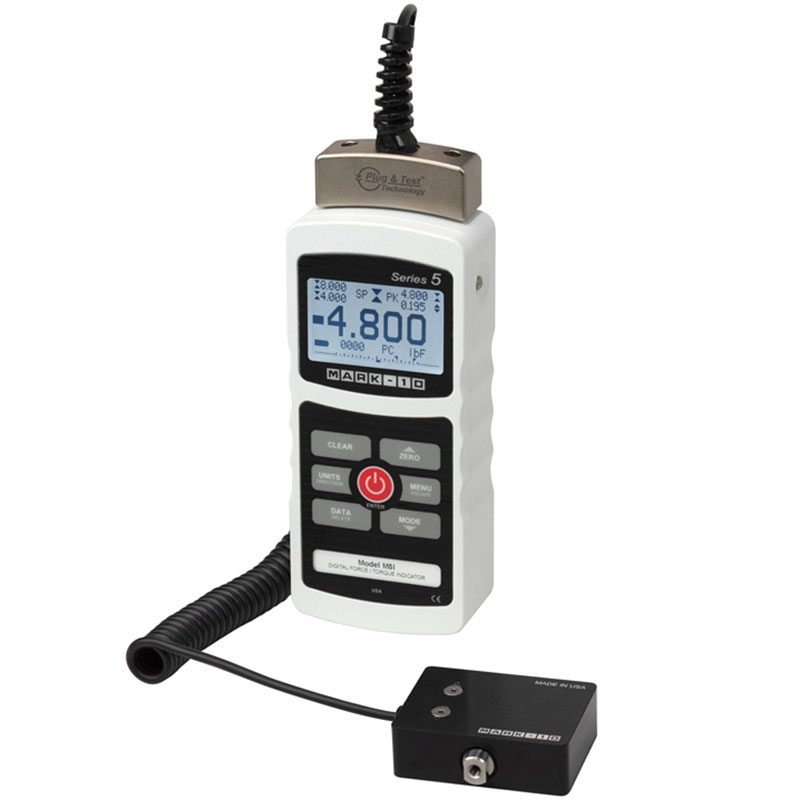

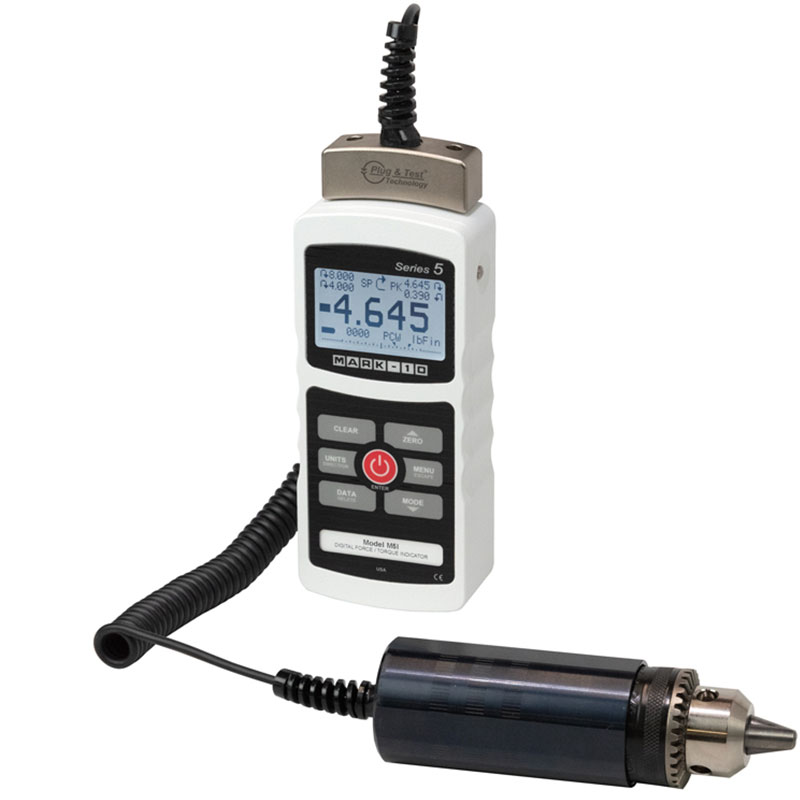

It’s designed to work with a wide range of Mark-10 remote force and torque sensors, such as the Series R06 Wire Crimp Pull Sensors.
This advanced torque and force indicator shares its menu structure and more specifications with the Series 5 Digital Force Gauges. On-board data memory for up to 1,000 readings is included, while the super-fast 7,000 Hz sampling rate produces accurate results, even for quick-action tests.
Please Note: Sensors are sold separately.
Benefits
- High-speed 500 Hz data output rate. This includes statistical calculations with output to a PC.

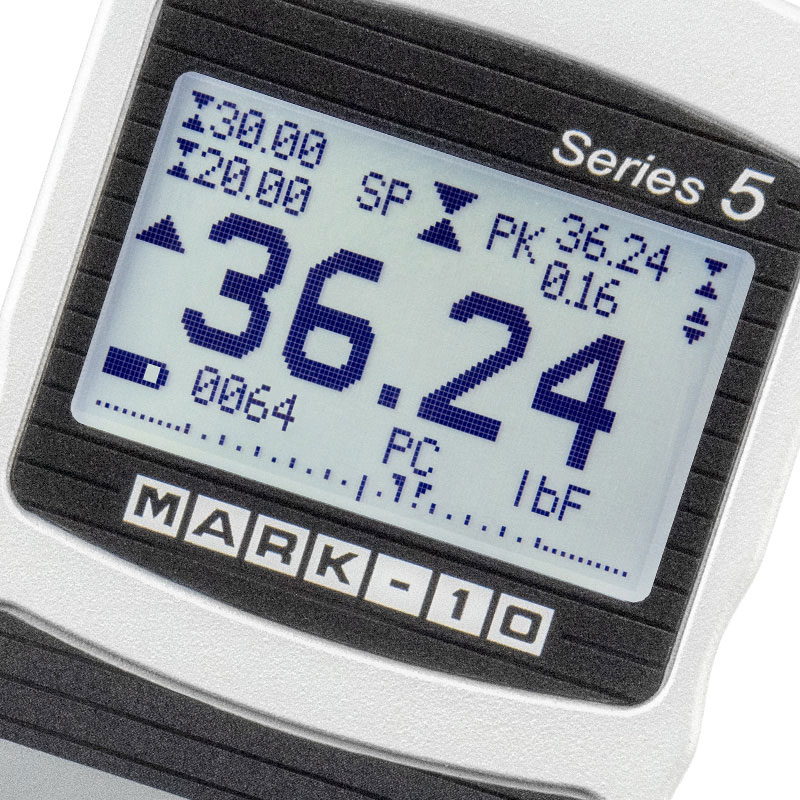

- Large, backlit graphics LCD displays large, legible characters.
- Simple menu navigation allows for quick access to the indicator’s many features and configurable parameters.
- Sensor password protection prevents use of an unauthorised sensor.
- Integrated set points with indicators and outputs are ideal for pass-fail testing and for triggering external devices such as an alarm, or relay.
- Analogue load bar is shown on the display for graphical representation of applied force or torque.
- Averaging mode addresses the need to record the average load over time
- External trigger mode makes switch activation testing simple and accurate.
- Data can be transferred to a PC or data collectors via USB, RS-232, Mitutoyo (Digimatic), or analogue outputs.

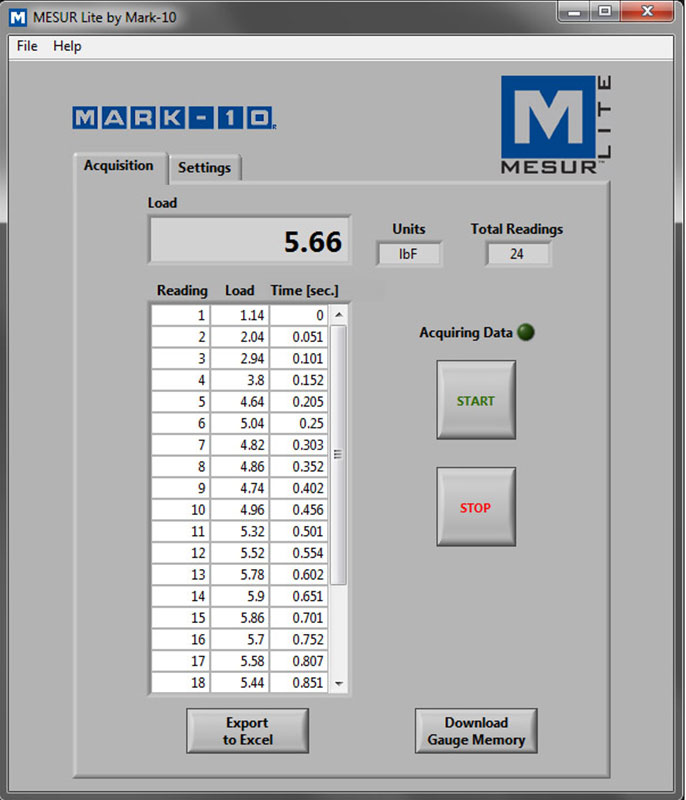

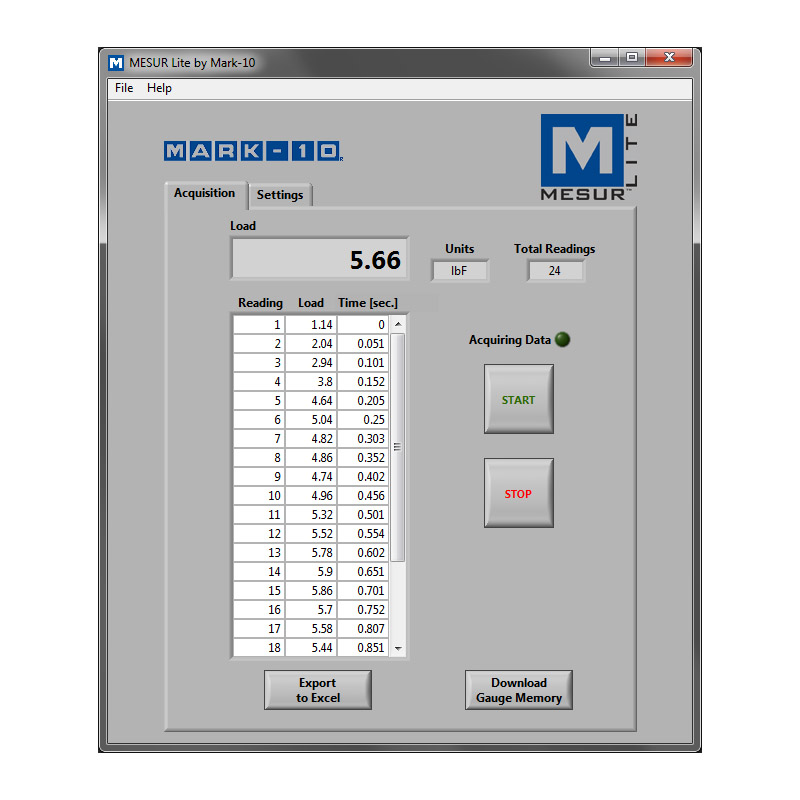

- MESUR®Lite data acquisition software is included, which tabulates continuous or single point data.
- Data saved in the indicator’s memory can be downloaded in bulk.
- One-click export to Excel easily allows for further data manipulation.
- Five selectable units of measurement.
- Configurable audio alarms and key tones.
- CE marked.
- Three year warranty.
- Supported by AML in the UK.

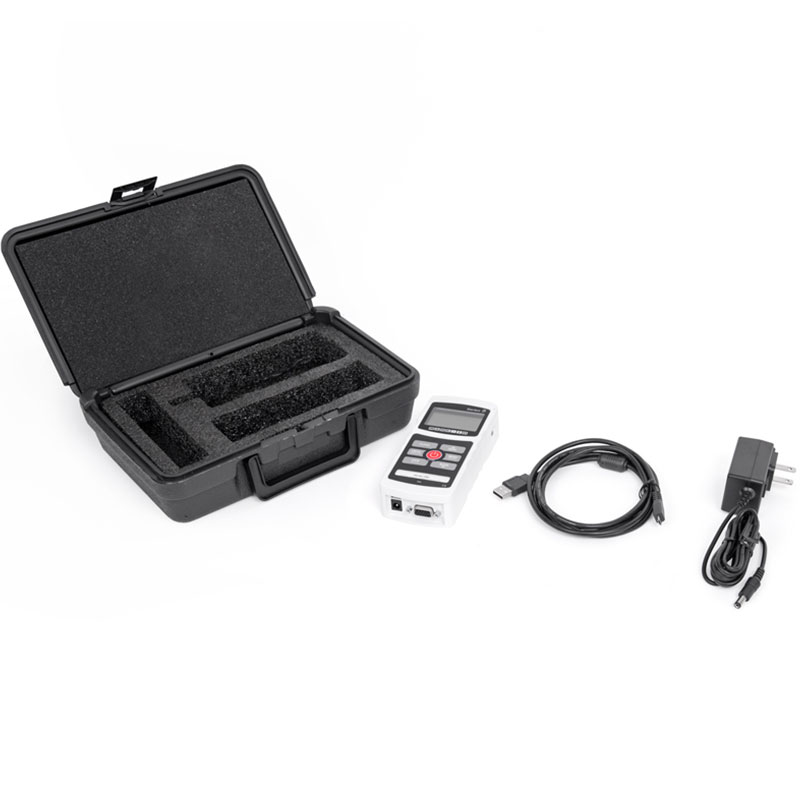

The M5I Force / Torque Indicator includes the following accessories:
- 1 x carrying case
- 1 x USB cable
- 1 x AC adapter
- 1 x battery
- 1 x certificate of calibration without data (Please Note: The instrument includes a built-in calibration mode that can be accessed by the user, but only after entering the provided passcode).
Important: Mark-10 equipment (other than the gauges) features open-access calibration. This means calibration adjustments are not locked out, giving you the freedom to use any standard-compliant calibration laboratory of your choice, saving you time and reducing lifetime ownership costs.

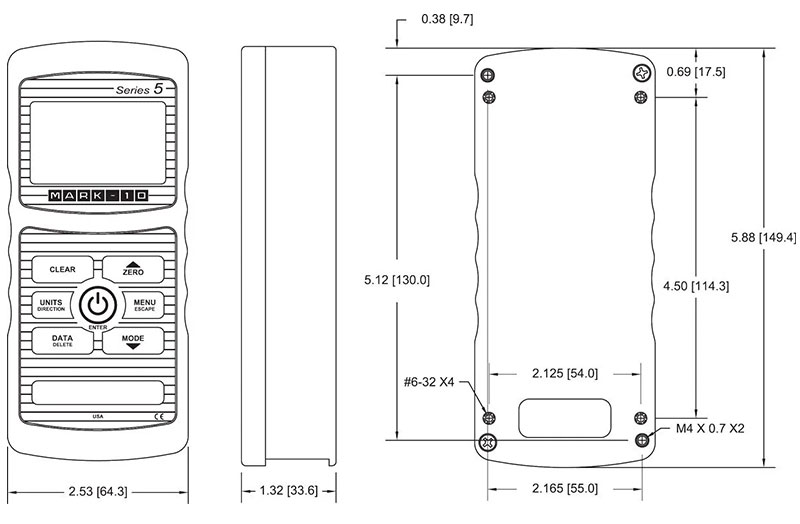

Dimensions
Technical Data
| Accuracy: | ±0.1% of full scale + sensor | |
| Sampling rate: | 7,000 Hz | |
| Data output rate: | up to 500 Hz* | |
| Power: | AC or rechargeable battery. Multi-step low battery indicator is displayed, gauge shuts off automatically when power is too low. | |
| Battery life: | Backlight on: up to 7 hours of continuous use Backlight off: up to 24 hours of continuous use | |
| Outputs: | USB / RS-232: Configurable up to 230,400 baud. Automatic output available up to 250 Hz. Includes Gauge Control Language 2 for full computer control. Mitutoyo (Digimatic): Serial BCD suitable for all Mitutoyo SPC-compatible devices. Analog: ±1 VDC, ±2% of full scale at capacity. General purpose: Three open drain outputs, one input. Set points: Three open drain lines, 40 VDC max., 100 mA DC max. |
|
| Configurable settings: | Digital filters, outputs, automatic output (via USB/RS-232), automatic shutoff, default settings, averaging mode, external trigger, passwords, key tones, audio alarms, backlight, calibration | |
| Safe overload: | 150% of full scale (display shows “OVER” at 110% and above) | |
| Weight: | 0.7 lb (0.3 kg) | |
| Shipping weight: | 3 lb (1.4 kg) | |
| Environmental requirements: | 40 – 100°F, max. 96% humidity, non-condensing | |
| Warranty: | 3 years (see individual statement for further details) | |
| Conformance: | CE, UKCA | |
| HS code: | Model no. | HS code: |
| M5I (all models) | 9024100000 | |
| 15-1004 AC1109 AC1111 AC1118 AC1030 AC1031 AC1032 AC1035 AC1008 |
9024800000 | |
| ECCN: | EAR99 | |
| Country of origin: | USA | |
* Firmware version 2.3.3 or higher required.
