Series R06 Wire Crimp Pull Sensor

£1,771.00

Manufactured by Mark-10

Looking for a hand-operated device for measuring wire crimp pull-off forces? Check out the MR06-200 Wire Crimp Pull sensor with its ergonomic handles and convenient tensioning mechanism.

It makes field measurements a breeze for up to 200 lbF (1,000 N) for wire testing crimp applications like testing wire terminals in aircraft and agricultural machinery.

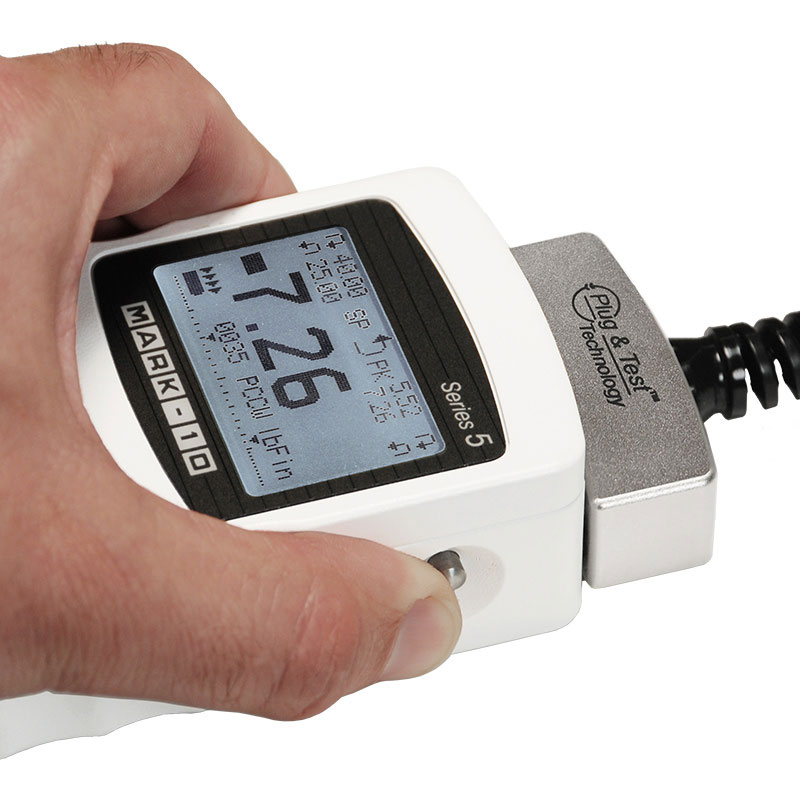

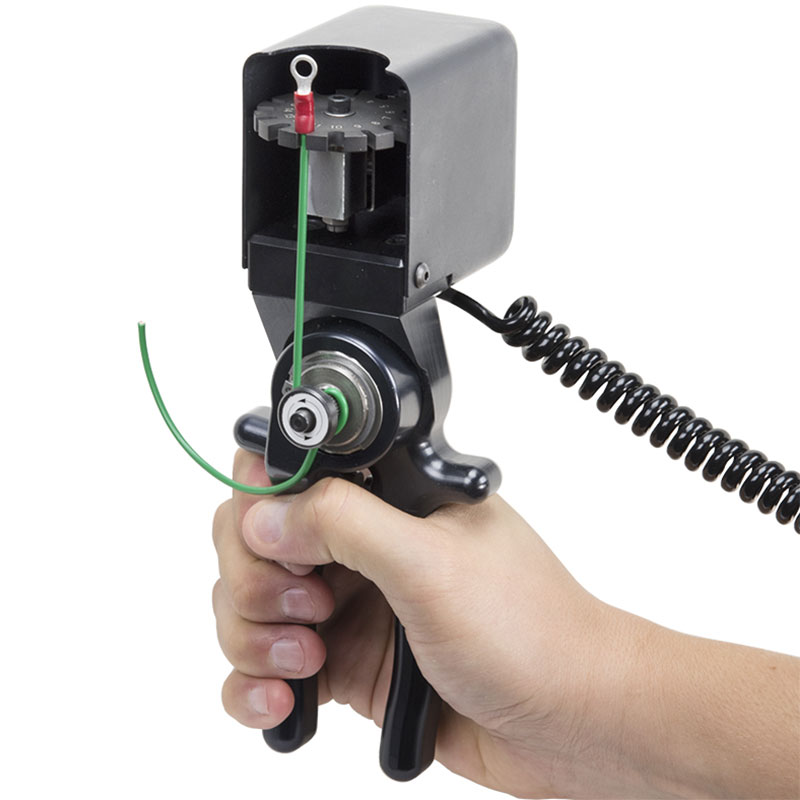

Simply squeeze the handles together to increase tension on the sample until a break occurs. The peak force is recorded by a Mark-10 indicator like the M5i or M7i (indicators sold separately), which utilises unique Plug & Test® technology.

Qty:
Request a Quote Ask a Question Data Sheet

Benefits

  • Ergonomic handles for easy tension application.

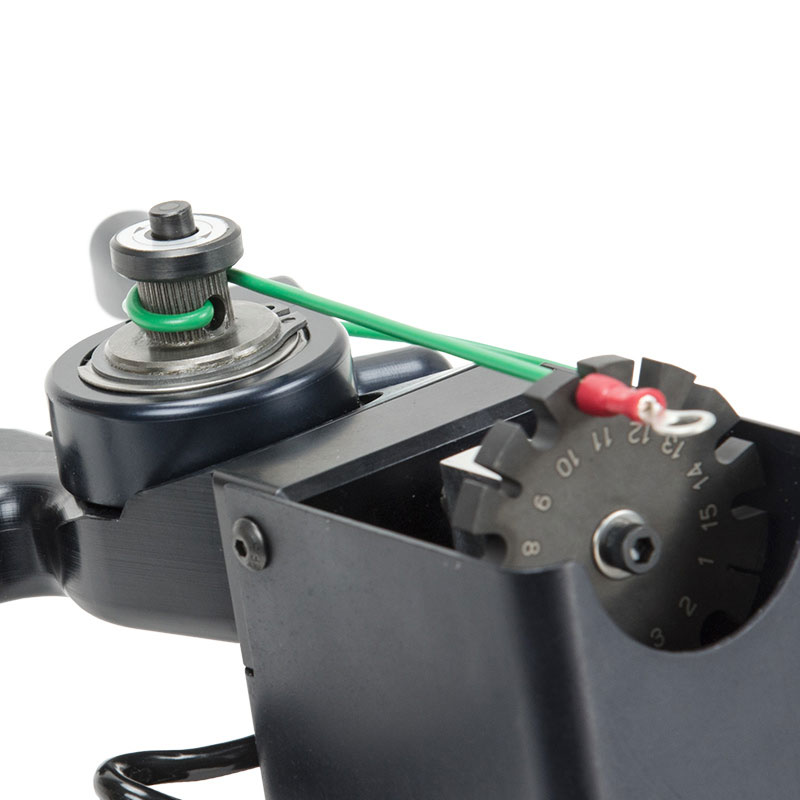

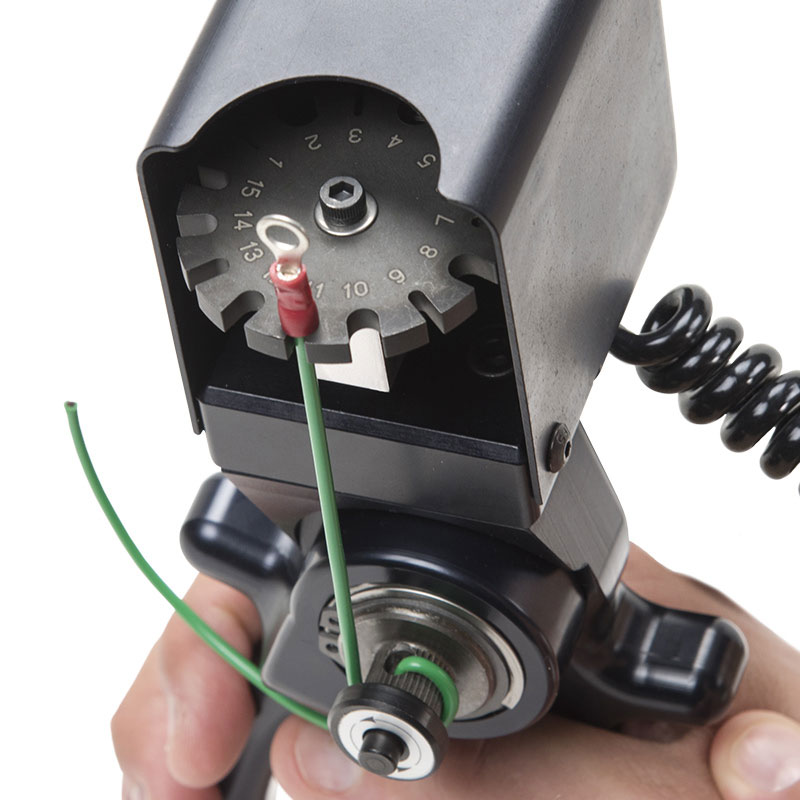

  • Rotating turret with slots of multiple sizes accommodates a wide range of wire diameters, up to 0.25 in. (6.4 mm).
  • Fully manual operation, ideal for field and production environments.

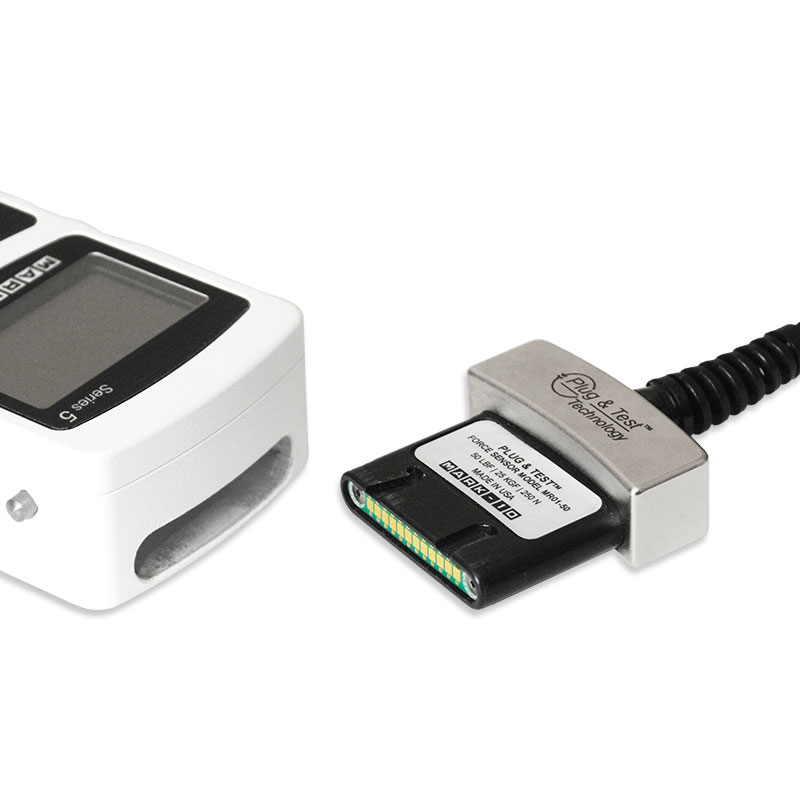

  • Unique Plug & Test® technology enables compatibility with force indicators like the M5i and M7i.
  • Three year warranty.
  • Supported by AML in the UK.

Important: Mark-10 equipment (other than the gauges) features open-access calibration. This means calibration adjustments are not locked out, giving you the freedom to use any standard-compliant calibration laboratory of your choice, saving you time and reducing lifetime ownership costs.

Reviews

There are no reviews yet.

Be the first to review “Series R06 Wire Crimp Pull Sensor”

Your email address will not be published. Required fields are marked *

With Model M7I and M5I Indicators

Capacity x Resolution
Model lbF ozF kgF N kN
MR06-200 200 x 0.1 3200 x 2 100 x 0.05 1000 x 0.5 1 x 0.0005

Technical Data

  • Accuracy: ±0.5% of full scale + indicator
  • Weight: 2.5 lb [1.1 kg]
  • Shipping weight: 4 lb [1.8 kg]
  • Slot dimensions (in [mm]): 0.03 [0.8], 0.05 [1.3], 0.06 [1.5], 0.08 [2.0], 0.09 [2.3], 0.11 [2.8], 0.13 [3.3], 0.14 [3.6], 0.16 [4.1], 0.17 [4.3], 0.19 [4.8],
    0.20 [5.1], 0.22 [5.6], 0.24 [6.1], 0.25 [6.4]
  • Minimum sample length: 7.0 in [178 mm]
  • HS code: MR06-200: 9024900000
  • ECCN: EAR99
  • Country of origin: USA
