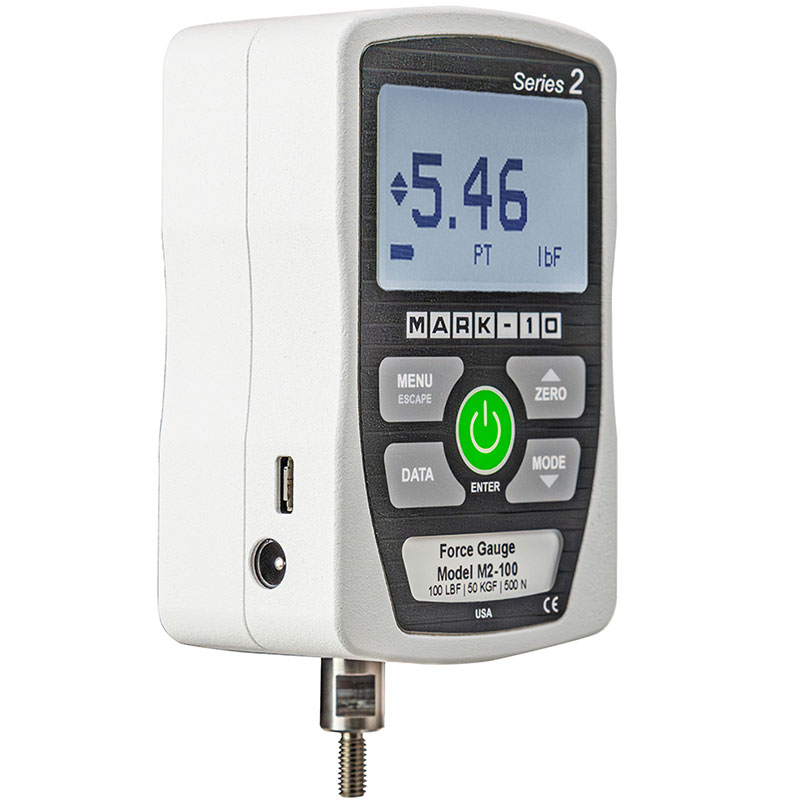

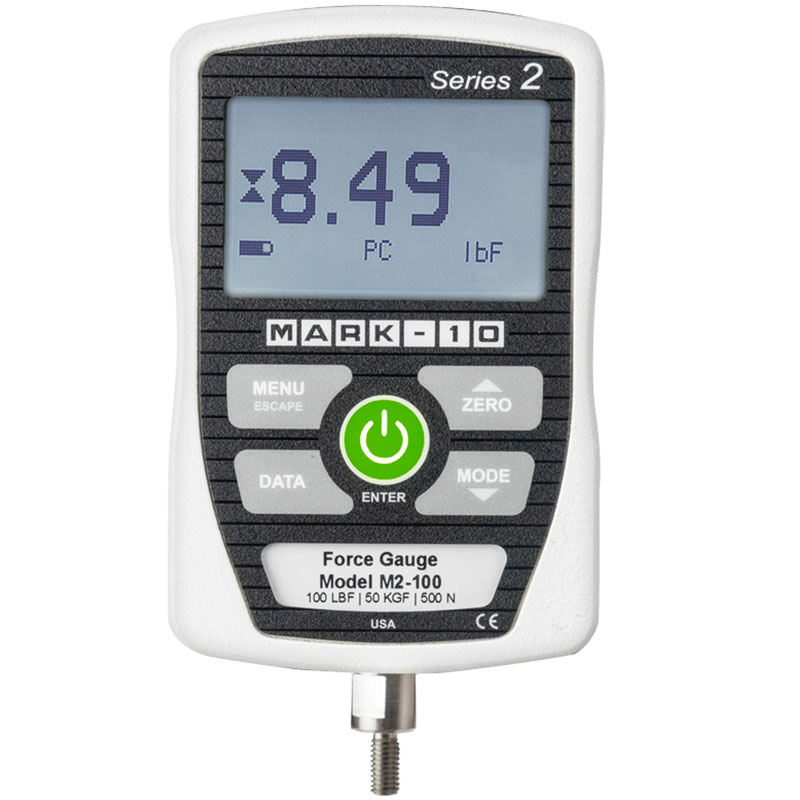

Series 2 Digital Force Gauge
Manufactured by Mark-10
The Series 2 Digital Pull Force Gauge is designed for basic tension and compression force testing applications up to 500 lbF (2,500 N).
Eight different models are available, all reliably capturing peak tension and compression readings via the gauge’s ±0.5% accuracy and 500 Hz sampling rate.

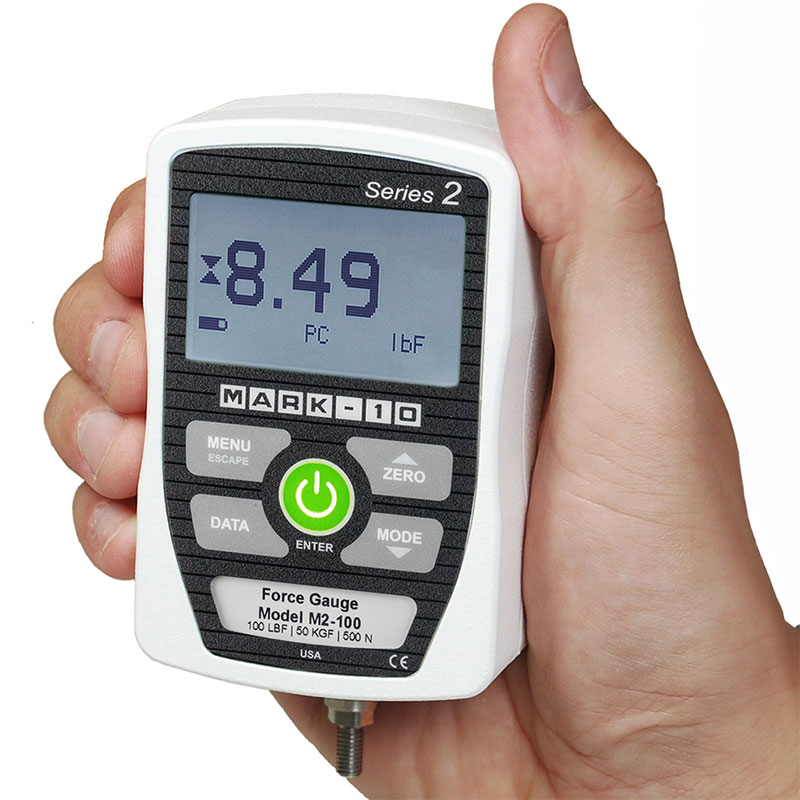

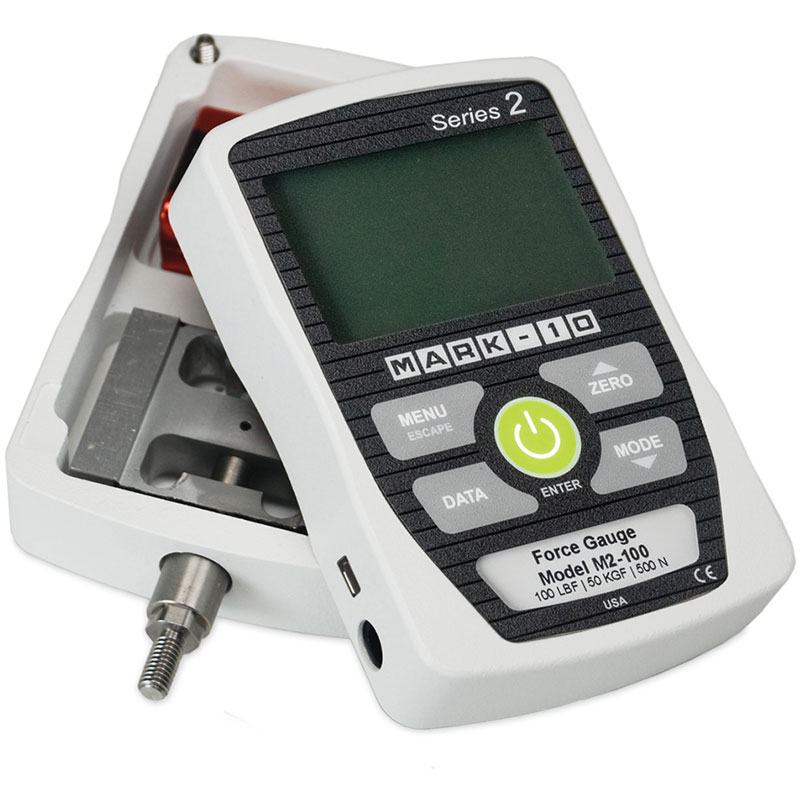

Ergonomic, reversible aluminium housing allows for handheld use or fixture mounting, as well as alternate load cell orientation.
Price range: £386.00 through £527.00
Capacity-resolution
Select a variation to pay instantly
Benefits
- Rugged enough for applications in both production and laboratory environments.

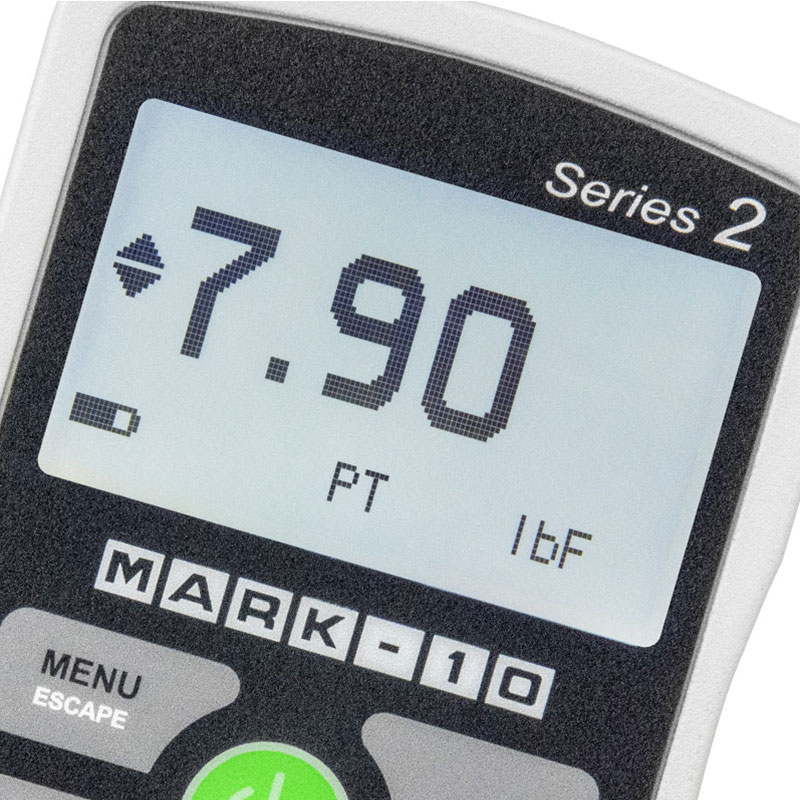

- Backlit graphic LCD with auto-dimming displays the current, peak tension, or peak compression reading.
- USB data output of continuous or individual data points.
- Overload protected to 200% of capacity.
- Three selectable units of measurement.
- Powered by rechargeable battery or AC adapter.
- Three year warranty.

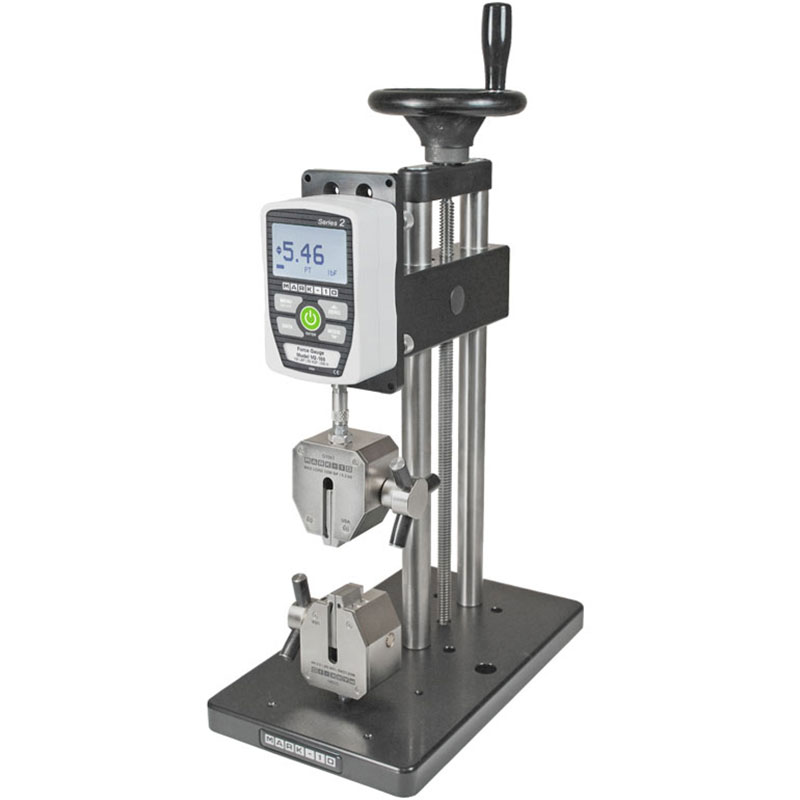

- Compatible with a wide range of gripping fixtures and force gauge test stands.
- Supported by AML in the UK.
The Series 2 Digital Force Gauges include the following:
- 1 x AC adapter
- 1 x battery
- 1 x USB cable
- 1 x carrying case
- 1 x certificate of conformance.
Please Note: The instrument includes a built-in calibration mode that can be accessed by the user, but only after entering the provided passcode.
Series 2 Digital Force Gauge Models – Capacity x Resolution
| Model | lbF | kgF | N |
| M2-2 | 2 x 0.002 | 1 x 0.001 | 10 x 0.01 |
| M2-5 | 5 x 0.005 | 2.5 x 0.002 | 25 x 0.02 |
| M2-10 | 10 x 0.01 | 5 x 0.005 | 50 x 0.05 |
| M2-20 | 20 x 0.02 | 10 x 0.001 | 100 x 0.1 |
| M2-50 | 50 x 0.05 | 25 x 0.02 | 250 x 0.2 |
| M2-100 | 100 x 0.1 | 50 x 0.05 | 500 x 0.5 |
| M2-200 | 200 x 0.2 | 100 x 0.1 | 1000 x 1 |
| M2-500 | 500 x 0.5 | 250 x 0.2 | 2500 x 2 |

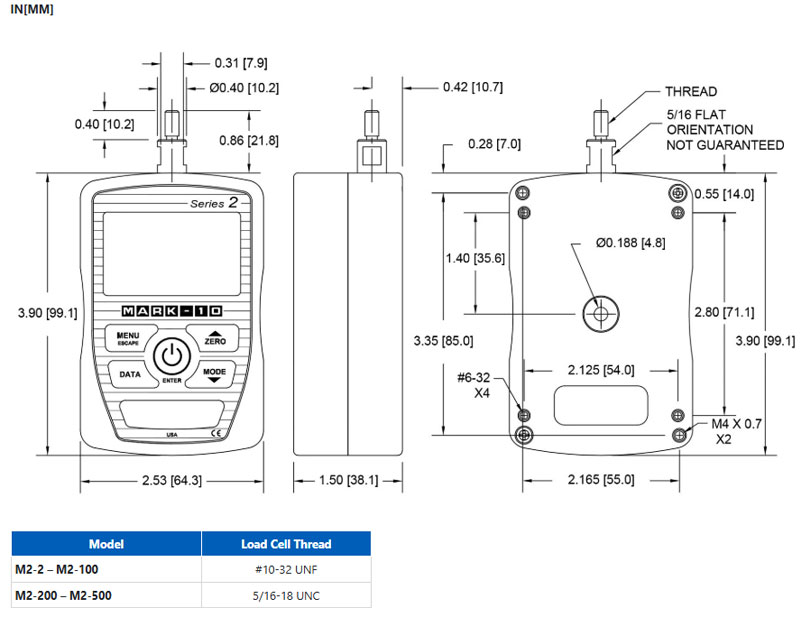

Dimensions
Technical Data
| Accuracy: | ±0.5% of full scale | |
| Sampling rate: | 500 Hz | |
| Power: | AC or rechargeable battery. Multi-step low battery indicator is displayed, gauge shuts off automatically when power is too low. | |
| Battery life: | Backlight on: up to 7 hours of continuous use Backlight off: up to 24 hours of continuous use |
|
| Measurement units: | lbF, kgF, N | |
| USB output: | Configurable up to 115,200 baud. | |
| Safe overload: | 200% of full scale (display shows “OVER” at 110% and above) | |
| Weight: | M2-2 – M2-100: 0.7 lb [0.33 kg] M2-200 – M2-500:0.9 lb [0.41 kg] |
|
| Shipping weight: | M2-2 – M2-100: 3 lb [1.4 kg] M2-200 – M2-500:3.2 lb [1.5 kg] |
|
| Environmental requirements: | 40 – 100°F, max. 96% humidity, non-condensing | |
| Warranty: | 3 years (see individual statement for further details) | |
| Conformance: | CE, UKCA | |
| HS code: | Model no. | HS code: |
| M2 (all capacities) | 9024100000 | |
| CERT 12-1049 AC1118 AC1030 AC1031 AC1032 AC1035 AC1052 |
9024800000 | |
| ECCN: | EAR99 | |
| Country of origin: | USA | |
