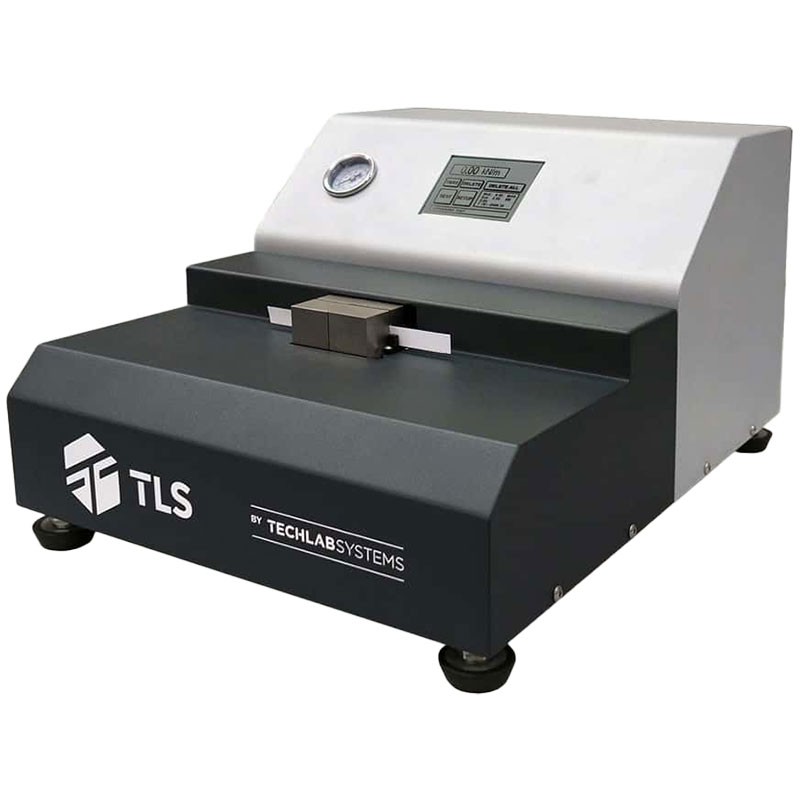

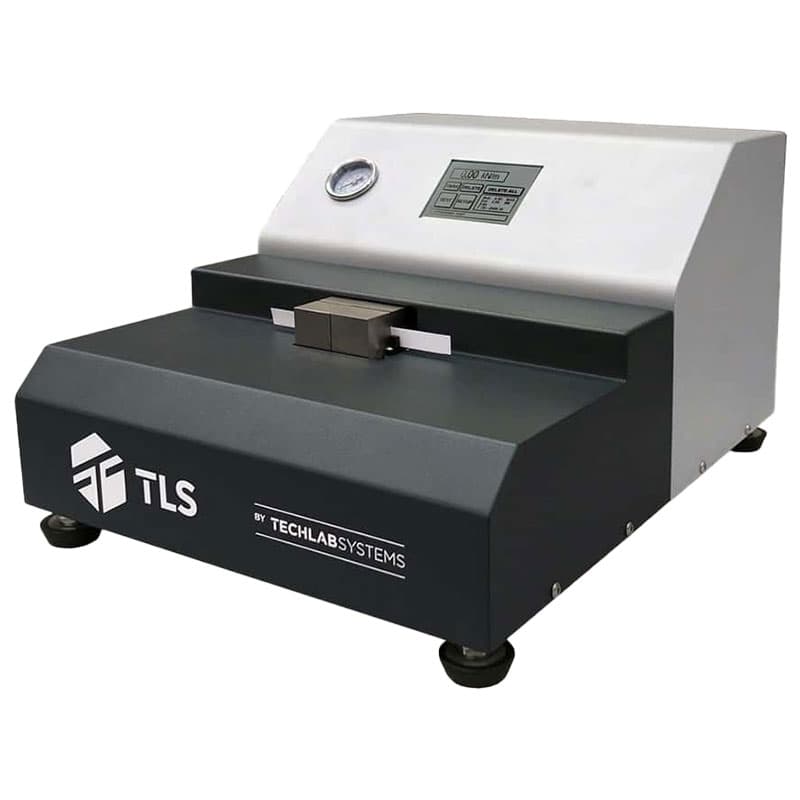

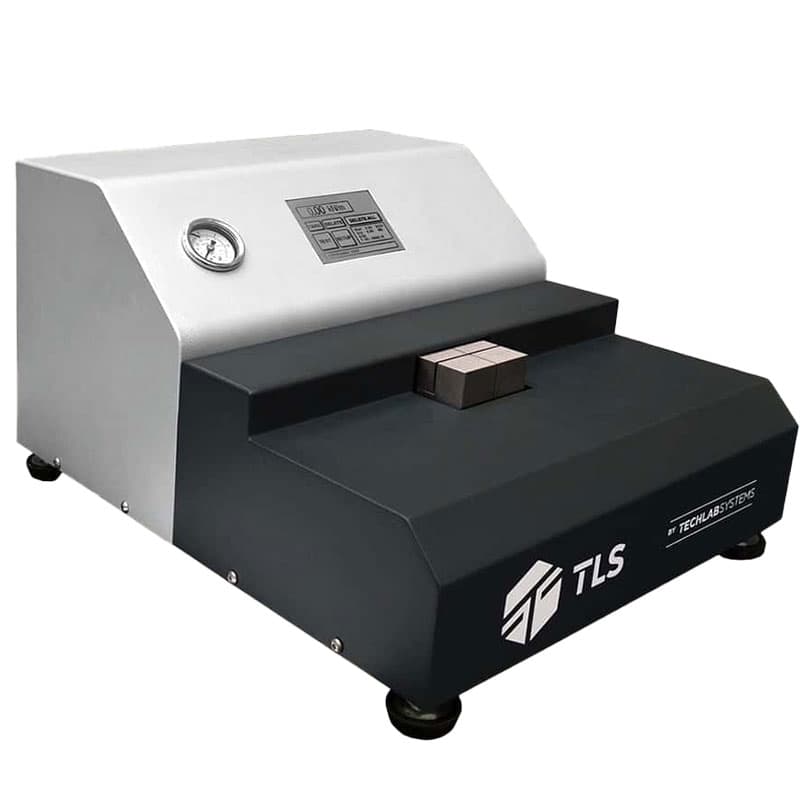

TechLab Systems (TLS) S-TEST testing machine with a digital control panel, pressure gauge, and a metallic testing block on the platform."

S-TEST Paper Compression Tester

Name: S-TEST Paper Compression Tester
Brand: Techlab Systems
Availability: InStock

Developed in 2018 as an alternative to the CMT method, this S-TEST compression tester accurately measures the compressive strength of medium paper samples via the S-Test method (4mm short distance compression between jaws and 1mm offset).

The S-TEST is performed using a 15mm wide medium paper specimen that’s compressed until failure occurs.

Unlike the CMT test where multiple factors (incorrect flutes, inadequate tape adhesion, etc.) can affect the final result, the S-Test requires less sample preparation, is much more consistent, and can be correlated to the first plateau of the CMT.

Price on quotation

Data sheets

Benefits

Accurately measures the compressive strength of medium paper samples via the S-TEST method.
More reliable, consistent, and time-efficient test method compared to the CMT measurement.
With the exception of cutting the specimen, there is no other sample preparation.
Measuring range between 0 and 300 N.
Touch screen control and reading results (RS-232 interface).
Compatible with the T-LAB system.

S-Test Description

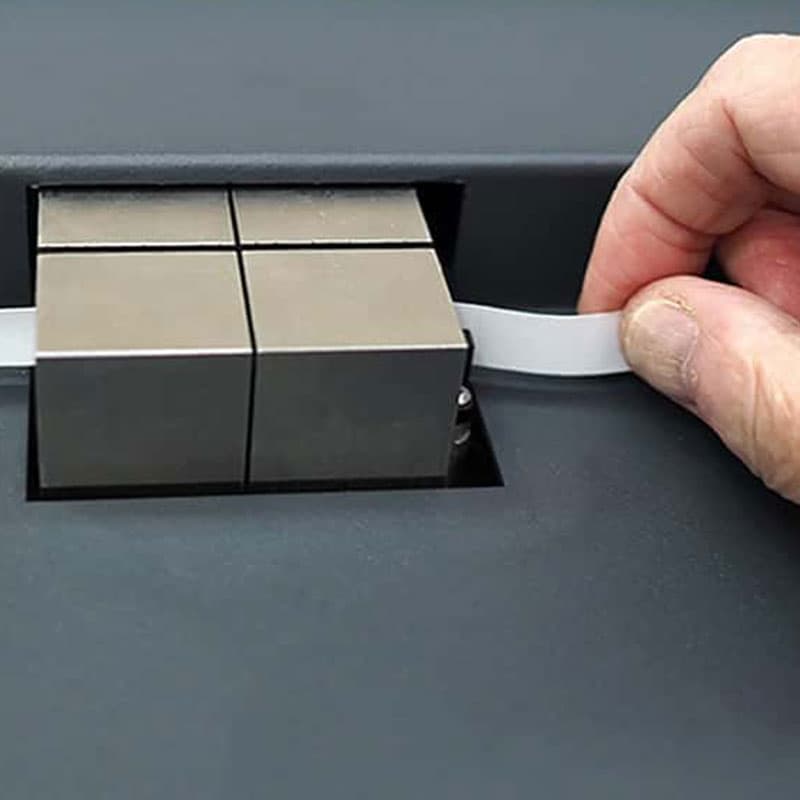

The test should be conducted right after sample preparation or after 30 minutes for the CMT30 value. The measuring procedure is very simple — you need to a cut a paper sample with 15mm width and place it into the clamping jaws. Now press the start button, and the clamps will close and start moving in compression till the sample fails. The force upon failure of the test sample is measured and shown in kN/m or Lb/in.
