Box Compression Tester (BCT)

Box Compression Tester (BCT)

Manufactured by Techlab Systems

Techlab Systems (TLS) box compression tester for the corrugated board, solid board and packaging industries

MiniVal™ , Validator™, Validator™ Plus and VAL™ models these box compression tester are the industry standard for determining the ultimate compression strength and long-term stacking ability of boxes, bulk containers and pallets.

Customisation is available for any of the models and bespoke compression testers can be designed and manufactured.

Compressive force levels are available from 10 kN to 750 kN and can be integrated with the Techlab Systems extremely easy to use and intuitive LYNX ™ software for control, data acquisition and analysis.

Complies with all leading international standards: ISO 12048 – DIN EN 22872 – TAPPI T 804 – FEFCO 50 – AFNOR H 13001 – ISTA..

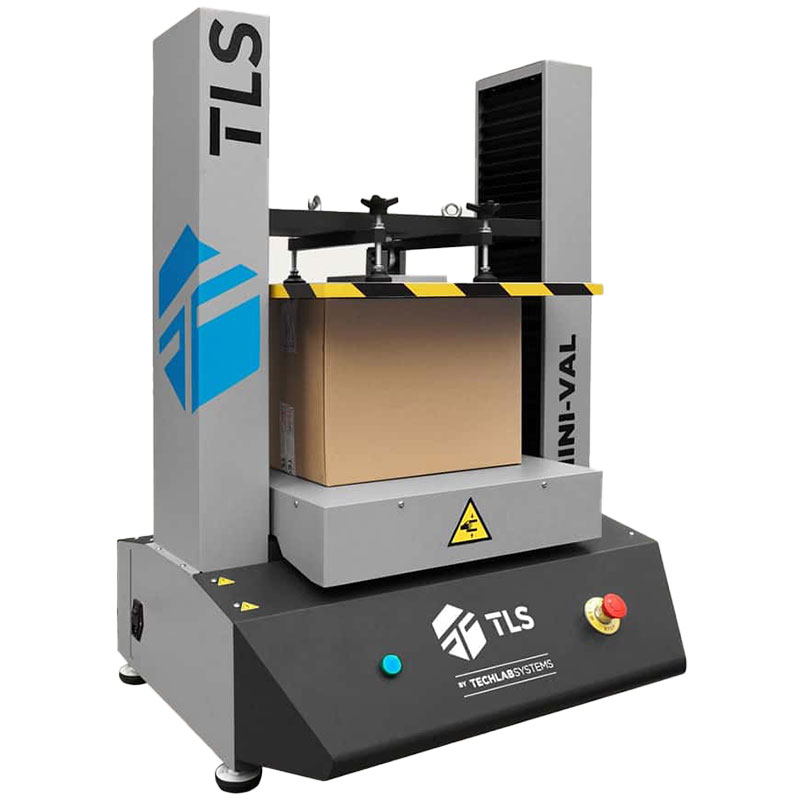

Mini-Val™ BOX COMPRESSION TESTER (BCT)

For testing compressive strength for smaller packages and boxes.

Mini-Val™ BOX COMPRESSION TESTER (BCT)

Mini-Val™ BOX COMPRESSION TESTER (BCT)

Standard Features

  • Rigid and robust design
  • Maximum Force: 10 kN
  • High accuracy 3 load cell design
  • Digital Display for load & deflection (in PC)
  • Platen size: 500 x 500 mm
  • Precision Ball Screw drive system
  • Top fixed and parallel plate  (TAPPI)
  • Max. opening: 500 mm
  • Force reading in N – Kg & Lb
  • Deflections reading: mm/in.
  • Automatic return to test position
  • RS-232 data output
  • PC Closed Loop Control
  • Includes A PC Touch Screen 20″
  • LYNX testing software
  • Compatible with the widely popular Quality Management software package
    LYNX Plus et LYNX Pro

Minival Compression Tester Data Sheet

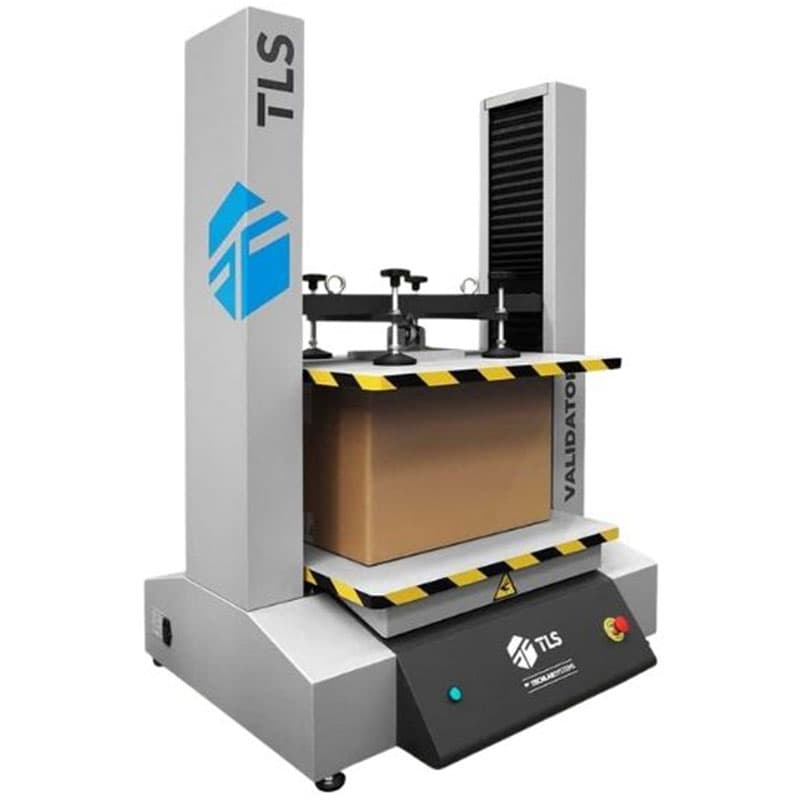

Validator™
BOX COMPRESSION TESTER (BCT)

Validator™ BOX COMPRESSION TESTER (BCT)

Validator™ BOX COMPRESSION TESTER (BCT)

For compression testing of medium sized packages boxes and containers

Standard Features

  • Rigid and robust design
  • Maximum. Force 25 kN
  • High accuracy 3 load cell design
  • Digital Display for load & deflection (in PC)
  • Platen size: 800 x 800 mm
  • Oscillating (ISO-FEFCO) & Fixed Plate (TAPPI)Precision Ball Screw drive system
  • Top fixed and parallel plate (TAPPI)
  • Max. opening: 800 mm
  • Force reading in N – Kg & Lb
  • Deflections reading: mm/in.
  • Automatic return to test position
  • RS-232 data output
  • PC Closed Loop Control
  • Includes Eee PC Touch Screen 20″
  • LYNX testing software
  • Compatible with the widely popular Quality Management software package
    LYNX Plus & LYNX Pro

Validator™ BOX COMPRESSION TESTER (BCT)

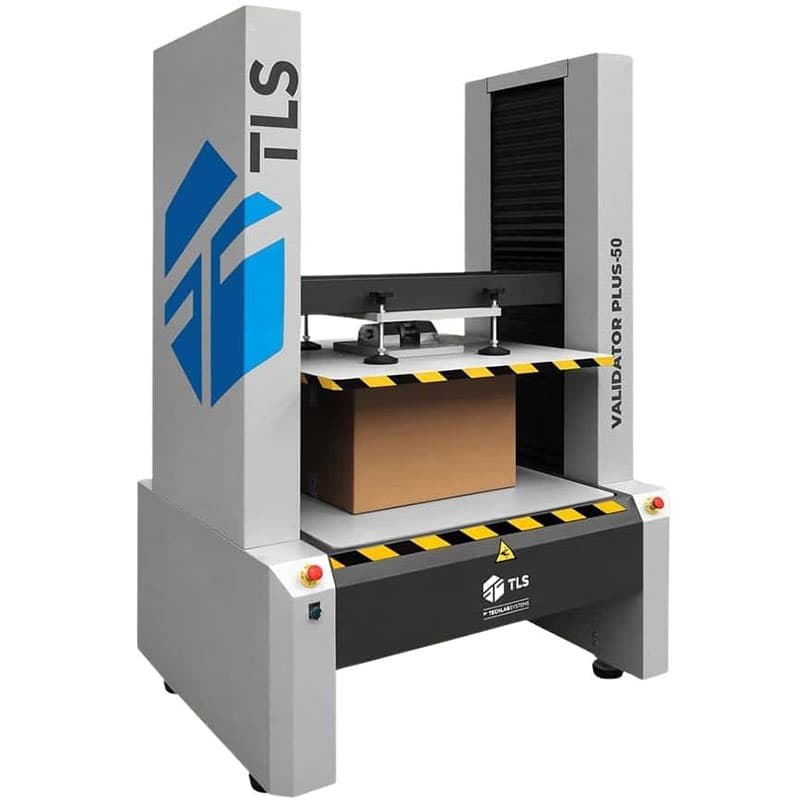

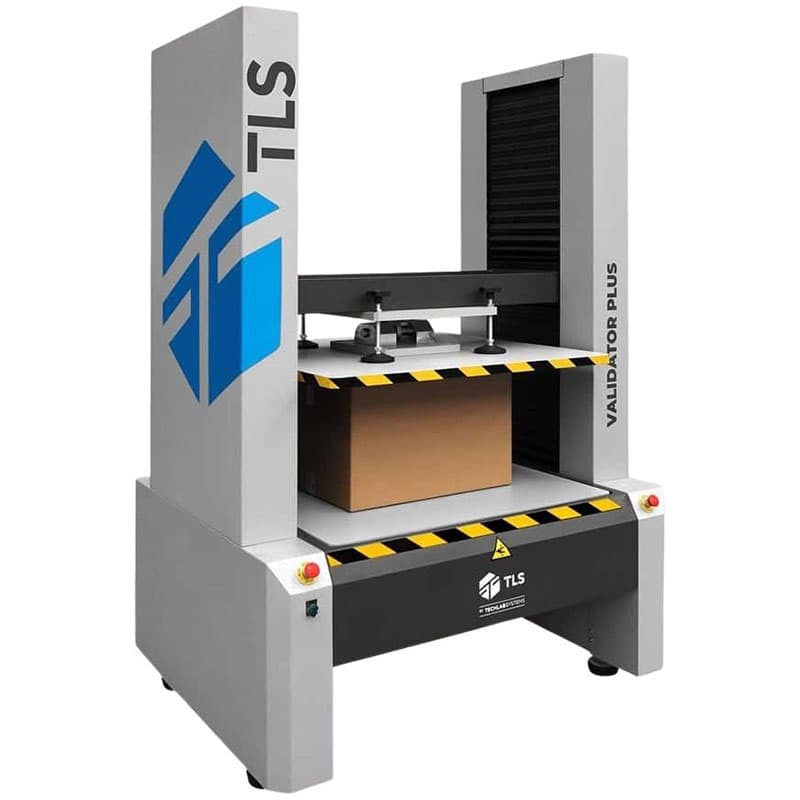

Validator™ Plus Box Compression Tester

Designed for testing compressive strength in Packing and Packaging specifications according to international standards. Designed for medium sized packages.

Validator Plus BCT Box Compression Tester

Validator Plus BCT Box Compression Tester

Standard Features

  • Rigid and robust design
  • Maximum. Force 30 kN Option for 50 kN
  • High accuracy 3 load cell design
  • Digital Display for load & deflection (in PC)
  • Platen size: 1000 x 1000 mm
  • Oscillating (ISO-FEFCO) & Fixed Plate (TAPPI)Precision Ball Screw drive system
  • Top fixed and parallel plate (TAPPI)
  • Max. opening: 800 mm
  • Force reading in N – Kg & Lb
  • Deflections reading: mm/in.
  • Automatic return to test position
  • RS-232 data output
  • PC Closed Loop Control
  • Includes Eee PC Touch Screen 20″
  • LYNX testing software
  • Compatible with the widely popular Quality Management software package
    LYNX Plus & LYNX Pro

30 kN Validator Plus Compression Tester Data Sheet

50 kN Validator Plus Compression Tester Data Sheet

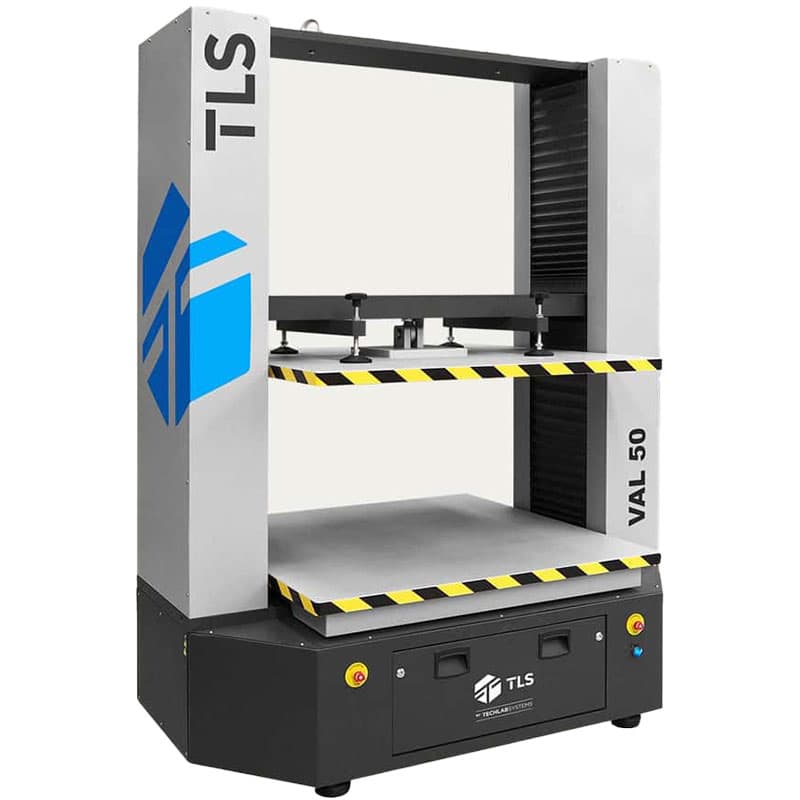

Val™ series BOX COMPRESSION TESTER (BCT)

Designed for larger boxes, containers and packaging or where higher compressive forces are required

Val™ series BOX COMPRESSION TESTER (BCT)

Val™ series BOX COMPRESSION TESTER (BCT)

Standard Features

  • Rigid and robust design
  • High accuracy 3 load cell design
  • Digital Display for load & deflection (PC)
  • Oscillating (ISO-FEFCO) & Fixed Plate (TAPPI)
  • Precision Ball Screw drive system
  • Top fixed and parallel plate (TAPPI)
  • Force reading in N – Kg & Lb
  • Deflections reading: mm/in.
  • Automatic return to test position
  • RS-232 data output
  • PC Closed Loop Control
  • Includes Eee PC Touch Screen 20″
  • LYNX testing software
  • Compatible with the widely popular Quality Management software package LYNX Plus or LYNX Pro

Val™ series BOX COMPRESSION TESTER (BCT) Data sheet

AML Instruments is the UK exclusive distributor for Techlab Systems.

TLS is a leading manufacture test equipment for the paper, corrugated board and packaging industries.

We fully support their entire range for sales service and calibration please contact us today for help and advise.

AML also calibrates box compression tester from other manufactures, visit our force calibration page for more information.
