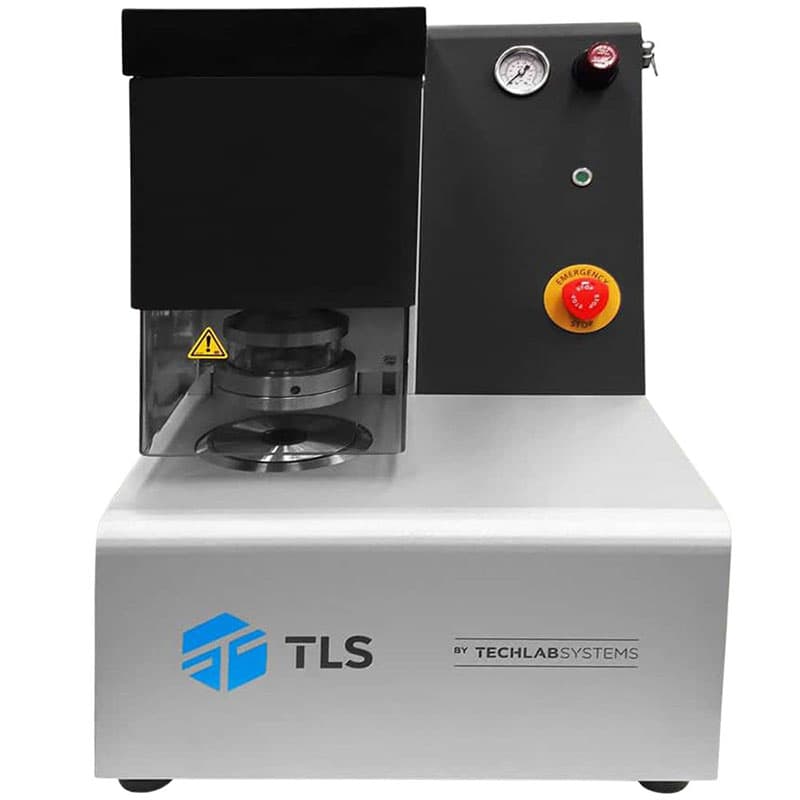

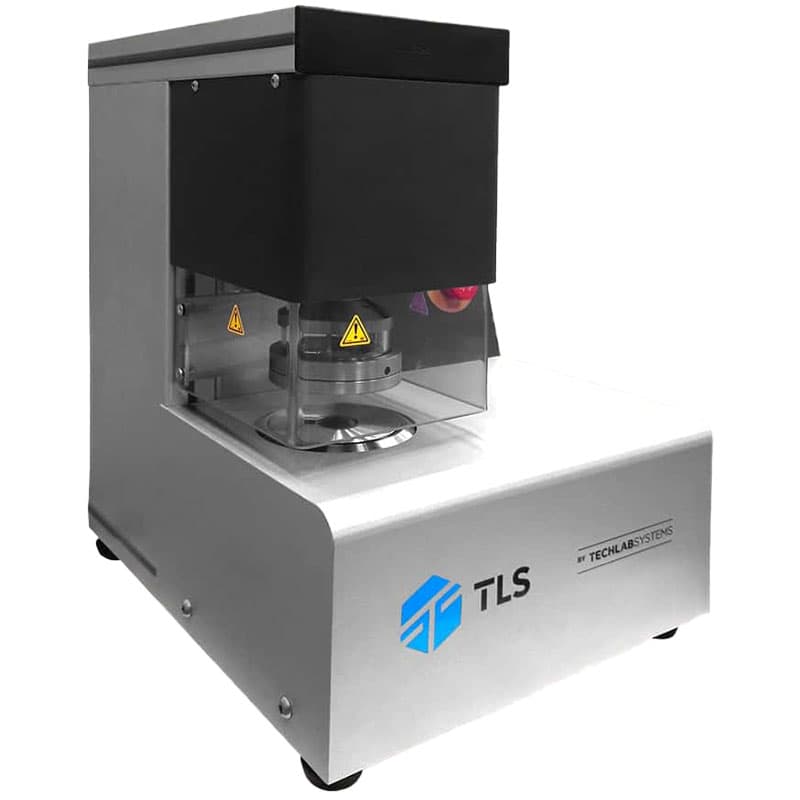

Burst Tester Paper, Board or Corrugated

Benefits

• Measurement ranges: Model BT-10 / P for paper from 0 to 1500 kPa (other ranges available by special order), Model BT-10 / C for compact and corrugated cardboard from 0 to 5000 kPa, and Model BT-10 / C-100 for compact and corrugated cardboard from 0 to 10000 kPa.
• Accuracy: +/- 1% of reading between 2% and 100% F.S.D.
• Selection of the break detection level between 10% and 90% of the maximum value.
• Numerical and Graphical data visualisation, with Readings in Units: kPa resolution every 0.2 kPa, Bars resolution every 0.002 Bar, Kg/cm2 resolution every 0.002 Kg / cm2, PSI resolution every 0.03 PSI.
• Automatic test cycle with break detection and return to initial test position.
• Maximum value memory.
• Manual and automatic zeroing.
• With data output via USB, for connection to a PC.
• Maximum thickness of the sample to be tested of 12 m
• Supplied with a laptop for data acquisition and control of the burst tester.
• Pneumatic operation of clamping system ensures repeatable results.
• Acrylic protection screen in the test area.
• Emergency button for operator safety.
• 200 cc capacity glycerin reserve tank, for greater comfort in purging air from the hydraulic circuit during membrane changes.
• RS-232 interface.
• Absorbed power: 250 w.
• Force calibration service available.

Suitable Applications

• Aluminium sheets.
• Board boxes.
• Compact board.
• Corrugated board.
• Flexible packaging.
• Paper.

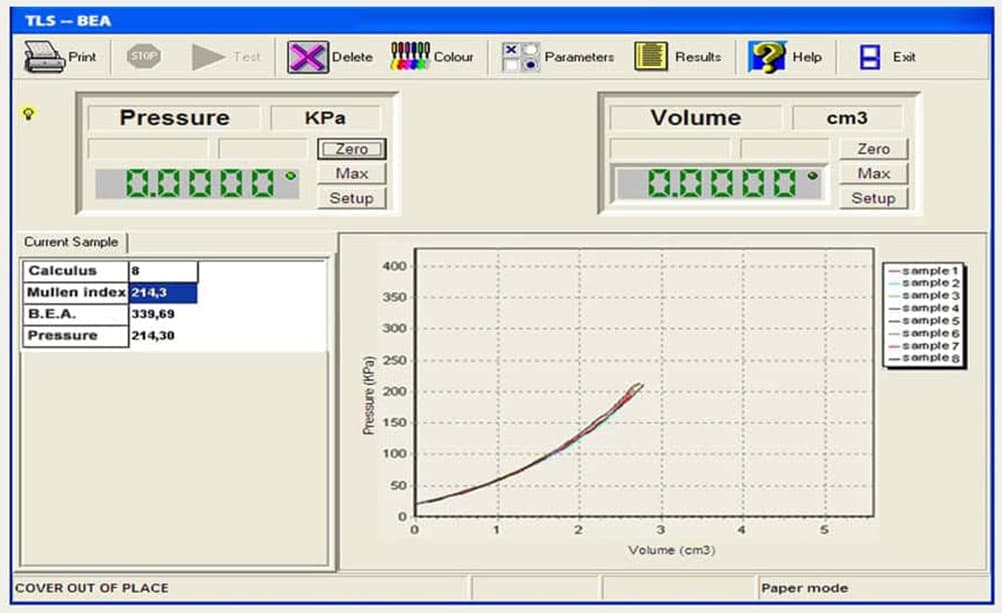

LYNX Burst Testing Software

The LYNX testing software allows burst resistance tests to be performed on samples on paper, compact and corrugated cardboard. It records minimum, maximum and median value and standard deviation, as well as offering:

• Quickness in the execution of burst tests and in obtaining results without human error.
• Traceability according to ISO 9000.
• Storage capacity up to 100 tests per report.
• SAVE, PRINT AND COPY to CLIPBOARD functions.
• Reports in PDF format.
• Different language options: Spanish – English.

Techlab Systems (TLS) is a leading manufacturer of test equipment. AML Instruments is proud to be the UK exclusive distributor for TLS, meaning we fully support their entire range for sales, service, and calibration.
