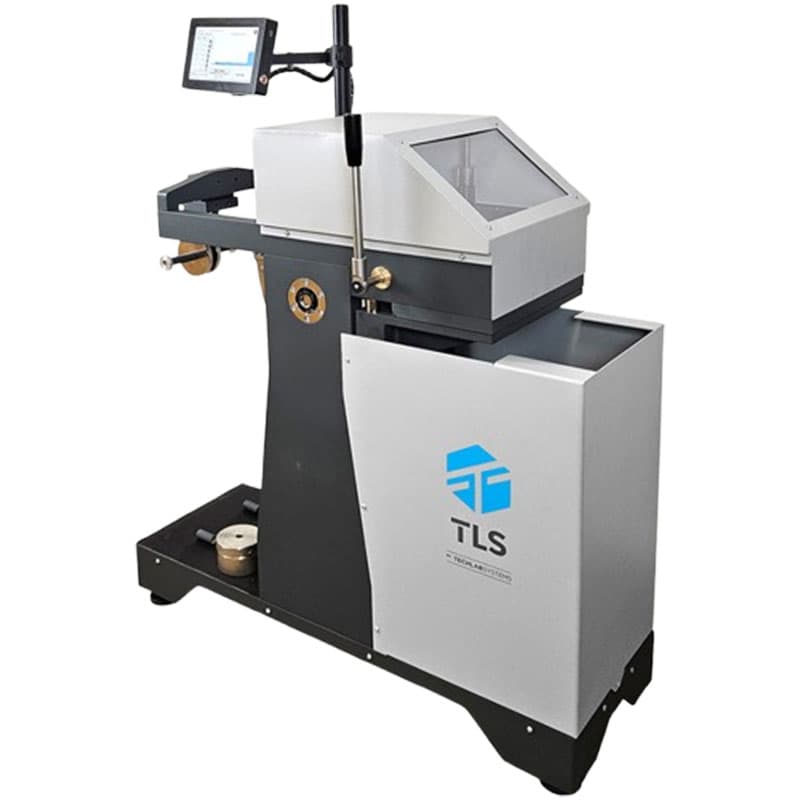

Puncture Resistance Tester

Puncture Resistance Tester for determining the amount of energy absorbed by the packaging or the resistance to puncture of a box or item of packaging. This is an important real world test for any packaging.

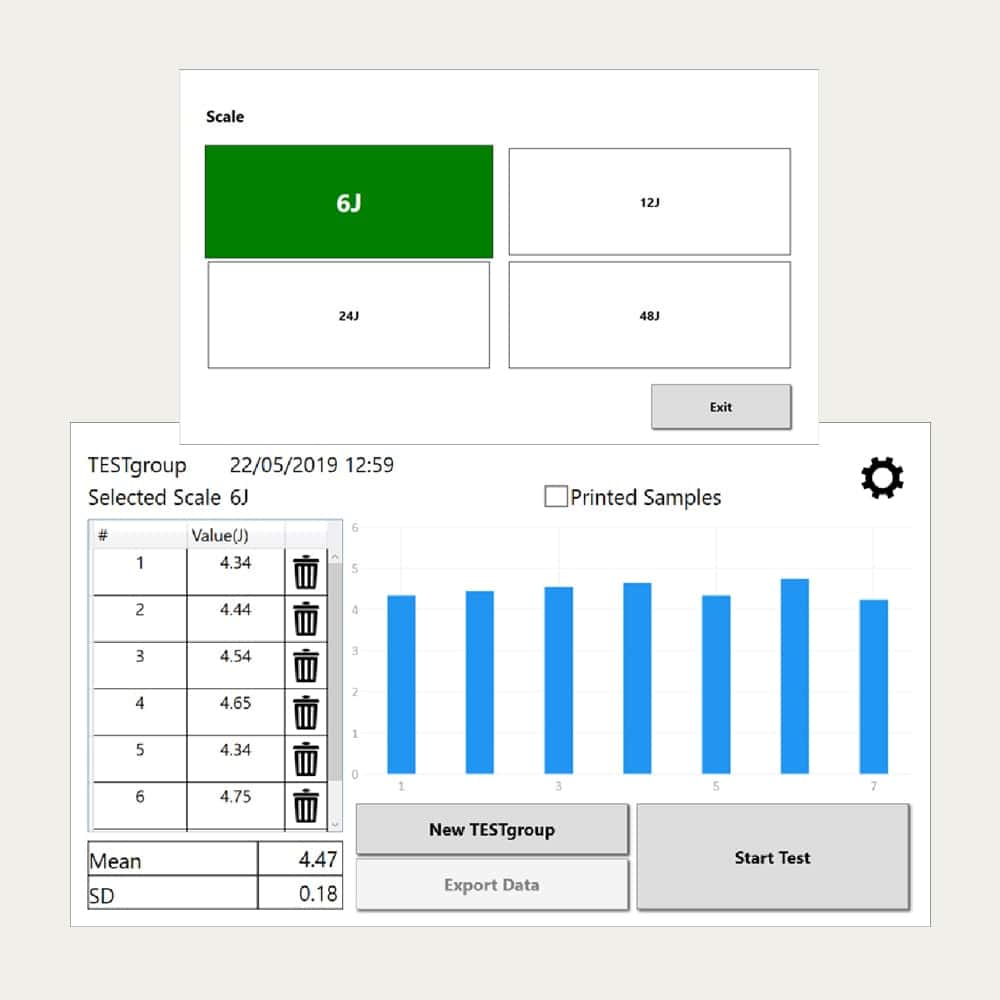

Touch Screen control, easy and intuitive to use
Stiff, strong steel frame to avoid losses of energy
Pendulum arm travels though 90º
Triangular pyramid striking head
4 reading scales (6-12-24 and 48 J)
Reading resolution in the 4 scales: 0.01J
Interlocked safety system for complete safety
Perspex safety screen

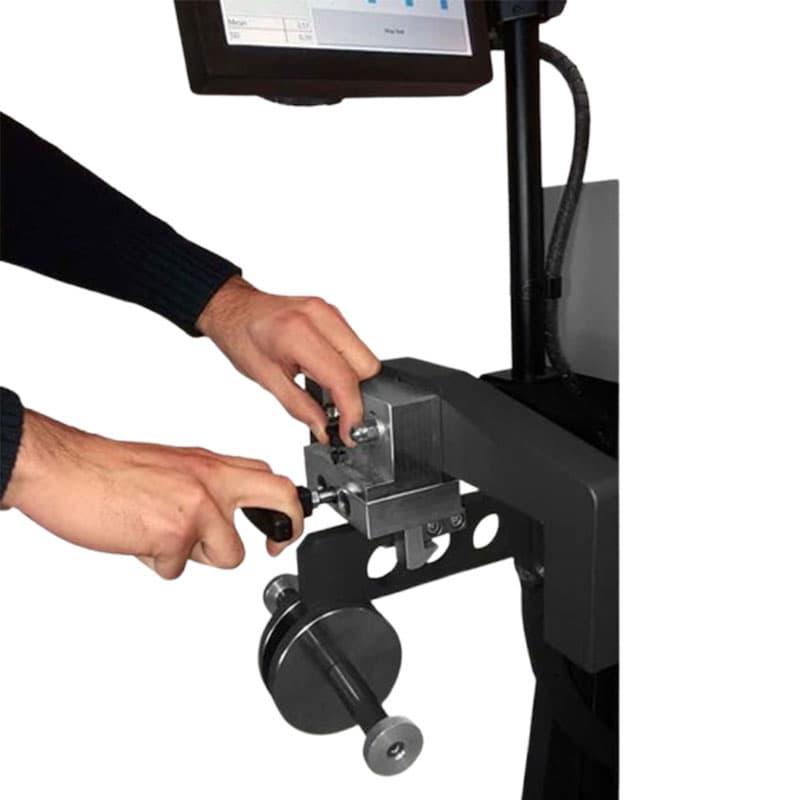

Grips self tighten and have adjustable clamping pressure
Optional Lynx software for further statistical analysis of the results

Get a Quote

Ask a Question Data Sheet

Puncture Resistance Tester Conforms to the requirements of the following standards

ISO 3036, DIN 53,142, ASTM D781, SCAN P23, TAPPI T-803, FEFCO 5 – 57,076 UNE

Manufacture by TLS Techlab Systems in Spain

AML is the exclusive agent for TLS in the U.K. contact us for advice, service or calibration, we are here to help!
