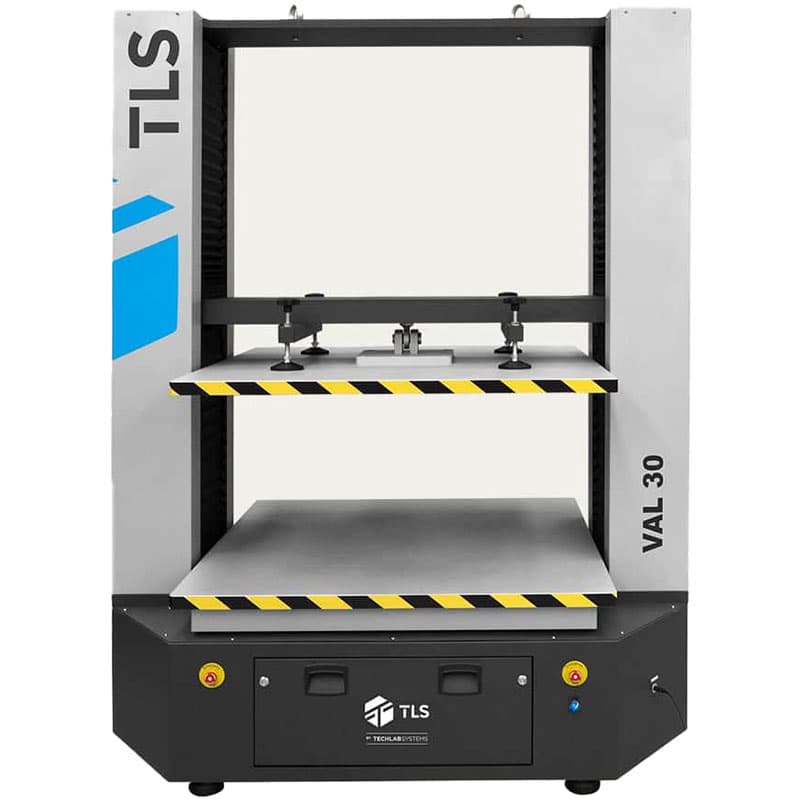

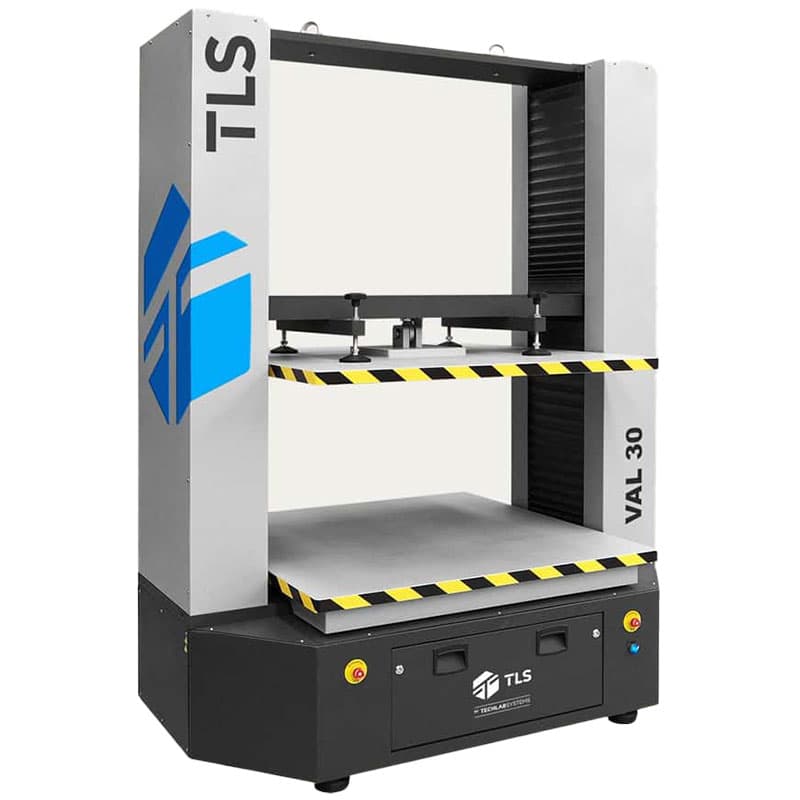

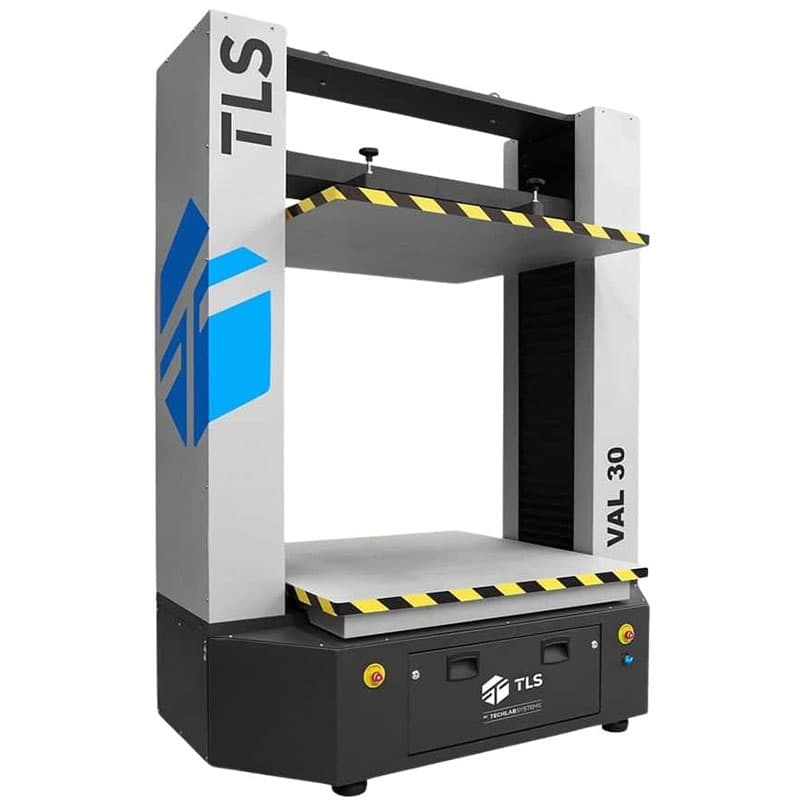

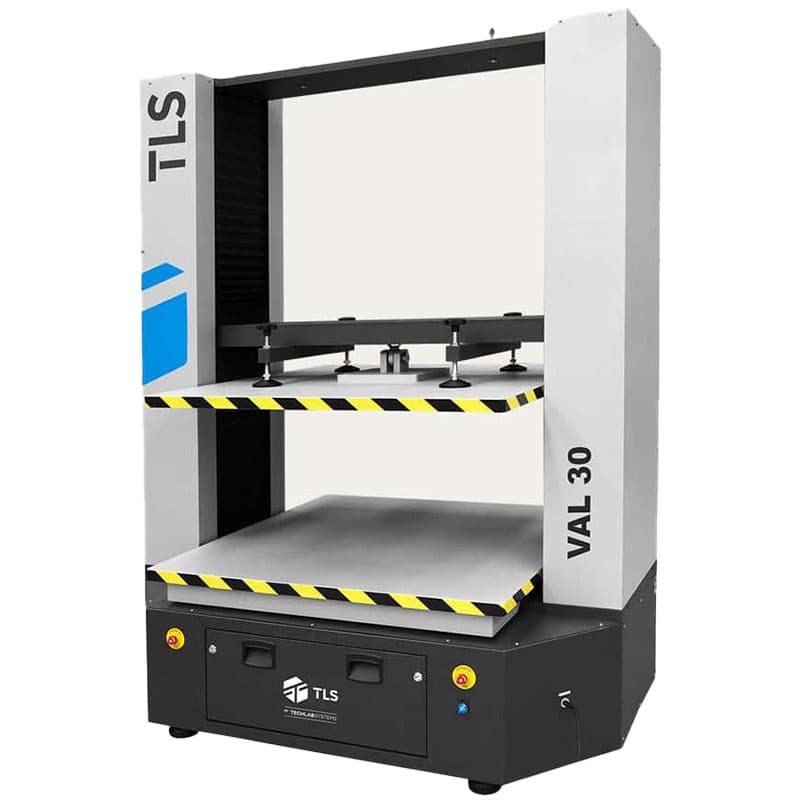

VAL-30 Box Compression Tester (BCT) - 30 kN
Manufactured by Techlab Systems
This box compression tester machine has a maximum force capacity of 30 kN and is designed to perform compression resistance tests on boxes, pallets, packing and packaging up to 1250mm x 1250mm.
It comes supplied with an all-in-one touch screen PC and LYNX testing software with basic statistics to carry out BCT (constant speed), stacking (constant load), and cyclic tests.
These machines are customisable for platen size or distance between the platens.
Price on quotation
Benefits
- Precise electromechanical drive.
- High stiffness test frame.
- Three load cells with accuracy 0.03% FS for highly accurate testing.
- Fixed (TAPPI) and oscillating (ISO) top plate.
- Automatic return to the initial test machine.
- Test speeds: 1 – 350 mm/min (0.04 – 13.78 in./min.).
- Moving platen return speed: 350 mm/min. (13.78 in./min).
- RS-232 output interface with converter to USB.
- Strength reading in N, Kg, or Lb.
- Strain reading in mm and inches.
- Compression platen size: 1250mm x 1250mm.
- Maximum separation between compression plates: 1250mm.
- Plate displacement resolution: 0.001mm.
- Force resolution: 0.3N.
- Complies with all leading international standards (see Specifications).
- Compatible with the T-LAB Laboratory Management System.
- CE marked.
- Customisation is available for any of the models and bespoke compression testers can be designed and manufactured.
- Force calibration service available.

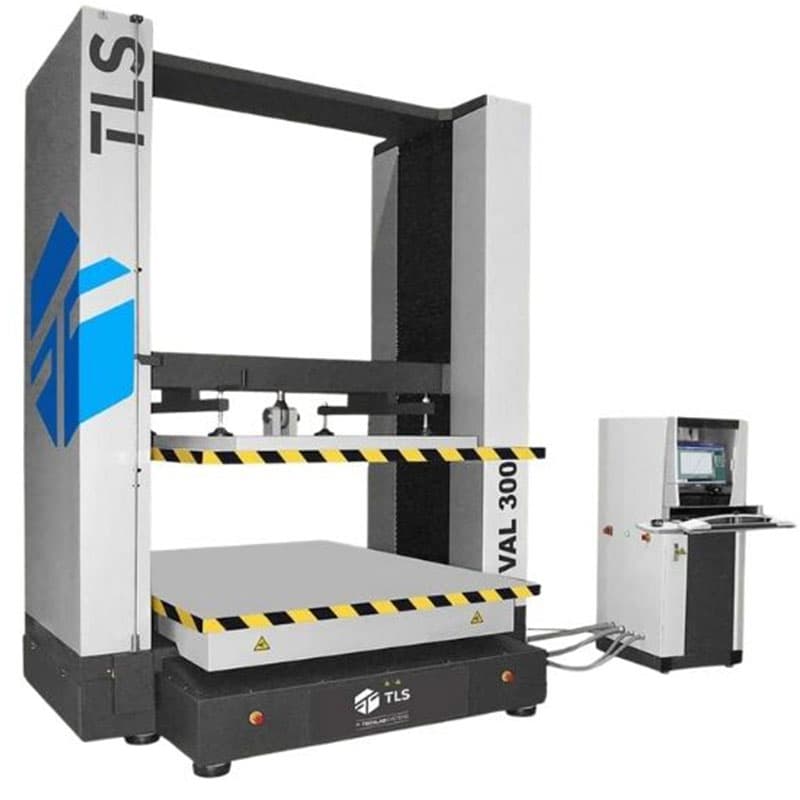

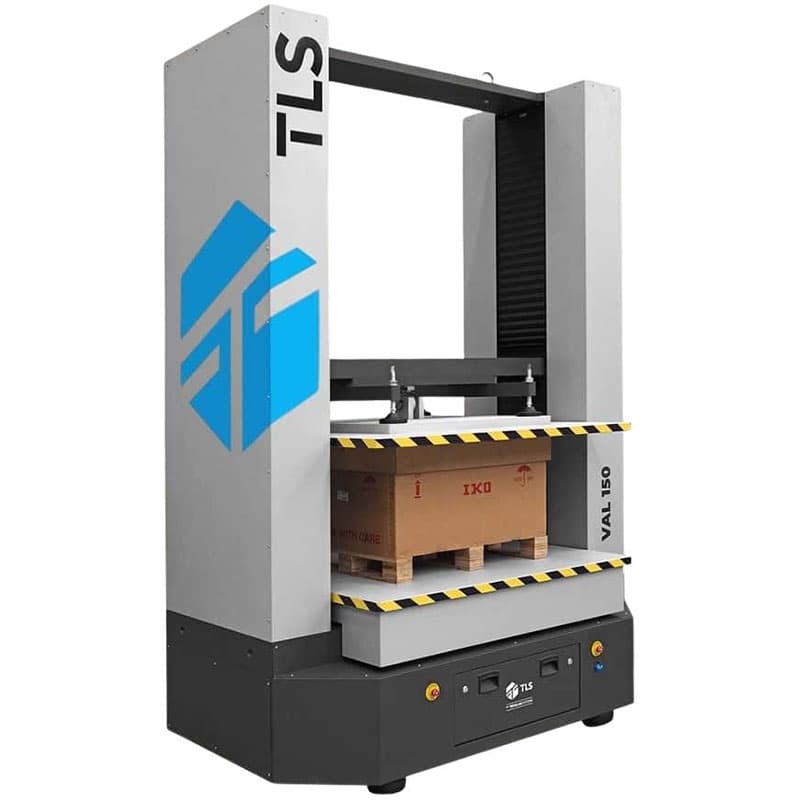

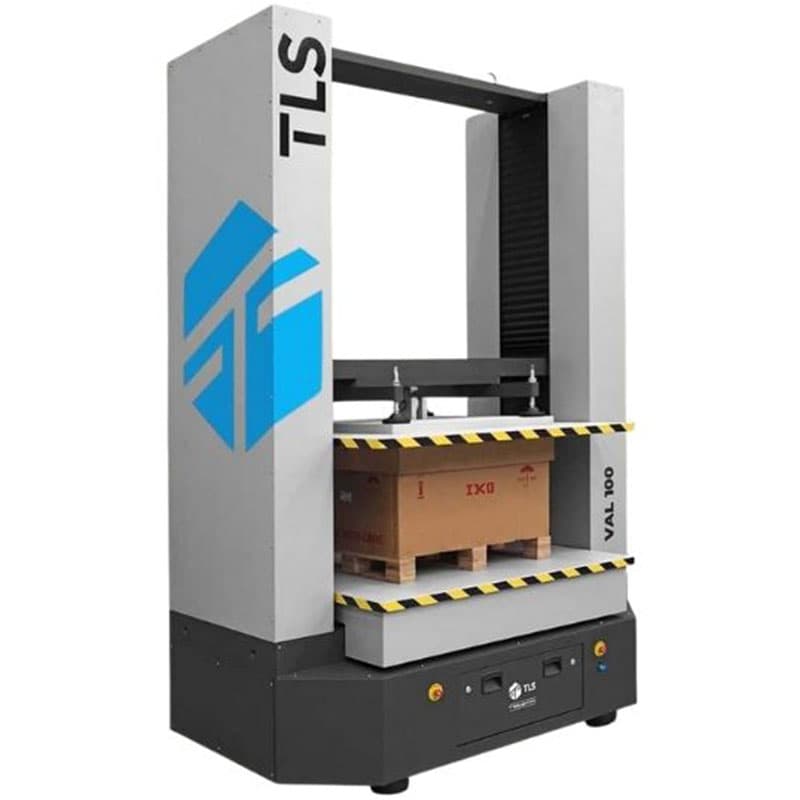

- 10 kN, 50 KN, 100kN, 150 kN, and 300 kN force capacity BCTs also available.
Suitable Applications
- Board and plastic tubes.
- Corrugated and compact board cases and boxes.
- Metal packing and containers.
- Moulded cellulose trays.
- Plastic packing and containers.
- Plastic, wooden, and cardboard pallets.
- Wooden boxes.
LYNX Testing Software for Packaging and Packing Compression
The LYNX testing software allows testing of compression at break, compression at constant load, and cyclic compression on packaging and packaging of corrugated and compact cardboard, plastic, and metal. It records minimum, maximum, and median value; and standard deviation, as well as offering:
- Quickness in the execution of compressive strength tests and in obtaining results without human error.
- Traceability according to ISO 9000.
- Storage capacity up to 100 tests per report.
- SAVE, PRINT AND COPY to CLIPBOARD functions.
- Reports in PDF format.
- Different language options: Spanish – English.
Techlab Systems (TLS) is a leading manufacturer of test equipment. AML Instruments is proud to be the UK exclusive distributor for TLS, meaning we fully support their entire range for sales, service, and calibration.
Standards
ASTM D 642, ASTM D2659-16, ASTM D4169, ASTM D4577, ASTM D7030, DIN 55440-1, FEFCO 50, ISO 12048, ISO 16495, ISTA Series, UNE 137001,UNE 11093-9:2011, TAPPI T804, NF H13-001, and 49 CFR 178.606.
Technical Data
Range: 30 kN
Resolution: 0.30 N
Plates: 1250mm x 1250mm
Max. separation between plates: 1250mm
Dimensions (W x D x H): 1780mm x 1254mm x 2400mm
Net Weight: 1850Kg
Power: 1.5 Kw
Power Supply: 110V/60Hz or 220V/50Hz single-phase
Transport packaging dimensions (W x D x H): 1970mm x 1490mm x 2530mm
Gross Weight: 2400 Kg.
