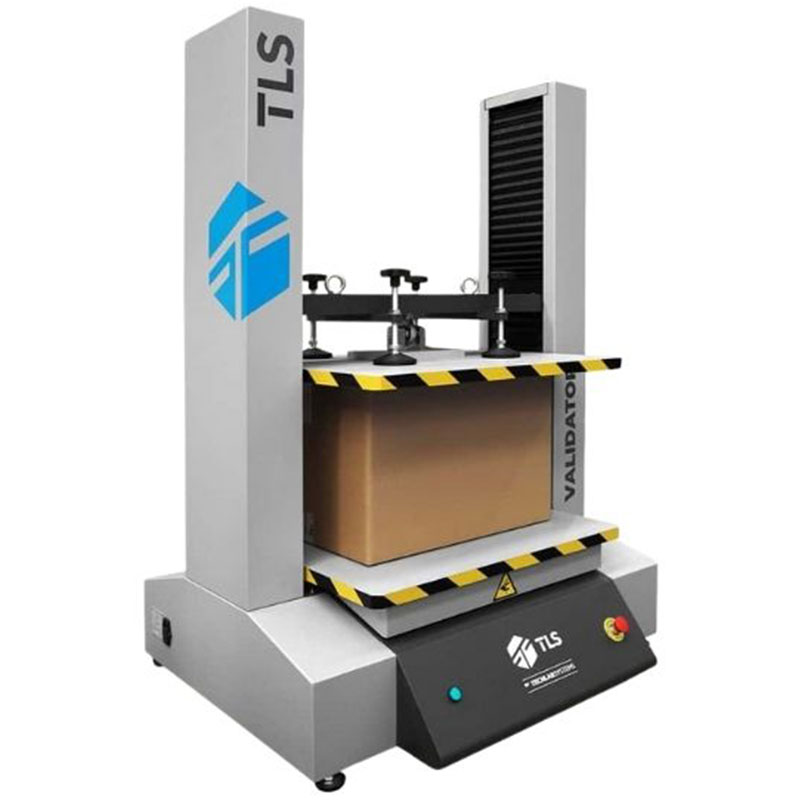

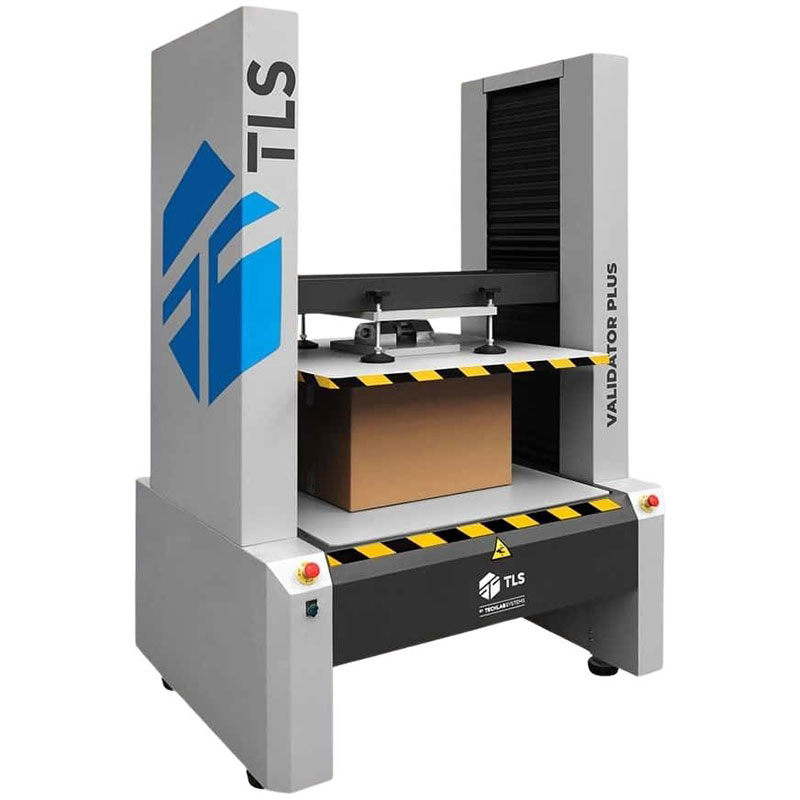

VALIDATOR PLUS-50 Box Compression Tester from an angled view, compressing a cardboard box on the test platform.

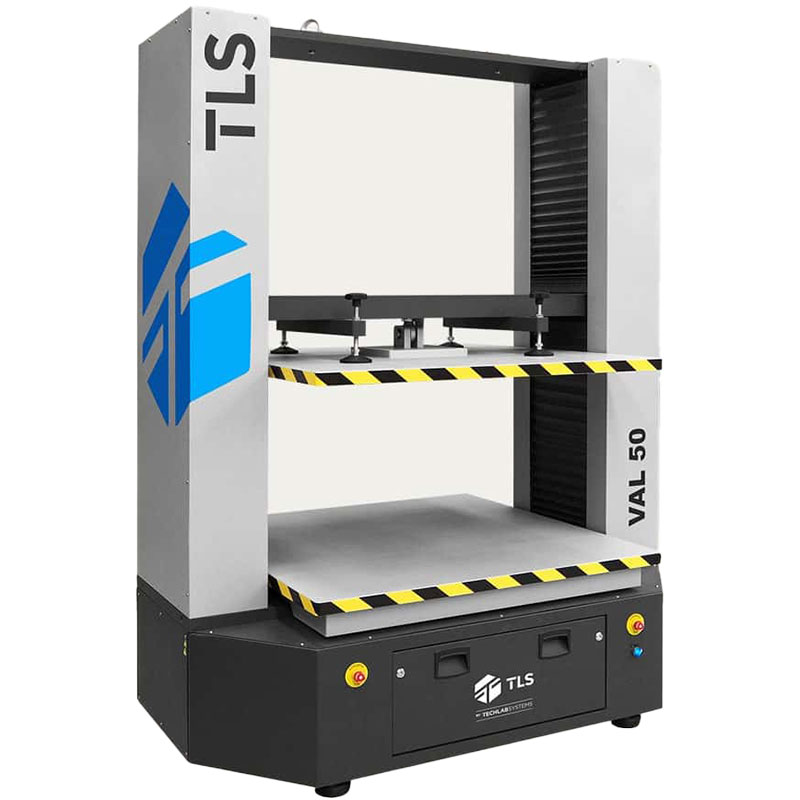

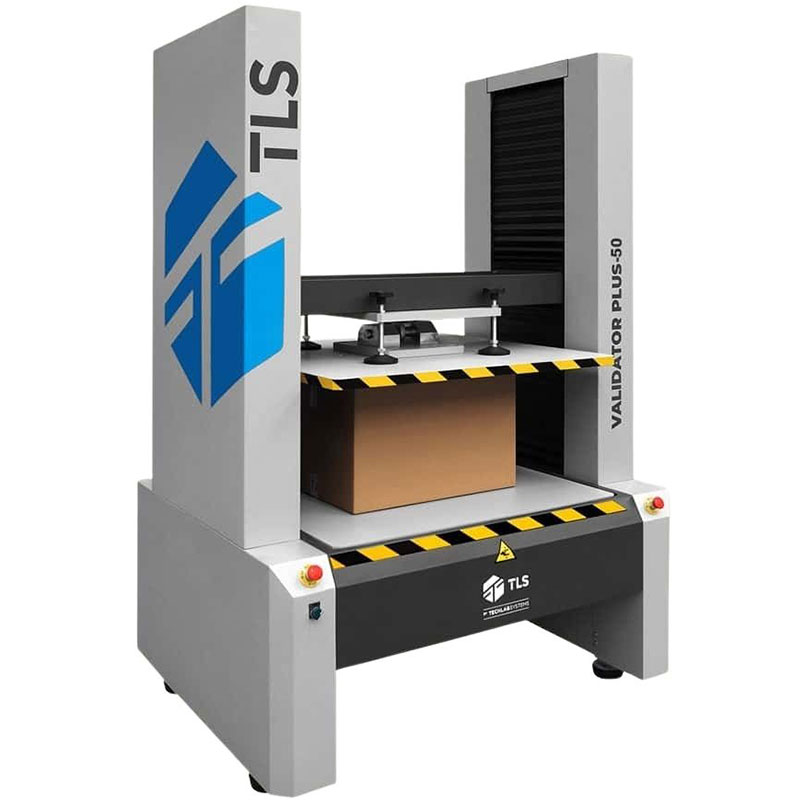

VALIDATOR PLUS-50 Box Compression Tester (BCT) - 50 kN

Name: VALIDATOR PLUS-50 Box Compression Tester (BCT) - 50 kN
Brand: Techlab Systems
Availability: InStock

The VALIDATOR PLUS-50 Box Compression Tester (BCT) is controlled by LYNX testing software run on an all-in-one touch screen PC (both the PC and software are supplied with the BCT).

With a maximum force capacity of 50 kN, it’s ideal for performing compression resistance test on middle size boxes, packing and packaging up to 1000mm x 1000mm.

These machines are customisable for platen size or distance between the platens.

Price on quotation

Data sheets

Benefits

Precise electromechanical drive.
High stiffness test frame.
Supplied with an all-in-one touch screen PC and LYNX testing software with basic statistics to carry out BCT (constant speed), stacking (constant load), and cyclic tests.
Three load cells with accuracy 0.03% FS for highly accurate testing.
Fixed (TAPPI) and oscillating (ISO) top plate.
Automatic return to the initial test machine.
Test speeds: 1 – 350 mm/min (0.04 – 13.78 in./min.).
Moving platen return speed: 350 mm/min. (13.78 in./min).
RS-232 output interface with converter to USB.
Strength reading in N, Kg, or Lb.
Strain reading in mm and inches.
Compression platen size: 1000mm x 1000mm.
Maximum separation between compression plates: 1850mm.
Plate displacement resolution: 0.001mm.
Force resolution: 0.5N.
Complies with all leading international standards (see Specifications).
Compatible with the T-LAB Laboratory Management System.
CE marked.
Customisation is available for any of the models and bespoke compression testers can be designed and manufactured.
Force calibration service available.
VALIDATOR 25 kN and VALIDATOR PLUS 30 kN force capacity models also available.

LYNX Testing Software for Packaging and Packing Compression

The LYNX testing software allows testing of compression at break, compression at constant load, and cyclic compression on packaging and packaging of corrugated and compact cardboard, plastic, and metal. It records minimum, maximum, and median value; and standard deviation, as well as offering:

Quickness in the execution of compressive strength tests and in obtaining results without human error.
Traceability according to ISO 9000.
Storage capacity up to 100 tests per report.
SAVE, PRINT AND COPY to CLIPBOARD functions.
Reports in PDF format.
Different language options: Spanish – English.
