Peel

AML’s Range of Peel Strength Measuring Instruments and Test Equipment. Extensive range of peel testing equipment for adhesives and adhesive tapes.

Showing 1–12 of 25 results

Filter

  • Instrument Type

  • Property Test Types

  • Materials

AML has the correct fixturing and grips for all peel test methods. Only a very small number of grips are listed on our website, contact us with your requirements.

Backed up with our expertise in peel testing we can ensure you get the correct tensile machine and grips to meet your exact needs.  We can also provide training on the majority of the methods listed below.

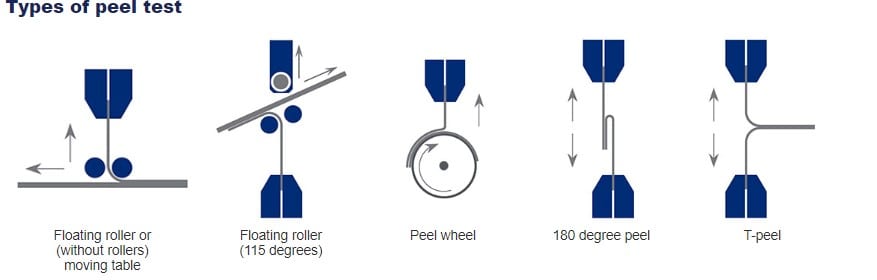

International Test Standards and Methods : Peel Strength

180 Degree

Afera-5001 – Self Adhesive Tapes – Measurement of Peel Adhesion from Stainless Steel or from its own Backing

ASTM-D3330 – A – Standard Test Method for Peel Adhesion of Pressure-Sensitive Tape

ASTM-D3330 – B – E – Standard Test Method for Peel Adhesion of Pressure-Sensitive Tape

ASTM-D5458 – Standard Test Method for Peel Cling of Stretch Wrap Film

ASTM-D903 – Standard Test Method for Peel or Stripping Strength of Adhesive Bonds

ASTM-F88 – Standard Test Method for Seal Strength of Flexible Barrier Materials

BS EN-1939 – Self adhesive tapes. Determination of peel adhesion properties

BS EN ISO-8510-2 – Adhesives. Peel test for a flexible-bonded-to-rigid test specimen assembly. 180 degree peel

FINAT-FTM1 – Peel adhesion (180°) at 300 mm per minute

FINAT-FTM3 – Low speed release force

ISO-11607-1 – Packaging for terminally sterilized medical devices – Part 1: Requirements for materials, sterile barrier systems and packaging systems

ISO-8510-2 – Adhesives – Peel test for a flexible-bonded-to-rigid test specimen assembly – Part 2: 180 degree peel

PSTC-101 – International Standard for Peel Adhesion of Pressure Sensitive Tape

PSTC-4 – Relative performance of release coatings

PSTC-8 – unwind force of pressure sensitive tape

SAE-J 1907 – Peel Adhesion Test for Glass to Elastomeric Material for automotive glass Encapsulation

TLMI-L-IA1 – 180° peel adhesion – face stock

TLMI-L-IA2 – 180° peel adhesion – release liner

90 Degree

Afera-5001 – Self Adhesive Tapes – Measurement of Peel Adhesion from Stainless Steel or from its own Backing

ASTM-B533 – Standard Test Method for Peel Strength of Metal Electroplated Plastics

ASTM-B571-97 – Standard Practice for Qualitative Adhesion Testing of Metallic Coatings

ASTM-D3330 – Standard Test Method for Peel Adhesion of Pressure-Sensitive Tape

ASTM-D429 – Standard Test Methods for Rubber Property—Adhesion to Rigid Substrates

ASTM-D6252 – Standard Test Method for Peel Adhesion of Pressure-Sensitive Label Stocks at a 90° Angle

ASTM-D6862 – Standard Test Method for 90 Degree Peel Resistance of Adhesives

ASTM-D816 – Standard Test Methods for Rubber Cements

BS EN-1939 – Self adhesive tapes. Determination of peel adhesion properties

BS EN-2243-3 – Aerospace series. Non-metallic materials. Structural adhesives. Test method. Peeling test metal-honeycomb core

BS EN-28510-1 – Adhesives. Peel test for a flexible-bonded-to-rigid test specimen assembly. 90° peel

FINAT-FTM2 – Peel adhesion (90°) at 300 mm per minute

IPC-TM-650 – IPC-TM-650 Test Methods Manual

ISO-8510-1 – Adhesives – Peel test for a flexible-bonded-to-rigid test specimen assembly – Part 1: 90 degree peel

SAE-J 1553 – Cross Peel Test for Automotive-Type Adhesives for Fiber reinforced plastic (FRP) Bonding
Cleavage Strength

ASTM-D143 – Standard Test Methods for Small Clear Specimens of Timber

ASTM-D1995 – Standard Test Methods for Multi-Modal Strength Testing of Auto Adhesives (Contact Adhesives)

BS-373 – Methods of testing small clear specimens of timber

ISO-10354 – Adhesives – Characterization of durability of structural-adhesive-bonded assemblies – Wedge rupture test

ISO-15107 – Adhesives – Determination of cleavage strength of bonded joints

Climbing Drum

ASTM-D1781 – Standard Test Method for Climbing Drum Peel for Adhesives

ASTM-D1995 – Standard Test Methods for Multi-Modal Strength Testing of Autohesives (Contact Adhesives) Floating Roller Peel

ASTM-D3167 – Standard Test Method for Floating Roller Peel Resistance of Adhesives

BS EN-1372 – Adhesives. Test method for adhesives for floor and wall coverings. Peel test

BS EN-1464 – Adhesives. Determination of peel resistance of high-strength adhesive bonds. Floating roller method

BS EN-2243-2 – Aerospace series. Non-metallic materials. Structural adhesives. Test method. Peel metal-metal

DIN EN-1464 – Testing of adhesives for metals and adhesively bonded metal joints; floating roller peel test

ISO-10373-1 – Identification cards – Test methods – Part 1: General characteristics

ISO-14676 – Adhesives – Evaluation of the effectiveness of surface treatment techniques for aluminium – Wet-peel test by floating-roller method

ISO-4578 – Adhesives – Determination of peel resistance of high-strength adhesive bonds – Floating-roller method

Loop Tack

ASTM-D6195 – Standard Test Methods for Loop Tack

BS EN-1719 – Adhesives for paper and board, packaging and disposable sanitary products. Tack measurement for pressure-sensitive adhesives. Determination of loop tack

FINAT-FTM 9 – Loop tack measurement

PSTC-16 – Loop tack

T-Peel Test

ASTM-D1876 – Standard Test Method for Peel Resistance of Adhesives (T-Peel Test)

ASTM-D1995 – Standard Test Methods for Multi-Modal Strength Testing of Autohesives (Contact Adhesives)

ASTM-D2918 – Standard Test Method for Durability Assessment of Adhesive Joints Stressed in Peel

ASTM-D413 – Standard Test Methods for Rubber Property—Adhesion to Flexible Substrate

ASTM-D5170 – Standard Test Method for Peel Strength (‘T’ Method) of Hook and Loop Touch Fasteners

ASTM-D6496 – Standard Test Method for Determining Average Bonding Peel Strength Between the Top and Bottom Layers of Needle-Punched Geosynthetic Clay Liners

ASTM-F2256 – Standard Test Method for Strength Properties of Tissue Adhesives in T-Peel by Tension Loading

ASTM-F88 – Standard Test Method for Seal Strength of Flexible Barrier Materials

BS EN-12242 – Touch and close fasteners. Determination of peel strength

BS EN-1895 – Adhesives for paper and board, packaging and disposable sanitary products – 180°-‘T’ peel test for a flexible-to-flexible assembly

BS EN-868-5 – Packaging materials and systems for medical devices which are to be sterilized. Heat and self-sealable pouches and reels of paper and plastic film construction. Requirements and test methods

ISO-11339 – Adhesives – T-peel test for flexible-to-flexible bonded assemblies

ISO-20344 – Personal protective equipment – Test methods for footwear
