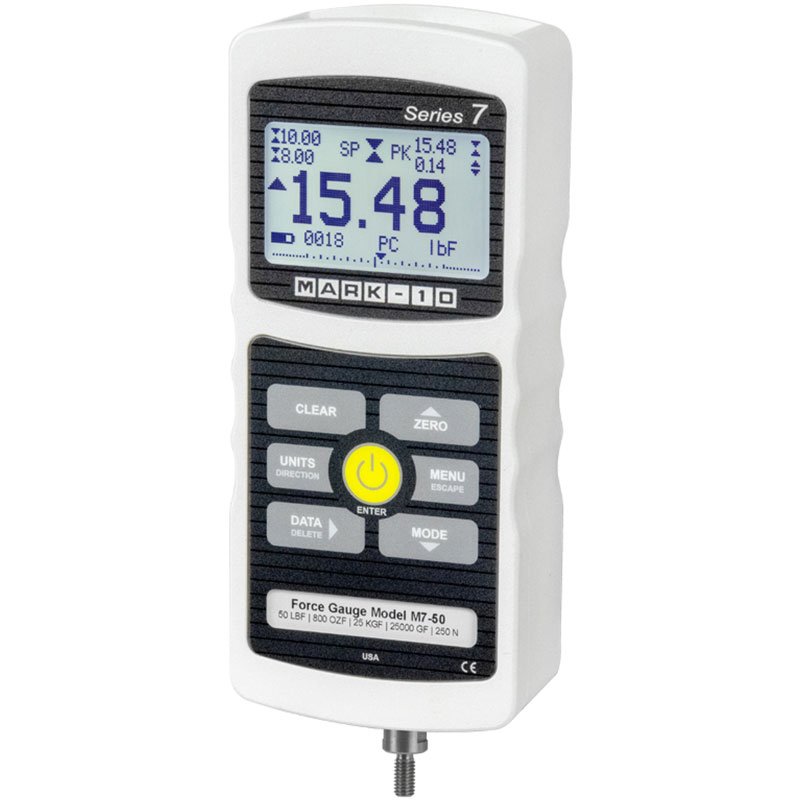

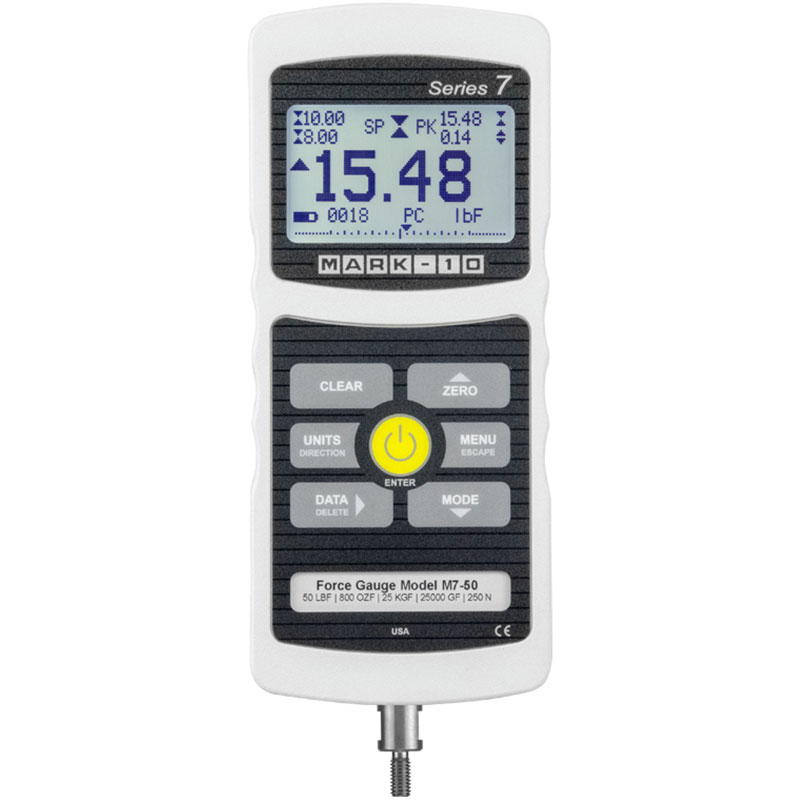

Series 7 Advanced Digital Force Gauge
Manufactured by Mark-10
Our Series 7 digital force gauges sit in the high-end range and are ideal for the most demanding tension and compression measurement applications, up to 2500 N (2.5 kN).
Used for tasks like precise material strength analysis and testing crush resistance, they comes with numerous sophisticated and productivity enhancement features. This includes ±0.1% accuracy, high-speed continuous data capture and storage, and a lightening fast sampling rate of 14,000 Hz, producing reliable results for extremely quick-action tests.
Eleven different models are available, with all Series 7 force gauges offering programmable footswitch sequencing, break detection, and 1st / 2nd peak detection.
Select a variation to pay instantly
Benefits

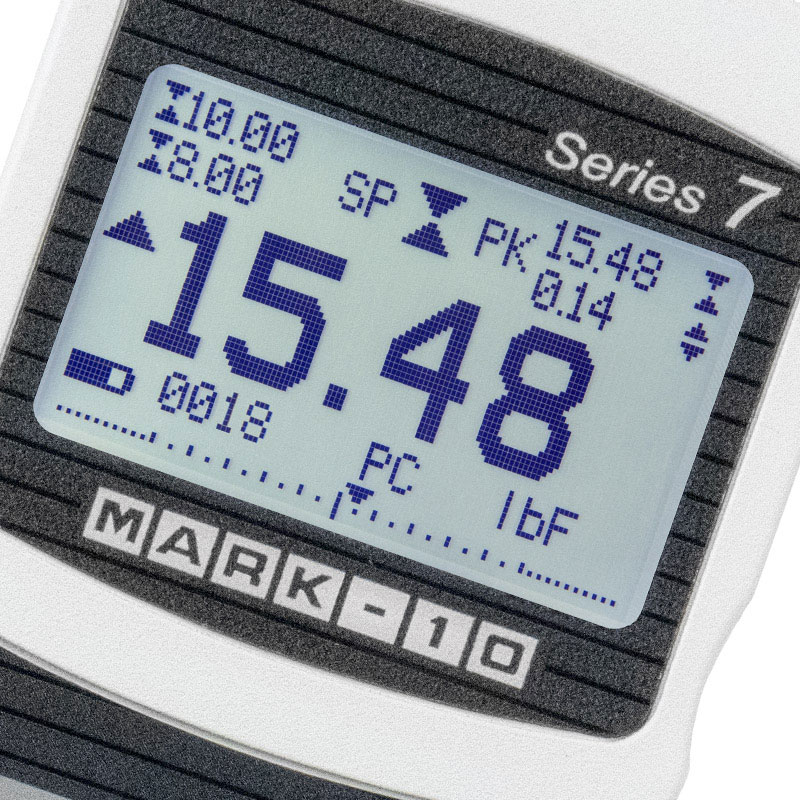

- Memory for up to 5,000 readings (downloadable to a PC), at an acquisition rate of up to 14,000 Hz.
- Five units of measurement, including a coefficient of friction unit of measurement and user-defined unit of measurement.
- Automatic data output, data storage, and zeroing functions upon the completion of break detection, averaging, external trigger, and 1st / 2nd peak detection to help increase productivity.

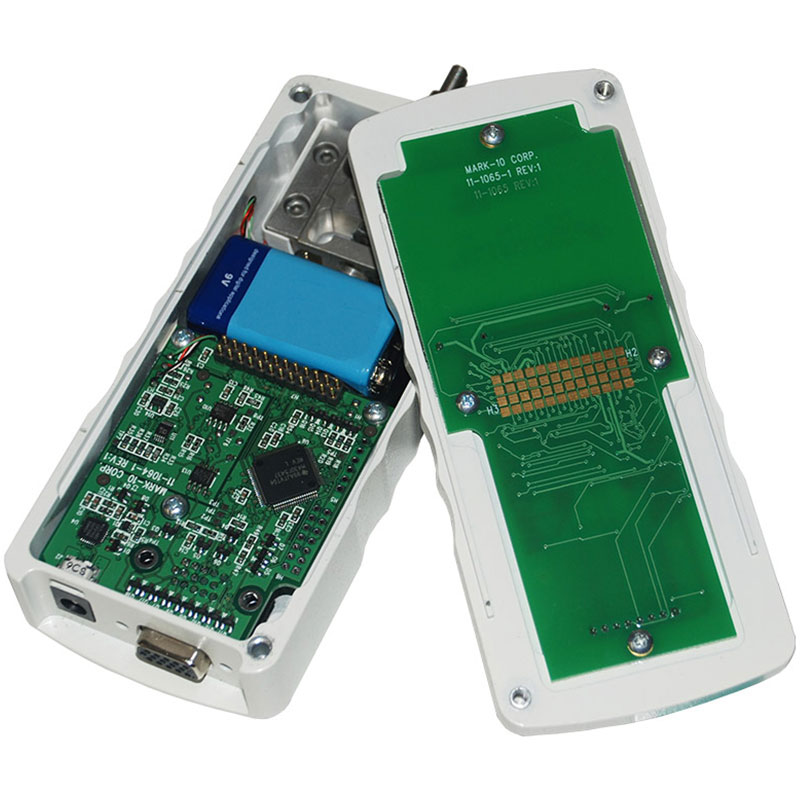

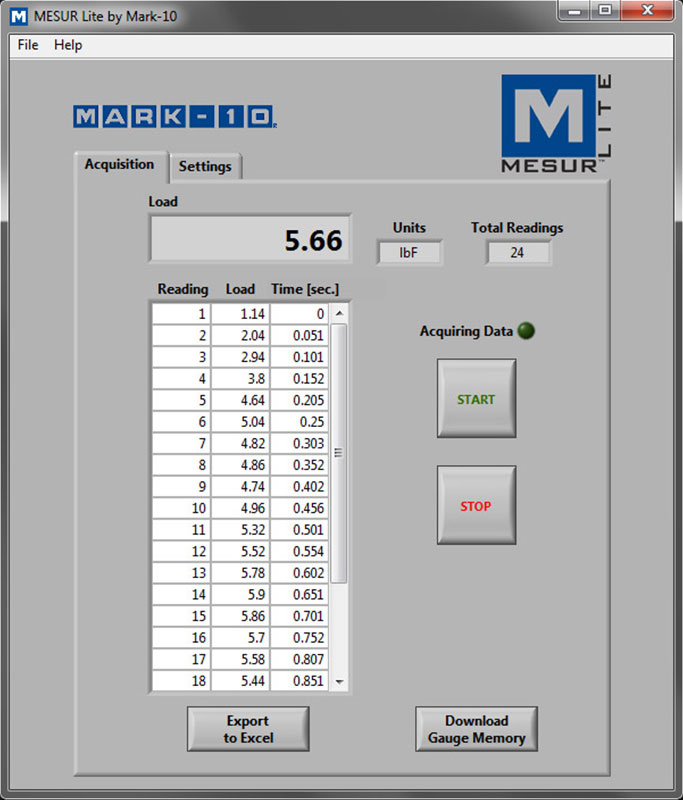

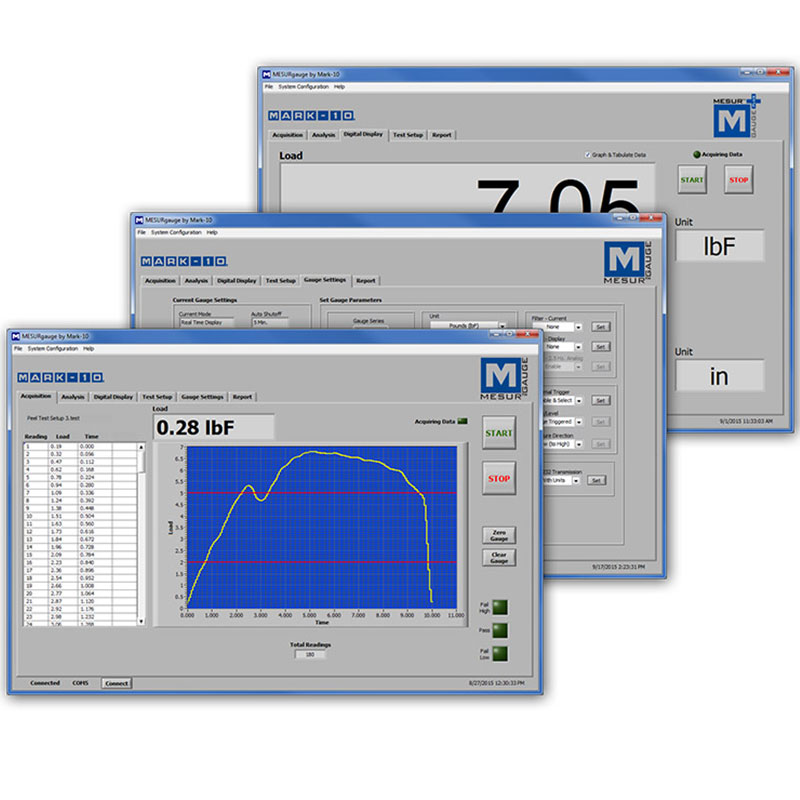

- MESUR®Lite acquisition software included, which tabulates continuous or single point data. One-click export to Excel allows for further data manipulation.

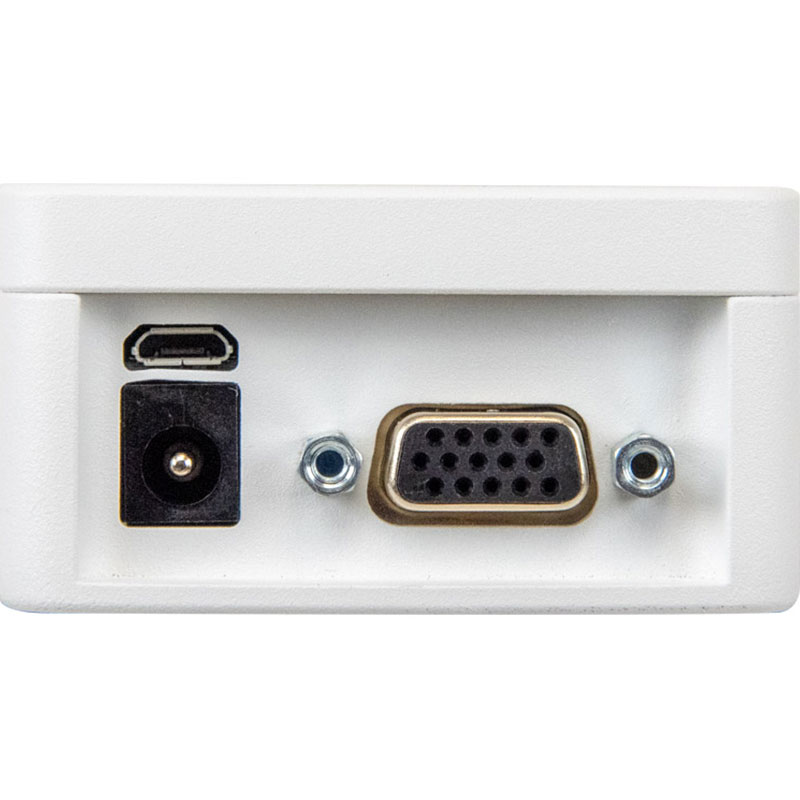

- USB, RS-232, Mitutoyo, and analogue outputs.
- Programmable set points, with indicators and outputs.
- Averaging mode — calculates average readings over time.
- External trigger mode for switch contact testing or remotely stopping display updates.
- Password protection, configurable for individual keys and calibration.
- Compatible with many force test stands and gripping fixtures. This permits functions such as break testing, dynamic load holding, and tensile testing.
- Three year warranty.
- Supported by AML in the UK.

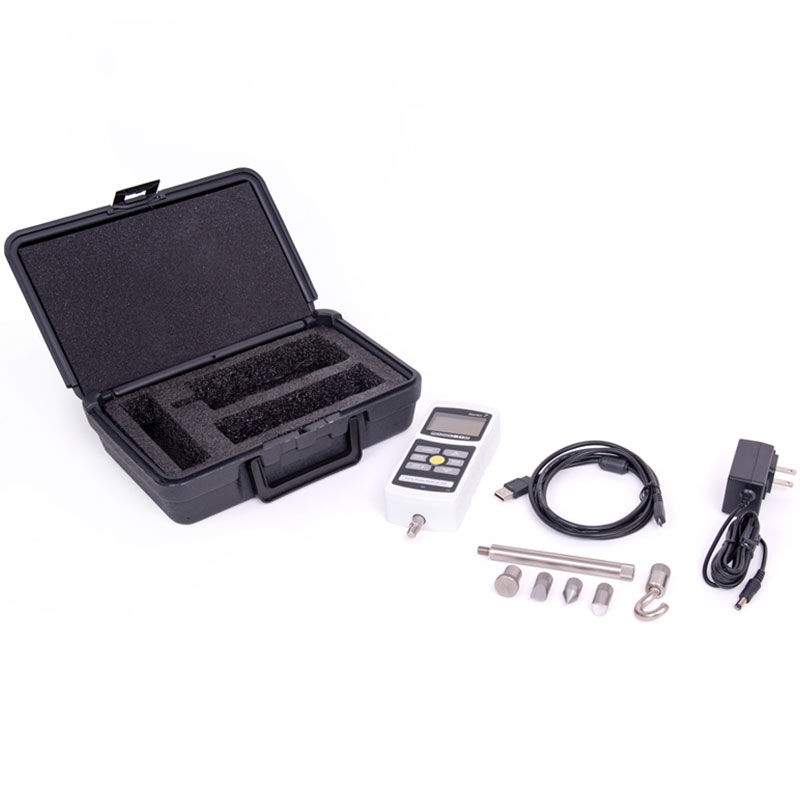

The Series 7 Force Gauges include the following accessories:
- 1 x extension rod*
- 1 x hook*
- 1 x cone*
- 1 x chisel*
- 1 x V-groove*
- 1 x flat*
- 1 x coupling*
- 1 x carrying case
- 1 x USB cable
- 1 x AC adapter
- 1 x battery
- 1 x certificate of calibration with data (Please Note: The instrument includes a built-in calibration mode that can be accessed by the user, but only after entering the provided passcode).
*The specific accessory depends on the force gauge model. See the table below for details.
| Accessory | Gauge Model | ||
| M7-012 – M7-20 | M7-50 – M7-100 | M7-200 – M7-500 | |
| Extension Rod | G1024 | G1024 | G1031 |
| Cone | G1026 | G1026 | G1033 |
| Chisel | G1025 | G1025 | G1032 |
| V-Groove | G1027 | G1027 | G1034 |
| Flat | G1029 | G1029 | G1036 |
| Hook | G1028 | G1038 | G1035 |
| Coupling | – | G1039 | G1037 |
Series 7 Digital Pull Force Gauges – Capacity x Resolution
| Model | N | kN |
| M7-012 | 0.5 x 0.0001 | |
| M7-025 | 1 x 0.0002 | |
| M7-05 | 2.5 x 0.0005 | |
| M7-2 | 10 x 0.002 | |
| M7-5 | 25 x 0.005 | |
| M7-10 | 50 x 0.01 | |
| M7-20 | 100 x 0.02 | |
| M7-50 | 250 x 0.05 | |
| M7-100 | 500 x 0.1 | |
| M7-200 | 1000 x 0.2 | 1 x 0.0002 |
| M7-500 | 2500 x 0.5 | 2.5 x 0.0005 |

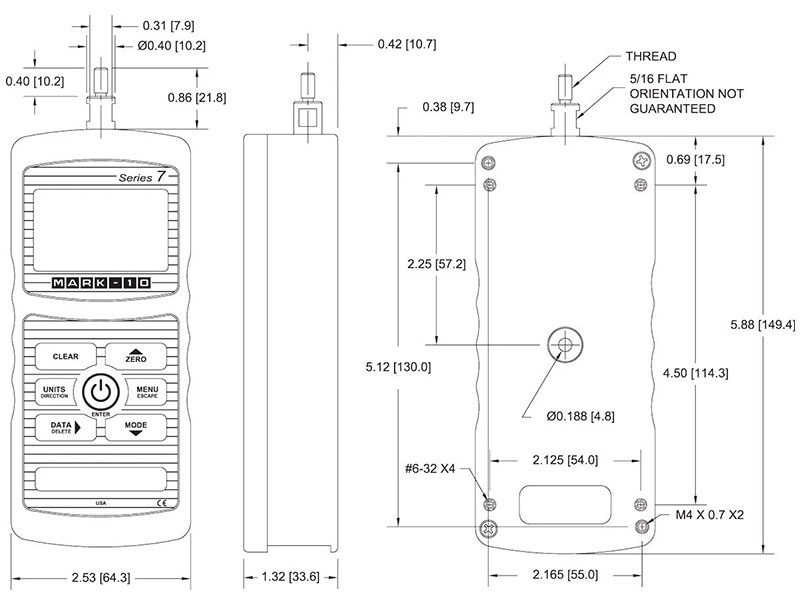

Dimensions
| Load Cell Thread | |
| M7-012 – M7-100 | #10-32M UNF |
| M7-200 – M7-500 | 5/16-18M UNC |
Technical Data
| Accuracy: | ±0.1% of full scale | |
| Sampling rate: | 14,000 Hz | |
| Data output rate: | Up to 500 Hz* | |
| Power: | AC or rechargeable battery. Multi-step low battery indicator is displayed, gauge shuts off automatically when power is too low. | |
| Battery Life: | Backlight on: up to 7 hours of continuous use Backlight off: up to 24 hours of continuous use |
|
| Measurement units: | lbF, ozF, gF, kgF, N, kN, mN (depending on model) | |
| Outputs: | USB / RS-232: Configurable up to 230,400 baud. Automatic output available up to 250 Hz. Includes Gauge Control Language 2 for full computer control. Mitutoyo (Digimatic): Serial BCD suitable for all Mitutoyo SPC-compatible devices. Analog: ±1 VDC, ±2% of full scale at capacity. General purpose: Three open drain outputs, one input. Set points: Three open drain lines, 40 VDC max., 100 mA DC max. |
|
| Safe overload: | 200% of full scale (display shows “OVER” at 110% and above) | |
| Weight: | M7-012 – M7-100: 1 lb [0.5 kg] M7-200 – M7-500: 1.2 lb [0.5 kg] |
|
| Shipping weight: | M7-012 – M7-100: 3.0 lb [1.4 kg] M7-200 – M7-500: 3.2 lb [1.5 kg] |
|
| Environmental requirements: | 40 – 100°F, max. 96% humidity, non-condensing | |
| Warranty: | 3 years (see individual statement for further details) | |
| Conformance: | CE, UKCA | |
| HS code: | Model no. | HS code: |
| M7 (all capacities) | 9024100000 | |
| 15-1004 AC1109 AC1111 AC1118 AC1030 AC1031 AC1032 AC1035 AC1051 AC1052 |
9024800000 | |
| ECCN: | EAR99 | |
| Country of origin: | USA | |
* Firmware version 2.3.0 or higher required.
