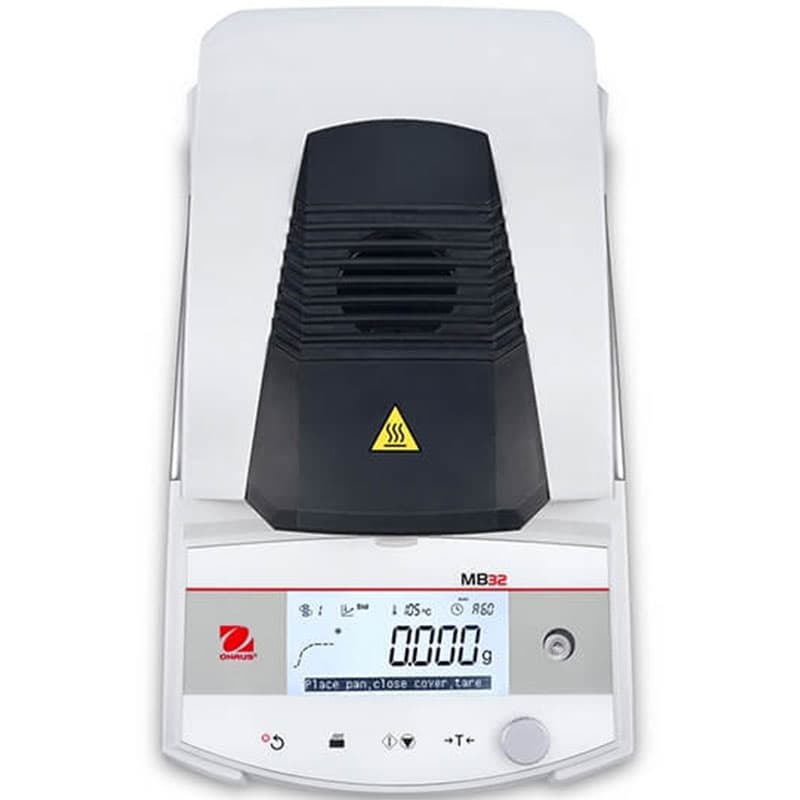

Ohaus MB32 Moisture Analyser
The MB32 Moisture Analyser is built for routine moisture testing. It features new carbon fibre heating technology and an upgraded load cell to shorten analysis time, save power, and keep your results accurate and consistent.
Benefits
- Robust, slim design with strong PBT housing ensures durability even in harsh environments.
- An LCD with second line display, navigation knob, and intuitive operation system makes for convenient routine moisture testing.

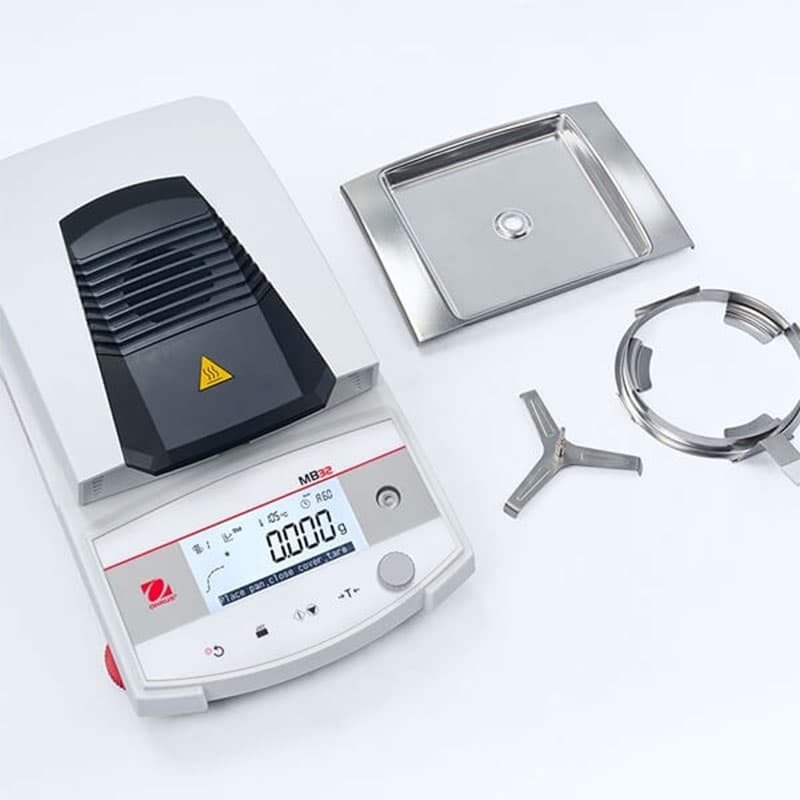

- Robust construction includes a die casting aluminium base, metal pan support, and a metal pan handler.
- In use cover protects the scale during operation.
Suitable Applications
Percent Moisture Determination, Percent Moisture Regain Determination, Percent Solid Determination, Weighing.
Technical Data
Readability: 0,01 % / 0,001 g
Repeatability: 0,15 % (3 g sample), 0,02 % (10 g sample)
Moisture Range: 0,01 % to 100 % (0,01 % to 1000 % in regain mode)
Recommended MC%: 0,5 % to 100 %
Minimum Start Weight: 0,5 g
Capacity: 90 g
Heating Element: Carbon Fiber
Temperature Range: 40 – 180°C (1°C incremental)
Drying Programs: Standard, Fast
Method Library: 2
Result Storage: 1
Switch-off Criteria: 3 automatic, timed (1 – 480 mins), manual
Operation Instruction: Progress indicator, On-screen instruction
Display Type: 4” LCD with 2nd line display
Display Results: MC%, DC%, RG%, time, temperature, weight, Method No.
Language: English, French, German, Italian, Spanish, Portuguese, Chinese, Korean, Japanese, Polish, Turkish
Adjustment: Temperature adjustment (100°C, 160°C), External weight adjustment (50 g)
Output: RS232, USB device
Power: 120 or 240 VAC 50/60 Hz
Operating Temperature: Range 10 – 40°C
Pan Size: Ø 90 mm
Dimensions: 210mm × 138mm × 352mm
Net Weight: 4,3kg
Shipping Weight: 6,1kg
Compliance
• Product Safety: IEC/EN 61010-1; IEC/EN 61010-2-010; CAN/CSA C22.2 61010-1; CAN/CSA C22.2 61010-2-010; UL 61010-1; UL 61010-2-010
• Electromagnetic Compatibility: IEC/EN 61326-1 Class B, Basic environments; FCC Part 15 Class A; Canada ICES-003 Class A
• Compliance Marks: CSA; CE; RCM; WEEE
