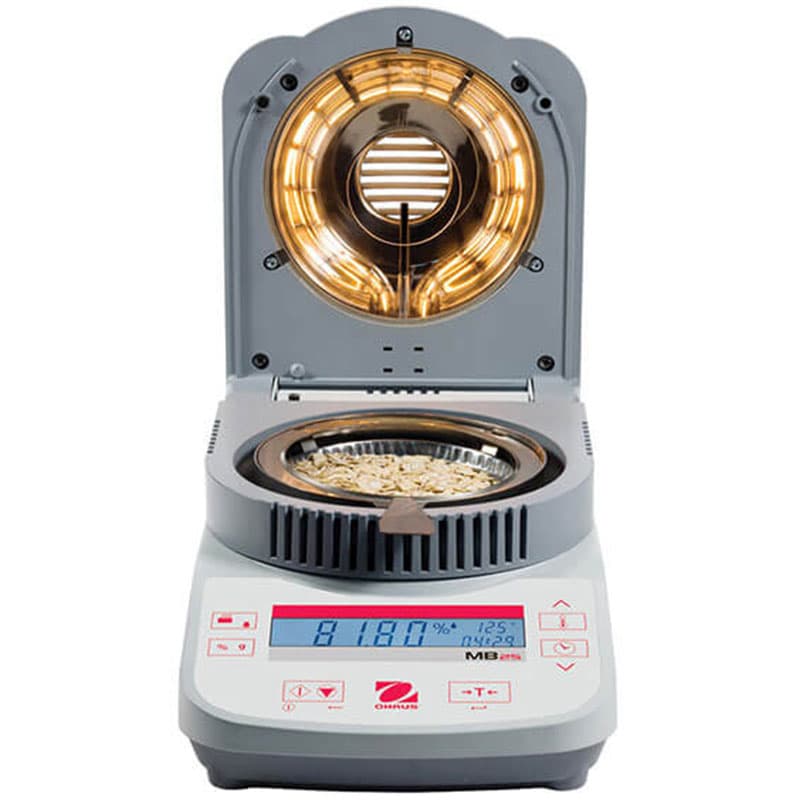

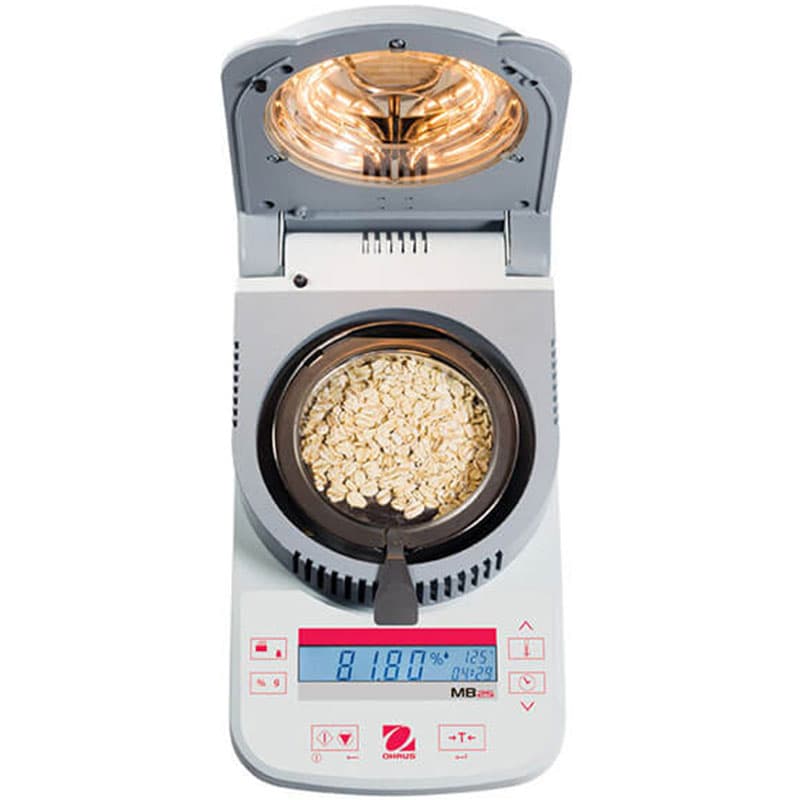

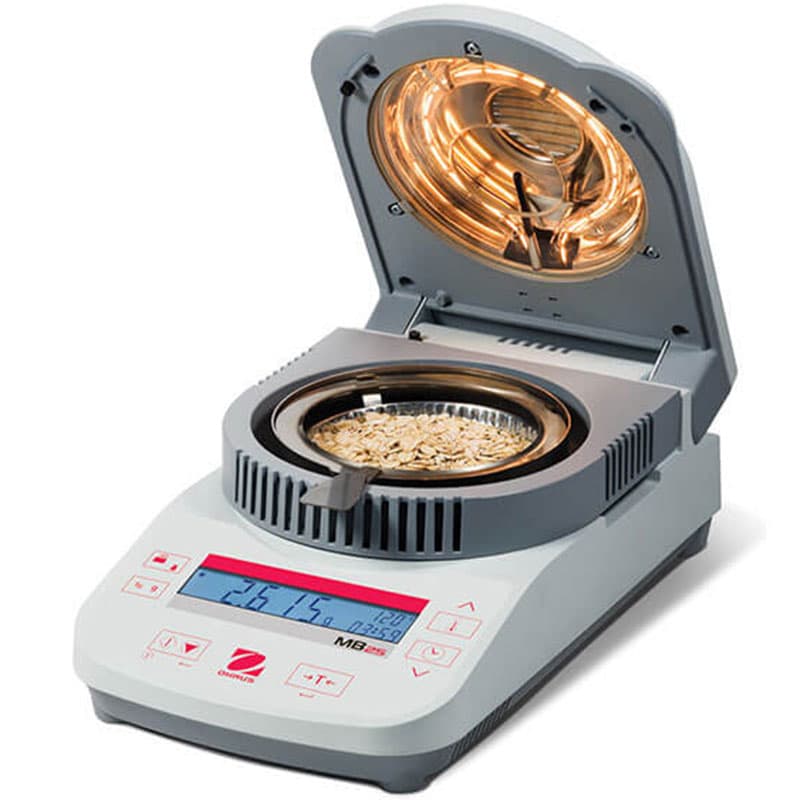

Ohaus MB25 Moisture Analyser

Benefits

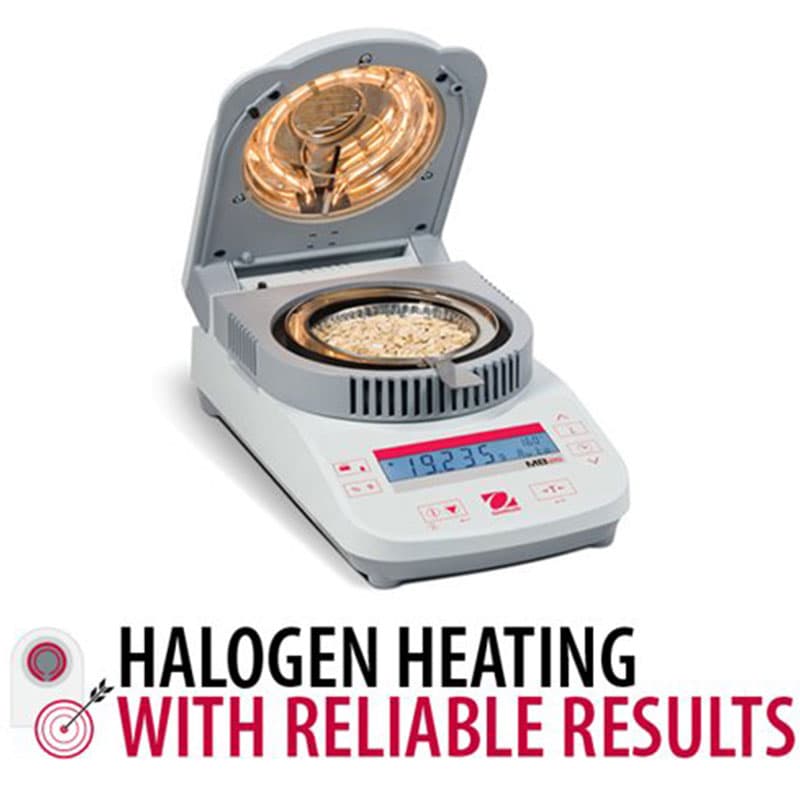

• Halogen heating and dual weight-temperature calibration provide fast, reliable results at 0.05% readability.
• Provides precise moisture content determination at an unbeatable value.
• User-friendly touch-button design for easy operation.
• Easy-to-clean heating chamber is ideal for frequent use and inexpensive maintenance.
• Compact footprint (17cm x 13cm x 28 cm) takes up less space.
• In use cover protects the scale during operation.

• Percent Moisture Determination.
• Percent Solid Determination.
• Weighing.

Technical Data

• Capacity: 110g
• Repeatability: (Std Dev) (g):0.2% (3g sample) 0.05% (10g sample)
• Readability: 0.01% / 0.005g (<10g sample) 0.05% / 0.005g (>10g sample)
• Sample Size: 3g to 20g typical, 0.5g min.
• Interface: Bidirectional RS-232
• Timer: 1 – 99 minutes, 30-second increments to 60 minutes
• Heating Technology: Halogen
• Temperature Range: 50°C to 160°C in 5° increments
• Power: 100 to 240 VAC, 50/60 Hz
• Tare Range: To capacity by subtraction
• Operating Temperature Range: 5°C to 40°C
• Display Type: Custom backlit LCD
• Displays: % moisture or % solids or weight (g), temperature, time
• Pan Size: (Diameter) 90 mm
• Dimensions: (W x H x D) 17cm x 13cm x 28cm
• Net Weight: 2.3 kg
• Shipping Weight: 3.9 kg
• Sample Pans: (Quantity 50) Standard
• In Use Cover: Standard
• Models are CE, CSA/UL, and FCC approved

Compliance

• Product Safety: IEC/EN 61010-1, IEC/EN 61010-2-010
• Electromagnetic Compatibility: IEC/EN 61326-1 Class B, Basic environments
