Ohaus MB62 Moisture Analyser
Manufactured by Ohaus
Designed with durability, flexibility, and simplicity in mind, the MB62 moisture analyser machine is suitable for a variety of moisture applications in industries such as agriculture, chemical, food, and pharmaceuticals.
Benefits
- Redesigned PBT housing, innovative carbon fibre heating, and upgraded load cell for enhanced durability and performance.
- Wide 5-inch LCD display, knob control, and new carbon fibre heating technology guarantee a longer service life and reliable results.
- Flexible method and sample management with 4 drying profiles, 7 shut off criteria and library storage for up to 20 methods, and 100 results with sample ID for easy recall.
- Easily understand the status of your test and machine at all times — the indication curve shows the status of the test, and the machine status can be seen easily with the multi-colour status light.

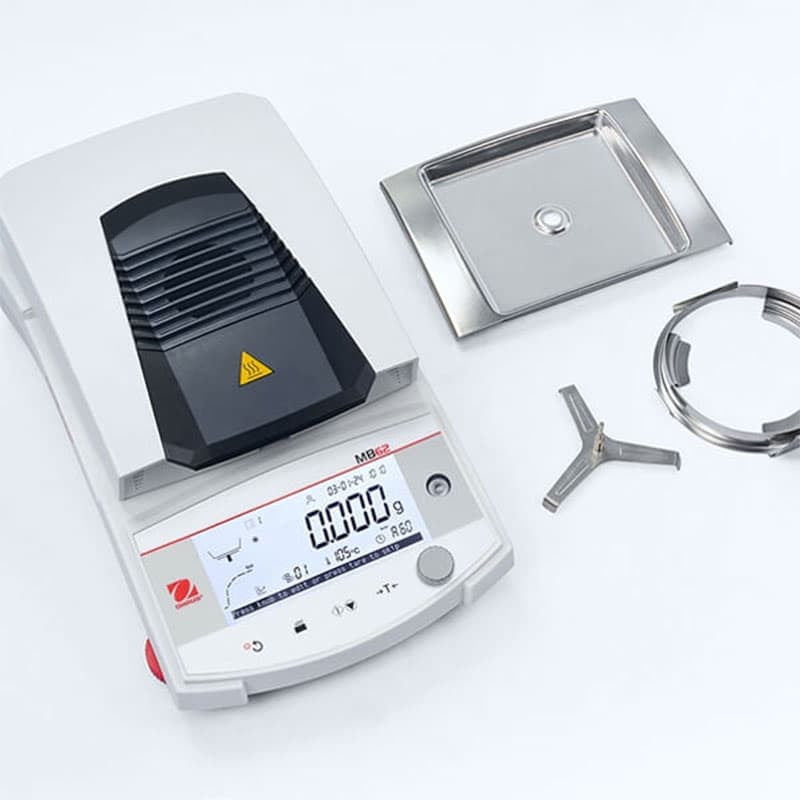

- Robust construction includes a die casting aluminium base, metal pan support, and a metal pan handler.
- In use cover protects protects the scale during operation.
- Percent Moisture Determination.
- Percent Moisture Regain Determination.
- Percent Solid Determination.
- Weighing.
Technical Data
Readability: 0,01 % / 0,001 g
Repeatability: 0,10 % (3 g sample), 0,018 % (10 g sample)
Moisture Range: 0,01 % to 100 % (0,01 % to 1000 % in regain mode)
Recommended MC%: 0,5 % to 100 %
Minimum Start Weight: 0,5 g
Capacity: 90 g
Heating Element: Carbon Fiber
Temperature Range: 40 – 200°C (1°C incremental)
Drying Programs: Standard, Fast, Ramp, Step
Method Library: 20
Result Storage: 100
Switch-off Criteria: 5 automatic, timed (1 – 480 mins), manual
ID Management: 10 Sample ID
Status Light: Multi-colour status light
Operation Instruction: Progress indicator, On-screen instruction, Graphic instruction
Display Type: 5” LCD with 2nd line display
Display Results: MC%, DC%, RG%, time, temperature, weight, Method No.
Language: English, French, German, Italian, Spanish, Portuguese, Chinese, Korean, Japanese, Polish, Turkish
Adjustment: Temperature adjustment (100°C, 160°C), External weight adjustment (50 g)
Output: RS232, USB device
Power: 120 or 240 VAC 50/60 Hz
Operating Temperature Range: 10 – 40°C
Pan Size: Ø 90 mm
Dimensions: 210mm × 138mm ×352mm
Net Weight: 4,3 kg
Shipping Weight: 6,1 kg
Compliance
• Product Safety: IEC/EN 61010-1; IEC/EN 61010-2-010; CAN/CSA C22.2 61010-1; CAN/CSA C22.2 61010-2-010; UL 61010-1; UL 61010-2-010
• Electromagnetic Compatibility: IEC/EN 61326-1 Class B, Basic environments; FCC Part 15 Class A; Canada ICES-003 Class A
• Compliance Marks: CSA; CE; RCM; WEEE
