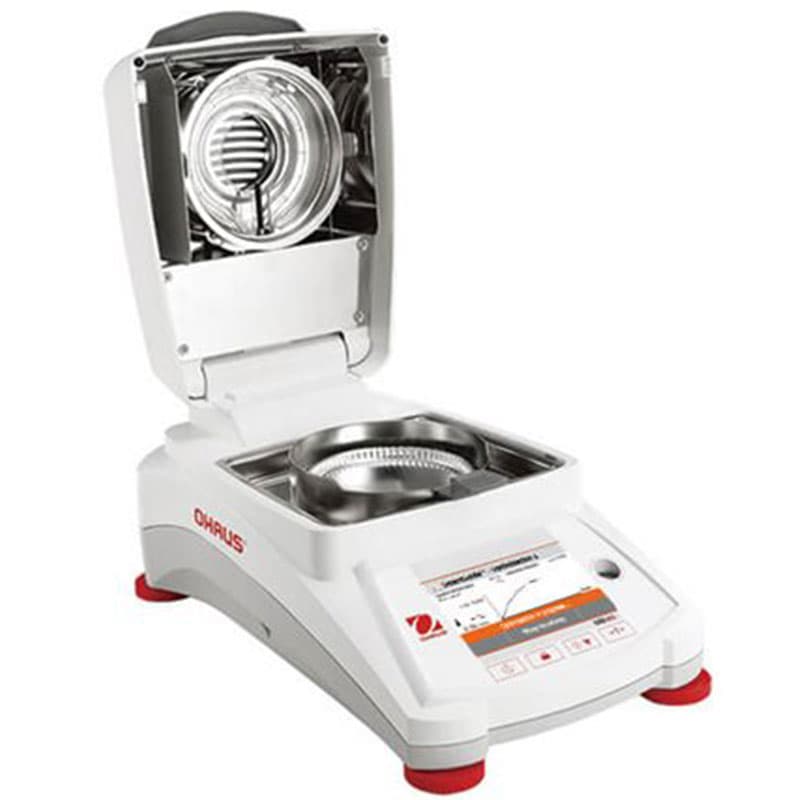

Ohaus MB120 Moisture Analyser

Benefits

• SmartGuide™ automatically analyses a sample and creates a method, simplifying the method creation process and removes the guesswork from the initial setup.

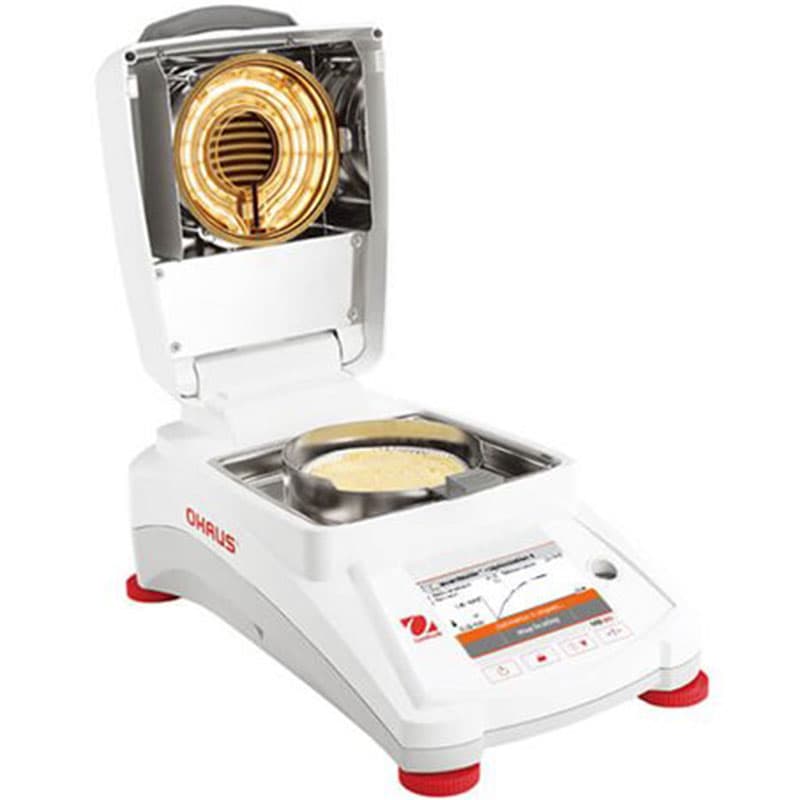

• Fast and efficient halogen heating technology dries samples efficiently and in a fraction of the time versus a traditional loss on drying measurement with an oven.
• Uniform heating of each sample for precise, repeatable results.
• Customise heating of specific samples with various drying programs; Standard, Fast, Ramp, and Step.
• Flexible and configurable shut-off criteria — customise your own test endpoint criteria to automatically end the test once moisture loss is no longer detected. Choose one of the built-in standard criterion or define your own.
• Allows storage of up to 100 methods and 1,000 measurement results.
• Stored results can be exported, and methods can be shared across multiple devices.
• Stainless steel surfaces are resistant to corrosion and wipe down quickly.
• Icon-driven menu navigation is easy to follow — no training required.

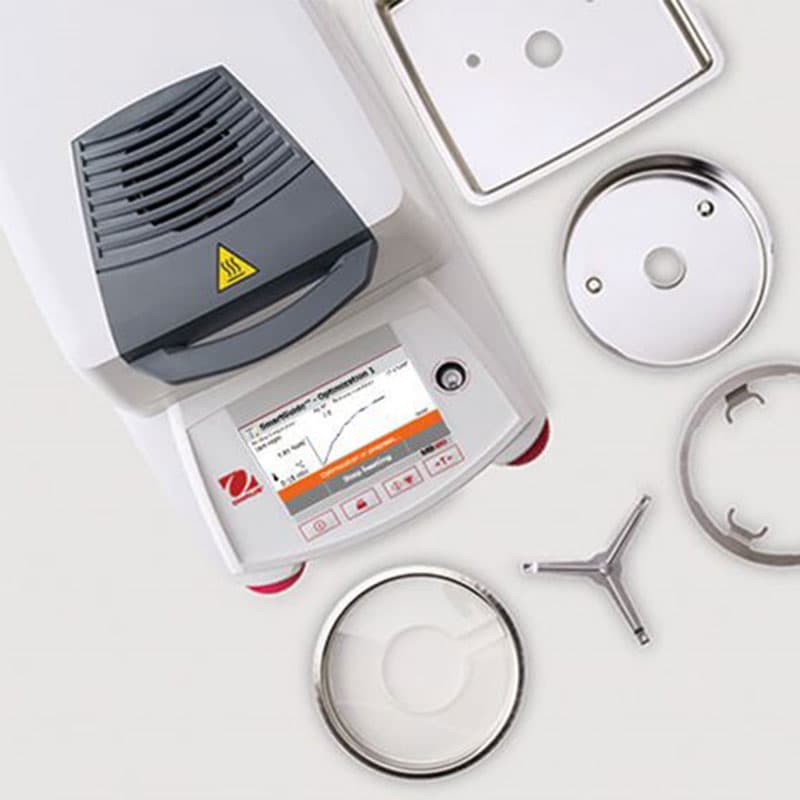

• Heating chamber components can be easily removed for easy cleaning — no tools needed.
• Secure user management. The MB120 provides operational control and aids compliance by restricting access so that unauthorised users may use the device but not change settings.
• RS232 and USB Ports enable quick connections to a printer, PC, or flash drive.
• In use cover protects protects the scale during operation.

• Percent Moisture Determination.
• Percent Moisture Regain Determination.
• Percent Solid Determination.
• Weighing.

Technical Data

• Capacity: 120 g
• Readability: 0.01 % / 0.001 g
• Repeatability (Std Dev) (g): 0.05 % (3 g sample), 0.015 % (10 g sample)
• Moisture Range: 0.01 % to 100 % (0.01 % to 1000 % for regain mode)
• Output: RS232, USB host, USB device
• Heating: Element Halogen
• Temperature Range: 40 – 230°C (1°C Increments)
• Power: 120 or 240 VAC 50/60 Hz
• Operating Temperature Range: 10 – 40 °C
• Display Type: 109 mm, QVGA, TFT touch screen
• Display Results: %moisture, %solids, %regain, time, temperature, weight, method name, drying curve, and statistics.
• Pan Size: 90mm
• Dimensions: (W × H × D): 211mm × 180mm × 355mm
• Net Weight: 5.23kg
• Shipping Weight: 8.35kg

Compliance

• Product Safety: IEC/EN 61010-1; IEC/EN 61010-2-010; CAN/CSA C22.2 61010-1; CAN/CSA C22.2 61010-2-010; UL 61010-1; UL 61010-2-010
• Electromagnetic Compatibility: IEC/EN 61326-1 Class B, Basic environments; FCC Part 15 Class A; Canada ICES-003 Class A
• Compliance Marks: CSA, CE, RCM, WEEE
