ES05 Force Test Stand
Manufactured by Mark-10

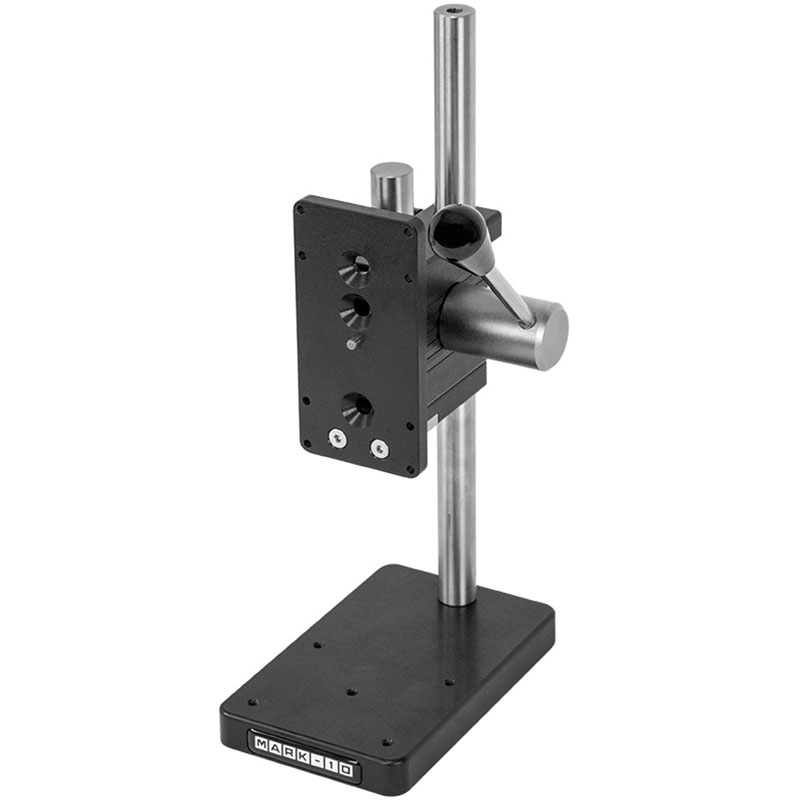

The compact design, portability, and low weight of the ES05 Force Gauge Test Stand makes it particularly practical for crowded workbenches or applications requiring field auditing and/or quick transportation to other testing areas.
It’s designed for compression testing of up to 30 lbF (150 N), and is compatible with all Mark-10 force gauges, accessories, and grips. The spring-loaded lever allowing for repeatable testing with up to 1.5” (38mm) displacement.

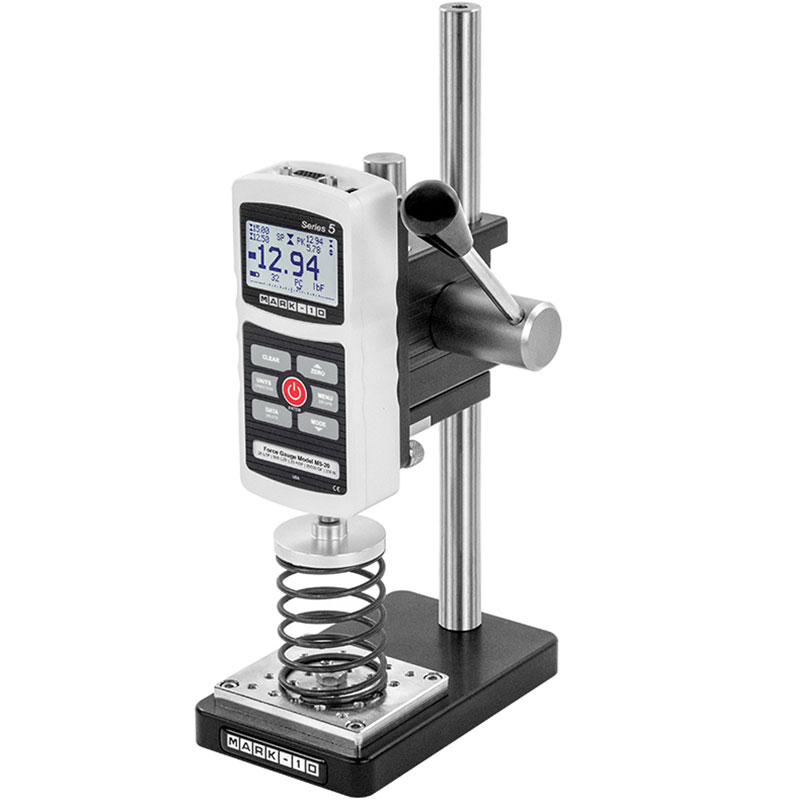

NB: The force gauge featured in the images is for illustration purposes only and is not included with the force test stand.
Benefits
- Lever mechanism can be repositioned along the length of the column, allowing this stand to be used for various sized samples.
- Mounting holes for bench mounting.
- Three year warranty.
- Supported by AML in the UK.

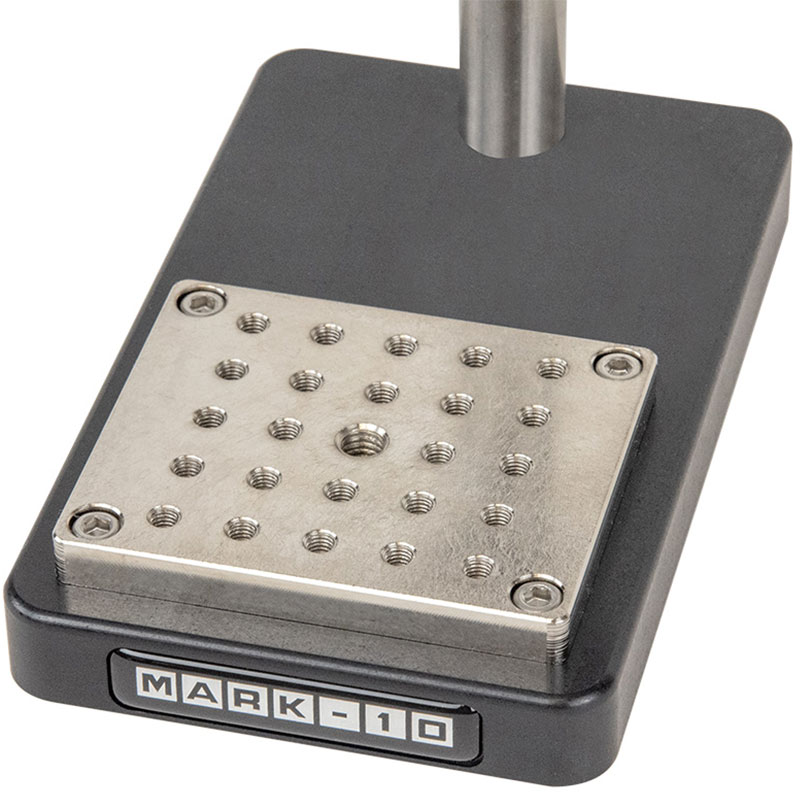

- Optional base plate with 25 #10-32 threaded holes for fixture mounting.
- Competitor force gauge mounting kits available.
The ES05 manual test stand includes the following accessories:
- 4 x Thumb screw for force gauge.
- 1 x Allen wrench set.
Important: Mark-10 equipment (other than the gauges) features open-access calibration. This means calibration adjustments are not locked out, giving you the freedom to use any standard-compliant calibration laboratory of your choice, saving you time and reducing lifetime ownership costs.
- Peel testing.
- Small spring testing.
- Switch contact activation testing.
- Maximum force: 30 lbF [150 N] (compression only)
- Maximum travel: 1.5″ [38 mm]
- Weight: 6 lb [2.7 kg]
- Shipping Weight: 7 lb [3.2 kg]
- HS code: ES05: 9024900000, AC1060: 9024800000
- ECCN: EAR99
- Country of origin: USA
