ES10 Force Test Stand
Manufactured by Mark-10

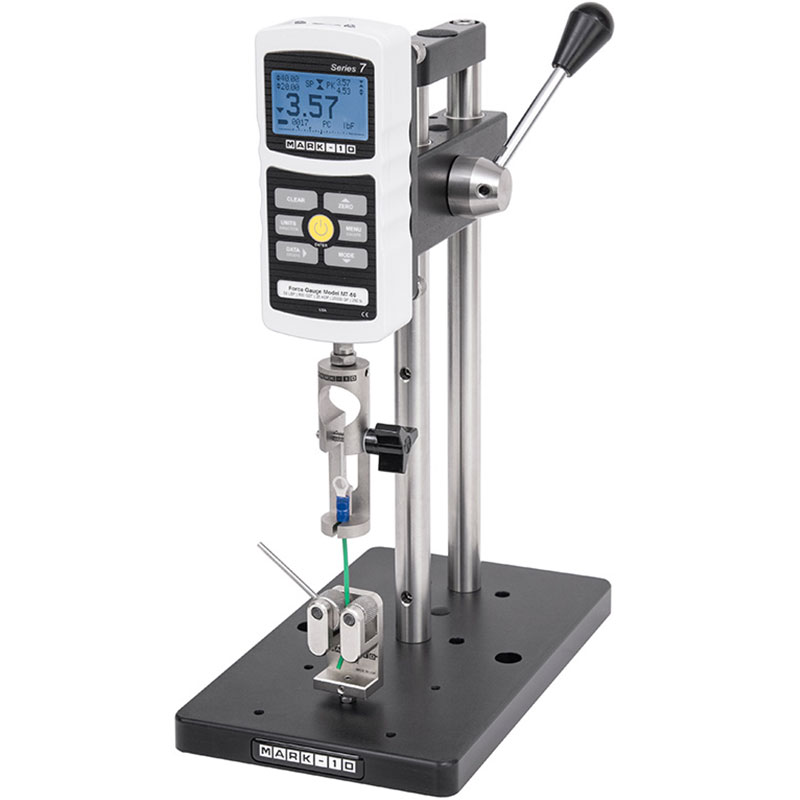

The ES10 force gauge test stand is fitted with a lever for quick-action compression and tensile testing of small samples.
Use these force test stands with our extensive selection of force gauges and grips to create complete and economical testing systems.
NB: The force gauge featured in the images is for illustration purposes only and is not included with the force test stand.
Benefits
- Compact, space-saving design is ideal for crowded workbenches.
- Compatible with all Mark-10 force gauges, accessories and grips.
- Large base plate with 5 #10-32 UNF holes for fixture mounting.
- Mounting holes for bench mounting.
- Three year warranty.
- Supported by AML in the UK.
- Optional dial and digital indicator kits display up to 1″ (25 mm) of displacement.
- Competitor force gauge mounting kits available.
The ES10 manual test stand includes the following accessories:
- 4 x Thumb screw for force gauge.
- 1 x Allen wrench set.
- 1 x Lever.
Important: Mark-10 equipment (other than the gauges) features open-access calibration. This means calibration adjustments are not locked out, giving you the freedom to use any standard-compliant calibration laboratory of your choice, saving you time and reducing lifetime ownership costs.

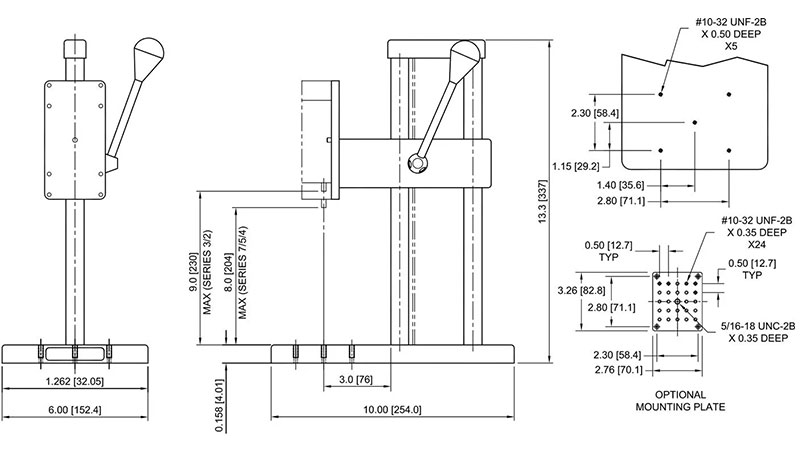

Dimensions
Technical Data
- Maximum Force: 100 lbF [500 N]
- Maximum Travel: 9″ [229 mm]
- Loading Method: Lever (can be placed in 3 positions for ease of operation)
- Travel Rate: 1.050″ [26.7 mm] / lever rev.
- Weight: 10lb [4.5 kg]
- Shipping Weight: 12lb [5.4 kg]
