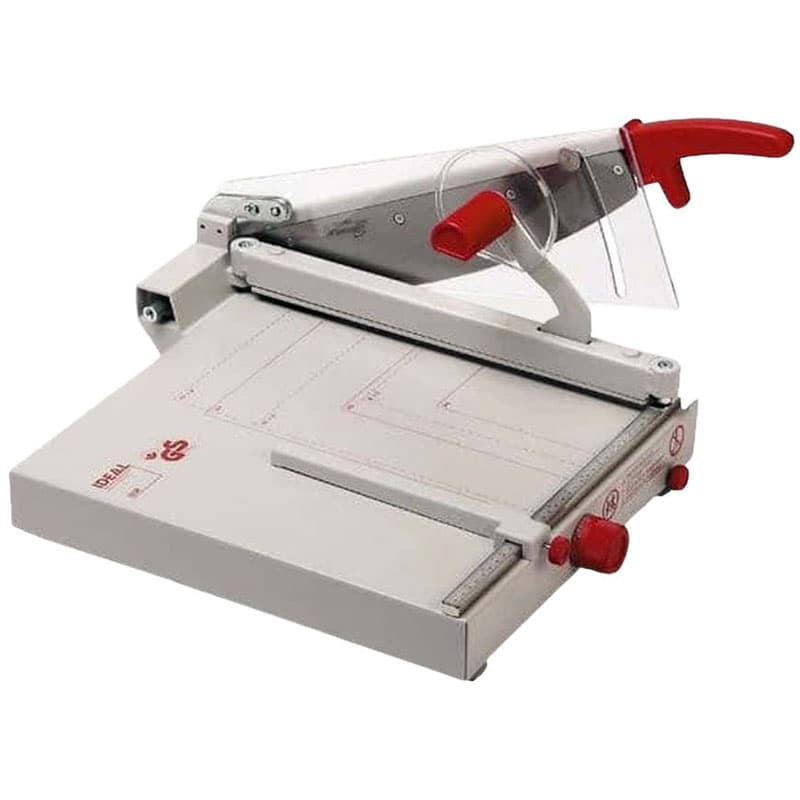

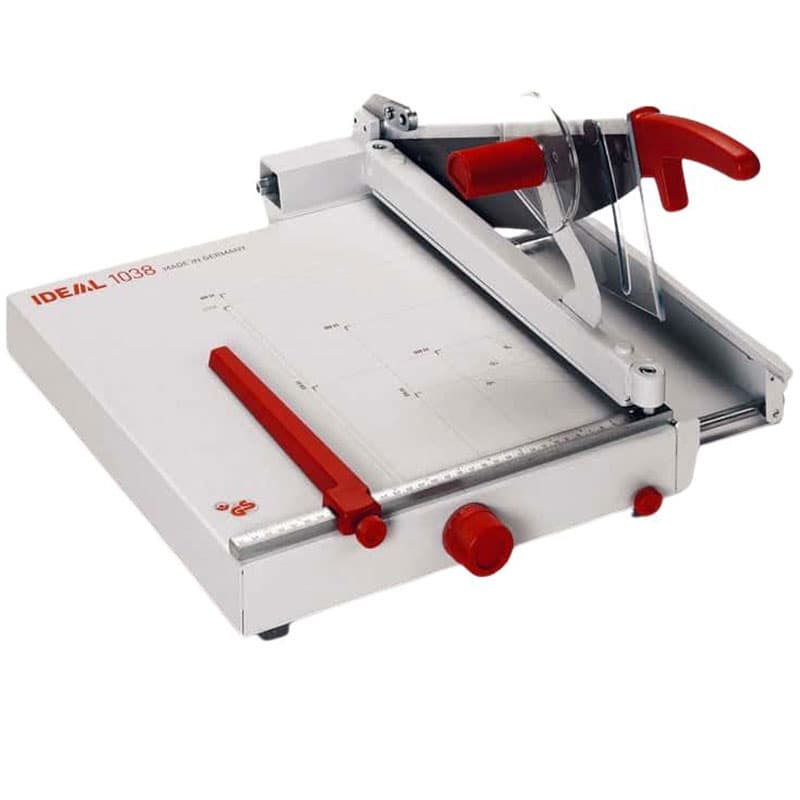

Universal Sample Cutter IDEAL 1038

The IDEAL 1039 Universal Sample Cutter is used to cut general samples of a wide range of materials, such as aluminium foil, flexible packaging, and paper.

It has a resharpenable, high-quality blade set made of “Solingen steel”, while the automatic safety guard constructed from transparent, unbreakable plastic material rises and falls with the movement of the blade.

Fold-away paper supports on the front gauge allow precise aligning of the paper, with a printed measuring scale on the table showing format indication, including standard paper sizes from A6 to A4.

It has a cutting length of 385mm and a cutting capacity of approximately 50 sheets* of thin paper (*paper 70 g/m²).

Benefits

Solid manual clamp for variable pressure depending on the material to be cut.
Durable all-metal construction.
Lockable front gauge with integrated narrow strip cutting device for cutting of strips as small as one mm.
Front gauge is adjustable via a calibrated rotary knob.
Standard paper sizes from A6 to A4 + American letter size and various angle indications printed on the table.
Strong cast aluminium blade mounting bracket with double pivot bearings for blade axle guarantees highly accurate rectangular cuts.
Precision side lay with measuring scale (mm/inches) and adjustable back gauge.
Manual sample clamping ram to prevent slipping.
Non-skid rubber feet for safe operation.
“Made in Germany” to exceptionally high standards.
Safety tested by independent safety labs.

Applications

Aluminium foil.
Compact board.
Flexible packaging.
Paper.
Plastic film.

Cutting Length: 385 mm
Cutting Capacity: Approx. 50 sheets*
Table Size: W 356 x D 403 mm
Format Indications: A4 – A6 + letter size
Dimensions (H x W x D): 260mm x 410mm x 575 mm
Weight: 9kg

*paper 70 g/m²
