Circular Sample Cutter GSM, FCT, Moisture

Circular Sample Cutter GSM, FCT, Moisture

Manufactured by Techlab Systems

Circular Sample Cutter for a variety of tests in many substrates and sizes of sample. Manufactured in Europe to the highest quality standards. Easy and safe to use!

Substrates

  • Paper
  • Paper board
  • Corrugated Board
  • Film
  • Foil
  • Tissue
  • Fabric
  • Non-wovens

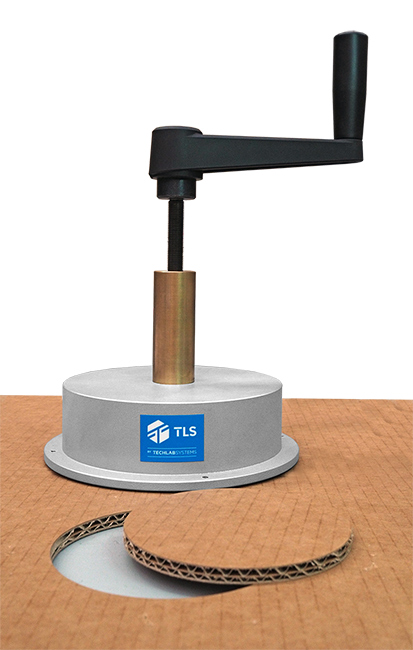

Circular Sample Cutter for Corrugated Board

  • Depth of cut adjustable for different thickness’s of sample
  • The blade is covered by the body of the cutter making it safe to use
  • The 3 pins hold the cutter in place to prevent slipping while in operation
  • Sample thickness up to 10 mm
  • Order in the following sizes 100 cm², 50  cm², 10 inch², 5 inch²

Typical Tests

  • GSM, grammage
  • FCT, Flat crush test
  • Moister content

Data Sheet Cutter for Corrugated Board

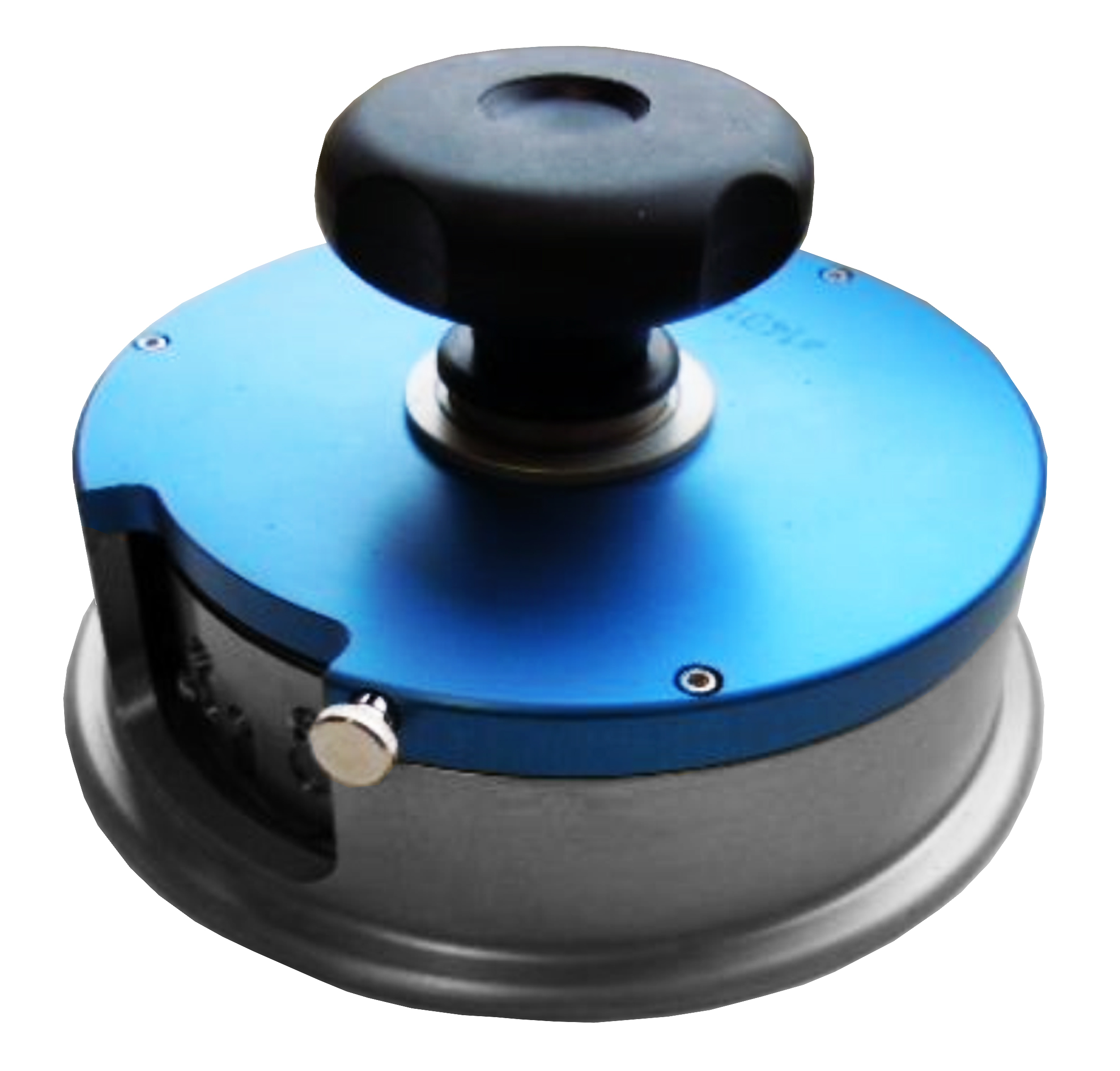

Circular Sample Cutter for paper and thinner materials

  • Handle and blades rotates to cut accurate and repeatable samples (rotate and push down)

    Circular Sample Cutter GSM, FCT, Moisture

    Circular Sample Cutter GSM, FCT, Moisture

  • 4 razor blades make a clean cut with the minimum of effort
  • The lowering of the blades to locked by a pin to prevent accidental exposure of the blades. 2 hands are required to make a cut
  • Easy to fit new blades
  • Samples up to 5 mm think
  • Available in the following sizes 100 cm², 50  cm², 64.5 cm²

Typical Tests

  • Grammage, GSM
  • Basis weight
  • Moister content

Data Sheet Circular Sample Cutter
