SOMERVILLE Fractionator Screen (type)

SOMERVILLE Fractionator Screen (type)

Manufactured by Techlab Systems

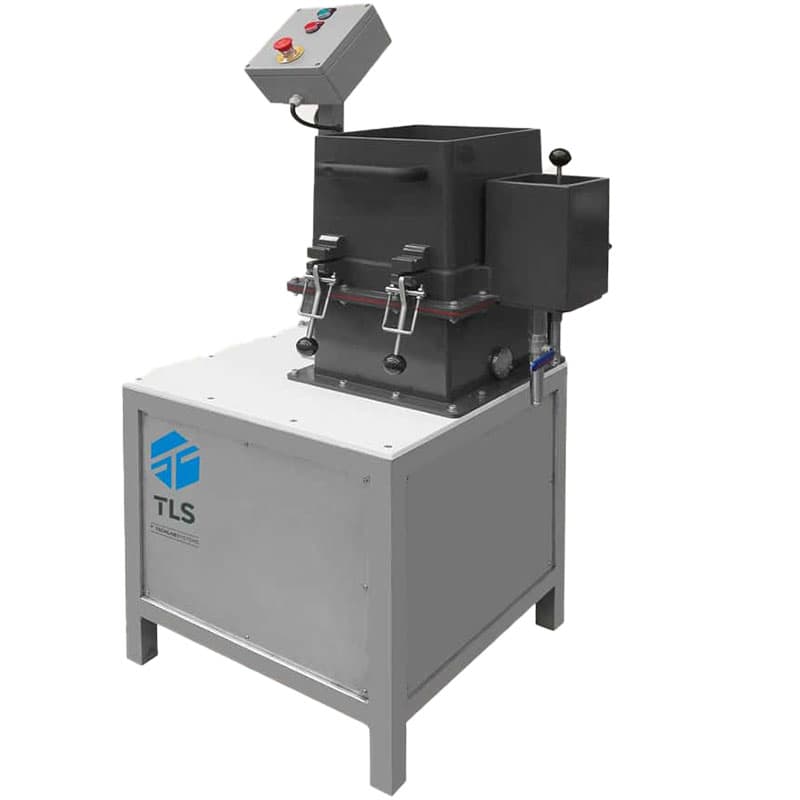

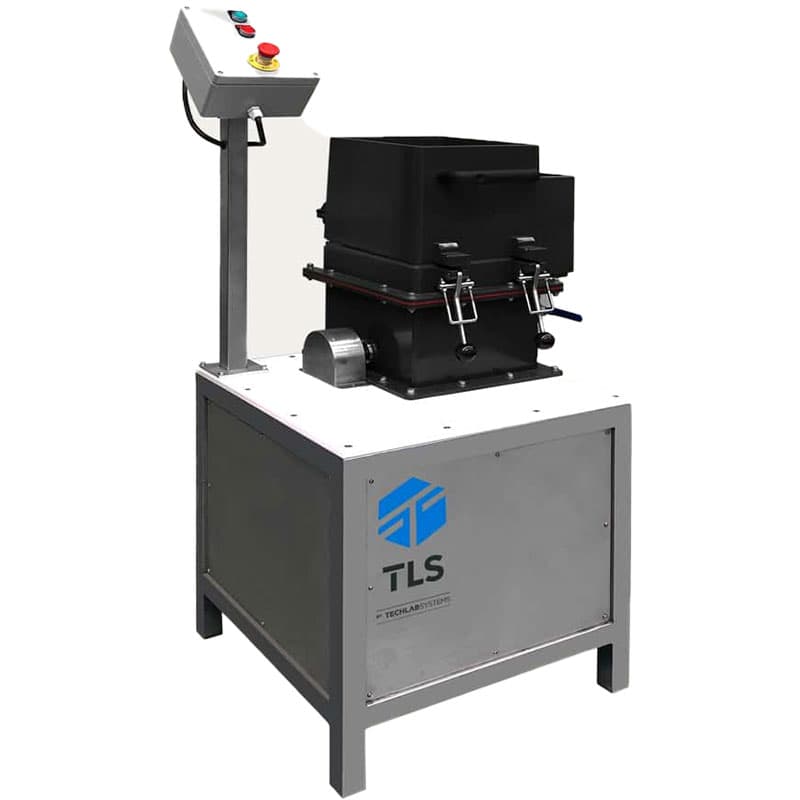

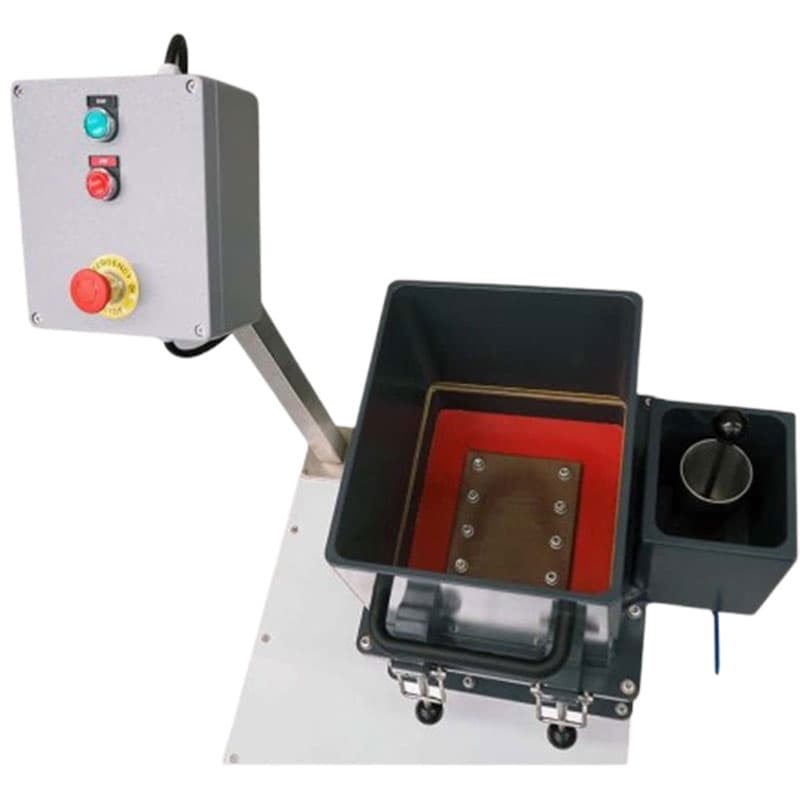

The Somerville Fractionator Screen enables you to determine the shive content of pulp.

This Somerville type classifier is designed to ensure that no useful fibre for the paper industry is included in the content of uncooked and impurities and these in useful fibre stocks.

Although originally designed to determine impurities in comminuted pulps, the method is applicable to all mechanical pulps and chemical pulps. It is also widely used for the determination of stickies that are left over from recycled materials.

Benefits

  • Conforms to PAPTAC C.11P, TAPPI T275, and TAPPI UM 242.
  • Regular slotted brass screen: 305 x 254mm.
  • 756 slits in screen precisely cut to 45 mm x 0.15 mm ± .05mm.
  • Rubber diaphragm actuation: 3.2 +-0.1 mm by eccentric drive with a speed of 690-700 rpm.
  • Water flow controlled by calibrated nozzles to a flow rate of 8.6 litre/min. at 1.23 Kg/cm2.
  • Robust design.
  • CE marked.
  • Easy and safety of use.

Suitable Applications

  • Shive analysis of pulps.
  • Separation of stickies and plastics from recycled fibres.

Power supply: 230V/60Hz o 380V/50Hz triphasic
Dimensions: 460mm x 500mm x 1320mm (W x D X H)
Net weight: 150Kg
Dimensions of transport packaging: 800mm x 800mm x 1800 mm (W x D X H)
Gross weight: 230Kg (Wooden packaging with phytosanitary treatment)
