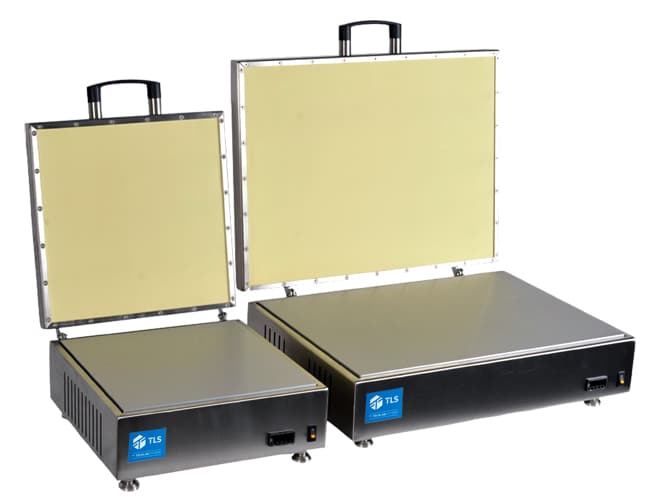

Sheet Dryer for Drying of Wet Paper Laboratory Formed Sheets
Manufactured by Techlab Systems
Sheet Dryer for fast drying of wet paper pulp sheets mainly from laboratory sheet former according to TAPPI or SCAN standards.
The sheet dryer consists of a sturdy stainless-steel bottom with a fitted hot plate and a safety cover. The heating plate can be adjusted to any temperature between room temperature and +180 °C. The plate is heated from below and maintains its temperature with a maximum difference of ± 10 °C. The internal face of the plate is coated with a specific fabric that guarantees the evacuation of steam. The cover provides good compression of the dry matter and prevents excessive heat radiation, minimizing energy consumption.
• Rectangular drying plates
• Uniform heat transfer through special plate (stainless steel)
• Temperature controlled by an integrated thermostat (RD-10 model) with temperature regulation from room temperature up to + 180ºC ± 10°C
• Digital temperature controller up to + 180ºC ± 1°C (SDR series)
RD-10 Data Sheet
SDR Data Sheet
