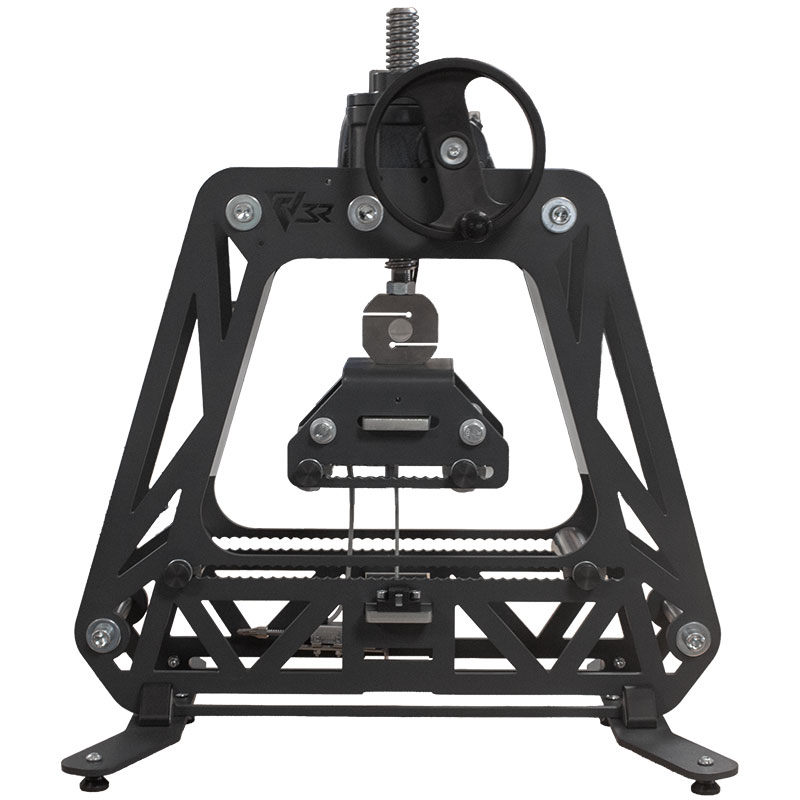

Manual Educational Test Bench – 5 kN

This Manual Didatic Test Bench is perfect for hands-on teaching labs, and physics and engineering departments at universities and colleges. It has a maximum capacity of 5 kN and offers an accessible, compact, and cost-effective alternative to high-capacity motorised test benches.

Intuitive and scalable Synt’X software is included as standard, helping budding engineers learnt the fundamental principles of material strength through tensile and bending load cases, and immediate access to reliable and usable results.

Benefits

Cost-effective test bench for students to learn about material strength testing.
Synt’x software included to make mechanical testing simpler, faster, and more reliable (Start data acquisition in just a few clicks).
S-beam load cell provides high precision, good measurement range, and easy installation.
125 mm displacement sensor for actuator travel monitoring.
25 mm displacement sensor for strain and deflection measurement.
Signal conditioning via a USB interface.

Available Tests

3 points bending.
4 points bending.
Cantilever beam bending.
Tensile testing of threaded rods.

Architecture	High-rigidity portal frame
Actuator	Manual handwheel
Transmission	Translating screw drive
Actuator stroke	100 mm
Maximum Capacity	5 kN
Dimensions (L × W × H)	573 mm × 449 mm × 711 mm
