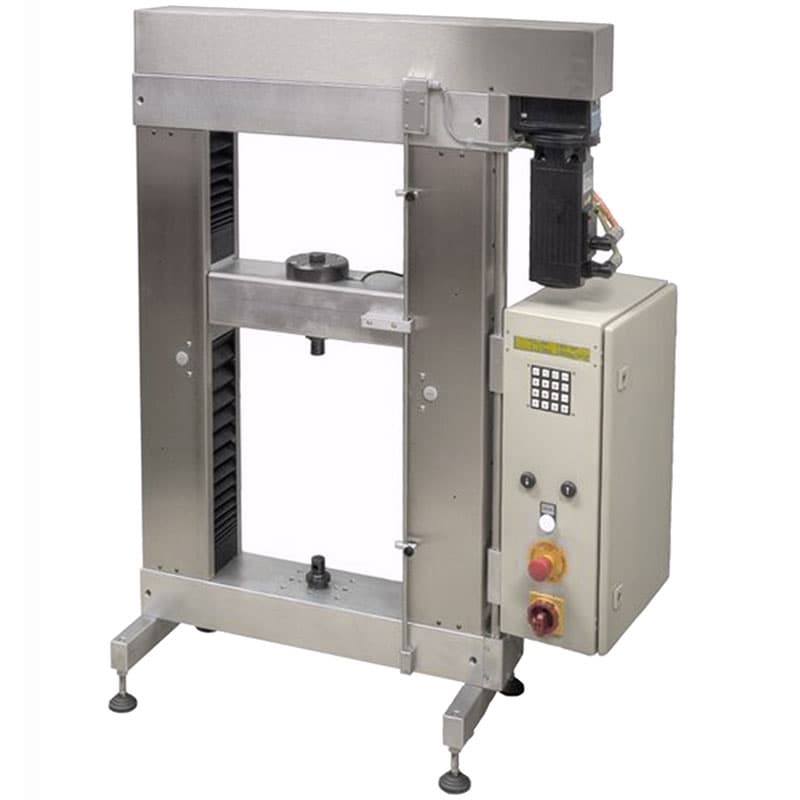

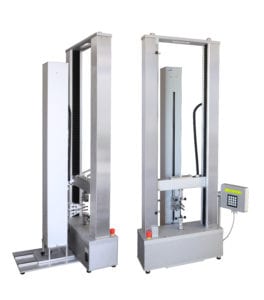

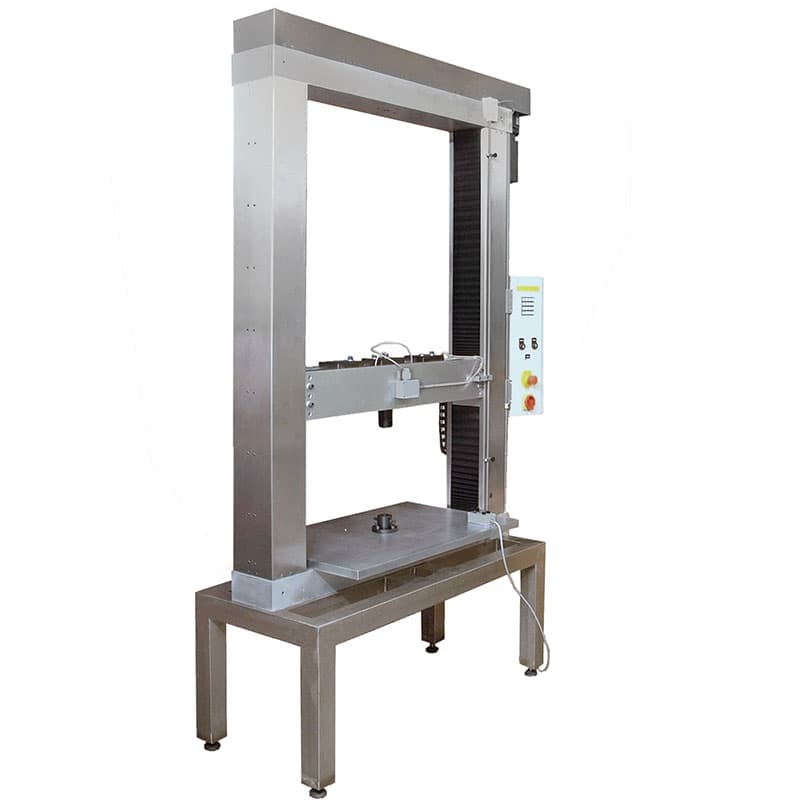

Tensile Test Machine / Universal Testing Machine
Manufactured by GRIP Engineering
Easily conduct bending, compression, peeling, shearing, tensile, and other tests with our GRIP Engineering twin column material testing machines.
The big brother to our Single Column Universal Testing Machines, they’re ideal for applications requiring larger grip and sample areas, with the biggest model capable of measuring forces up to 200 kN. The two vertical columns also offer added stability.
Also referred to as Universal Testing Machines (UTMs) because of their versatility, these tensile testers are powered by easy-to-use materials testing software for thorough analysis in research and development, and quality control applications.
All 10 models in this range are engineered in Germany to the highest standards. If that wasn’t enough, they’re also budget-friendly when compared to similar machines from the likes of Instron, Lloyds Instruments, Testometeric, Zwick Roell, and Tinius Olsen, without diminishing in accuracy, functionality, or quality.
Needing tensile tester grips and fixtures? AML Instruments supply an enormous range of fixtures and fittings (over 3000 standard), enabling the universal testing frame to be setup and adapted for many different types of tests. We also have the ability to design bespoke fixtures.
Price on quotation
Benefits
- Most universal test machines in this range can be delivered and installed in under a week.
- Microprocessor control for use as a standalone instrument or with software via USB.
- Two year warranty (extendable to three years).
- Aluminium and stainless steel construction with high mechanical stiffness.
- Cross-head speed as standard 0.025 — 700mm, greater range possible as an option.
- Load Cell resolution better than 1 part in 100,000.
- Grade 0.5 load cells to all international standards including ISO 7500-1. ASTM E4, and JISB7721
- Load Cell data sample rate 50 to 2000 Hz.
- Tensile tester calibration and repair service available.

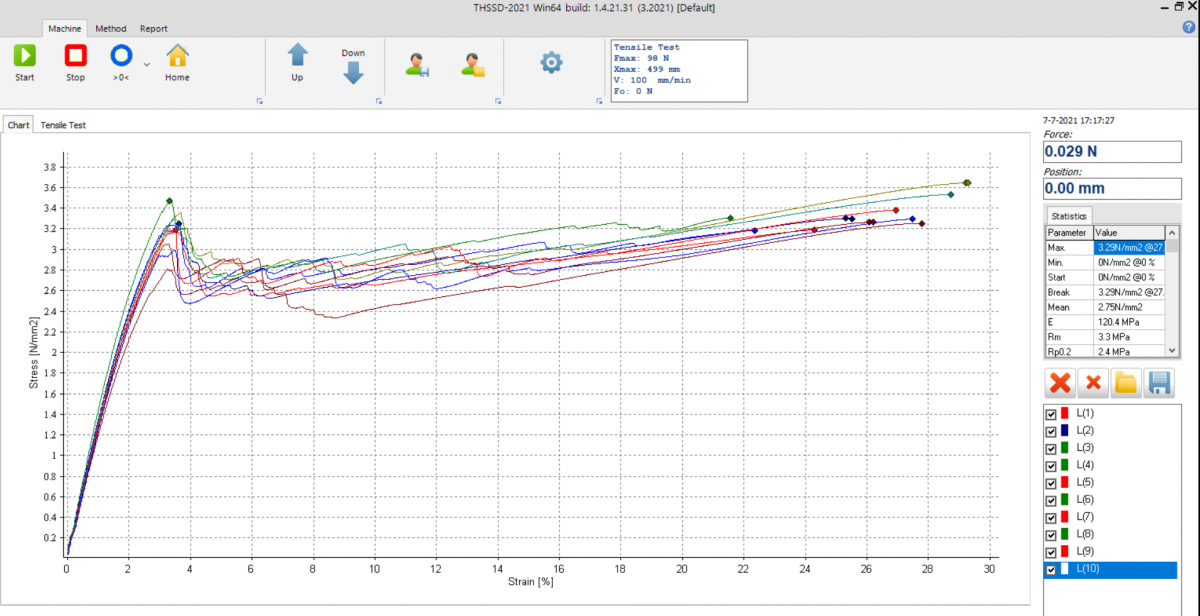

Super Software
The material testing software is supplied as standard, completely customisable, and LICENCE FREE with no expensive software agreements. AML Instruments have undertaken complex projects for a number of clients and have a certified LabVIEW software engineer who can design and build fully automated test rigs.
Other advantages of the software include:
- Large real-time numeric displays.
- Comprehensive analysis and calculations.
- Live Load, Peak Load, Live Stress and Peak Stress.
- Position, Position Rate, Peak Position, Live Strain and Peak Strain.
- Modulus calculations.
- Yield calculations.
- Monotonic and cyclitic test profiles.
- Multiple specimen geometries and calculations.
- Exports reports / results to PDF, Excel, or as a text file.
- Position resolution 0.001mm.
- English, Metric, and SI units.
- Operational Modes:
- Tension
- Compression
- Constant speed regulation
- Constant force regulation
- Hysteresis (fatigue)
- Peel
- Bend
- Higher speed/resolution available as an option.
All specifications, illustrations and descriptions of products are intended to give a general idea of the products available and are subject to alteration. We reserve the right to substitute an alternative of similar specification at our discretion. We have taken all reasonable steps to ensure the accuracy of product information provided, but we accept no liability for any errors or omissions.
With this machine, you can easily perform the following types of test:
- Bend (3 point and 4 point).
- Compression.
- Constant force.
- Cyclitic.
- Fatigue.
- Friction (COF).
- Peel.
- Shear.
- Tensile.

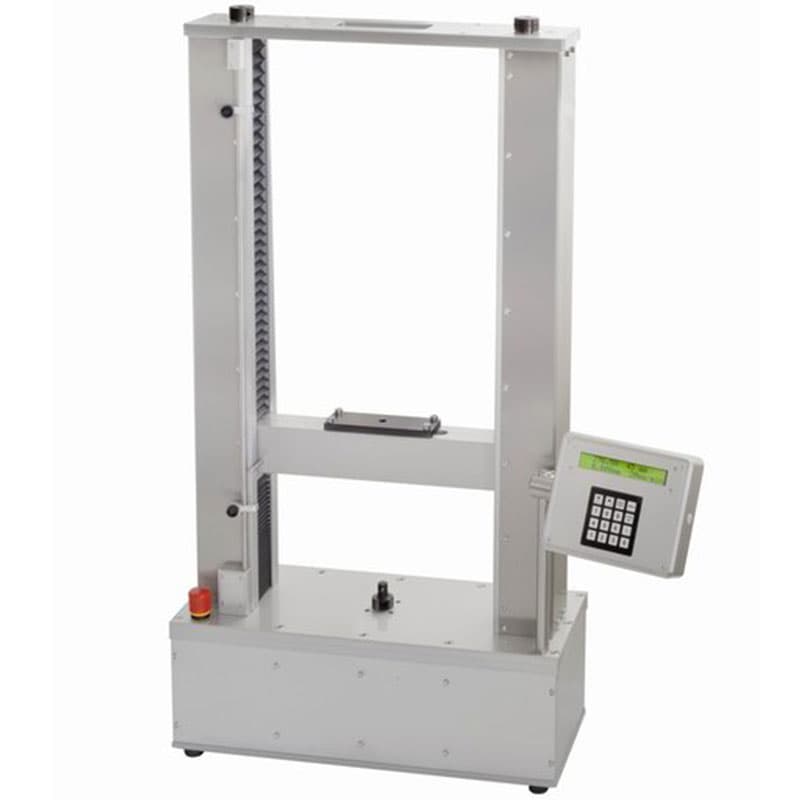

| Z10 X700 | Z10 X1200 | |
| Max Force | 10 | 10 |
| Max Speed | 600 | 600 |
| Min Speed | 1 | 1 |
| Smallest Distance | 200 | 200 |
| Adapter Size | 15.9 | 15.9 |
| Motor | 170 | 170 |
| Voltage | 220/110 | 220/110 |
| Motor Type | DC Maxon | DC Maxon |
| Crosshead Ext | 700 | 700 |
| Weight | 88 | 88 |
| Dimensions (H x W x D) | 1226mm x 640mm x 240mm | 1726mm x 640mm x 240mm |
| Packing Dimensions (H x W x D) | 1315mm x 740mm x 400mm | 1976mm x 740mm x 400mm |
- Z10 X700 10 kN Tensile Tester 700 mm of travel and 400 mm between the columns.
- Z10-X700-W600 10 kN Tensile Tester 700 mm of travel and 600 mm between the columns.
- Z10-X700-W800 10 kN Tensile Tester 700 mm of travel and 800 mm between the columns.

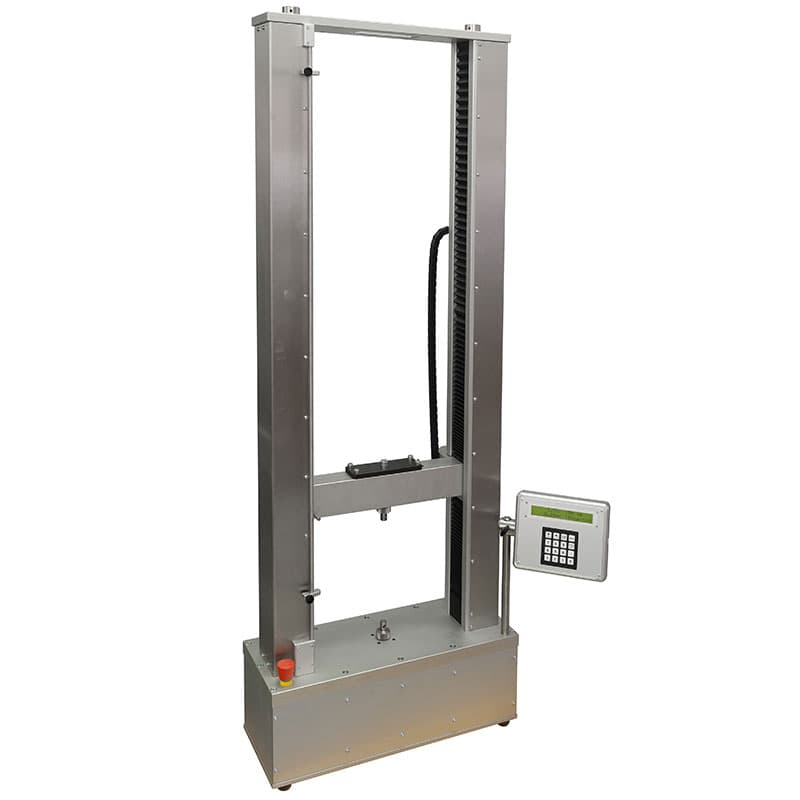

| Z20 X700 | Z20 X1200 | |
| Max Force | 20 | 10 |
| Max Speed | 1600 | 1600 |
| Min Speed | 0.03 | 0.03 |
| Smallest Distance | 209 | 209 |
| Adapter Size | 31.8 | 31.8 |
| Motor | 800 | 800 |
| Voltage | 380 | 380 |
| Motor Type | AC Servo Stober | AC Servo Stober |
| Crosshead Ext | 700 | 700 |
| Weight | 235 | 235 |
| Dimensions (H x W x D) | 1317mm x 1071mm x 433mm | 1837mm x 1071mm x 433mm |
| Packing Dimensions (H x W x D) | 1900mm x 1200mm x 800mm | 1900mm x 1200mm x 800mm |
- Z20 X700 20 kN Tensile Tester 700 mm of travel and 428 mm between the columns.
- Z20 X1200 20 kN Tensile Tester 1200 mm of travel and 428 mm between the columns.
- Wider & longer travel versions available to order.
| Z50 X700 | Z50 X1200 | |
| Max Force | 50 | 50 |
| Max Speed | 1600 | 1600 |
| Min Speed | 0.03 | 0.03 |
| Smallest Distance | 209 | 209 |
| Adapter Size | 31.8 | 31.8 |
| Motor | 1600 | 1600 |
| Voltage | 380 | 380 |
| Motor Type | AC Servo Stober | AC Servo Stober |
| Crosshead Ext | 700 | 1200 |
| Weight | 245 | 270 |
| Dimensions (H x W x D) | 1317mm x 1071mm x 433mm | 1837mm x 1071mm x 433mm |
| Packing Dimensions (H x W x D) | 1900mm x 1200mm x 800mm | 1900mm x 1200mm x 800mm |
- Z50-X700 50 kN Tensile Tester 700 mm of travel and 428 mm between the columns.
- Z50 X1200 50 kN Tensile Tester 1200 mm of travel and 428 mm between the columns.
- Wider & longer travel versions available to order.

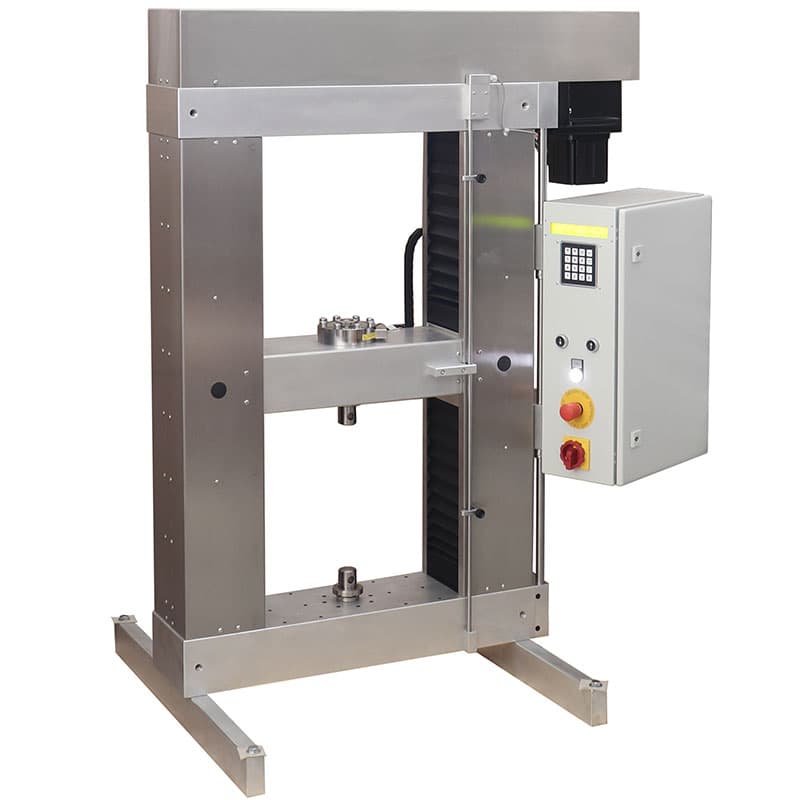

| Z100 X700 | Z100 X1200 | |
| Max Force | 100 | 100 |
| Max Speed | 600 | 600 |
| Min Speed | 0.02 | 0.02 |
| Smallest Distance | 228 | 228 |
| Adapter Size | 40 | 12 |
| Motor | 2400 | 2400 |
| Voltage | 380 | 380 |
| Motor Type | AC Servo Stober | AC Servo Stober |
| Crosshead Ext | 1200 | 1200 |
| Weight | 420 | 420 |
| Dimensions (H x W x D) | 1450mm x 1090mm x 590mm | 2050mm x 1090mm x 590mm |
| Packing Dimensions (H x W x D) | 1600mm x 1200mm x 800mm | 1600mm x 1200mm x 800mm |
- Z100 X1200 100 kN Tensile Tester 1200 mm of travel and 456 mm between the columns.
- Wider & longer travel versions available to order.

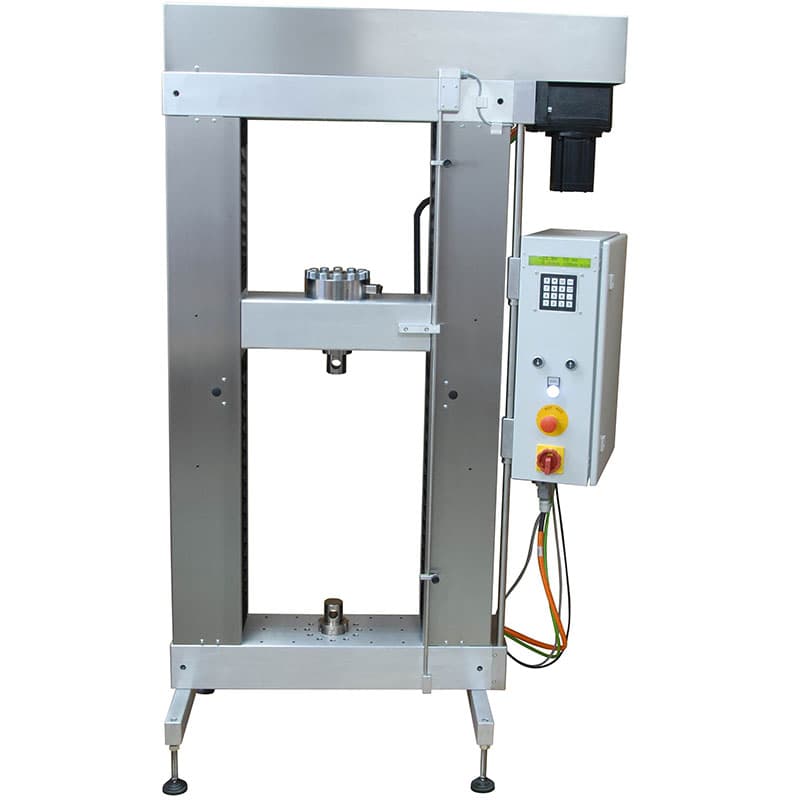

| Z150 X1200 | |
| Max Force | 150 |
| Max Speed | 4000 |
| Min Speed | 0.02 |
| Smallest Distance | 228 |
| Adapter Size | 40/12 |
| Motor | 2900 |
| Voltage | 380 |
| Motor Type | AC Servo Stober |
| Crosshead Ext | 1200 |
| Weight | 460 |
| Dimensions (H x W x D) | 2050mm x 1090mm x 590mm |
| Packing Dimensions (H x W x D) | 1600mm x 1200mm x 800mm |
- Z150 X1200 150 kN Tensile Tester 1200 mm of travel and 456 mm between the columns.
- Wider & longer travel versions available to order.
200 kN Materials Testing Machine
| Z200 X1200 | |
| Max Force | 200 |
| Max Speed | 400 |
| Min Speed | 0.01 |
| Smallest Distance | 228 |
| Adapter Size | 40/12 |
| Motor | 3500 |
| Voltage | 380 |
| Motor Type | AC Servo Stober |
| Crosshead Ext | 1200 |
| Weight | 600 |
| Dimensions (H x W x D) | 2050mm x 1090mm x 590mm |
| Packing Dimensions (H x W x D) | 1600mm x 1200mm x 800mm |
- Z200 X1200 150 kN Tensile Tester 1200 mm of travel and 456 mm between the columns.
- Wider & longer travel versions available to order.
- Customised machine sizes and capabilities.
- Finance / lease options available (subject to a successful application).
- Installation and training available.
- LabView API and custom test programs .
- Load cells 2N to 200 kN.

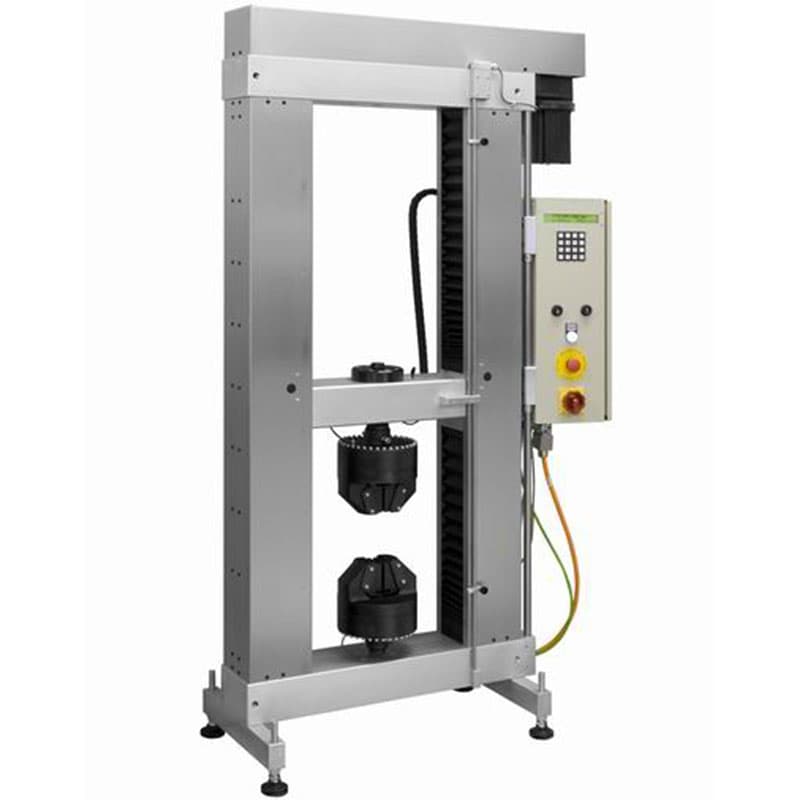

- Over 3000 different grips and fixtures available. We also design and manufacture bespoke grips and fixtures should one of our standard options not fit your application.
- Second channel for additional load cell or extensometer.

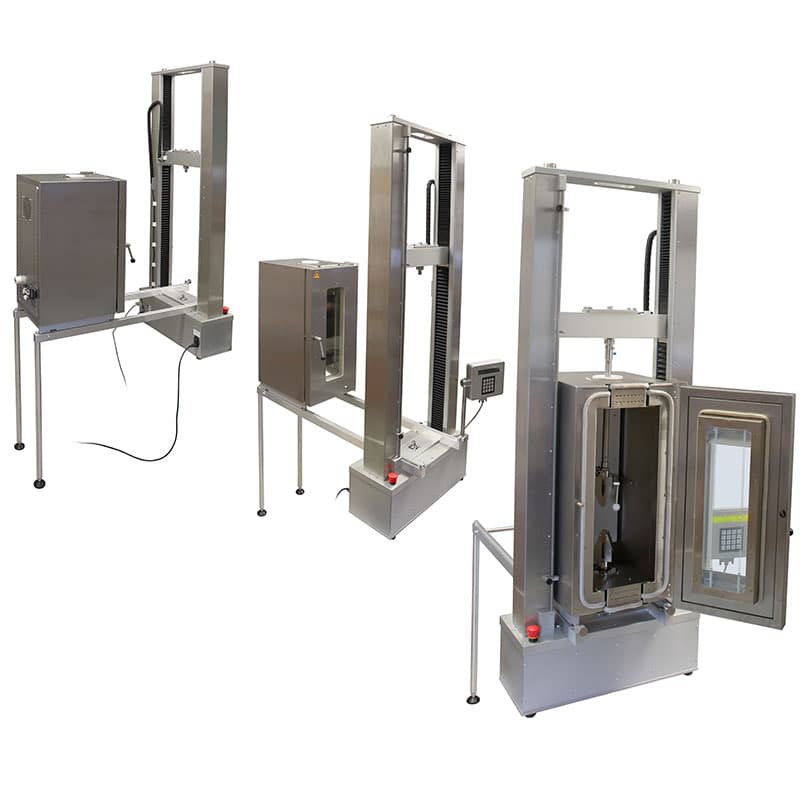

- Temperature chamber for low or elevated temperature materials testing.
Force Capacities & Customisation Options
The GRIP Engineering Twin Column Universal Testing Machine is available in the following capacities: 10 kN, 20 kN, 50 kN, 100kN, 150kN, and 200kN.
The following load cells are available as standard: 2N, 5N, 10N, 20N, 50N, 100N, 200N, 500N, 1kN, 2kN, 5kN, 10 kN, 20 kN, 50 kN, 100 kN, 150 kN, & 200 kN.
All we need to know is what material you are testing and the type of test. If you have a particular standard or test method you are testing to, please also let us know this and we will go away and recommend the best options for your test.
Our most popular Grips and Fixtures can be found in this photobook.
Tensile Tester Grip & Fixture Range.
