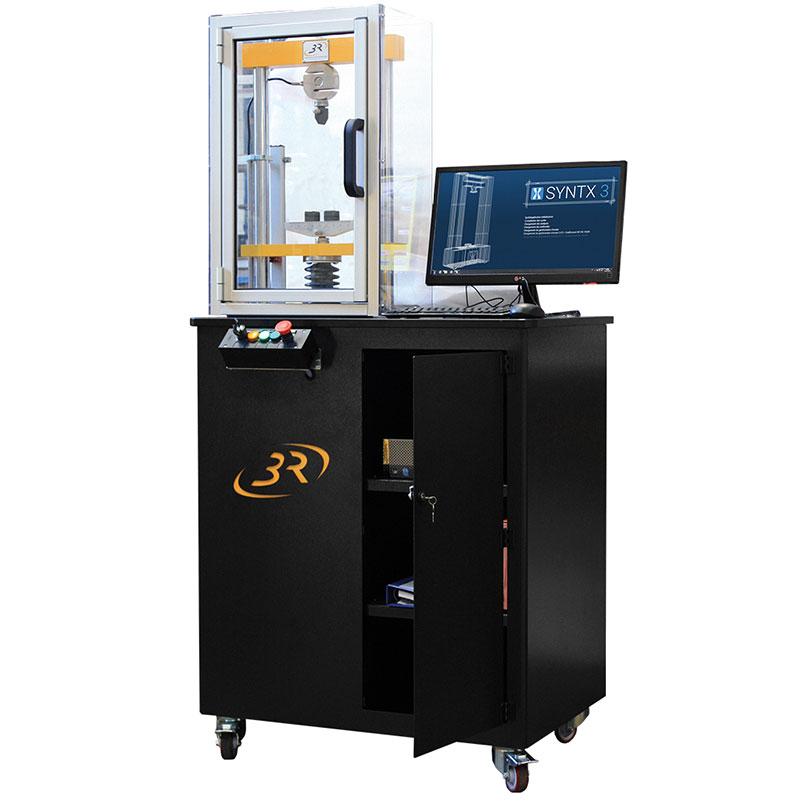

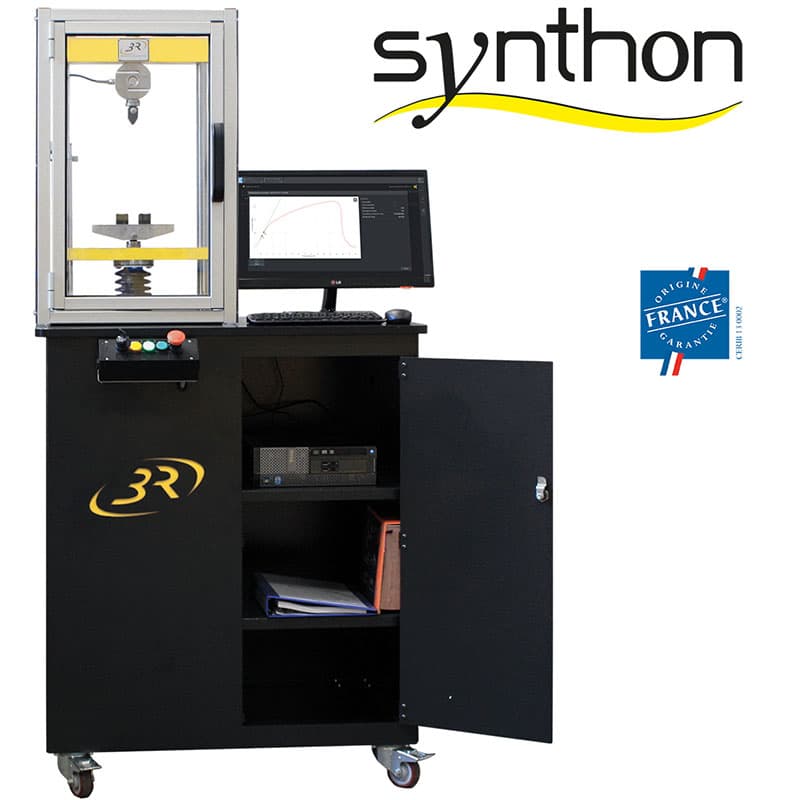

SYNTHON Teaching Universal Testing Machine – 25 kN

Benefits

• Enables simple illustration of the principles of mechanical testing without instrumentation complexity.
• Low capacity of 25 kN.
• Robust two-column frame mounted on casters with storage cabinet.
• Pin interface for quick change of supports.
• Scalable configurations to increase level of understanding and test complexity.
• Rigid transmission: motor, gearmotor and ball screw.
• Machine equipped with a protective guard with door opening detection.
• Launch a test in just four clicks.
• Load cell: capacity of 25kN, accuracy 0.5%.
• Equipped with the new EDCi 20 controller: the most powerful controller in its class, offering closed-loop operation at 1 KHz.
• Closed-loop control in load or displacement during tests.
• %Lc and %Le / sec Ability to switch control channels and targets during the same test.
• Channel resolution 10 000 000 points, i.e. 0.00001% of full scale.
• ISP Intelligent Sensor Plug sensor interfaces with automatic recognition of connected sensor, software auto-configuration and calibration.
• Control unit with 22” minimum screen.
• Data acquisition system — As standard, the device manages the recording and display of displacement and load applied by the various loading components.
• Adjustable speed from 12mm/min to 170mm/min.
• Test control via command and analysis software.
• Upper and lower limit safety detector.
• Operation by test method with degree of parameterisation at the user’s choice.
• Includes standard methods for each tooling
• User profile management.
• External instrumentation is “plug and play” and can be integrated into the machine at any time by assigning a COM port.

Customisable Options

Customisable Options

Need more speed, a bigger machine, or a custom-built solution? We understand every testing scenario is unique, which is why all our 3R Industries tensile testing machines can be meticulously crafted to meet your specific testing requirements.

We promise unmatched value and exceptional performance in every unique configuration. Take a look at the 3R Industries UTM catalogue and contact us to let us know your bespoke requirements.
