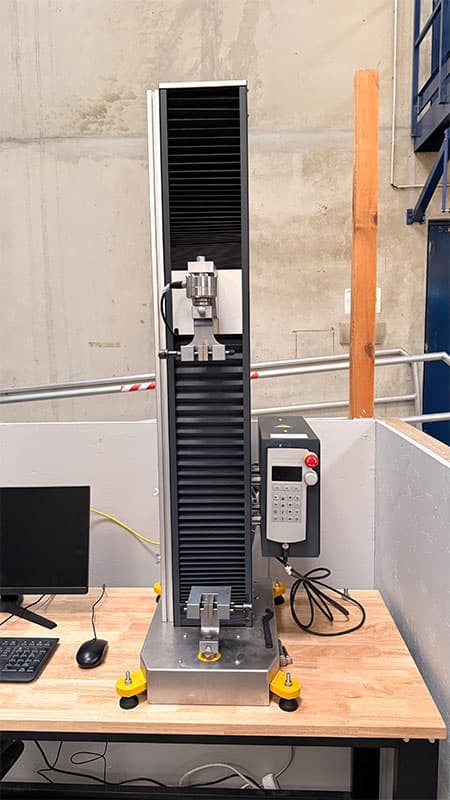

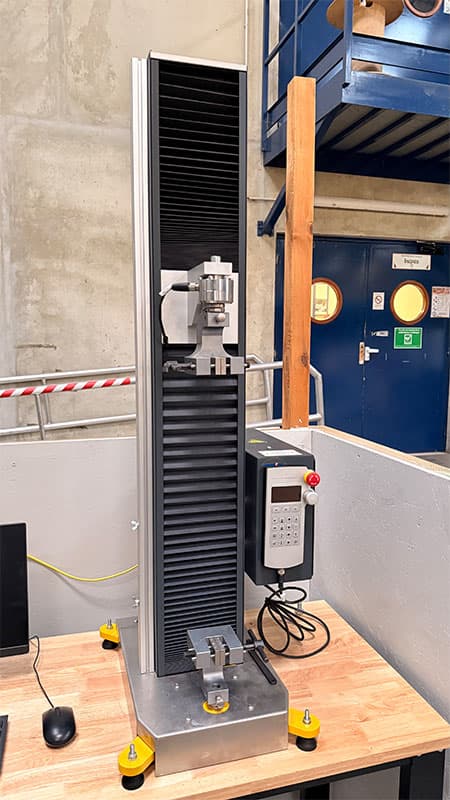

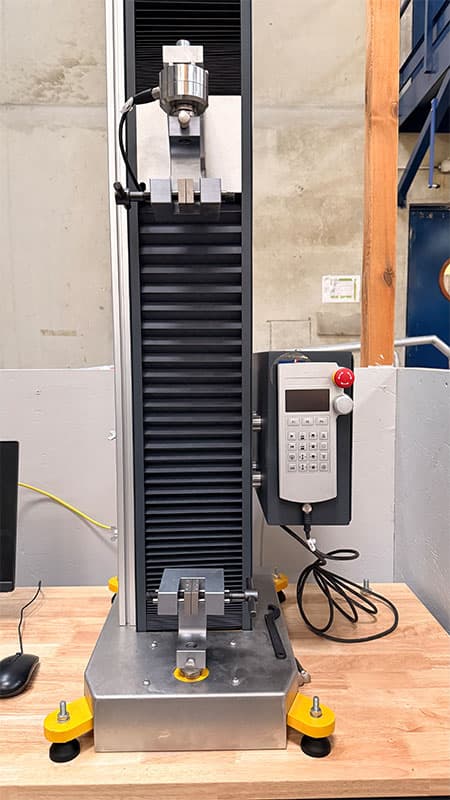

SYNTAX 5 Compact Universal Testing Machine – 5 kN
Manufactured by 3R Industries

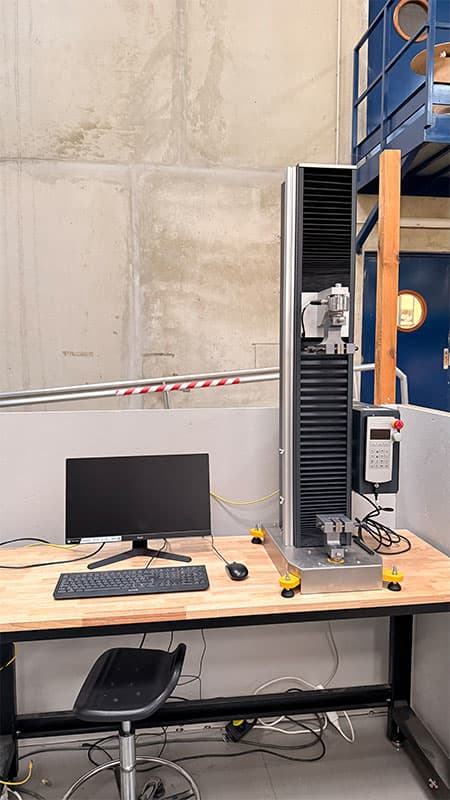

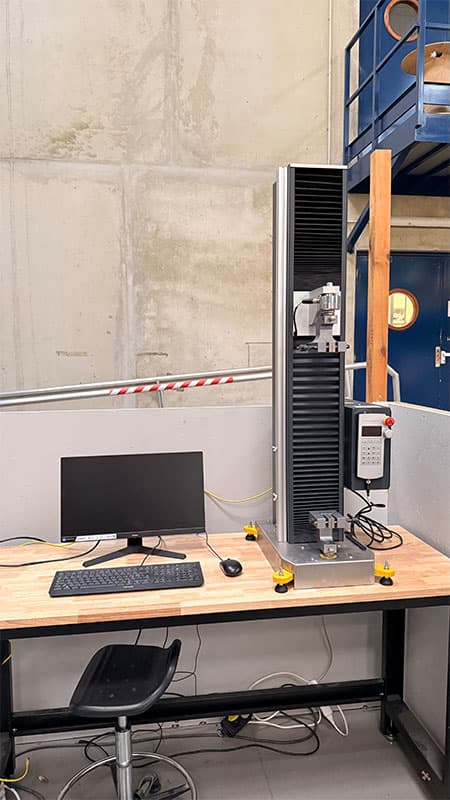

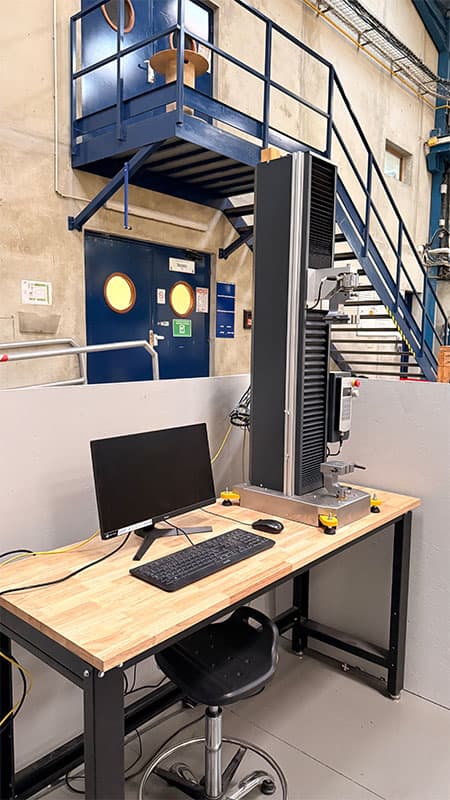

Designed and manufactured in France, the SYNTAX 5 single-column universal testing machine (UTM) has a compact footprint for easy installation on standard laboratory benchtops.
It’s suitable for precision testing of low-force and soft materials, such as adhesives, biomedical specimens, elastomers, plastics, and textiles.
The machine can achieve up to 5 kN force capacity and has a highly rigid load frame that provides high axial stiffness (~5 kN/mm) and minimal frame deflection, ensuring reliable strain measurement.
Price on quotation
Benefits
- Significantly smaller footprint compared to other UTMs.
- Suitable for teaching and routine quality control tests.
- Offers precise testing of low-force and soft materials.
- Force and position are measured with 10 million-count resolution.
- Accuracy complies with ISO 7500-1 and Class 0.5 (0.2 % FS).

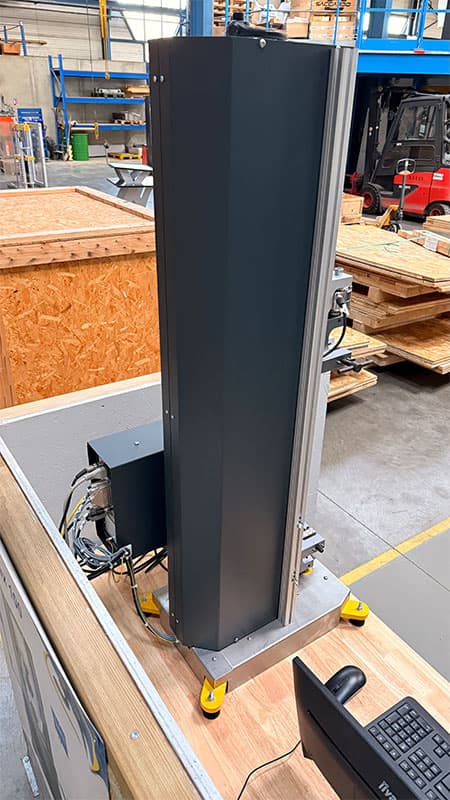

- Rigid load frame has two chrome-plated guide columns and a preloaded ball-screw assembly to ensure accurate material analysis.
- Preloaded ball screw is backlash-free, meaning force is transmitted directly to the specimen without lost motion.
- New high-performance controller.
- Crosshead speeds from 1 µm to ~600 mm/min support quasi-static testing and faster cyclic sequences.
- Crosshead position resolution of 0.1 µm and position accuracy of class 0.2 (ISO 9513) support small-strain applications.
- Easy integration — single phase 230 V power, low footprint (approx. 450 x 550 x 1,300 mm) and ~120 kg mass facilitate installation in labs.

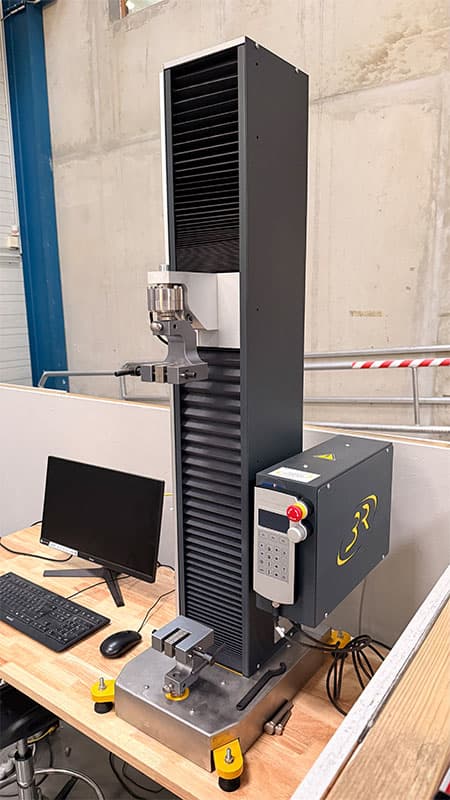

- Remote “BlackBox” control unit houses power electronics and signal conditioning.
- Vertical test space (1000 mm daylight). Option to go larger if needed.
- Tensile tester calibration service available.
- Choose from a wide range of universal testing machine accessories, including grips, environmental chambers, and extensometers.
- A full range of load cells from 1N up to the capacity of the frame are available.
Software
This tensile tester comes supplied with comprehensive and user-friendly Synt-X software, enabling operators to move quickly from setup to execution, while ensuring consistency and repeatability. With features like automatic generation of customised test reports and pre-configuration of products and specimens, it helps users focus on their tests by reducing setup time and minimise operator errors.
The Synt-X test control software is designed, developed, and maintained in-house by 3R’s engineering team, guaranteeing long-term compatibility and continuous improvement for routine production testing, advanced research, and standard-compliant mechanical tests.
Customisable Options
Need more speed, a bigger machine, or a custom-built solution? We understand every testing scenario is unique, which is why all our 3R Industries tensile testing machines can be meticulously crafted to meet your specific testing requirements.
We promise unmatched value and exceptional performance in every unique configuration. Take a look at the 3R Industries UTM catalogue and contact us to let us know your bespoke requirements.
“Engineered in France, Supported in the UK by AML, Built to last!”
The SYNTAX 5 compact materials testing machine offers precise control and measurement for a wide range of tests in industries such as plastics and composites, paper and packaging, and textiles.
Tests that can be performed on this instrument include:
- Compression.
- Cyclitic.
- Flexural.
- Hardness.
- Peel.
- Shear.
- Tensile.
- Thermal and climatic.
Standards
ISO 7500, ASTM A370, ASTM C1609/C1609M, and ASTM C273.
Technical Data
| Capacity | 5 kN |
| Frame Stiffness (kN/mm) | — |
| Screw Type | Preloaded ball screws |
| Number Of Ball Screws | 1 |
| Transmission Type | Gearbox with reinforced belt |
| Bearing Type | Precharged and waterproof, full life greased |
| Accuracy (Class) Load Cell Measurement |
Class 1 (≥0.1% FS) / Class 0.5 (≥0.2% FS) – ISO 7500-1 |
| Crosshead Position Resolution | 0,05 µm |
| Maximum Speed, Max Load | 568 mm/min |
| Minimum Speed | 1,9 µm/min |
| Crosshead Travel Without Load Cell And Interface |
1000 mm |
| Test Width (mm) | — |
| Working Area Height | 79 mm |
| Dimensions | 450 mm (W) x 600 mm (D) x 1300 mm (H) |
| Weight | 120 kg |
| Power Supply | 230 V single phase |
| Power Consumption | 160 W |
