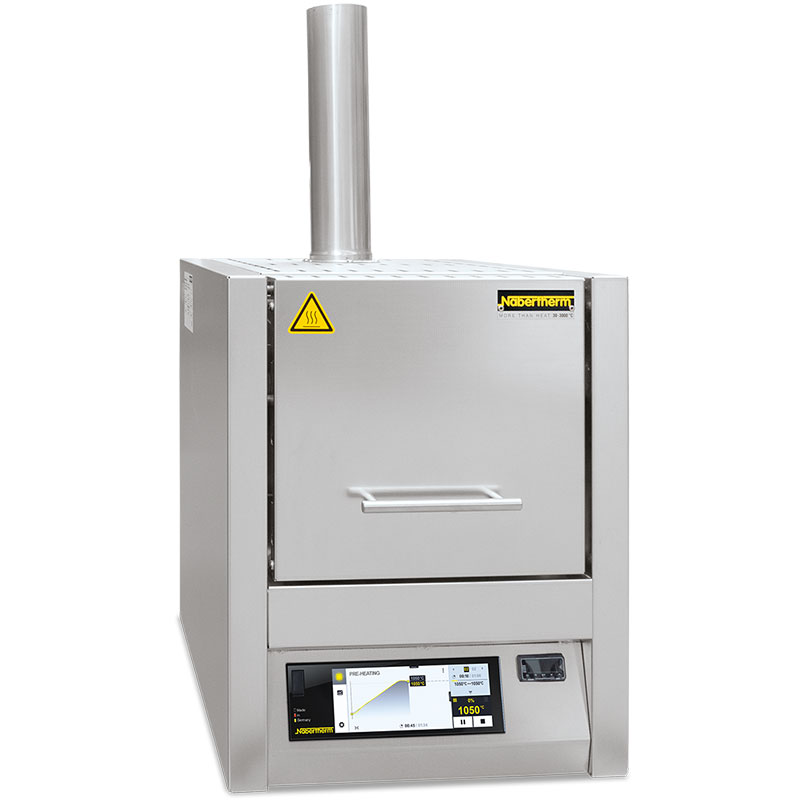

Laboratory Ashing Furnaces – Up To 1100 °C

Manufactured by Nabertherm

Designed for precise ash content analysis applications such as ashing food and plastics for subsequent substance analysis, this range of laboratory ashing furnaces are suited for ashing processes to 1050°C.

A special fresh-air and exhaust air system ensures the air is replaced six times per minute, so there is always enough oxygen for the ashing process.

Suitable for many standardised ashing processes according to ISO, ASTM, EN, and DIN, these ashing furnaces are available with either a flap door or lift door.

Benefits

Maximum temperature of 1100°C.
Incoming air passes the furnace heating and is pre=heated to ensure good temperature uniformity.
Heating from two sides.
Ceramic heating plates with integral heating element which is safeguarded, and easy to replace.
Good temperature uniformity due to preheating of incoming air, temperature uniformity according to DIN 17052-1 to +/− 10 °C in the defined empty work area (from 550 °C).

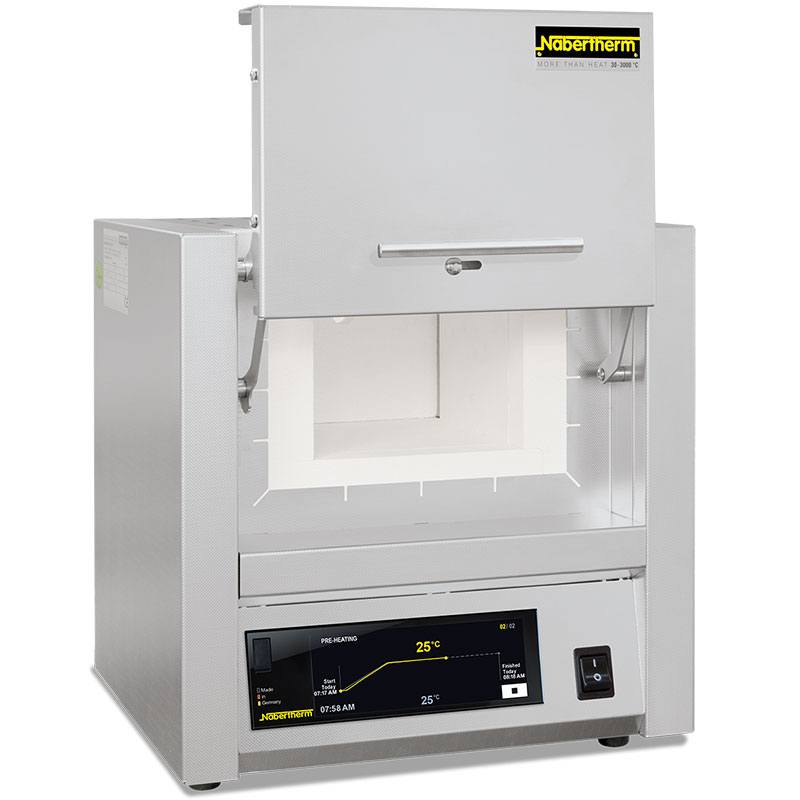

Optional flap door which doubles up as a work platform, or a lift door which is generally safer as the hot surface faces away from the operator.
Controller with touch operation B510 (5 programs with each 4 segments.
Furnace calibration service available.

Accessories

Over-temperature limiter with adjustable cutout temperature as temperature limiter to protect the furnace and load.
Port for thermocouple in the rear wall or in the furnace door.
Charging rack with closed or perforated trays for loading the furnace in two levels incl. holder for inserting/removing the trays up to a max. temperature of 800 °C and a max. loading weight per layer of 2 kg for the L(T) 9/11 respectively 3 kg for the LV(T) 15/11.
