BINDER Cooling Incubators Series KB
Manufactured by BINDER
Our heating and cooling incubators provide highly precise incubation conditions thanks to power reserves. The temperature-controlled system enables samples to be incubated or stored in a cooling incubator both above and below ambient temperature.
Also known as refrigerated incubators, they are used in various sectors and areas of microbiology, such as the food industry, and pharmaceutical and medical research. Other cooling incubator uses include: storing vaccines and medicines in refrigerated conditions, battery research and development, and water and wastewater analysis.
Investing in this BINDER cooling incubator will also help your business maximise energy cost savings, as the new KB unit consumes as much as 40% less energy than the previous model.
Available in six different sizes (interior volumes ranging from 63 litres to 1070 litres), all cooling incubators in the KB series operate within a large temperature range of 0°C to +70°C, and feature APT.line™ preheating chamber technology.
Price on quotation
Benefits
- Reliable reproducibility, even when fully loaded, due to horizontal air flow from both sides.
- Failsafe operation thanks to proven compressor technology.
- Hot-air (100°C) disinfection prevents cross-contamination and improves infection control compliance.
- Simple programming of a second set temperature value.
- Energy-efficient cooling with modern inverter cooling unit.
- Cooling with climate-neutral R-600a refrigerant.
- Door heating prevents condensation.
- Housing design with HIT technology.

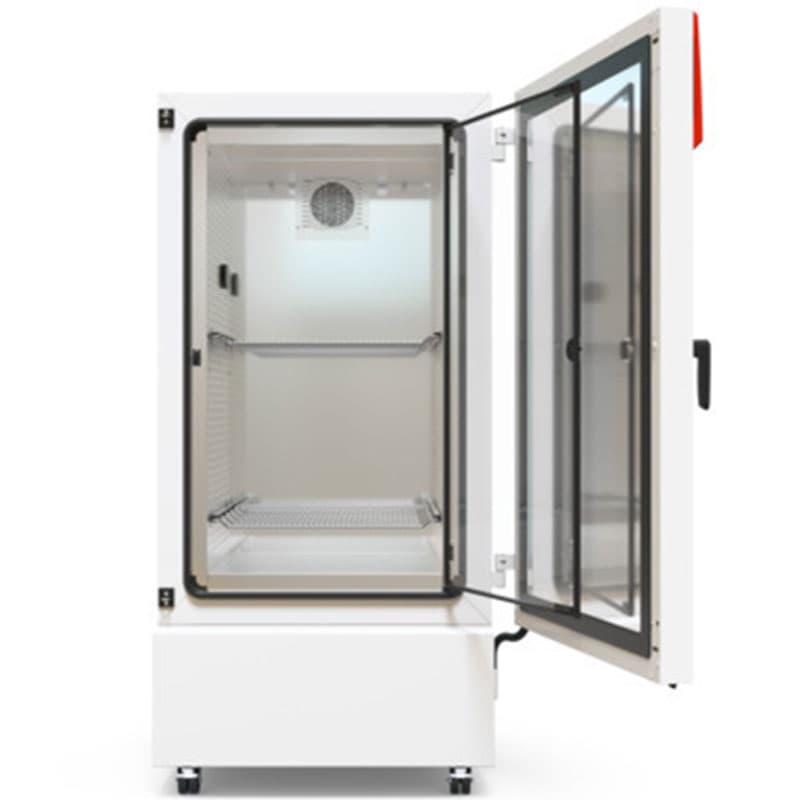

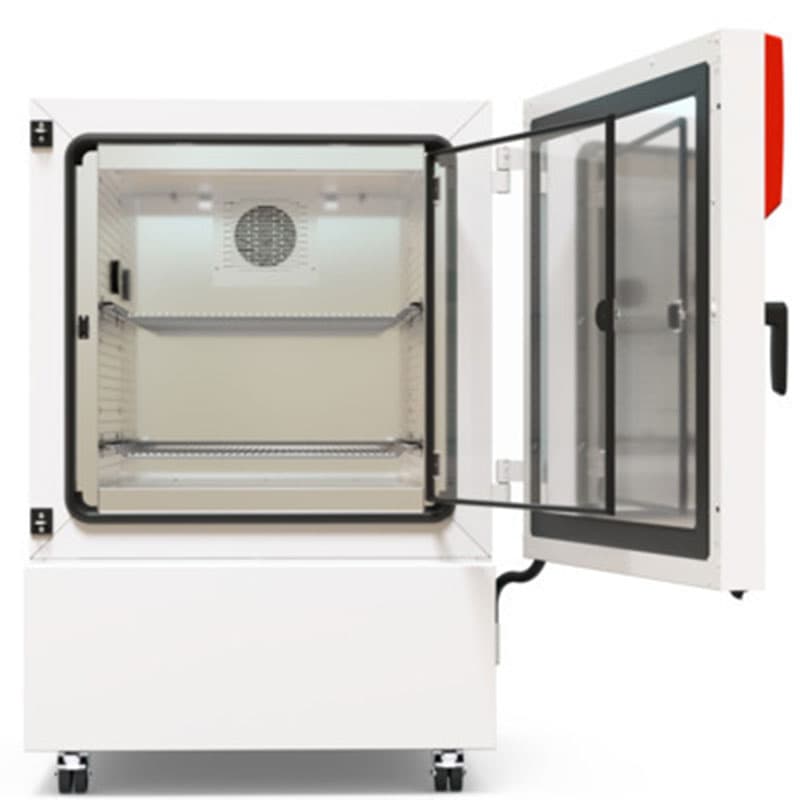

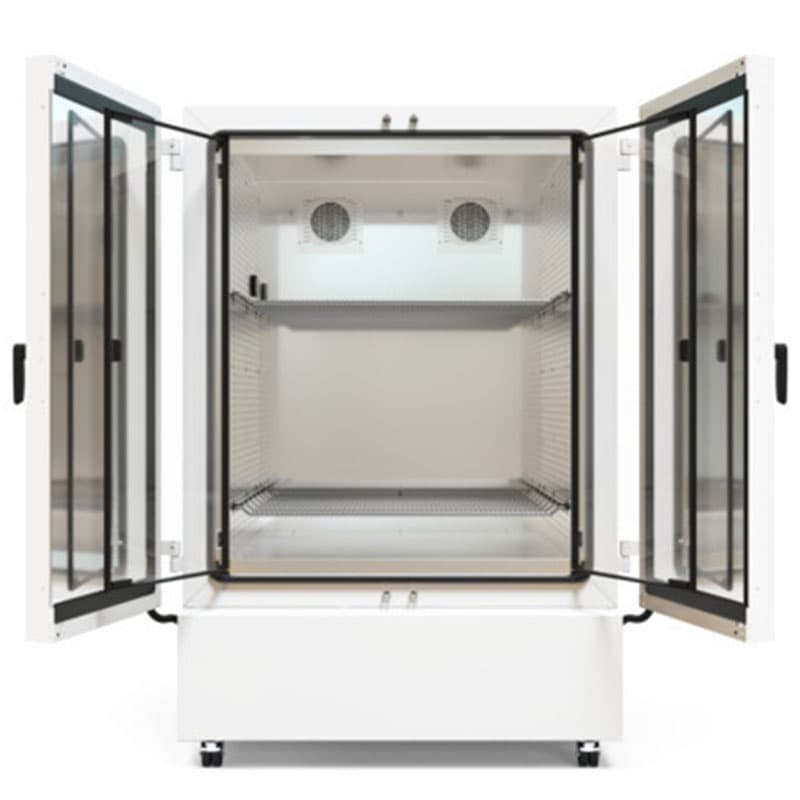

- Interior made entirely from hygienic and robust stainless steel.

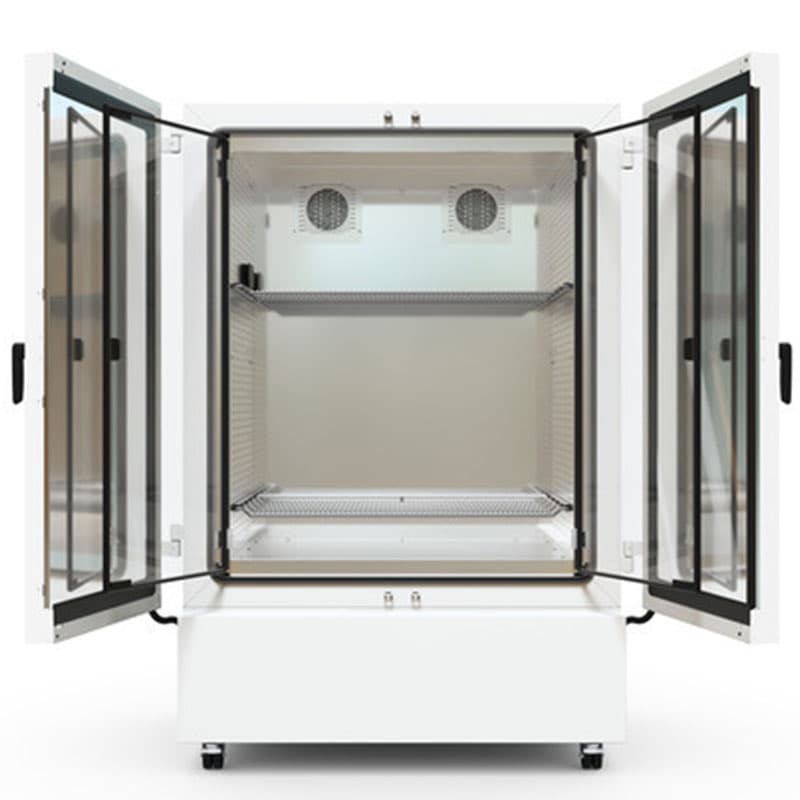

- Tight-sealing inner door(s) made of metal oxide-coated safety glass (ESG).
- Two stainless steel racks.
- Large access port with silicone plug.

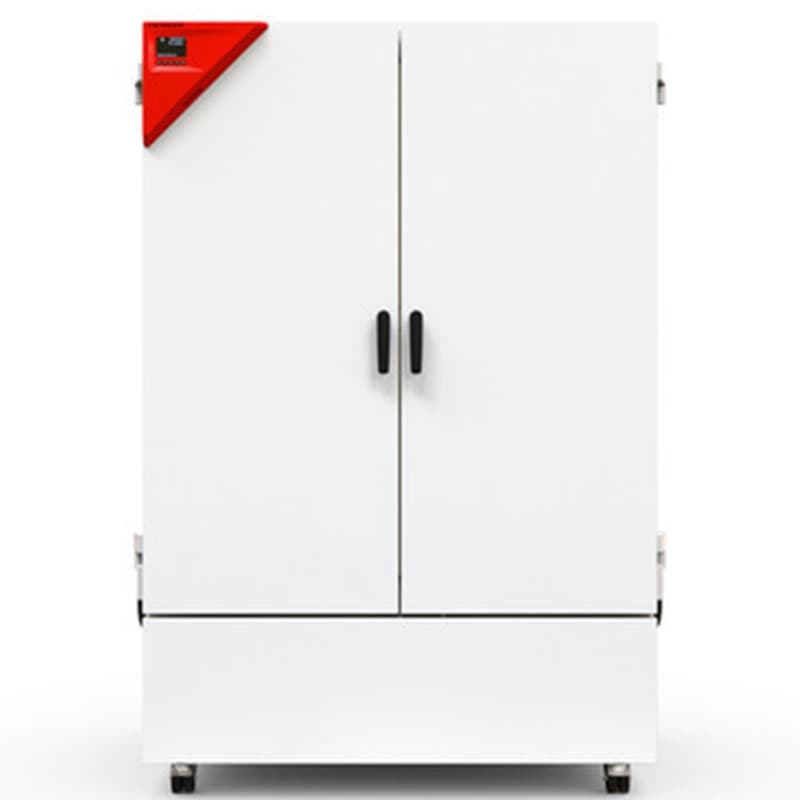

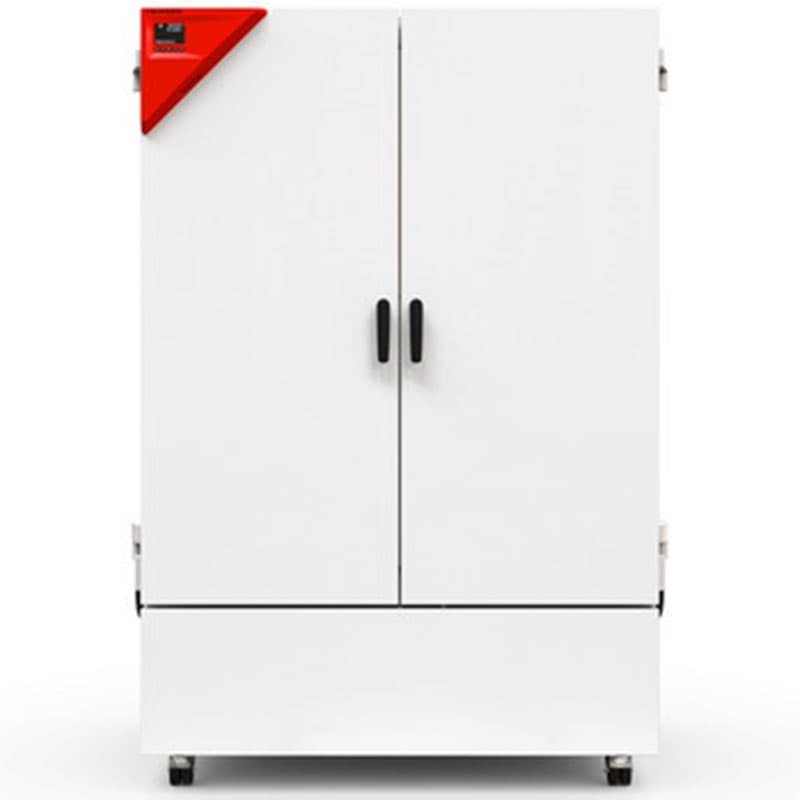

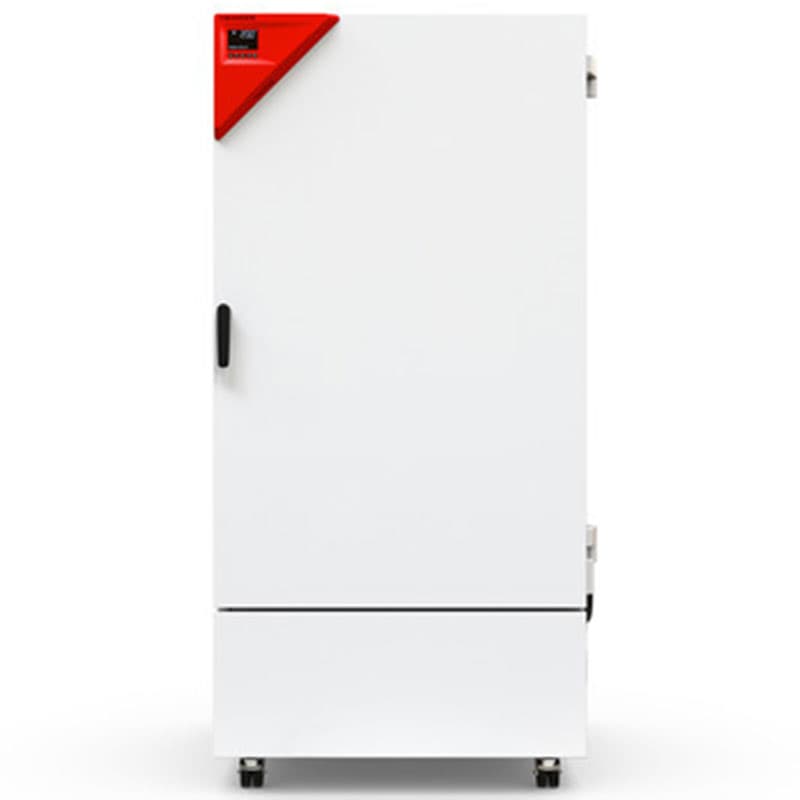

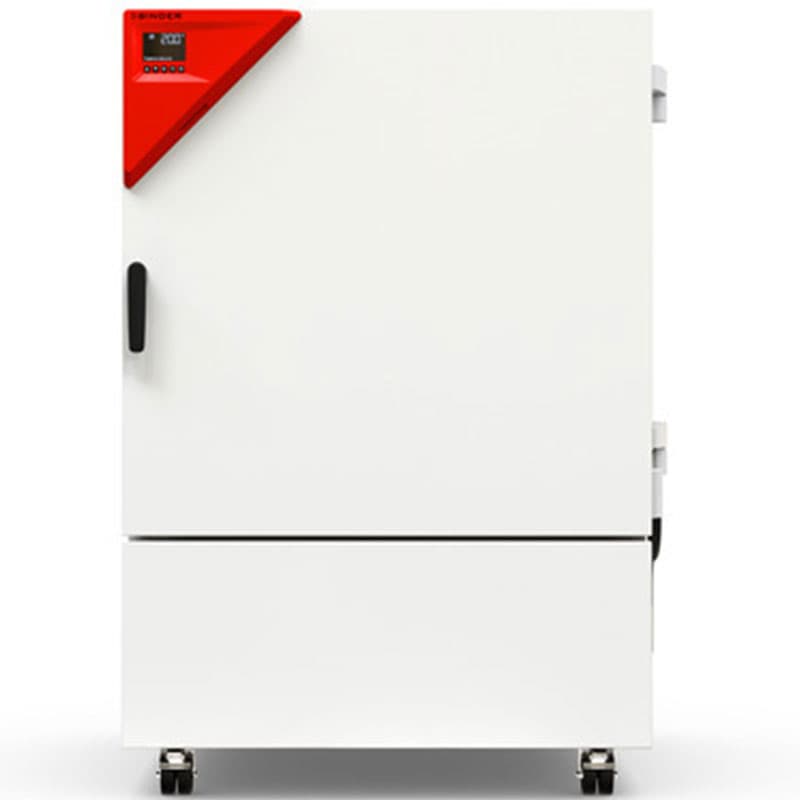

- Floor-standing units featuring robust twin casters with brakes at the front.

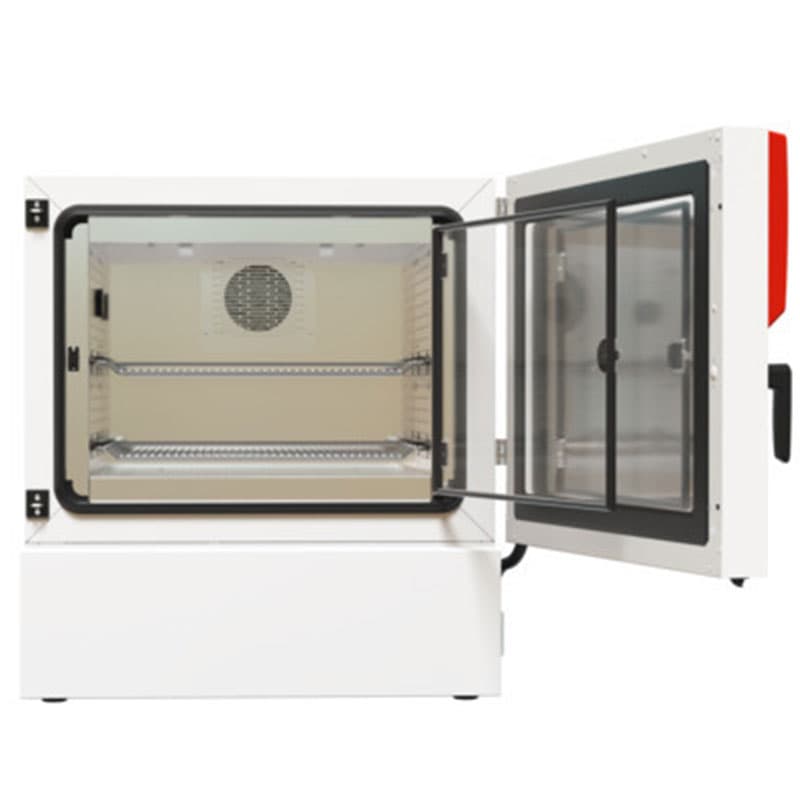

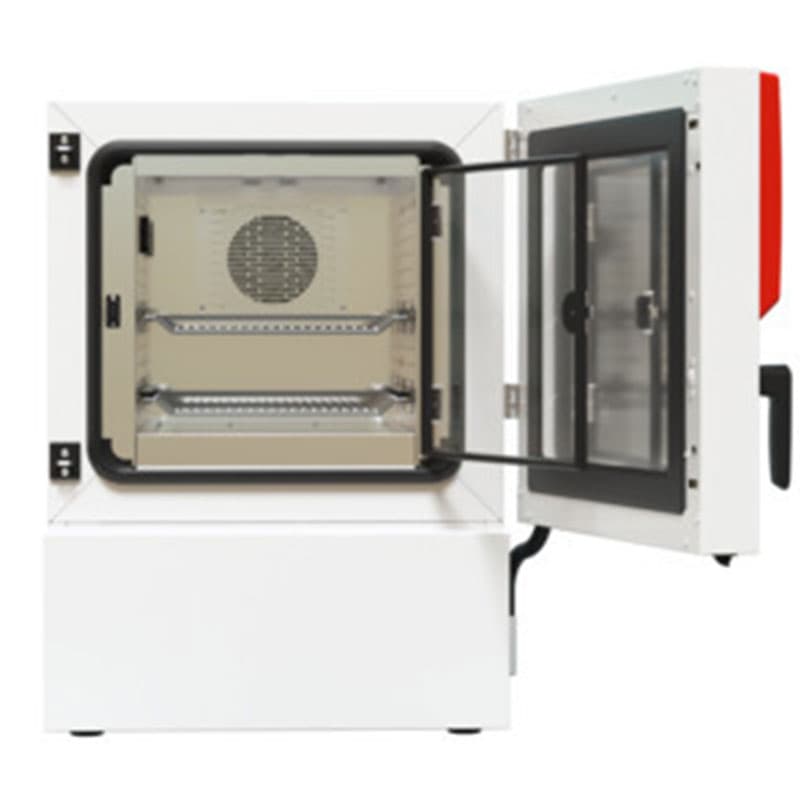

- Stackable tabletop units with a volume of up to 130 litres helps save space.
- Internal data logger ensures measured values can be read out in open format via USB.
- Class 3.3 independent temperature safety device (DIN 12880) with visual and acoustic alarms.
- Unit self-test for comprehensive status analysis.
- Data interfaces: Ethernet, USB.
- Environmental chamber calibration service available.
| Model | Interior Volume (L) | Temperature Range | Internal Dimensions (mm) | Housing Dimensions (mm) (Not including fittings and connections) |
| KB065UL-120V | 63 | 0°C to +70°C | 406 (W) x 400 (H) x 386 (D) | 650 (W) x 905 (H) x 710 (D) |
| KB065-230V | 63 | 0°C to +70°C | 406 (W) x 400 (H) x 386 (D) | 650 (W) x 905 (H) x 710 (D) |
| KB130UL-120V | 127 | 0°C to +70°C | 656 (W) x 500 (H) x 386 (D) | 900 (W) x 1005 (H) x 710 (D) |
| KB130-230V | 127 | 0°C to +70°C | 656 (W) x 500 (H) x 386 (D) | 900 (W) x 1005 (H) x 710 (D) |
| KB260UL-120V | 262 | 0°C to +70°C | 656 (W) x 695 (H) x 575 (D) | 930 (W) x 1396 (H) x 900 (D) |
| KB260-230V | 262 | 0°C to +70°C | 656 (W) x 695 (H) x 575 (D) | 930 (W) x 1396 (H) x 900 (D) |
| KB470UL-120V | 472 | 0°C to +70°C | 656 (W) x 1250 (H) x 575 (D) | 930 (W) x 1951 (H) x 900 (D) |
| KB470-230V | 472 | 0°C to +70°C | 656 (W) x 1250 (H) x 575 (D) | 930 (W) x 1951 (H) x 900 (D) |
| KB720UL-120V | 727 | 0°C to +70°C | 1011 (W) x 1250 (H) x 575 (D) | 1285 (W) x 1951 (H) x 900 (D) |
| KB720-230V | 727 | 0°C to +70°C | 1011 (W) x 1250 (H) x 575 (D) | 1285 (W) x 1951 (H) x 900 (D) |
| KB1060UL-120V | 1070 | 0°C to +70°C | 1011 (W) x 1250 (H) x 847 (D) | 1285 (W) x 1951 (H) x 1175 (D) |
| KB1060-230V | 1070 | 0°C to +70°C | 1011 (W) x 1250 (H) x 847 (D) | 1285 (W) x 1951 (H) x 1175 (D) |
For a comprehensive overview of the technical data of our KB Series BINDER Cooling Incubators, please download the “Data Sheet” further up the page.
