Laboratory Ovens – Up To 300°C
Manufactured by Nabertherm
This range of 300°C laboratory ovens are suitable for applications such as drying glassware, sterilising lab equipment, and warm storage of samples.
They have a maximum working temperature of 300°C and horizontal forced air circulation, helping the ovens achieve excellent temperature uniformity.
Available in seven different sizes, Ovens TF 60 – TR 420 are designed as laboratory benchtop ovens, whereas Ovens TR 450 – TR 1050 are floor standing models.
Important: Short delivery times from stock are ensured for standard models.
Price on quotation
Benefits
- Working temperature: +20°C above room temperature up to 300°C.
- Horizontal forced air circulation results in temperature uniformity according to DIN 17052-1 better than +/− 5 °C in the empty oven (with closed exhaust air flap).
- Dual shell ventilated housing made of textured stainless steel sheets for low surface temperature and high stability.
- Stainless steel chamber, alloy 304 (AISI)/(DIN material no. 1.4301), rust-resistant, and easy to clean.

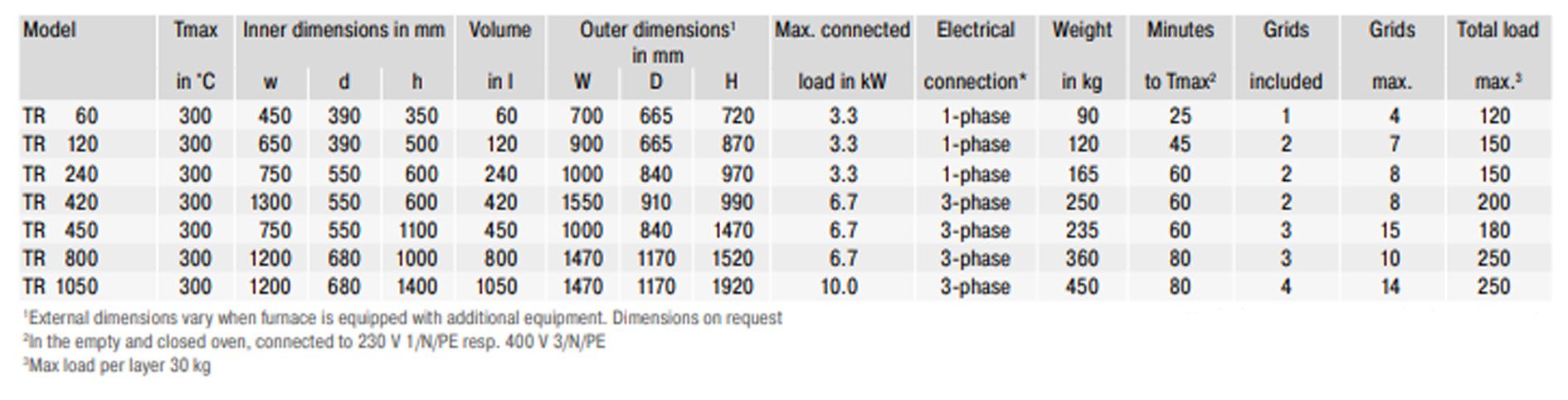

- Charging in multiple layers possible using removeable grids (number of removeable grids included, see Specifications).
- Large, wide-opening swing door, hinged on the right with quick release for models TR 60 – TR 240 and TR 450 .

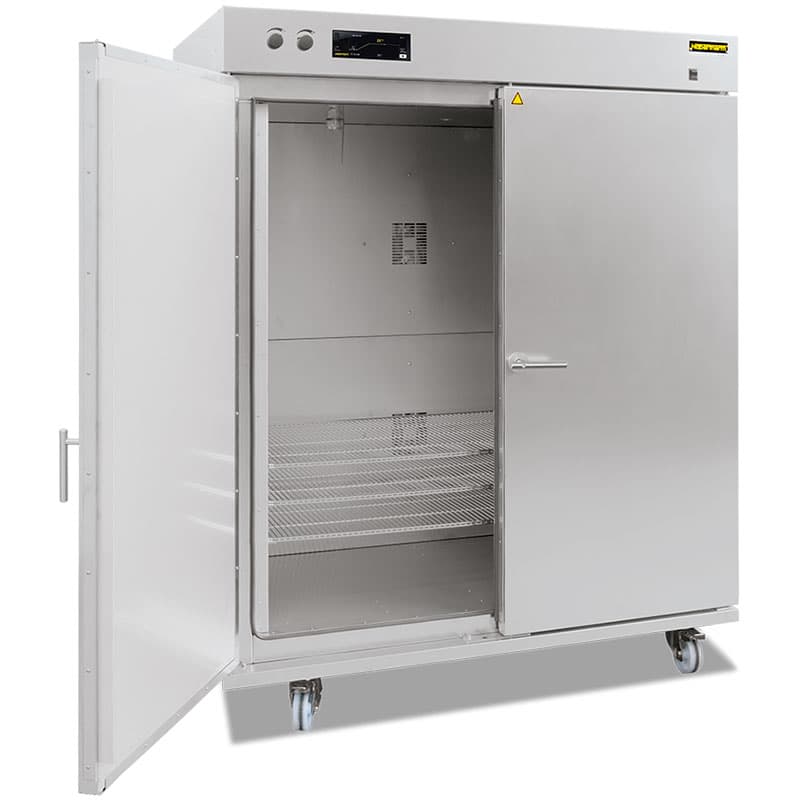

- Double swing door with quick release for models TR 420, TR 800, and TR 1050.
- Ovens TR 800 and TR 1050 equipped with transport castors for easy manoeuvrability for cleaning or reconfiguration.
- Infinitely adjustable exhaust at the rear wall with operation from the front.
- PID microprocessor control with self-diagnosis system.
- Controller with intuitive touch operation.
- Solid state relays provide low noise operation.
- Exclusive use of insulation materials without categorisation according to EC Regulation No 1272/2008 (CLP). This explicitly means that alumino silicate wool, also known as “refractory ceramic fiber” (RCF), which is classified and possibly carcinogenic, is not used.
- MyNabertherm App for online monitoring of the firing on mobile devices for free download.
- Laboratory oven calibration service (UKAS or traceable) available.
Accessories
- Over-temperature limiter with adjustable cutout temperature as temperature limiter to protect the furnace and load.
- Fan speed of the air circulation fan can be reduced infinitely.
- Window for charge observing.
- Further removeable grids with rails.
- Side inlet.
- Electrical rotary device with Tmax 200 °C (associated sample holder will be individually adapted to the charge).
- Exhaust air duct DN 80.
- Transport castors for models TR 240 – TR 450.
- Upgrading available to meet the quality requirements of AMS2750H or FDA.
