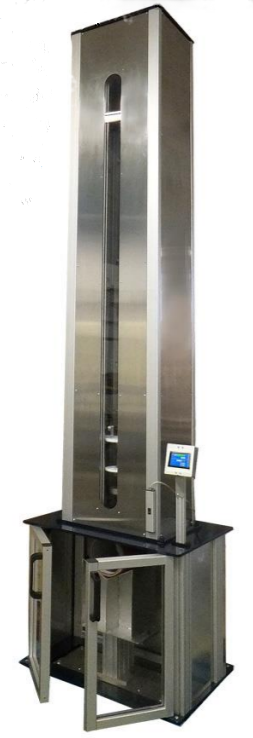

Impact Drop Tower - Drop Weight Tester FIT2000A
Manufactured by Techlab Systems
Impact Drop Tower – Drop Weight Tester for the determination of impact resistance of plastic pipes by the free fall of an impact head.
The Impact Drop Tower – Drop Weight Tester is configured with interchangeable striking noses with differing diameters, radiuses and masses.
The FIT2000A is an advanced touch screen controller Impact Drop Tower with electromechanical lifting system. The supporting framework is made from robust and stiff aluminum and steel, which is adjustable to ensure the drop tower is precisely level. The specimen holders are adjustable to ensure the correct positioning and drop height.
Impact Drop Tower Conforms to the following standards
ISO 3127 Round-the-clock method
EN 744, Round-the-clock method
EN 1411 Staircase method
ASTM D2444 A B & C impact strikers
Price on quotation
Impact Drop Tower – Drop Weight Tester Features
Industry leading well engineered Impact Drop Tower that provides many years or repeatable and reproducible impact testing. Which is made in Spain by Metrotec and fully supported for sales, service and calibration by AML in the UK.
- 16 kg projectile maximum mass from a 3 meter drop height
- 300 Joules maximum impact energy
- Touch screen control, push button programming of the impact drop height.
- Drop height adjustable from 0 to 2000mm
- Specimen holders available for 20 to 630mm diameter pipes (specify at time of order)
- Interlocked door to ensure safe operation 0f the Impact Drop Tower
- Hammer is fully guided
- Hammer held at launch height by electromagnet.
- Optional extension to drop height to 3000mm
- Optional measurement of the impact hammer speed in meters per second
- Optional customised hammers and mass sets

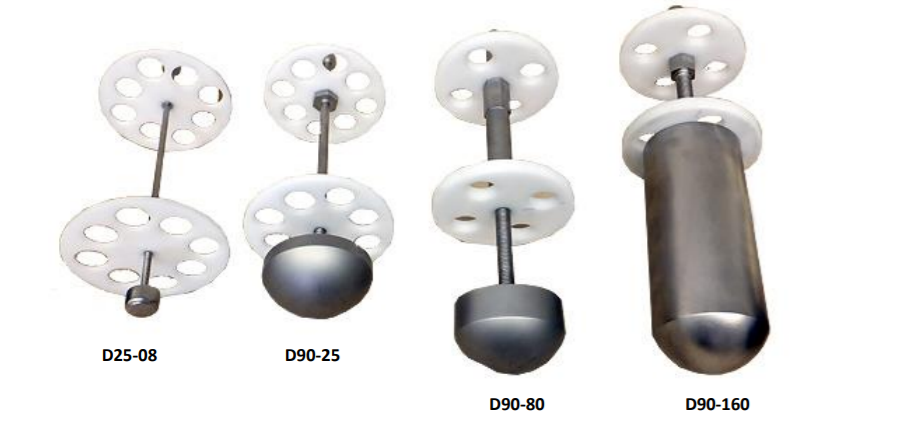

Impact Drop Tower – Drop Weight Tester Standard Impact Hammers & Masses Sets
None standard sets available please ask!
D25-08 Impact Hammer & Mass Set
Diameter 25 mm, hammer mass 0.25kg
With the impact hammer & no weights it will perform impact testes with a mass of 0.25kg
With the additional mass of a 0.25 kg the total impact mass is 0.5kg.
With the additional mass of a 0.25 kg & 0.3kg the total impact mass is 0.8kg.
D90-25 Impact Hammer & Mass Set
Diameter 90 mm, hammer mass 1kg
With the impact hammer & no weights it will perform impact testes with a mass of 1kg
With the additional mass of a 0.25 kg the total impact mass is 1.25kg.
With the additional mass of a 0.25 kg & 0.3kg the total impact mass is 1.60kg.
With the additional mass of a 0.25 kg, 0.3kg, 0.4kg the total impact mass is 2.0kg.
With the additional mass of a 0.25 kg, 0.3kg, 0.4kg & 0.5kg the total impact mass is 2.5kg.
D90-80 Impact Hammer & Mass Set
Diameter 90 mm, hammer mass 3.2kg
With the impact hammer & no weights it will perform impact testes with a mass of 3.2kg
With the additional mass of a 0.8 kg the total impact mass is 4.0kg.
With the additional mass of a 0.8 kg & 1.0kg the total impact mass is 5.0kg.
With the additional mass of a 0.8 kg, 1.0kg & 1.3kg the total impact mass is 6.3kg.
With the additional mass of a 0.8 kg, 1.0kg, 1.3kg & 1.7kg the total impact mass is 8.0kg.
D90-160 Impact Hammer & Mass Set
Diameter 90 mm, hammer mass 10.0kg
With the impact hammer & no weights it will perform impact testes with a mass of 10.0kg
With the additional mass of a 2.5 kg the total impact mass is 12.5kg.
With the additional mass of a 2.5 kg & 3.5kg the total impact mass is 16.0kg.
Contact Us Today and our friendly engineers will provide a quotation or answer any questions you have about our Impact Drop Tower – Drop Weight Tester
