Drop Weight Tester – Falling Weight Impact Tester FIT-1000

Drop Weight Tester – Falling Weight Impact Tester FIT-1000 Features

Drop Weight Tester – Falling Weight Impact Tester is made from high strength and rigidity steel and aluminum. The lower area fixes directly to the ground ensuring the impact force is absorbed by the ground and not the frame and body of the impact tester. The drop tower has adjustable feet to ensure its completely level. There is a small viewing window to enable the operator to see the movement of the impact hammers.

The FIT Drop Weight Tester – Falling Weight Impact Tester is manufactured in Spain by Metrotec and fully supported for sales, service and calibration by AML Instruments in the UK.

• Touch screen control for ease of use and set up.
• Drop heights from 0 to 1000mm
• Base supports for tube from 12mm to 110mm diameter (specify at time of order)
• Interlocked safety door to ensure the impact tester can’t operate while its open.
• Impact hammers are raised to drop height by electromechanical drive mechanism
• Guided impact hammer support
• Hammer held at drop height by electromagnet
• Optional module for measurement of the impact hammer speed in meters per second

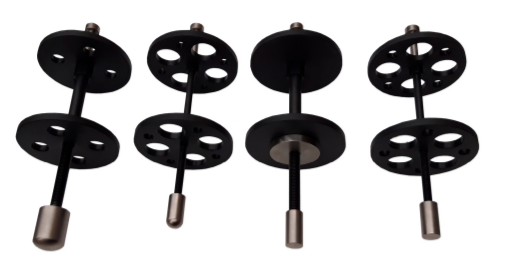

Drop Weight Tester – Falling Weight Impact Tester Impact hammer & mass options.

D20 / R300 Impact Hammer  (Conforms to DIN BS UNE-EN and IEC 61386-1)
Will provide the different impact energies indicated in each standard:
Dimensions – Diameter 20 mm and Radius = 300 mm
Hammer mass = 0.5 kg

With the impact hammer & no weights it will perform impact testes with a mass of 0.5kg

With the additional mass of a 0.5kg the total impact mass is 1kg.

D20 / R300 Impact Hammer  (conforms to DIN BS UNE-EN and IEC 61386-1)
Will provide the different impact energies indicated in each standard:
Dimensions – Diameter 20 mm and Radius = 300 mm
Hammer mass = 1kg

With the impact hammer & no weights it will perform impact testes with a mass of 1kg

With the additional mass of 1kg the total impact mass is 2kg.

With the additional masses of 1.8kg, 2kg & 2kg the total impact mass is 6.8kg.

D35 / R25 Impact Hammer (Conforms to DIN BS UNE-EN and IEC 61386-24)
Will provide the different impact energies indicated in each standard:
Dimensions – Diameter 35 mm and Radius = 25 mm
Hammer mass = 1kg

With the impact hammer & no weights it will perform impact testes with a mass of 1kg

With the additional mass of 2kg the total impact mass is 3kg.

With the additional masses of 2kg & 2kg the total impact mass is 5kg.

D20 / R10  Impact Hammer (Conforms to DIN BS UNE-EN and IEC 61386-24)
Will provide the different impact energies indicated in each standard:
Dimensions – Diameter 20 mm and Radius = 10 mm
Hammer mass = 0.5kg

With the impact hammer & no weights it will perform impact testes with a mass of 0.5kg

With the additional mass of 0.5kg the total impact mass is 1kg.

Drop Weight Tester – Falling Weight Impact Tester hammers and weights for other National or International standards or bespoke hammers are available to order.

Optional Standard Cylindrical Masses, 0.5, 1.0, 1.8 & 2kg, other masses available to order.

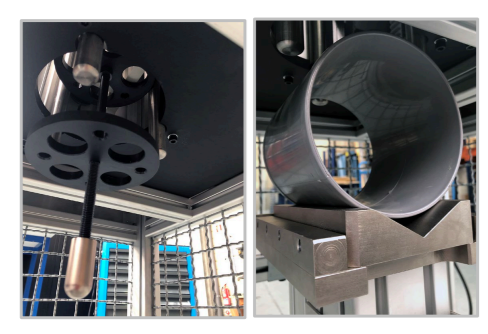

Optional Standard Specimen Holders for Drop Weight Tester

• V-shaped 120º specimen holder for plastic pipes 12 to 40mm diameter
• V-shaped 120º specimen holder for plastic pipes 40 to 110mm diameter
• Flat specimen holder for electrical and fiber optic applications.

Other sizes available to order.

Contact us today and our experienced sales team will help you configure a Drop Weight Tester to your exact needs and requirements.
