Home Tensile Testers / Universal Tensile Testing Machine Barrus RED Hydra H Servo Hydraulic Horizontal Universal Testing Machine – 2000 kN

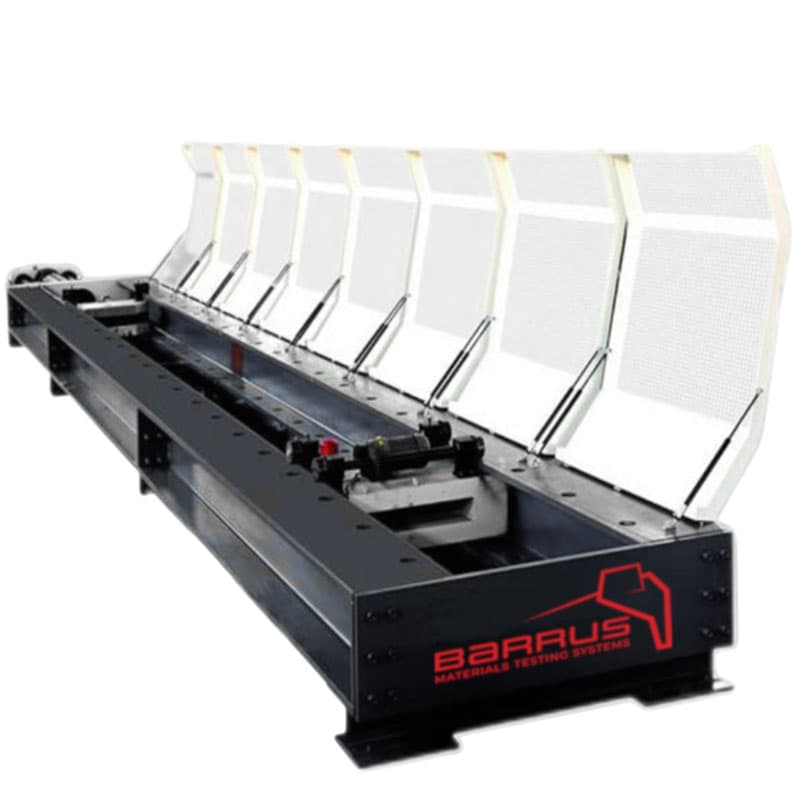

Barrus RED Hydra H Servo Hydraulic Horizontal Universal Testing Machine – 2000 kN

Barrus RED Hydra H Servo Hydraulic Horizontal Universal Testing Machine – 2000 kN

Name: AML Instruments
Address: Eco One, Highcliffe Business Park, The Cliff, Lincoln, Lincolnshire, LN1 2WE, GB
Telephone: 01522 789375
Price range: Premium

Manufactured by Barrus

The Barrus RED Hydra H Servo Hydraulic Horizontal Universal Testing Machine provides precise control and measurement even with extreme high forces. It’s designed to test metal cables up to 3m length and 2000 kN force (options available).

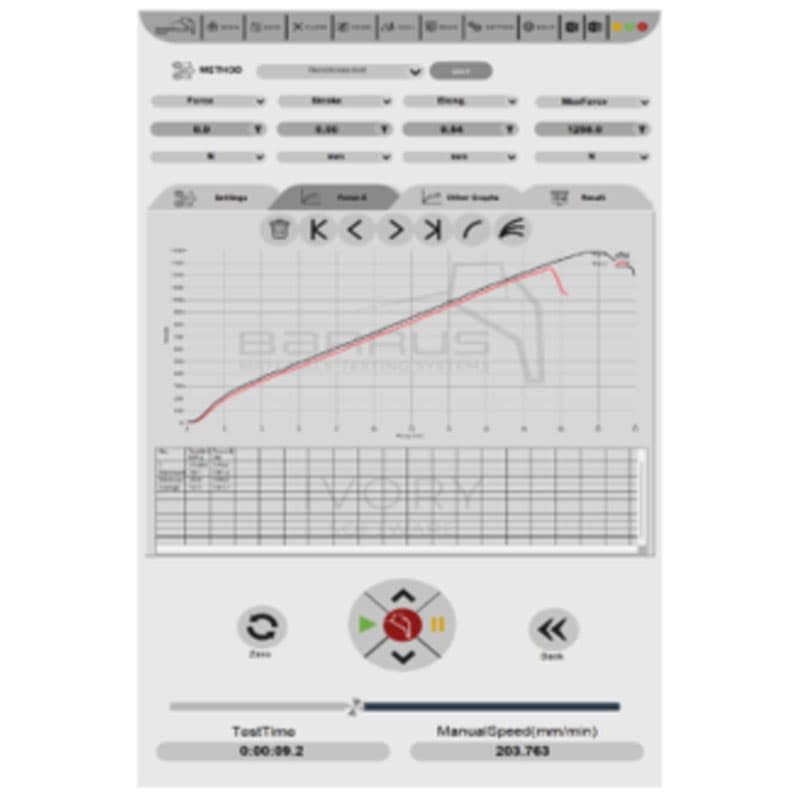

The IVORY materials testing software is included as standard, featuring a vast collection of predefined test parameters and formulas for conducting precise and accurate material testing.

Its intuitive interface ensures quick and efficient workflow management, allowing you to easily create test cycles and test series.

Get a Quote

Ask a Question Data Sheet

Benefits

High precision load measurement with sensitive load cell ISO 7500-1 Class 1.
Load measurement resolution is 1 /500 000.
Independent serve-hydraulic unit connected to test actuator and hydraulic grips.
Gear type low noise hydraulic pump with necessary equipment for safe operation.
Features hardware end-stops, software-controlled force, and position limiters for enhanced safety (Optional plexiglass enclosures also available).

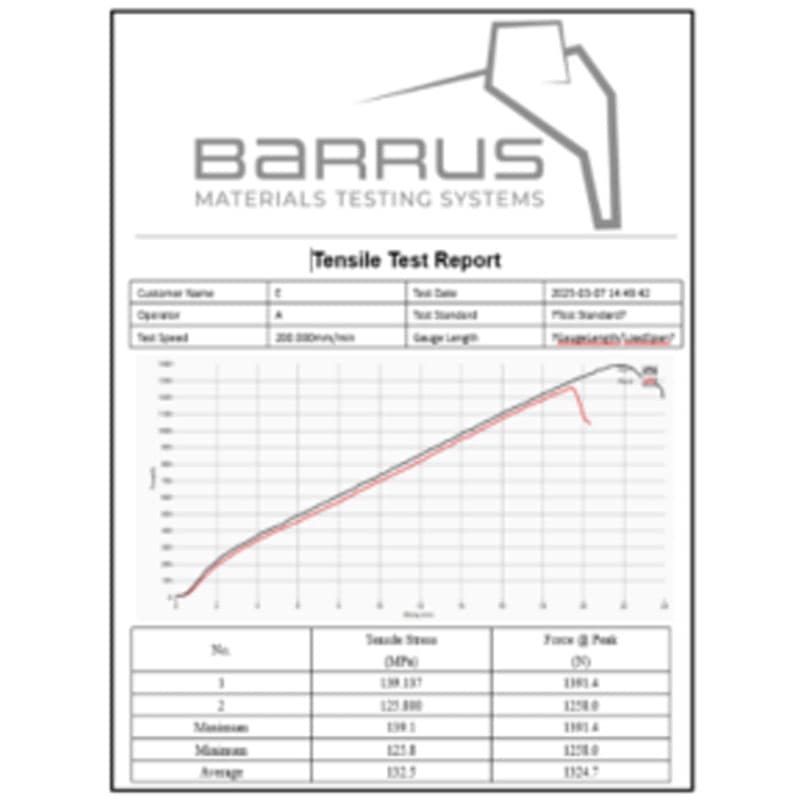

Quickly access and review previous test results, ensuring traceability and easy comparison of past measurements.
Comes with a 3-year warranty when paired with a regular maintenance contract.
Tensile tester calibration service available.

Barrus RED Hydra H Servo Hydraulic Horizontal Universal Testing Machine – 2000 kN
