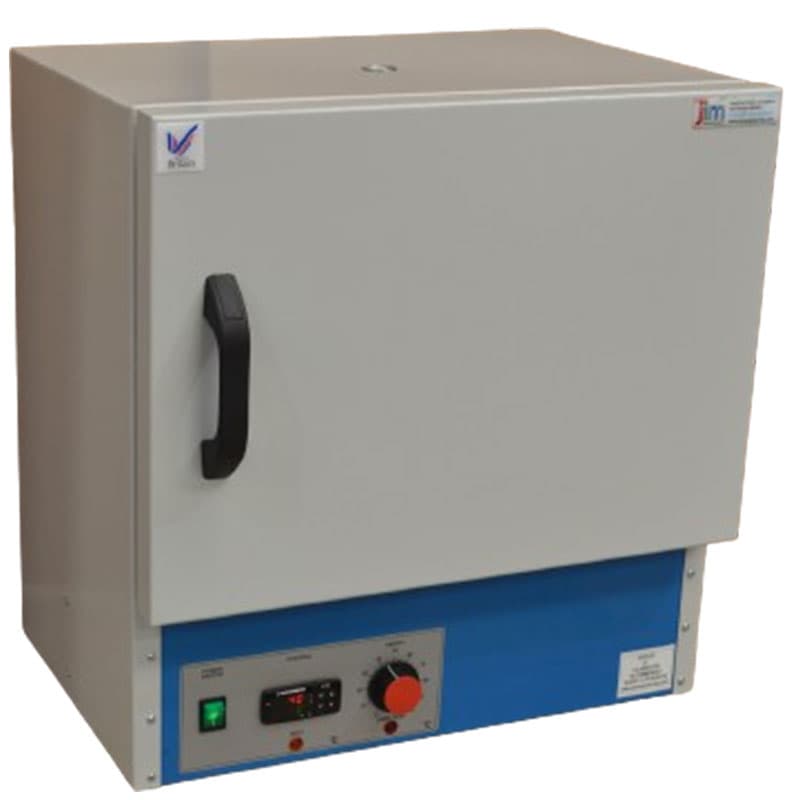

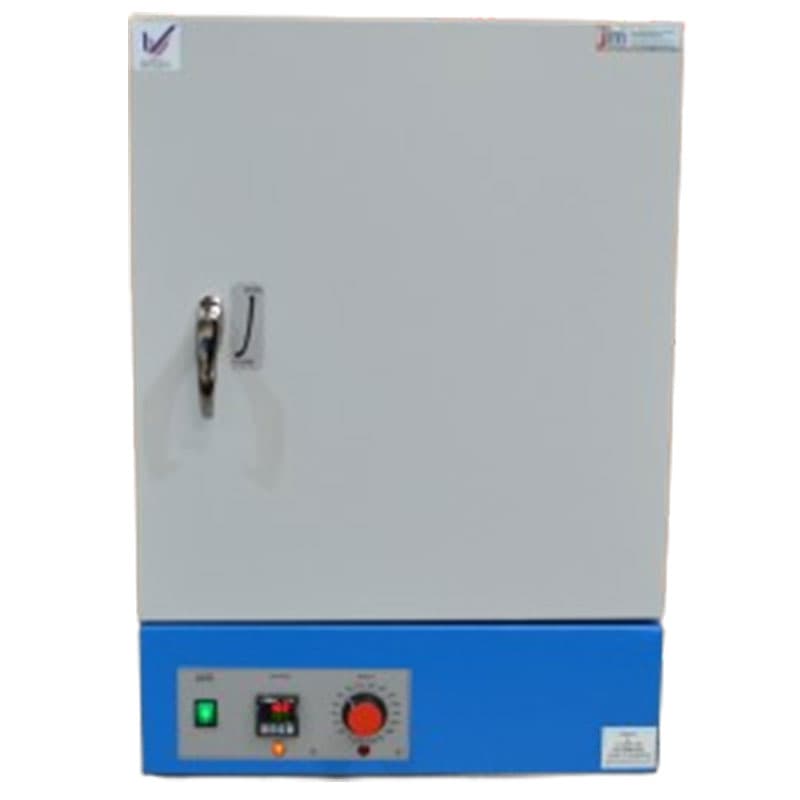

General Purpose Laboratory Oven (up to 250°C)
Manufactured by JIM Engineering
The design of a JIM Engineering Laboratory Oven offers a smaller bench footprint than most alternative makes. This versatile lab oven is available in 14 capacities from 10 to 350 litres, and suitable for most general heating, drying, and general laboratory or light industrial applications.
The calibrated dial thermostat control also makes it ideal for educational establishments such as schools and colleges.
Price on quotation
Benefits
- Temperature range from +40°C to 250°C.
- Fluctuation typically ±0.75°C.
- Aluminium clad steel chamber.
- Side mounted controls make the ovens easily stackable.
- Modifiable to applications where top or bottom entry for equipment is required.
- Adjustable shelves for flexible workspace configuration.
- Calibrated dial thermostat for accurate temperature control.
- Independent overheat safety thermostat.
- CE compliant.
- Full 12 months parts & labour warranty.
| Model (Capacity) | Exterior Dimensions (mm) | Interior Dimensions (mm) | Volume (Litres) | Max No. of Shelves | Maximum Load Height (mm) | Net Weight (kg) | Power Rating (w) | Fluctuation |
| 10 | 415 x 375 x 350 | 150 x 275 x 243 | 10 | 1 | 105 | 10 | 350 | ~ 0.2 degrees |
| 20 | 540 x 375 x 382 | 275 x 275 x 275 | 20 | 2 | 190 | 15 | 500 | ~ 0.2 degrees |
| 30 | 570 x 415 x 422 | 305 x 315 x 315 | 30 | 2 | 220 | 20 | 750 | ~ 0.2 degrees |
| 40 | 670 x 415 x 422 | 405 x 315 x 315 | 40 | 2 | 320 | 25 | 1000 | ~ 0.2 degrees |
| 50 | 615 x 590 x 422 | 325 x 490 x 315 | 50 | 4 | 240 | 32 | 1000 | ~ 0.2 degrees |
| 75 | 623 x 590 x 567 | 333 x 490 x 460 | 75 | 4 | 248 | 38 | 1250 | ~ 0.2 degrees |
| 100 | 735 x 590 x 567 | 445 x 490 x 460 | 100 | 7 | 360 | 43 | 1250 | ~ 0.2 degrees |
| 120 | 735 x 590 x 659 | 445 x 490 x 552 | 120 | 7 | 360 | 49 | 1500 | ~ 0.2 degrees |
| 150 | 845 x 590 x 659 | 555 x 490 x 552 | 150 | 9 | 470 | 54 | 1500 | ~ 0.2 degrees |
| 180 | 957 x 590 x 659 | 667 x 490 x 552 | 180 | 12 | 582 | 60 | 1750 | ~ 0.2 degrees |
| 210 | 957 x 590 x 749 | 667 x 490 x 642 | 210 | 12 | 582 | 70 | 2000 | ~ 0.2 degrees |
| 240 | 1178 x 590 x 659 | 888 x 490 x 552 | 240 | 17 | 803 | 78 | 2250 | ~ 0.2 degrees |
| 280 | 941 x 750 x 769 | 651 x 650 x 662 | 280 | 12 | 566 | 83 | 2250 | ~ 0.2 degrees |
| 350 | 1104 x 750 x 769 | 814 x 650 x 662 | 350 | 16 | 729 | 100 | 2500 | ~ 0.2 degrees |
Optional Extras
- Upgrade to a stainless steel chamber.
- Horizontal style with side controls, 50 litres to 210 litres, stackable.
- DIG Digital dual display controller (30 litres and larger).
- Upgrade to 300°C.
- Internal glass doors for easy internal viewing.
- Fan circulation.
- Calibration certificate.
- ME Fume and moisture extraction module.
