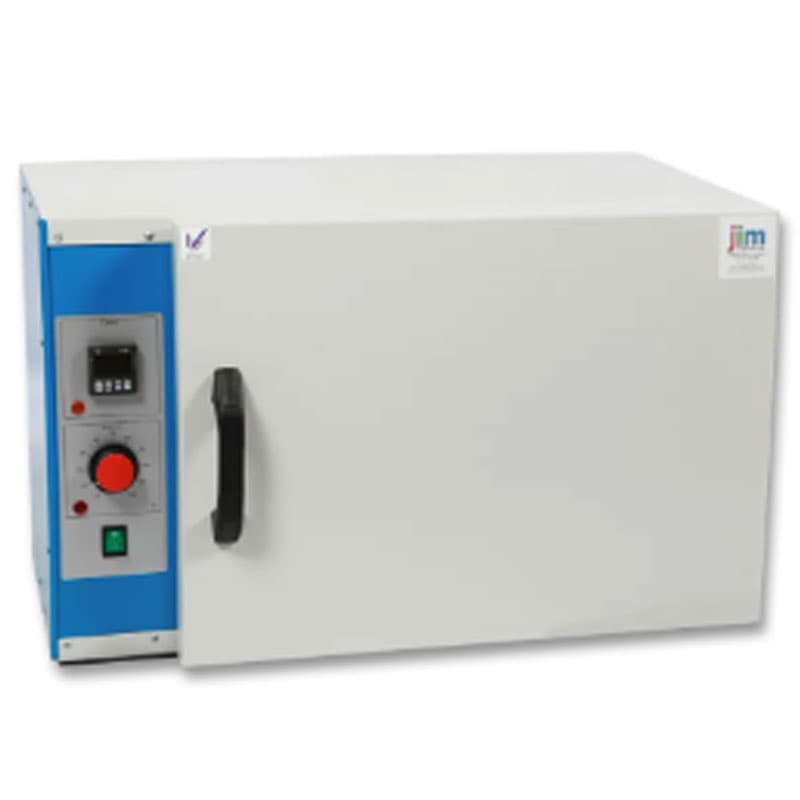

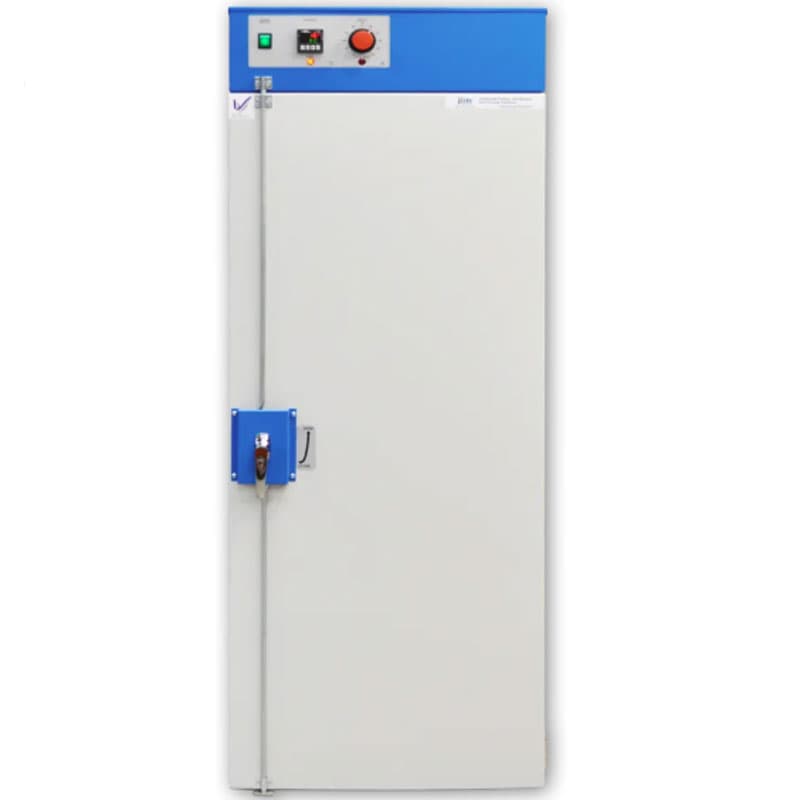

General Purpose Incubator (up to 100°C)
Manufactured by JIM Engineering
This general purpose incubator delivers cost-effective and efficient temperature uniformity for many general warming, drying, and general laboratory or light industrial applications.
It is available in a wide range of capacities from 10 litres to 350 litres, with all models equipped with side mounted controls. This makes them easily stackable, as well as modifiable to applications where top or bottom entry for equipment is required.
Price on quotation
Benefits
- Temperature range from – ambient +10°C to 100°C.
- Fluctuation typically ±0.75°C.
- Calibrated dial thermostat control makes it ideal for education establishments.
- Aluminium clad steel chamber.
- Adjustable shelves for flexible workspace configuration.
- Independent overheat safety.
- CE compliant.
| Model (Capacity) | Exterior Dimensions (mm) | Interior Dimensions (mm) | Volume (litres) | Max No. of Shelves | Maximum Load Height (mm) | Net Weight (kg) | Power Rating (w) | Fluctuation |
|---|---|---|---|---|---|---|---|---|
| 10 | 415 x 375 x 350 | 150 x 275 x 243 | 10 | 1 | 105 | 10 | 350 | ~ 0.2 degrees |
| 20 | 540 x 375 x 382 | 275 x 275 x 275 | 20 | 2 | 190 | 15 | 500 | ~ 0.2 degrees |
| 30 | 570 x 415 x 422 | 305 x 315 x 315 | 30 | 2 | 220 | 20 | 750 | ~ 0.2 degrees |
| 40 | 670 x 415 x 422 | 405 x 315 x 315 | 40 | 2 | 320 | 25 | 1000 | ~ 0.2 degrees |
| 50 | 615 x 590 x 422 | 325 x 490 x 315 | 50 | 4 | 240 | 32 | 1000 | ~ 0.2 degrees |
| 75 | 623 x 590 x 567 | 333 x 490 x 460 | 75 | 4 | 248 | 38 | 1250 | ~ 0.2 degrees |
| 100 | 735 x 590 x 567 | 445 x 490 x 460 | 100 | 7 | 360 | 43 | 1250 | ~ 0.2 degrees |
| 120 | 735 x 590 x 659 | 445 x 490 x 552 | 120 | 7 | 360 | 49 | 1500 | ~ 0.2 degrees |
| 150 | 845 x 590 x 659 | 555 x 490 x 552 | 150 | 9 | 470 | 54 | 1500 | ~ 0.2 degrees |
| 180 | 957 x 590 x 659 | 667 x 490 x 552 | 180 | 12 | 582 | 60 | 1750 | ~ 0.2 degrees |
| 210 | 957 x 590 x 749 | 667 x 490 x 642 | 210 | 12 | 582 | 70 | 2000 | ~ 0.2 degrees |
| 240 | 1178 x 590 x 659 | 888 x 490 x 552 | 240 | 17 | 803 | 78 | 2250 | ~ 0.2 degrees |
| 280 | 941 x 750 x 769 | 651 x 650 x 662 | 280 | 12 | 566 | 83 | 2250 | ~ 0.2 degrees |
| 350 | 1104 x 750 x 769 | 814 x 650 x 662 | 350 | 16 | 729 | 100 | 2500 | ~ 0.2 degrees |
Optional Extras
- Upgrade to a stainless steel chamber.
- Horizontal style with DIG digital controller and fan.
- DIG Digital dual display controller (30 litres and above) — fluctuation typically ±0.2°C with fan.
- Programmable controllers and dataloggers.
- Inner glass doors, either outer or separate inner.
- Fan circulation (30 litres and above).
- Calibration certificate.
- ME Fume and moisture extraction module.
