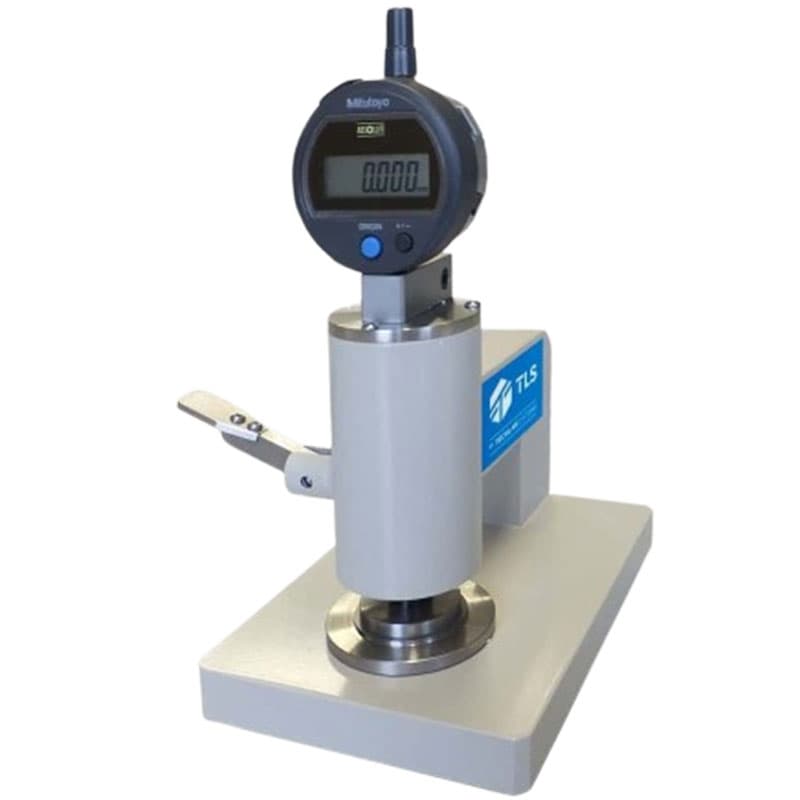

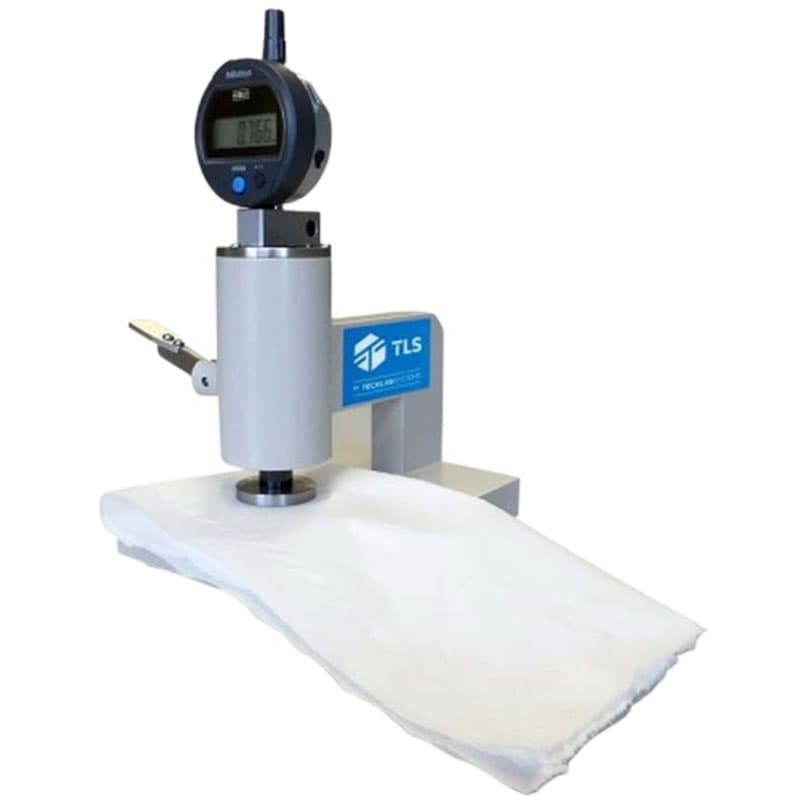

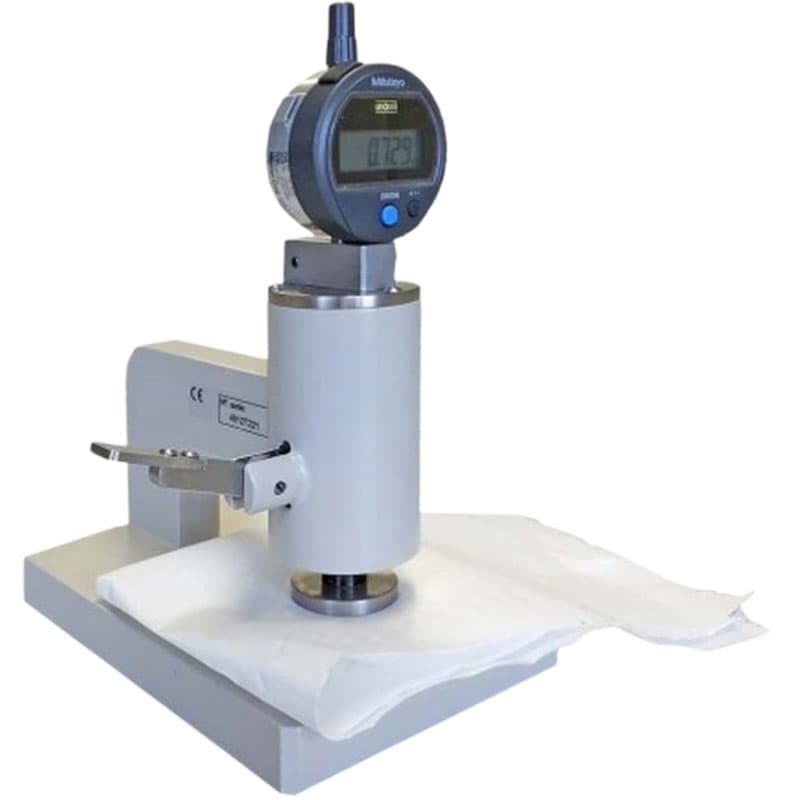

Digital Micrometer M5 Series

Benefits

• Manual operation by ergonomic rotary lever.
• Digital readout display with reset to zero function.
• T-LAB compatible.
• Robust and user-friendly design.
• Probe area: 2 cm2 / 10 cm2 (depending on model).
• Reading resolution: ± 0,01 / ± 0,001 mm (depending on model).
• Measuring range: 0 to 10 mm (Paper) – 0 to 15 mm (Corrugated Cardboard).
• Pressure probe on the sample according to the corresponding standard.
• Safety of use.
• CE marked.

Suitable Applications & Materials

• Paper.
• Tissue paper.
• Board.

Applicable Standards

Paper: BS DIN EN ISO UNE 534 – PAPTAC D4 – SCAN P7 – TAPPI T 411* (Optional)
Tissue Paper: DIN EN ISO UNE 12625/3 – SCAN P47
Corrugated Cardboard: DIN EN ISO NF UNE 3034 – FEFCO No 3 – SCAN P31

Technical Data

Dimensions Of Transport Packaging: 300 x 400 x 500 mm (W x D X H)
Gross Weight: 22Kg (Wooden packaging with phytosanitary treatment)
