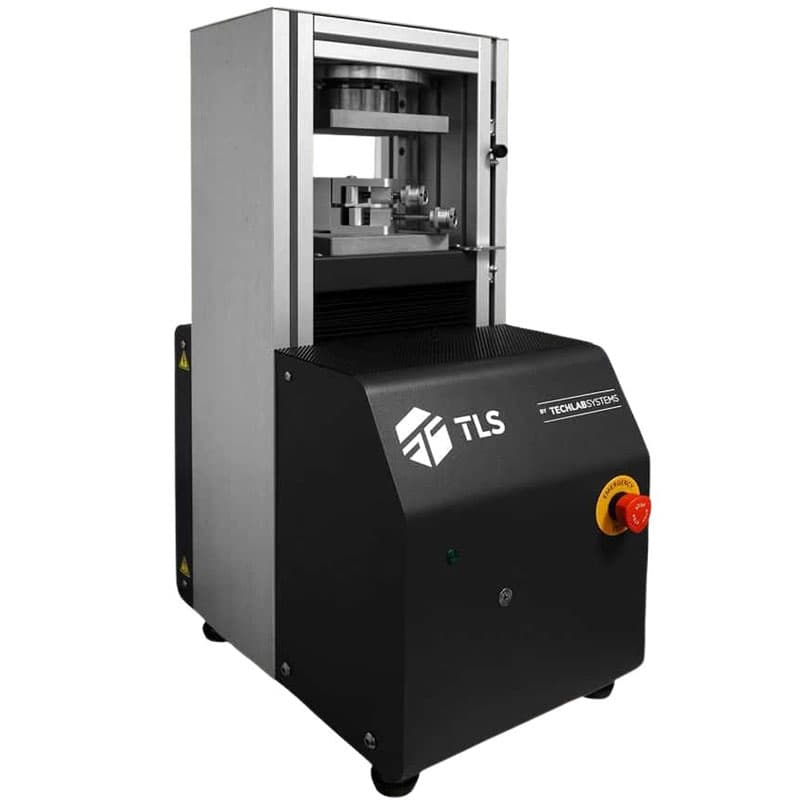

Crush Tester ECT, RCT, FCT, CCT, PAT, CMT

This crush strength tester is used for testing the compressive strength of corrugated board and packaging paper using a variety of test methods:

CCT corrugated crush test or Concore crush test
ECT edge crush test or edgewise crush test
FCT flat crush test
PAT pin adhesion test
RCT ring crush test.

It has a maximum force capacity of 5 kN (alternatively 10 kN), with the test results displayed on the laptop monitor supplied with the crush tester machine.

Benefits

Robust and precise crush tester.
Useful size of compression plates: 150 x 150mm.
Maximum separation between compression plates: 140 mm
One load cell on the upper fixed and parallel plate.
Parallelism error between plates <1/2000.
Units of measurement: N – Kg and Lb.
Displays Statistics: Max – Min – Average & Standard Deviation.
Reading deformations.
Simply, easy-to-use testing software – LYNX entry level.
Compatible with LYNX Plus & Pro Software System.
Automatic return of crush plate after each test at 100 mm/min.
Automatic overload protection.
Compatible with the T-LAB Laboratory Management System.
CE marked.
RS-232 output interface with converter to USB.
Conforms to a variety of test standards (See Specifications).
Force calibration service available.

Suitable Applications

Board boxes.
Board packaging.
Corrugated board.
Packaging paper (liner and fluting).

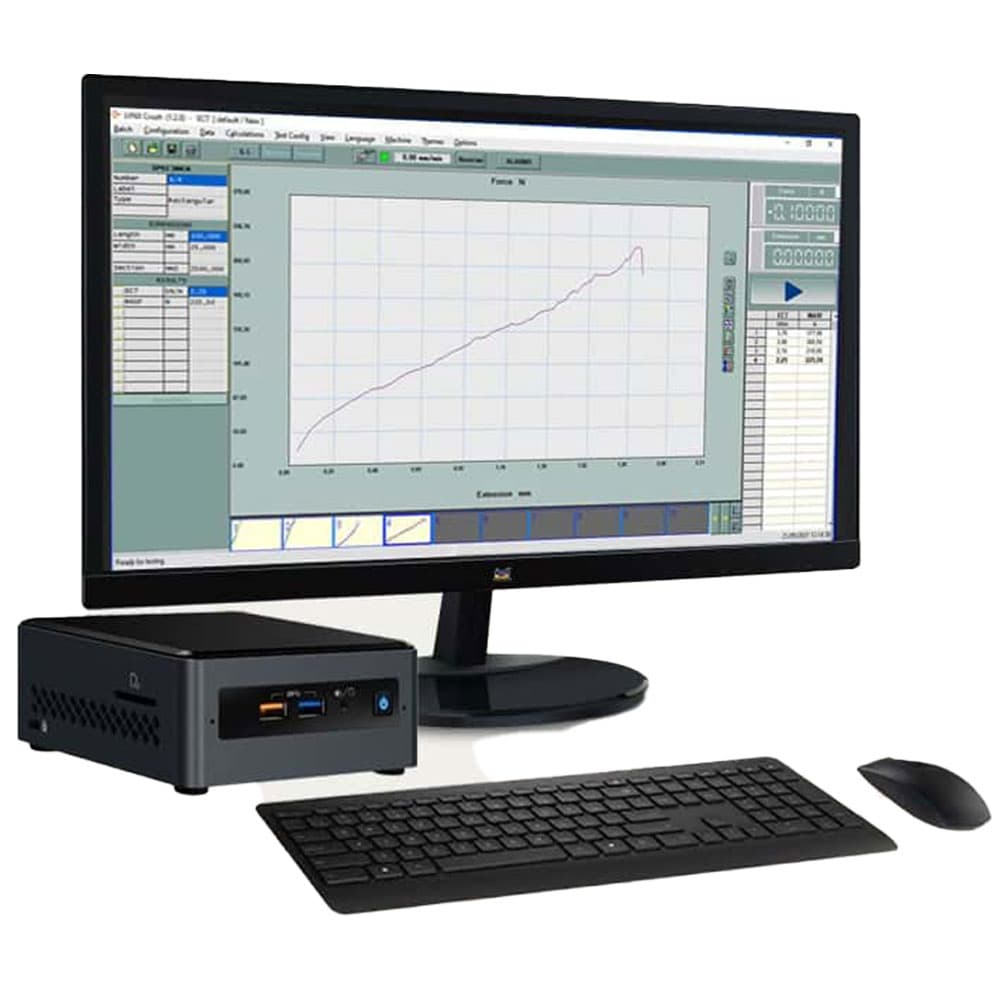

LYNX Testing Software for Crush Testing

The LYNX testing software enables you to perform compression strength tests on standard samples of corrugated paper and cardboard such as: CMT – RCT – CCT – ECT – FCT – PAT. It records minimum, maximum, and median value; and standard deviation, as well as offering:

Quickness in the execution of burst tests and in obtaining results without human error.
Traceability according to ISO 9000.
Storage capacity up to 100 tests per report.
SAVE, PRINT AND COPY to CLIPBOARD functions.
Reports in PDF format.
Different language options: Spanish – English.

Techlab Systems (TLS) is a leading manufacturer of test equipment. AML Instruments is proud to be the UK exclusive distributor for TLS, meaning we fully support their entire range for sales, service, and calibration.

Crush Tester, Test Methods & Standards

ECT edge crush test or edgewise crush test ISO 3037, ISO 13821, DIN 53149, SCAN P33, TAPPI T 823, TAPPI T 838, TAPPI T 811, TAPPI T 839, FEFCO No. 8, APPITA / AS 1301.444s
RCT ring crush test ISO 12192, DIN 53134, SCAN P34, TAPPI T 822, APPITA / AS 1301.407s,
FCT flat crush test EN 23035, ISO 3035, SCAN P32, TAPPI T 825, FEFCO No. 6, PPITA / AS 1301.429s,
CCT corrugated crush test or concora crush test TAPPI T 843, SCAN P42,
PAT pin adhesion test TAPPI T 821, FEFCO No. 11, APPITA/AS 1301.430s,
CMT corrugating medium test ISO 7263, DIN 53134, SCAN P27, TAPPI T809, APPITA / AS 1301.434s

Dimensions

Dimensions (W X D x H) : 380mm x 460mm x 750mm.

Weight : 65kg.

Power : 250W.

Power supply: 110V/60Hz or 220V/50Hz single-phase.

Dimensions of Transport Packaging (W x Dx H): 450mm x 520mm x 900mm.

Gross Weight: 120Kg (wooden packaging with phytosanitary treatment).

Technical Data

Force range: Between 10 and 5000 N.

Reading resolution: 0.1 N.

Regulation of test speeds from the PC: between 0.3 and 100 mm/min.

Approach speed and automatic return to test position: 100 mm/min.

PC connection interface: USB.

Automatic return: from the movable plate after each test to the initial position.

Digital encoder: to measure the deformations of the samples in mm or inches.

Overload protection.

User adjustable travel limits.

Maintenance-free brushless electric motor.

Anti-vibration and height adjustable supports: for correct levelling of the tester.

1 central spindle for driving and laterally guiding the moving plate.

Optional Accessories

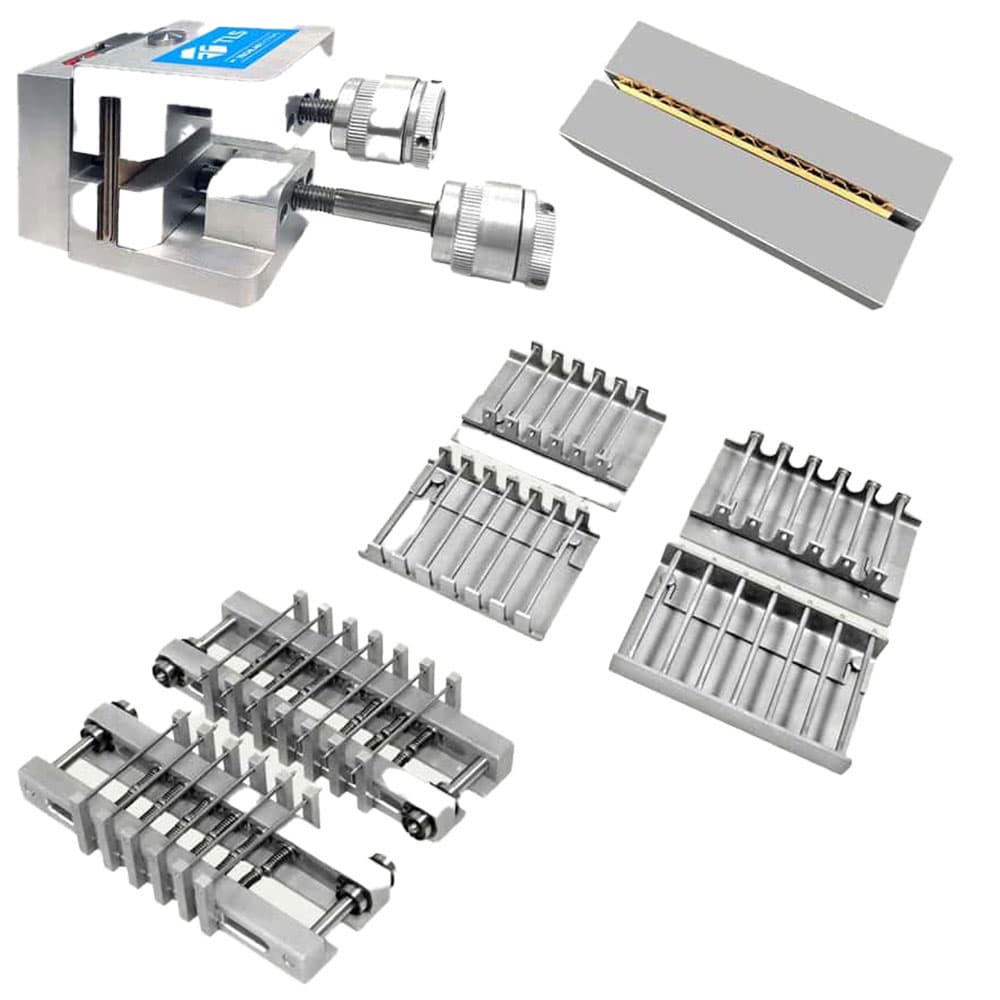

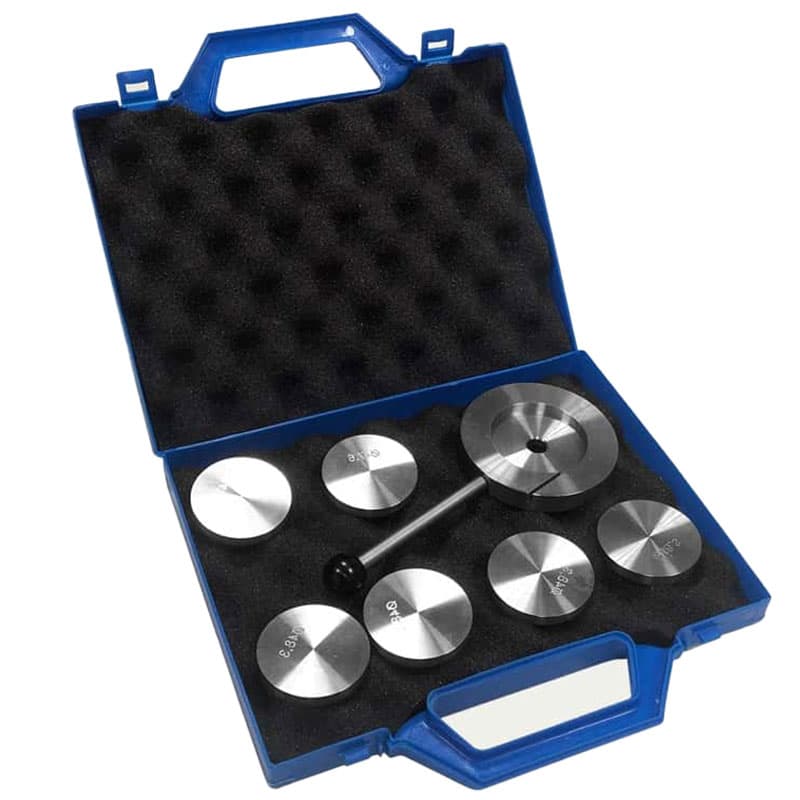

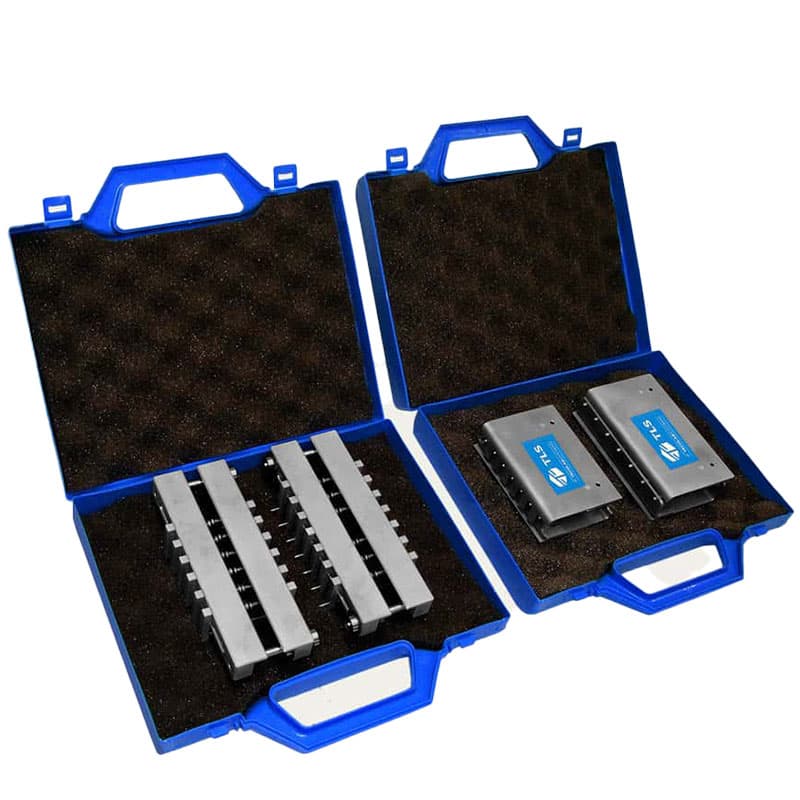

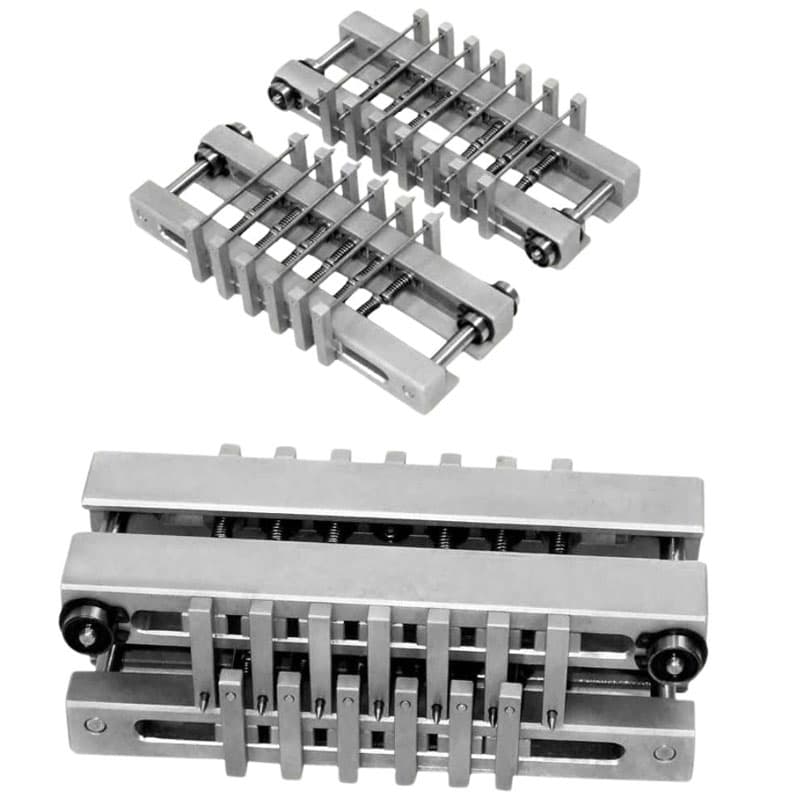

RCT – CCT – ECT – PAT Testing Devices.
Twin blade cutter with 12.7 mm cutting width.
Manual Punch & Die Presses of 152.4 x 12.7 mm.

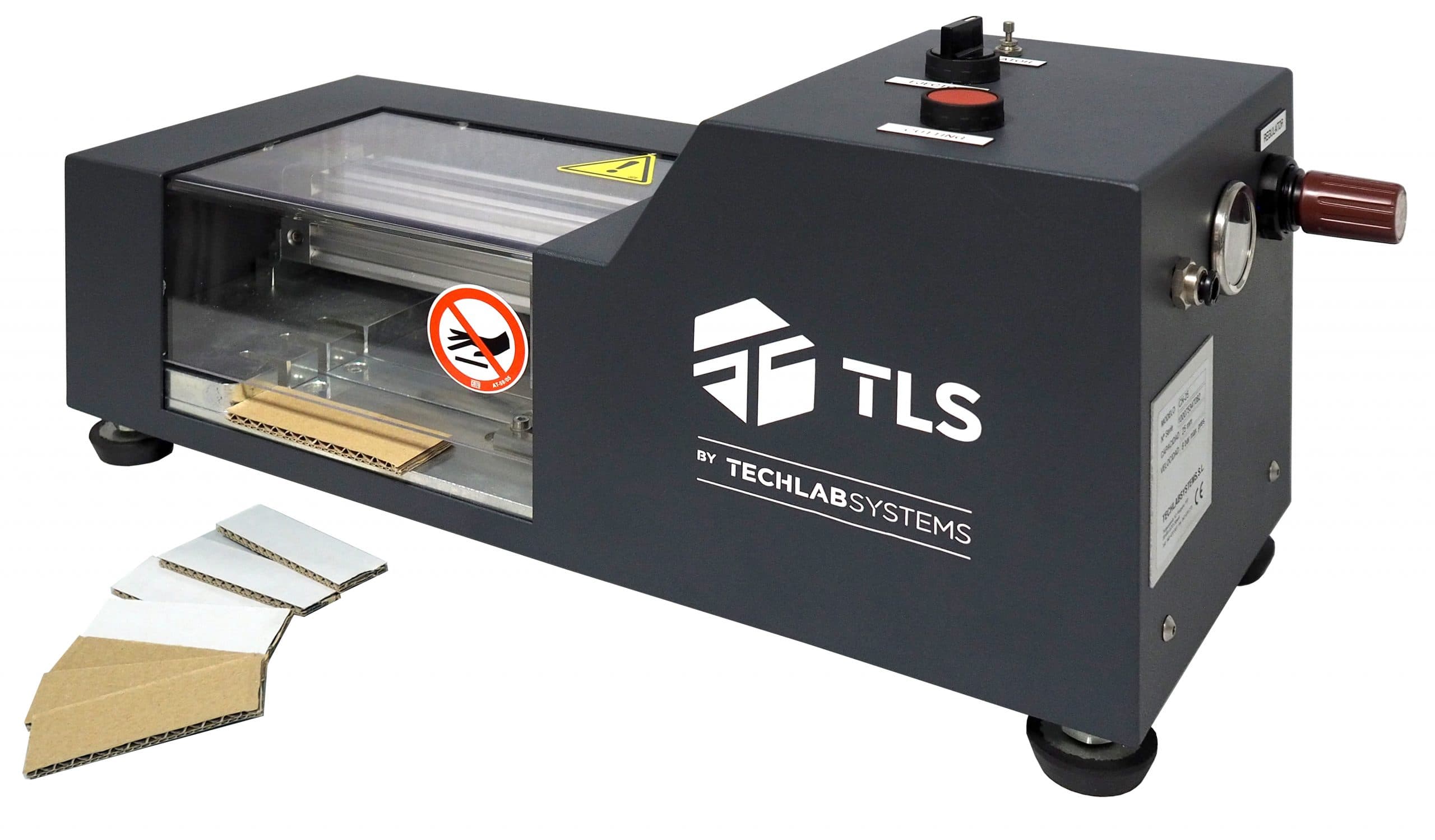

Pneumatic ECT cutter for corrugated cardboard samples for ECT tests.
