Die Sample Cutter For Tensile Specimens

Die Sample Cutter For Tensile Specimens

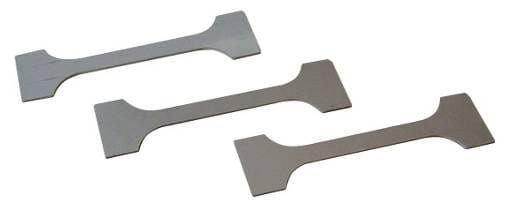

Precision tensile specimens cutting dies of a variety of materials which ensures compliance to all ASTM, DIN, ISO, BS and JIS test methods. Non standard size & shape cutters can also be made to your exact requirements. Manufactured using the highest quality materials in Germany by a leading sample cutter manufacturer for the materials testing industry.

THS265 Die Cutters  for  tensile  specimens

CW – Type:   For soft samples such as elastomers , cutting die with ribbon steel

CH –  Type:   For hard thick samples such as rigid plastics and thicker elastomers, steel cutting die

CSS- Type: For sheet metal and foils

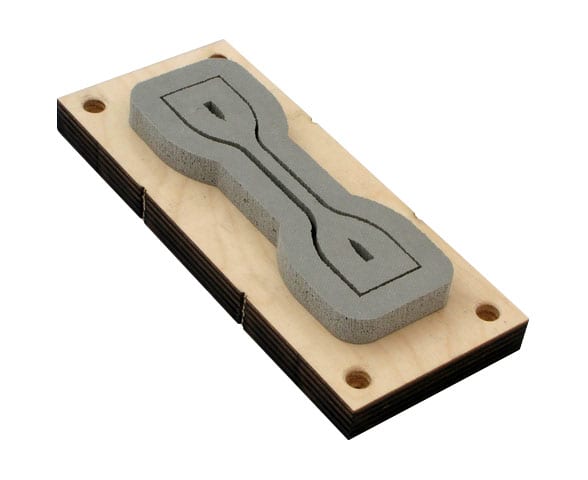

THS265-CW Die Cutter

  • Ribbon steel cutting die
  • 0-3 mm thick samples of rubber, leather, plastic, foam, cardboard, textiles, etc.
  •  The foam keeps sample secure and helps it remove from knife
  • Standard base sizes: 175 x 75 mm, 200 x 75 mm, 220 x 80 mmCW-Tensile-Specimen-Cutter

Examples of typical standards, we can also offer bespoke sizes and shapes

ISO527-2-Fig. A2–5B, DIN53504-S3, EN455-2, ASTM-D412-Type D

DIN53504-Bild3-S2, ISO527-2-Fig.A.2-5A, ISO37-Fig.3-Table2-Type2, EN60811-Fig.1

ASTM-D412-Fig2-DieC, DIN53504-T4-S1, ISO527-3-Fig2-T5, ISO37-Fig3-Table2-Type1, ASTM-D638-IV

ISO 527-2-1A, ISO527-2-T1-1A

V-shaped cutting die according to ASTM-D624-00-Die C, ISO34-1-F2,
ASTM-D1004-03-F1, DIN53515-F1, ISO8067-F2

Trouser-shaped cutting die according to ISO34-1-Fig1, DIN 53507, JIS K6252

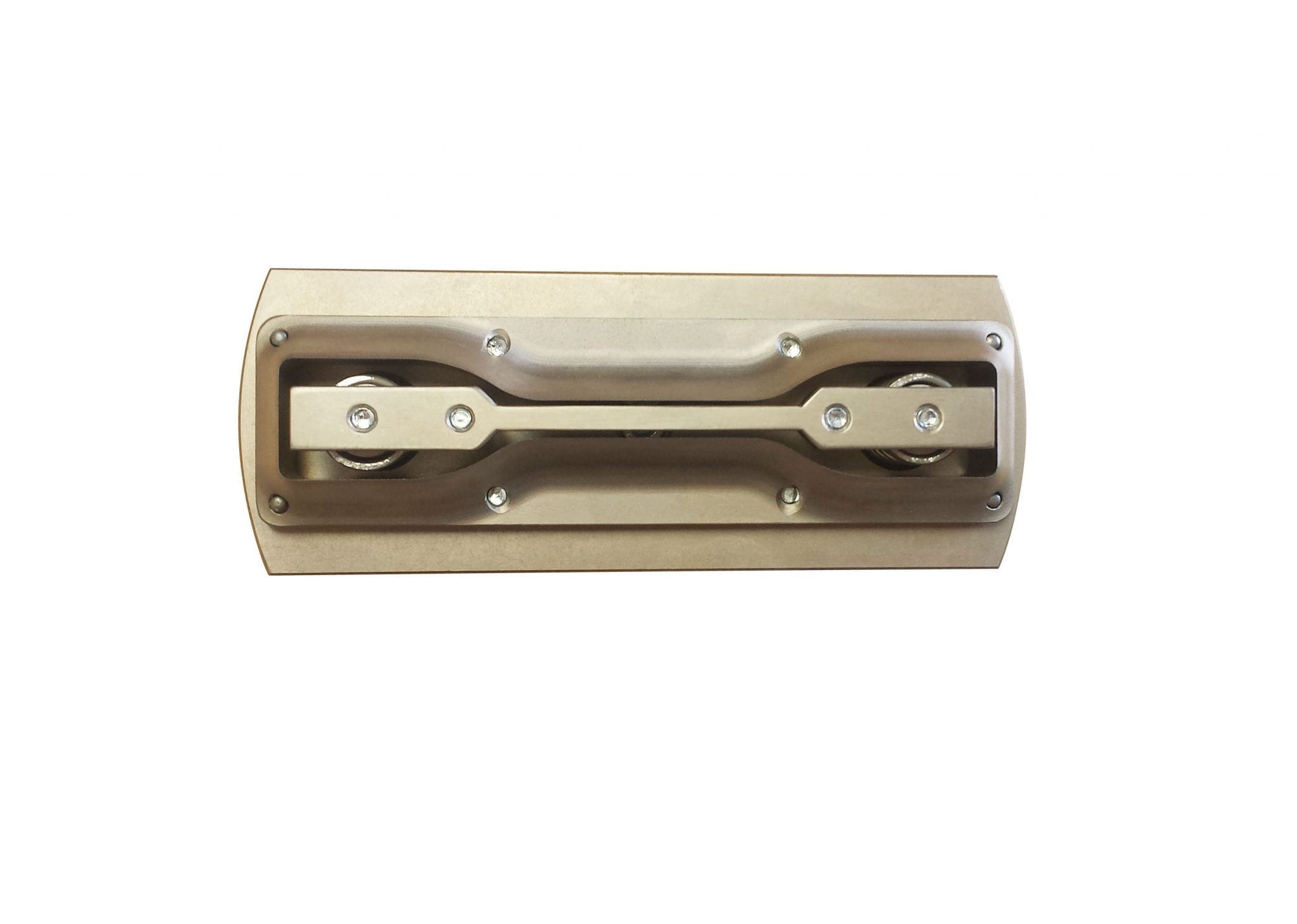

THS265-CH Die Cutter

  • Hardened steel cutting die
  • 0-10 mm thick thick samples of leather, plastic, rubber, foam, cardboard, textiles, etc. CH Tensile Specimen Cutter

Examples of typical standards, we can also offer bespoke sizes and shapes

DIN53504-Bild3-S2, ISO527-2-Fig.A2-5A, ISO37-Fig.3-Table 2, EN60811-Fig.1

EN60811-Fig.2 ASTM-D412-Fig2-DieC, DIN53504-T4-S1, ISO527-3-Fig2-T5, ISO37-Fig3-Table2-Type1,

ASTM-D638-M-II, ISO527-1B, ISO527-2-1A, ISO3167-Typ A, ASTM-D412-A, ASTM D638-Type1

V-shaped cutting die according to ASTM-D624-00-Die C, ISO34-1-F2, ASTM-D1004-03-F1, DIN53515-F1, ISO8067-F2

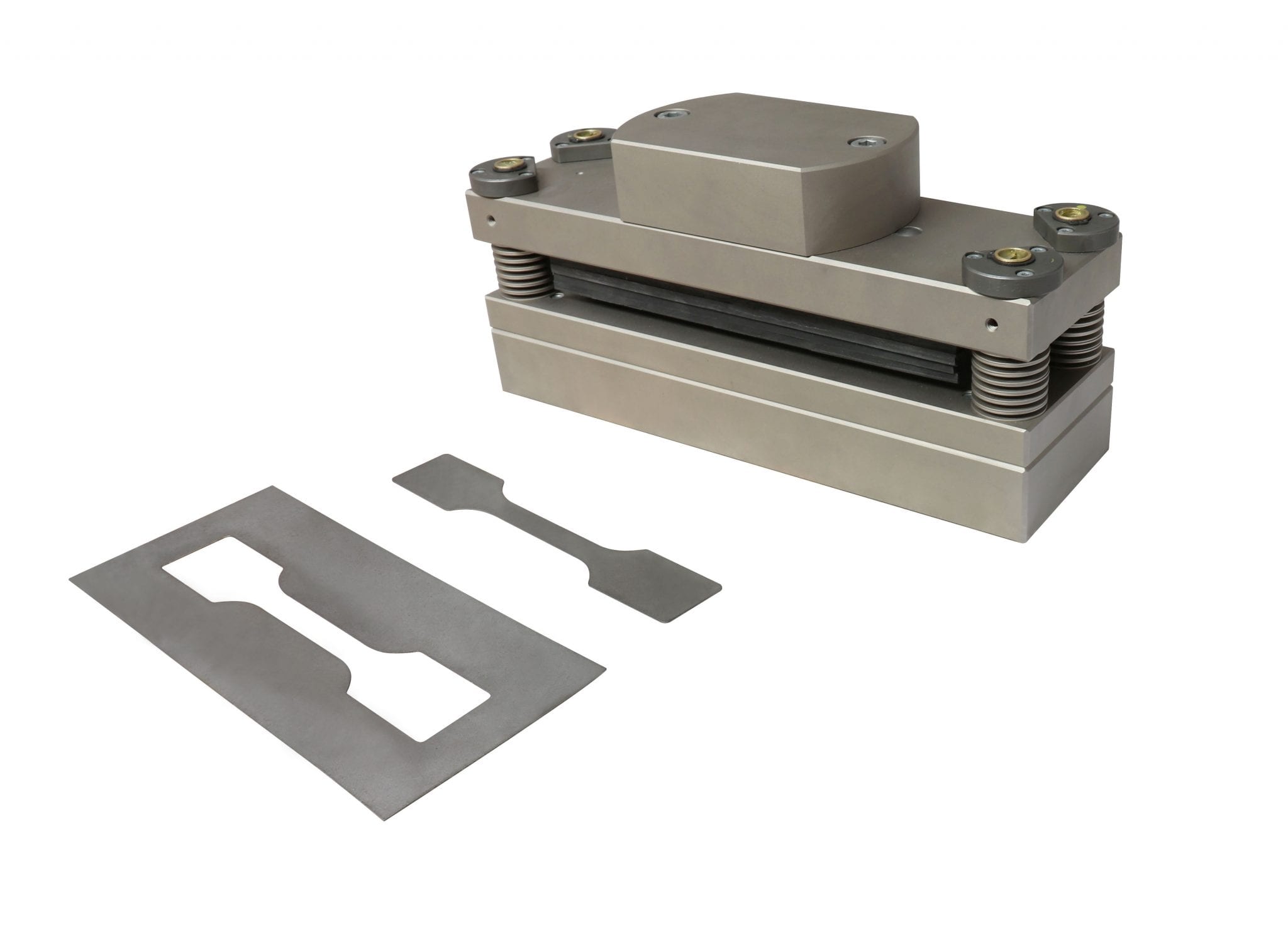

THS265-CSS Die Cutter For Sheet Metal

  • Heavy duty cutter
  • For steel sheets, metal foils up to 2 mm thick

See data sheet for more details and standard shapes available.

Tensile Specimen Cutters for many standards and we can manufacture bespoke cutters to just about and size and shape for a variety of materials

e.g. ISO527, ISO34, ISO37, ISO527, ASTM-D624, ASTM-D412, ASTM-D638, ASTM-D635, ASTM-D1004, EN527, EN455,  DIN53504, ABNT NBR15557

Presses For Tensile Specimen Cutters

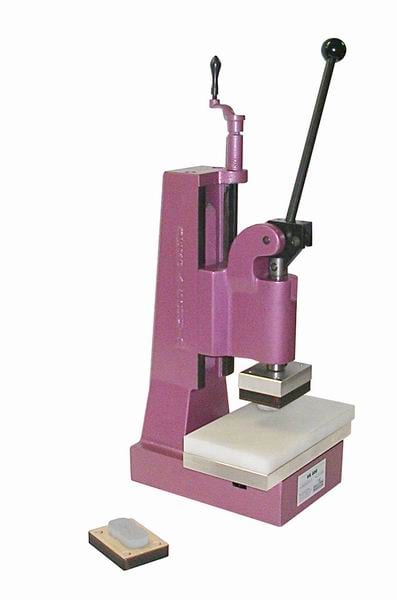

Manual Toggle Press Presses For Tensile Specimen Cutters

THS265-P8 Toggle press, 8 kN
THS265-P17 Toggle press,17 kN
THS265-P26 Toggle press, 26 kN

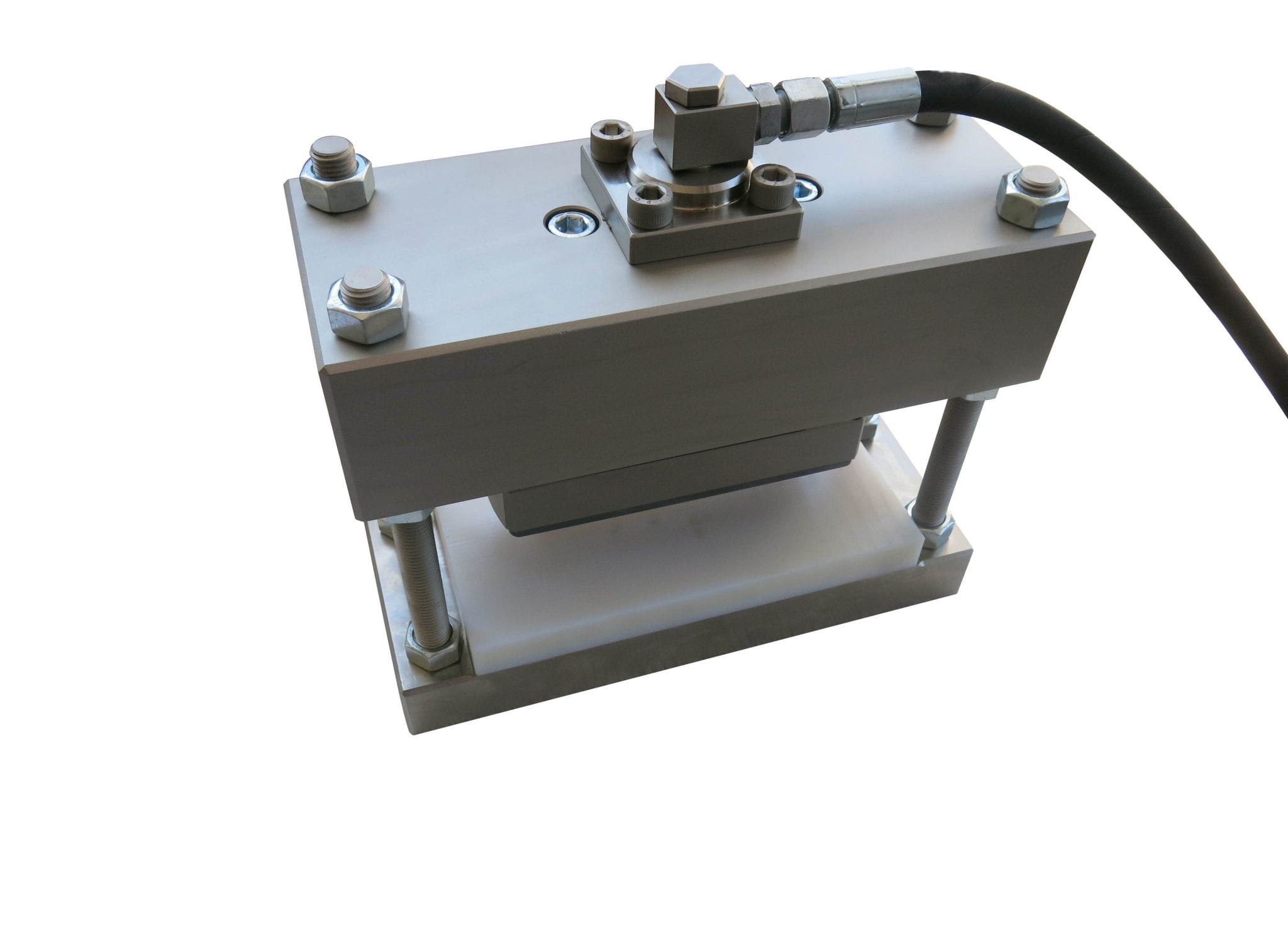

Hydraulic Press

THS265-P100-HP Hydraulic press 100 kN/600 bar,
adjustable cutting height  incl. pneumatic hydraulic pump



Hydraulic Press For Tensile Specimens
