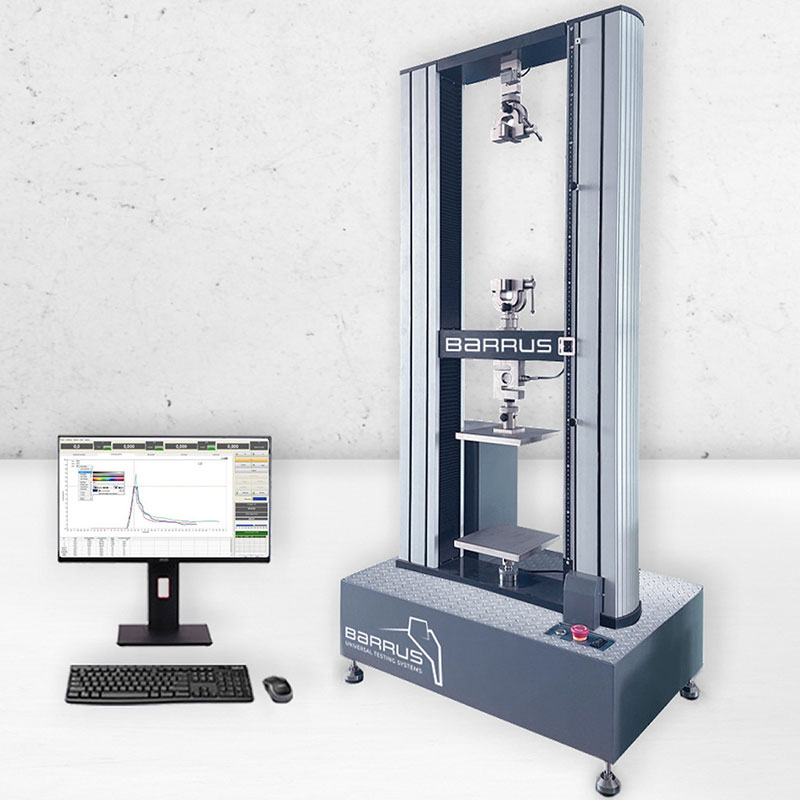

Barrus Grey Twin Column Universal Testing Machine

Manufactured by Barrus

If efficiency, reliability, and budget-friendly are at the top of your universal testing machine wishlist, look no further than the Barrus Grey series.

The dual-column grey models are available in multiple sizes and support testing up to 50 kN with 0.5 accuracy class. Optional smaller load cells are available.

Suitable for a wide range of testing requirements, including compression, flexure, and tensile tests, it’s customisable in standard, extra-height, and extra-width configurations (specialised customisations are also available).

All Barrus Grey material testing machines come with an all-inclusive Ivory software package, enabling you to effortlessly control the tensile testing machine via your PC, combining an intuitive user-friendly interface and a streamlined, one-button operation for quick and secure testing.

Benefits

Efficient, reliable, and robust universal testing machine at an accessible price.
Powered by a precise servo-motor drive, delivering micrometer-level displacement resolution.
Ability to integrate with the metal clip-on extensometer and long travel extensometer enables solid performance for a range of materials from elastomers and rubber to metals. See Models & Accessories for full details of the extensometers.
High-performance Japanese Panasonic engines.
Ivory software provides ease of use with comprehensive compliance to all testing standards.
Pre-configured methods and templates aligned with EN , ISO and ASTM standards, along with documentation editing features.
Equipped with both hardware end-stops and software-controlled force and extension limiters for an additional layer of safety.
Can be configured with various load cells to suit diverse testing applications.
Achieve a speed of 500 mm per minute at maximum capacity, maintaining consistent performance with or without load.
Extended warranty — three years with a regular maintenance contract.
Accessorise with a plexiglass enclosure for enhanced safety.
With its modular design, the machine easily adapts to specialised testing needs through a variety of custom universal testing machine accessories.
Tensile tester calibration service available.

Suitable Types Of Tests

Our higher capacity Barrus Grey Universal Testing Machines are suited to a wide range of test types and materials such as:

Compression.
Cyclitic.
Constant force.
Constant displacement.
Flexure.
Function tests.
Peel.
Stress relax.
Tensile.

Frame Capacities & Customisation Options

The Barrus Grey Dual Column Universal Testing Machine is available in the following capacities: 10kN, 20kN, and 50kN.

For the twin-column machines, the higher sizes are also suitable for lower-force testing. For example, a 10 kN frame can still be used for lower-force testing, such as 5 kN or even less.

NB: A wide range of load cells are available for each frame size.

Need an extra size machine, different speed ranges, or maybe a dual workspace in your two-column machine? We understand every testing scenario is unique, which is why all our Barrus Grey models can be meticulously crafted to meet your specific testing requirements.

We promise unmatched value and exceptional performance in every unique configuration. Contact us to let us know your bespoke requirements.

Standards

ISO 178, ISO 527, ISO 604, ISO 6892 & 6892-2, ISO 12048, ISO 14130, EN ISO 11339, ASTM E9, ASTM D638, ASTM D732, ASTM D790, ASTM D903, ASTM D3330, and ASTM D5379.

Technical Data

Accuracy: ±0.5% of applied force ISO 7500-1 / ASTM E4

Control: From PC with Ivory software

Displacement measurement resolution: 1 μm

Force measurement resolution: 1/250,000

Size: 800 x 550 x 1550 mm

Speed: 0.5 – 500 mm/min

Testing space (width x height, without grips)

400 x 1100 mm
or custom space
one or two testing spaces

Metal Clip-On Extensometer

Gauge length (Lo) Options: 25mm, 50 mm, 100mm, or 200mm.

Measurement range: 2.5mm, 5mm, 10mm, 25mm.

Accuracy class: Class 1

Important: Must be removed before sample break!

Long Travel Extensometer

Measurement travel (max): 10–940 mm

Accuracy: Class 1 from 10 mm

Max drag force: 0.1 N

Max specimen width: 30 mm

Max specimen thickness: 18 mm

Dimensions:
– Height: 1265 mm (without lower clamping bracket: 1185 mm)
– Width: 160 mm (including the blue housing on top)
– Depth: 215 mm (without arms: approx. 90 mm)

Weight: 6.5 kg
