Barrus Grey Single Column Universal Testing Machine

Name: Barrus Grey Single Column Universal Testing Machine
Brand: Barrus
Availability: InStock

Manufactured by Barrus

The Barrus Grey range is the humble sibling to the high-end Barrus Red Universal Testing Machines. It’s designed to offer businesses efficiency and reliability without costing the earth.

1 kN, 2 kN, and 5 kN frame capacities are available with the Barrus Grey Single-Column Universal Testing Machine. This robust model is powered by a precise servo-motor drive, ensuring force measurement accuracy up to 0.5% and delivering micrometer-level displacement resolution.

Designed to be adaptable, it can be configured with various load cells up to 5 kN to suit diverse testing applications, including compression, flexure, and function tests.

All Barrus Grey material testing machines come with an all-inclusive Ivory software package, enabling you to effortlessly control the tensile testing machine via your PC, combining an intuitive user-friendly interface and a streamlined, one-button operation for quick and secure testing.

Price on quotation

Data sheets

Benefits

Efficient, reliable, and robust universal testing machine at an accessible price.

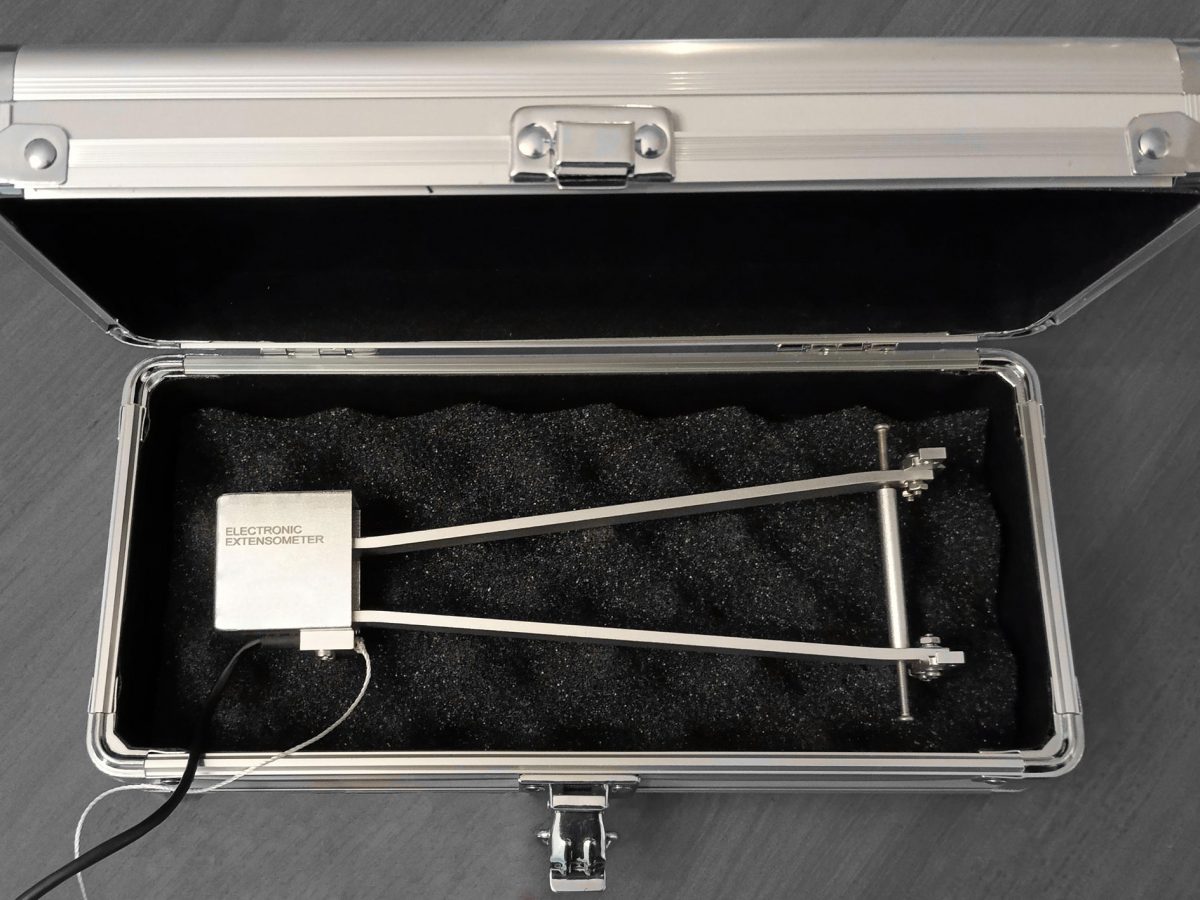

High-precision internal displacement measurement and the ability to integrate with the metal clip-on extensometer or long travel extensometer enables solid performance for a range of materials from elastomers and metals to rubber. See Models & Accessories for full details of the extensometers.
High-performance Japanese Panasonic motor and controller.
Ivory software provides ease of use with comprehensive compliance to all testing standards.
Pre-configured methods and templates aligned with EN , ISO and ASTM standards, along with documentation editing features.
Equipped with both hardware end-stops and software-controlled force and extension limiters for an additional layer of safety.
Achieve a speed of 500 mm per minute at maximum capacity, maintaining consistent performance with or without load.
Extended warranty — three years with a regular maintenance contract.
Accessorise with a plexiglass enclosure for enhanced safety.
TÜV certified. This serves as independent confirmation that our machines not only perform reliably in day-to-day operations but also meet strict international standards.
With its modular design, the machine easily adapts to specialised testing needs through a variety of custom universal testing machine accessories.
Tensile tester calibration service available.

Force Capacities & Customisation Options

The Barrus Grey Single Column Grey Universal Testing Machine is available in the following capacities: 1 kN, 2 kN, and 5 kN.

NB: A full range of load cells from 1 N up to the capacity of the frame are available.

Need an extra size machine or different speed ranges? We understand every testing scenario is unique, which is why all our Barrus Grey models can be meticulously crafted to meet your specific testing requirements.

We promise unmatched value and exceptional performance in every unique configuration. Contact us to let us know your bespoke requirements.
