AML Instruments conduct thousands of data logger calibrations every year, so your portable device accurately collects and stores data over time. From electrical data loggers and pressure data loggers to temperature data logger calibration, we’ll ensure your data logger(s) are up to date and accurately taking readings of parameters such as relative humidity, energy, voltage, pressure, and temperature. Our experienced team of calibration engineers can process equipment from any number of manufacturers including Tinytag, Omega, Testo, Gemini, Fluke, and many others, so read on to discover more about our data logger calibration services.

Onsite and offsite data logger calibration services

We fully understand the vital role data loggers play in taking critical measurements regularly and consistently to ensure product quality, safety, and regulatory compliance.

Whether you’re tracking conditions during storage, transportation, or production processes, our calibration services are focused on flexibility, speed, and cost, so you’re never without your data logger(s) for long.

Let’s sort a date for us to come to you

If you need us to calibrate a high number of data loggers, it makes sense to arrange a convenient date and time for one of our engineers to visit your facility.

We promise to efficiently manage and minimise any potential downtimes — depending on your calibration requirements you may only be without your data logger for 30 minutes.

Send your data logger to our calibration laboratory

If you can cope without your data logger for five days, our cheapest option could be just what you’re after. All you need to do is send it to our calibration laboratory, where our expert technicians will ensure your equipment is operating as per the original specification.

We will return your data logger via UPS along with a data logger calibration certificate.

Express Service 24 – 48 hrs

Sitting pretty between our quickest and cheapest data logger calibration options, our Express Service has a turnaround time of 24-48 hours, depending on how many calibration points you require. Our Express Service is carried out at our accredited lab and requires pre-booking.

Calibrate while you wait

Depending on the type of data logger device you need calibrating, there’s also the potential to bring your data logger to our site just North of Lincoln and sit with a brew while one of our in-house engineers ensures your data logger is capable of supporting the work you do. This service also requires pre-booking, so please don’t hesitate to get in touch to see if we can accommodate you and your testing equipment.

Data logger calibration procedure explained

During calibration, the accuracy of your digital data logger is checked by comparing its readings against those of our master reference equipment that has already been calibrated for a particular parameter. The reference equipment is a highly precise instrument regularly checked by an accredited laboratory, enabling the margin of error in the data logger’s readings to be reliably calculated.

For the data calibration process, it is imperative to select a data logger with an accuracy level suitable for the specific application. For instance, a minor inaccuracy in temperature measurements may not be critical for routine office temperature control, but it could compromise the safety of vaccines stored and transported in medical-grade vaccine fridges and freezers.

How often should a data logger be calibrated?

Most manufacturers will recommend calibrating your data logging device every 12 months, providing you with confidence in its accuracy. Your own quality management system should also stipulate the calibration frequency required.

However, data loggers used in harsh and unstable environments like aerospace and construction typically need to be calibrated more frequently. We also recommend for your data logger to be recalibrated if the sensor shows signs of drift, if the external temperatures have changed, or the positioning of your loggers has altered.

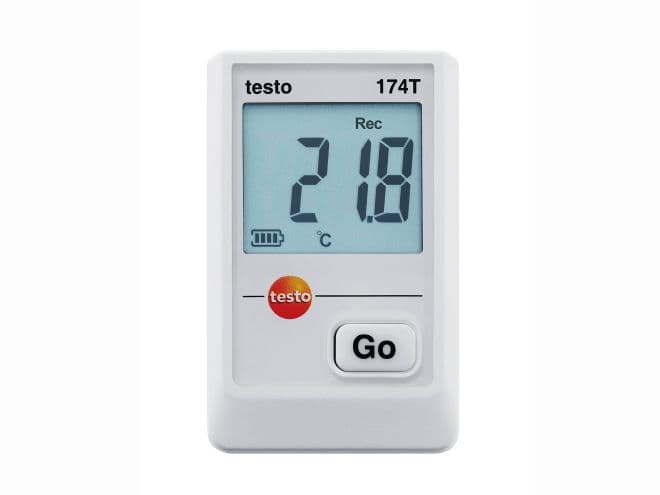

Temperature data logger calibration

Our standard temperature data logger points options are:

1 point at ambient conditions, typically 20°C +/- 2°C
2 points at 0 & 30°C
3 points at -20, 0 & 30°C.

If you have requirements for additional or different points we can provide temperature calibrations between -40 & 650°C.

Temperature calibration is essential for industries that must record data to provide evidence for verification. For example, it’s critical for businesses in the food industry to know how long a product has been exposed to a particular temperature, or for environmental professionals to know the water temperature in determining whether a water system is acceptable for human consumption and use.

At AML Instruments, we can calibrate both integrated temperature data loggers and loggers with an external probe attached.

A temperature logger with an external probe tends to be used by industries that measure at extreme temperatures beyond the working capabilities of the battery and electronics or where two temperatures in different locations need measuring simultaneously e.g. fridges, freezers, or ovens.

Relative humidity data logger calibration

Our standard RH data logger calibration points options are:

1 point at ambient conditions, typically 20°C +/- 2°C & 30 to 60% RH
2 points at 0 & 30°C, 20% & 80% RH @ 25°C
3 points at -20, 0 & 30°C, 20%, 40% & 80% RH @ 25°C.

Don’t worry if you have requirements for additional or different points — we can provide temperature calibrations between -40 & 650°C, & Relative Humidity at 10 to 98% over a wide range of temperatures.

If you’re a facility manager in an environmental, farming, logistics, or laboratory role, we fully understand the importance of measuring and recording relative humidity and temperature as part of the protection measures against legionella.

Our engineers can calibrate your RH logger to the set regulations/tolerances you must adhere to, including blind and display humidity loggers.

Electrical data logger calibration

We cover the full range of electrical parameters and different types of electrical data loggers and electrical testing devices including energy data loggers, power data loggers, and multimeters. Our parameters include volts (ac & dc), resistance, frequency, and capacitance.

Electrical data loggers are used for a wide range of applications, with the most common being the study of energy consumption of a partial machine or piece of equipment. In today’s world, we all need to reduce energy consumption and using calibrated energy data loggers will ensure your obtain accurate energy consumption data.

Pressure data logger calibration

From ensuring proper air pressure in air conditioning systems to tracking pressures in pipelines and wells to detect leaks, pressure data loggers are essential tools for many industries and applications.

With capabilities to calibrate from -1 bar to 700 bar, we’ll calibrate your pressure data loggers to your exact requirements from -1 bar to 700 bar.

Examples of data logger brands we calibrate

Tinytag data loggers
Gemini data loggers
Testo data loggers
LogTag data loggers
MadgeTech data loggers
T&D data loggers
Shockwatch data loggers
MesaLabs data loggers
ELPRO data loggers
Grant Instruments data loggers
Fluke data loggers
Pico data loggers
Omega data loggers
Lascar Electronics data loggers
ETI data loggers
Hobo data loggers
Rotronic data loggers
Eurotherm data loggers
Dickson data loggers
Digitron data loggers
West data loggers
Datapaq EasyTrack2 Data Logger
Fluke 2686A Data Logging System,
Fluke 2680 Series Data Acquisition Systems
Fluke 2680A-FAI, Fluke 2680A-PAI, Fluke 2680A-DIO, Fluke 2680A-180
Elcometer 215 Oven Data Logger
TQC Sheen CurveX 4 Oven Temperature Data Logger
Squirrel 2020 and Squirrel 2040 Data Logger.

Why choose AML Instruments for data loggers calibration?

Calibrating your data logger is often more cost-effective and faster than purchasing a new device. AML Instruments quality systems are certified to ISO 9001 by BSI and accredited to UKAS ISO 17025, so you can be safe in the knowledge that your RH (Relative Humidity), temperature data logger, pressure, or electrical data logger is in safe hands.

Contact us today by calling the number below or submitting an enquiry form, and our team will get back to you with a competitive quote ASAP.
