testo 175 H1 – 2 channel data logger

£230.00

Manufactured by testo

  • Professional software with Excel export function for programming the logger and data analysis
  • Round-the-clock monitoring and logging of temperature, relative humidity and dew point
  • Temperature measuring range from -20 °C to +70 °C
  • Automatic measuring data backup when the battery runs out or is changed
  • Transfer of measuring data via SD card
  • Displays violations of limit values

Saving energy, archiving, storing goods, creating a comfortable indoor climate – if you can’t analyze the temperature and humidity, you won’t get optimal results. The testo 175 H1 is designed to carry out reliable long-term measurements and log these crucial values for you.

Optional Extras

Qty:

testo 175 H1 – 2 channel data logger

Product Description

Overview

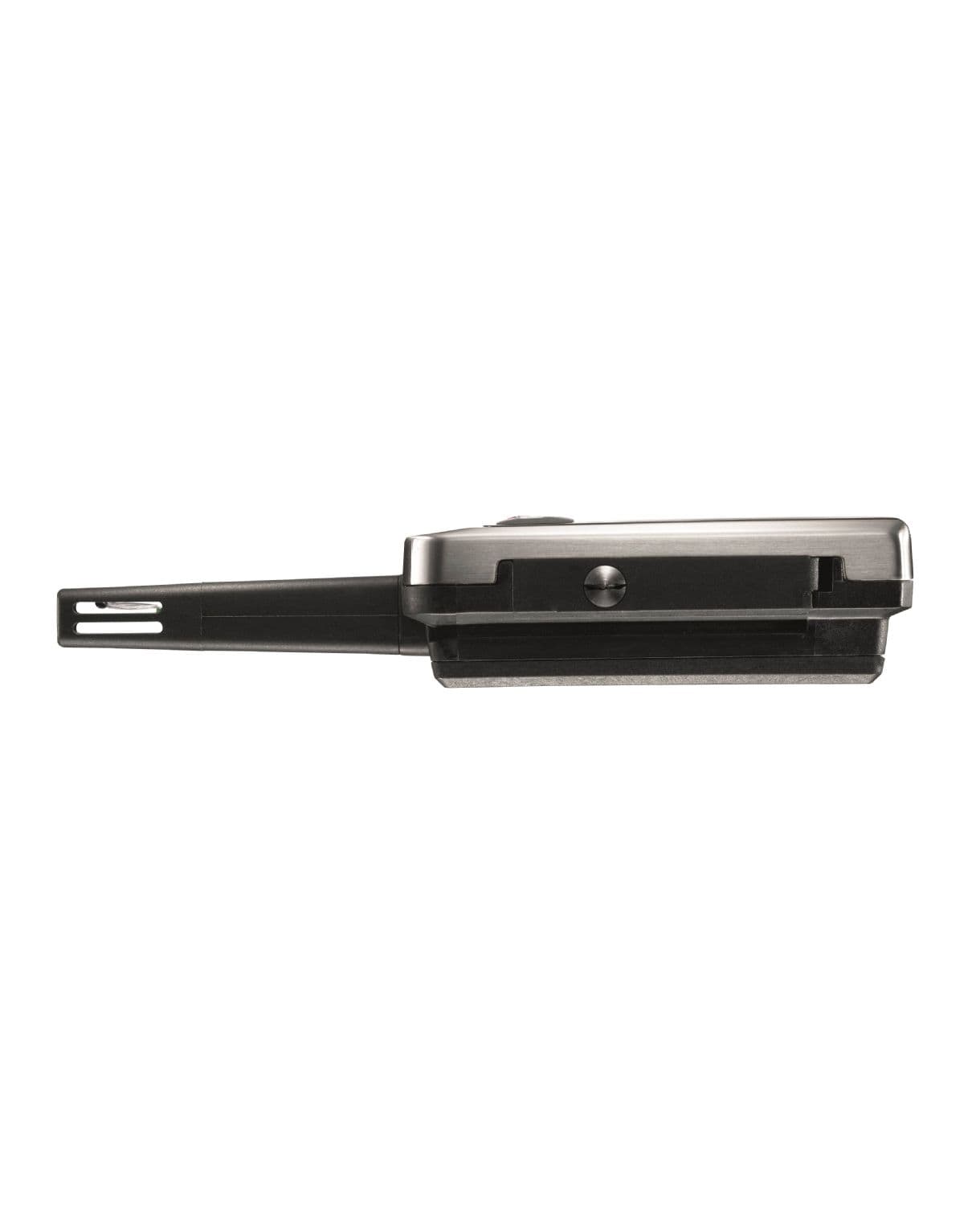

The testo 175 H1 data logger measures, monitors and logs the temperature and relative humidity in buildings and closed rooms. The logger comes with an external humidity sensor (stub) for shorter reaction times and a lock to prevent it from being easily stolen or tampered with.

In addition to the current temperature and humidity values, the logger can also log and display dew point values. Other information including adjustable threshold values, breached thresholds and remaining battery power can also be read off the large, clear display.

Security and comfort on all levels

The testo 175 H1 ensures a high level of data security and reliable measurements based on leading-edge technology. The logger has a super-size memory that can save up to 1 million readings and an extended battery life of up to 3 years. This gives you the freedom to read out the data at longer intervals, even when the measuring cycles are shorter. The triple AAA batteries included in the scope of supply can be easily replaced by the user.

Programming and Analyzing Your Data Loggers

Choose 1 of 3 software versions to program or read out your loggers or to analyze the measuring data you have obtained on your PC:

  • Software ComSoft Basic – included – allows you to program your logger and analyze the data quickly and easily
  • Software ComSoft Professional – optional – provides you with additional possibilities and a more detailed analysis of the temperature and humidity values
  • Software ComSoft CFR 21 Part 11 – optional – ideal for the special demands of the pharmaceutical sector in compliance with 21 CFR Part 11

PLEASE NOTE: You will need a USB cable (not included in scope of supply) to program your data logger. The data can be transferred to your PC either via USB cable or SD card. Both are optionally available as accessories which can be ordered together with your testo 175 H1.

Areas of application for the testo 175 H1 data logger

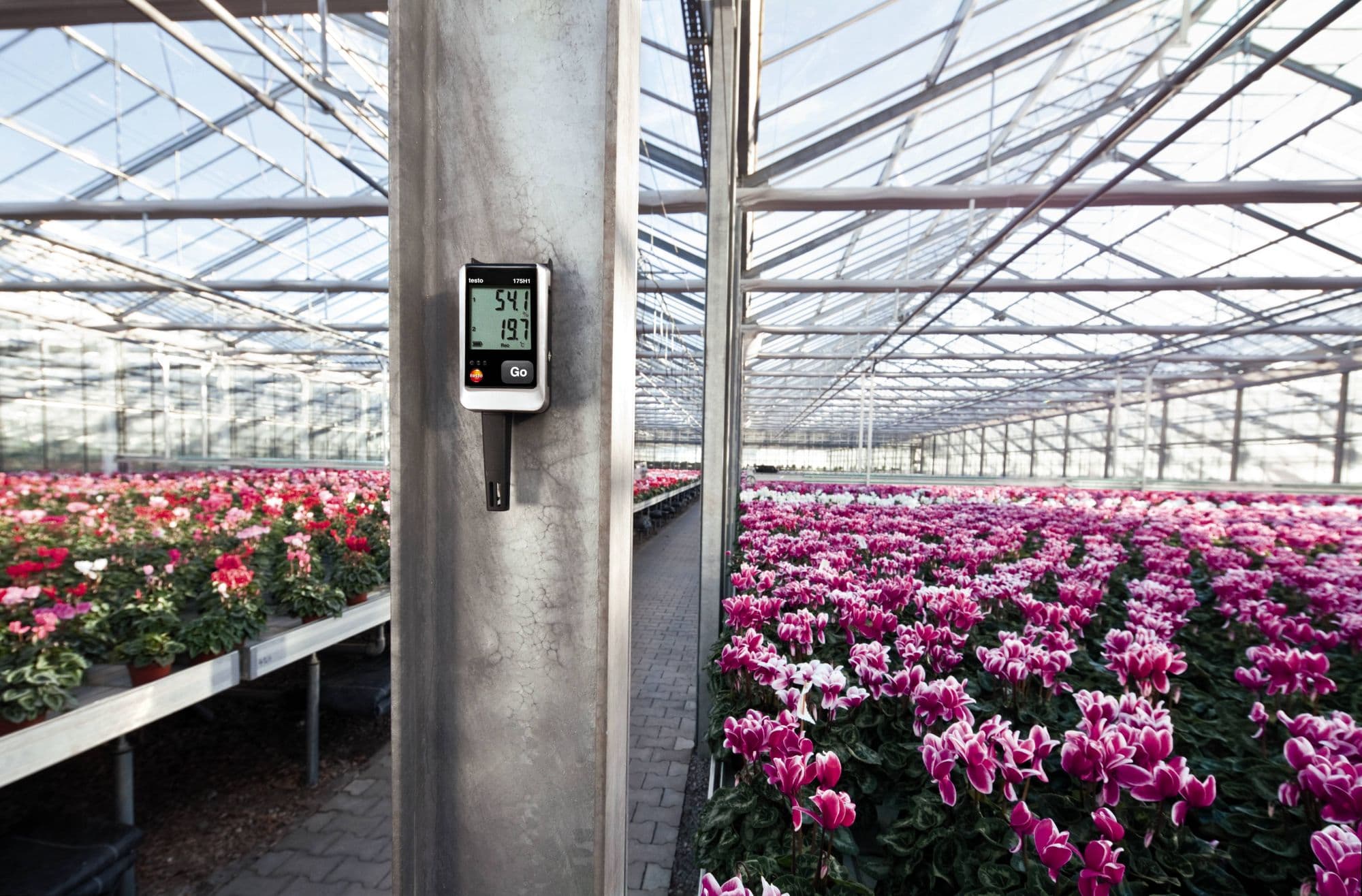

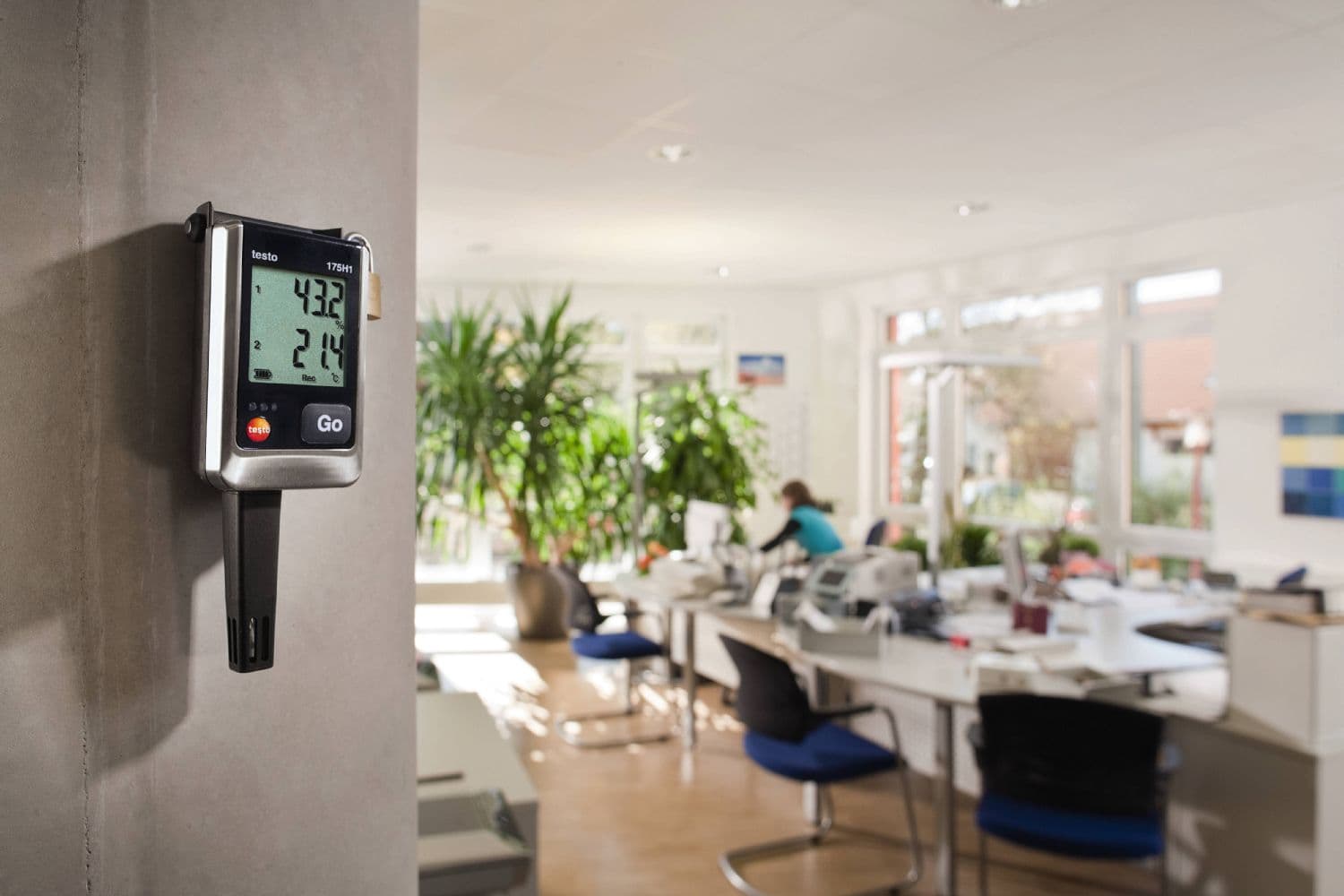

The testo 175 H1 professional data logger is ideal for round-the-clock monitoring of temperature and humidity values in closed rooms. The 175 H1 can monitor the indoor climate in buildings, storage facilities and archives and help create a comfortable climate in the workplace. The logger`s external humidity sensor (stub) is connected directly to the housing for shorter reaction times.

Delivery Scope

testo 175 H1 – 2-channel temperature and humidity data logger with external humidity sensor (NTC/capacitive humidity sensor), incl. wall holder, lock, batteries and calibration protocol

Reviews

There are no reviews yet.

Be the first to review “testo 175 H1 – 2 channel data logger”

Your email address will not be published. Required fields are marked *

testo 175 H1 – 2 channel data logger Technical Data

Temperature – NTC
Measuring range -20 to +55 °C
Accuracy ±0.4 °C (-20 to +55 °C) ±1 Digit
Resolution 0.1 °C
Humidity – Capacitive
Measuring range 0 to 100 %RH*
Accuracy ±2 %RH (2 to 98 %RH) at +25 °C

±0.03 %RH/K ±1 Digit

< ±1 %RH / year drift at +25 °C

Resolution 0.1 %RH

* Not for condensing atmospheres.

Dewpoint (calculated)
Measuring range -40 to +50 °Ctd
Accuracy +0.03 %RH/K ±1 Digit
General technical data
Weight 130 g
Dimensions 149 x 53 x 27 mm
Operating temperature -20 to +55 °C
Product-/housing material Plastic
Protection class IP54
Channels 2 internal
Product colour Black
Life-time sensor Long-term drift of the sensor <1% RH / year (ambient temperature + 25 ° C)
Standards EU-guideline 2014/30/EU; 2011/65/EU
Measuring rate 10 s – 24 h
Battery type 3 x AIMn type AAA or Energizer
Battery life 3 years at 15 min. meas. rate, +25 °C
Interface mini usb, SD card slot
Memory 1,000,000 measuring values
Storage temperature -20 to +55 °C
