pH/Conductivity Meter NineFocus NF2300 Pure H2O Kit
Manufactured by Mettler Toledo
Using specialised InLab Pure Pro-DES and InLab 741 Pro-DES sensors, the pH/Conductivity Meter NineFocus NF2300 Pure H2O Kit provides precise pH and conductivity measurements in low-ionic strength water.
It comes with a built-in Digital Measurement Module (DMM) for measuring up to four parameters (pH, redox, conductivity, and Dissolved Oxygen).

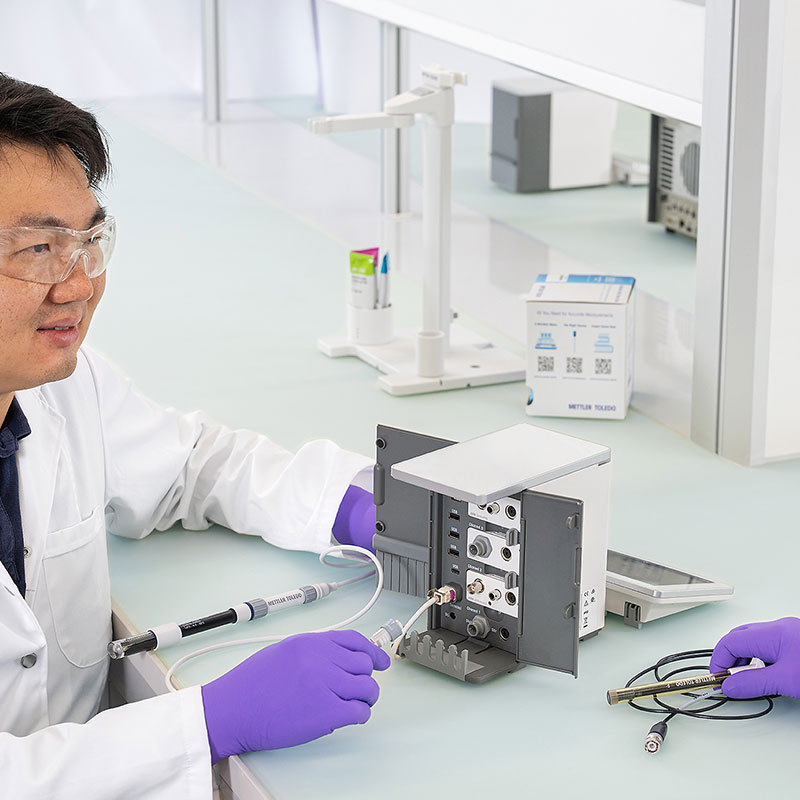

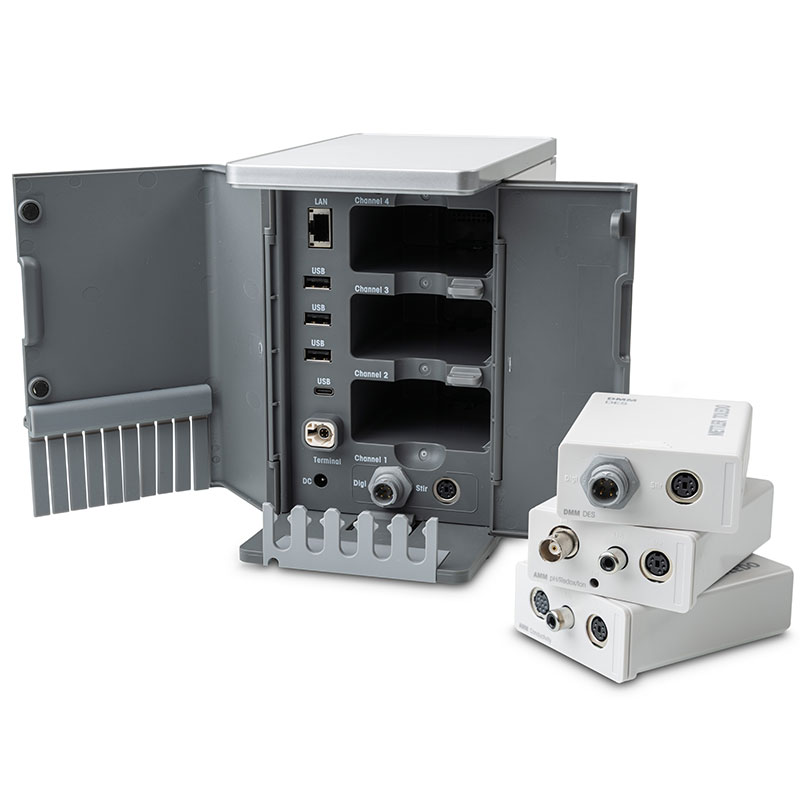

The design enables you to seamlessly swift between different parameters by simply changing the sensor. Along with the core parameters, you can expand the meter analysis productivity by adding additional modules.
The fully flexible user management system ensures data integrity and compliance by allowing you to tailor user groups to suit any need or situation and protect the settings from unwanted changes.
Benefits
- Detachable terminal with 7” touchscreen for flexible placement options, increasing usability and convenience.
- Ideal for labs with limited benchspace.
- User management system helps maintain accurate records and ensure traceability.
- Full compatibility with analogue sensors (e,g., InLab ISM sensor) using analogue module.
- IP52 rating protects internal components against limited dust ingress and water drips.
- Intuitive One Click™ user interface in 14 languages simplifies operation, saves time, and reduces errors.
- Sensor diagnostics with user guidance for troubleshooting reduces downtime, monitors sensor condition along its full lifespan and minimising errors. The algorithm also comes back with a suggested electrode for your application.
- Automatic data transfer to LabX supports accurate transcription and full compliance with industry regulatory standards, e.g., CFR 21 Part 11 and ALCOA++.
- Conductivity & pH calibration service available.
- All sensors in a kit include a signal bridge and a sensor cable, both of which are detachable and can be ordered separately.
- Can be supplied as a base unit, if using a non-digital electrode.
All NineFocus bases/kits come with the built-in module, an EasyPlace electrode arm, protective cover, suction cup control terminal, cable terminal (0.3 m), User Manual, power adapter, and test certificate.

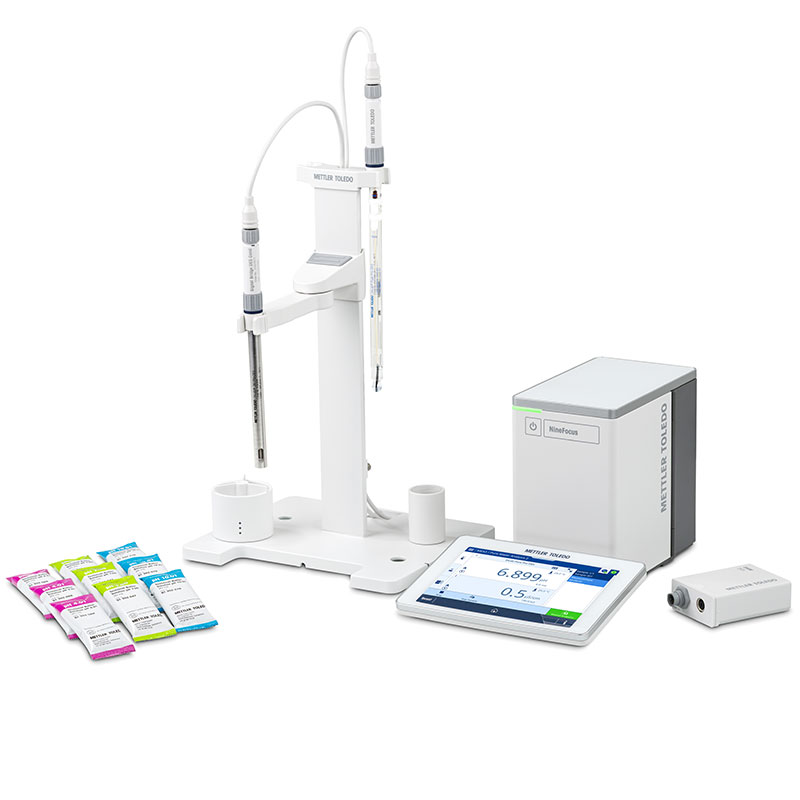

The pH/Conductivity Meter NineFocus NF2300 Pure H2O Kit also includes:
- An InLab Pure Pro-DES and an InLab 741 Pro-DES sensor.
- Calibration standards kit, consisting of 3 x pH 4.01, 7.00, and 10.01 buffer sachets.
- Signal bridge DES pH/Redox, and Signal bridge DES Conductivity.
- 1 x Digital Measurement Module (DMM) DES
- 2 x cable DES 1.2 m.
| Parameter | Conductivity,pH,ORP |
| Channel | Dual-channel |
| Version kit | Ready-to-measure kit |
| Sensor | InLab Pure Pro-DES,InLab 741 Pro-DES |
| pH measuring range | -2,000 – 20,000 |
| pH resolution | 0.001,0.01,0.1 |
| pH accuracy (±) | 0.002 |
| Conductivity measuring range | 0.001 μs/cm – 2000 ms/cm |
| Conductivity resolution | 0.001 – 0.1 |
| Conductivity accuracy (±) | 0.5 % |
| mV resolution | 0.1,1 |
| mV accuracy (±) | 0.1 |
| Temperature Range | -30 °C – 130 °C |
| Temperature resolution | 0.1 °C |
| Temperature accuracy (±) | ±0.1°C between 0°C and 100°C |
| Ease of Use | Simple Methods,Multilingual Menu,Calibration Support,Guided verification,Touch screen |
| Security and compliance | Password protection,GLP,21 CFR part 11 support,User management,Program SOPs into methods |
| Memory Size | 3000 result sets |
| Data Transfer | PC,Printer,USB stick |
| Flexibility and modularity | Upgrade for additional parameters,Stirrer,Barcode reader,LabX Software |
| Protection Rating | IP52 |
| Compatible with Intelligent sensor management (ISM) | No |

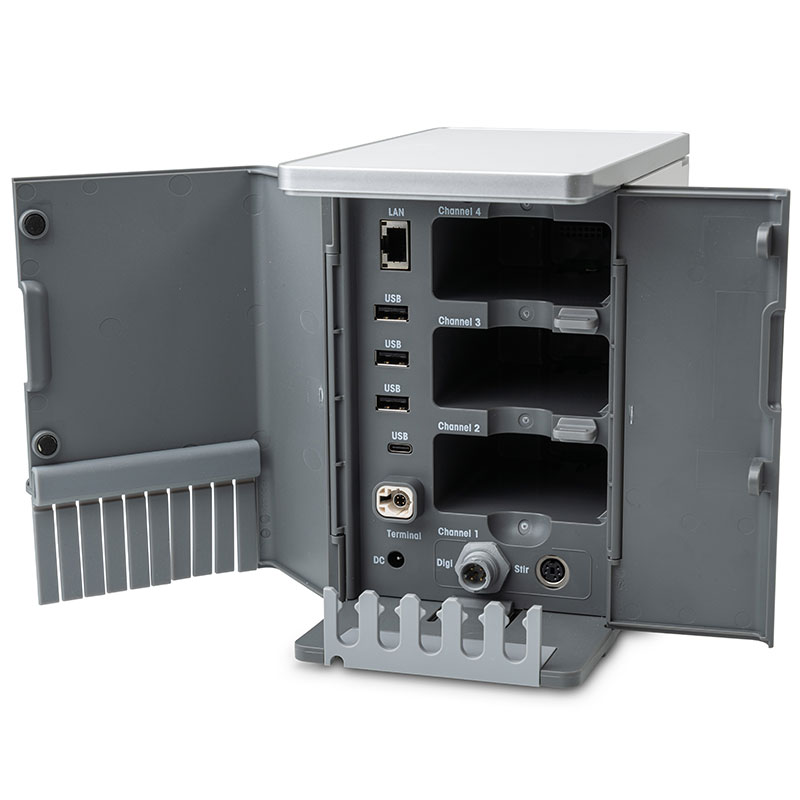

| Connectors | USB A,USB C,ALTW 4PIN,LAN,Mini-DIN,HSD |
| Dimensions | 111 x 178 x 325 mm |
| Display Type | 7″ Colour TFT |
| Languages | English,Italian,Polish,Russian,French,Portuguese,Chinese Simplified,Chinese Traditional,German,Spanish,Thai,Turkish |
| Meter Type | Benchtop Dual-Channel |
| mV measuring range | -2000..2000 mV |
| Portable Meter | No |
| Product Line | NineFocus |
| Sensor Included | Sensor for pure water |
| Weight | 1697 g |
