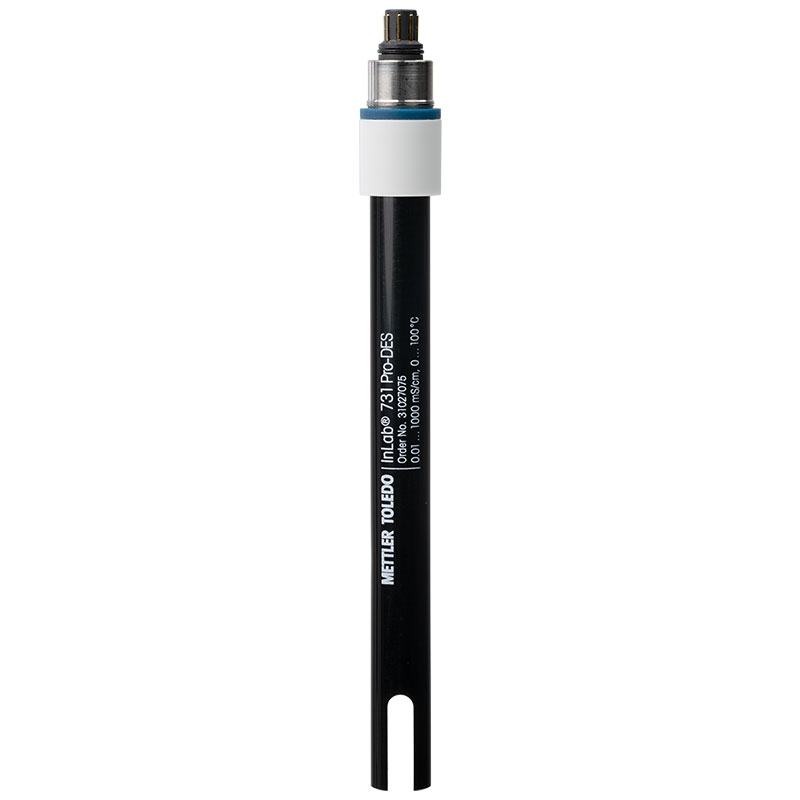

InLab®731 Pro-DES Conductivity Sensor

Original price was: £525.00.Current price is: £472.50.

This four graphite poles conductivity electrode with integrated temperature sensor is designed for general applications like standard and high conductivity samples. It benefits from DES sensor technology, meaning it’s diagnosable, efficient, and sustainable.

The DES conductivity probes work with the Digital Measurement Module (DMM) which comes built-in to all NineFocus bases/kits. Recommended models include the NF2300, NF2340, and NF3000.

Qty:

Benefits

  • 4-pole cell eliminates polarisation effects and guarantees great linearity over a huge conductivity range.
  • Integrated temperature sensor guarantees measurements are always performed with the correct temperature compensation.
  • Diagnostic system’s preventive maintenance maximises the sensor’s lifespan and prevents premature discard.
  • To reduce downtime, sensor diagnostics on the meter speed up problem-solving and prevent errors.
  • Replacing only the sensor shaft at the end of its life while retaining the measurement electronics helps boost your green credentials.
  • All sensors connect to the same detachable cable, reducing complexity and promoting sustainability.
  • Three different cable lengths enable an interference-free, stable signal anywhere within 5 meters.

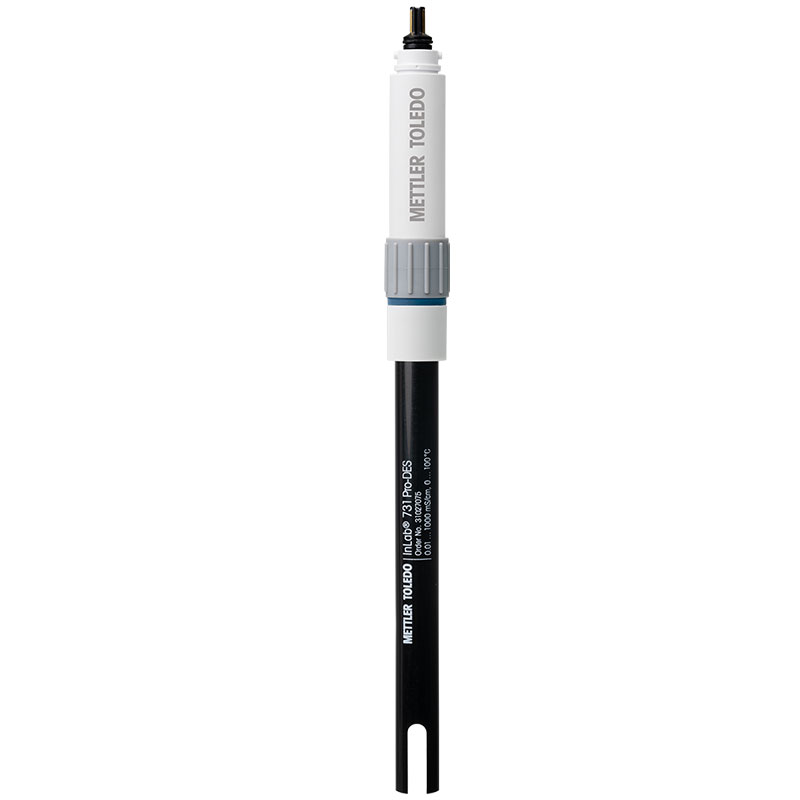

  • Detachable signal bridge eliminates the need for new measurement electronics, saving cost and reducing material waste.

Reviews

There are no reviews yet.

Be the first to review “InLab®731 Pro-DES Conductivity Sensor”

Your email address will not be published. Required fields are marked *

Measuring range 0.01 – 1000 mS/cm
Temperature range 0 °C – 100 °C
Connector Mini-DIN
Cell type 4 graphite poles
Cell constant 0.57 cm-1
Shaft material Epoxy
Sensor type Combined electrode
Shaft length 120 mm
Shaft diameter 12 mm
Parameter Conductivity
Temperature probe NTC 30 kΩ
For portable meter No
Low maintenance Yes
Signal type Digital
Sample General purpose
Cable included No
Compatible meter NineFocus
Connector on sensor To Signal Bridge (sVP8)
DES® – Sensor Diagnostics Yes
Long cable No
Presence of harsh chemicals No
Recommended meter models NF2300, NF3000, NF2340
Recommended meters NineFocus
Sample conductivity >100 uS/cm
Sensor characteristics Temperature probe,Premium Sensor,Analogue,Mechanically robust
Unique sensor purpose High Conductivity
