Conductivity Meter NineFocus NF3000 Kit
Manufactured by Mettler Toledo
This high-performance, modular benchtop meter is used in industries such as pharmaceuticals and laboratories and research to determine conductivity. It comes with a built-in Digital Measurement Module (DMM) for measuring up to four parameters (pH, redox, conductivity, and Dissolved Oxygen).

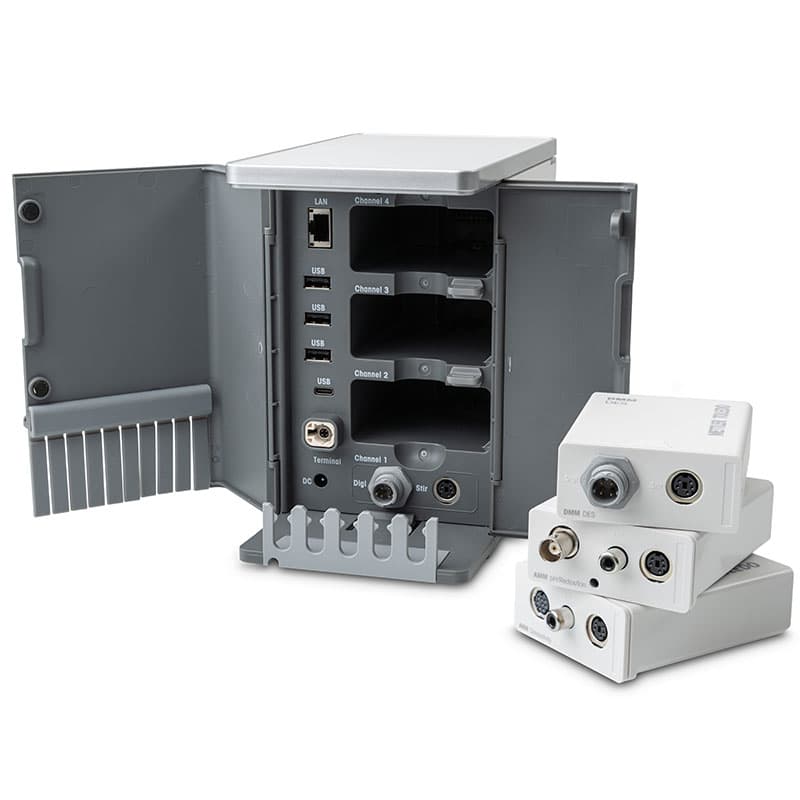

The design of the conductivity meter kit enables you to seamlessly swift between different parameters by simply changing the sensor. Along with the core parameters, you can expand the meter analysis productivity by adding additional modules.
The fully flexible user management system ensures data integrity and compliance by allowing you to tailor user groups to suit any need or situation and protect the settings from unwanted changes.
Benefits

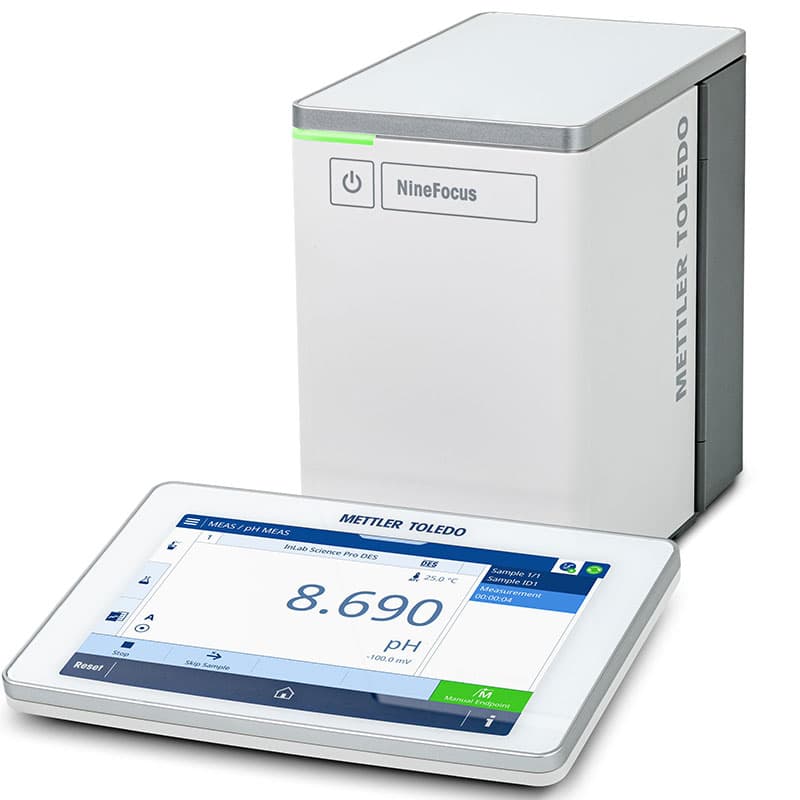

- Detachable terminal with 7” touchscreen for flexible placement options, increasing usability and convenience.
- Ideal for labs with limited benchspace.
- User management system helps maintain accurate records and ensure traceability.
- Full compatibility with analogue sensors (e,g., InLab ISM sensor) using analogue module.
- IP52 rating protects internal components against limited dust ingress and water drips.
- Intuitive One Click™ user interface in 14 languages simplifies operation, saves time, and reduces errors.
- Sensor diagnostics with user guidance for troubleshooting reduces downtime, monitors sensor condition along its full lifespan and minimising errors. The algorithm also comes back with a suggested electrode for your application.
- Conductivity & pH calibration service available.

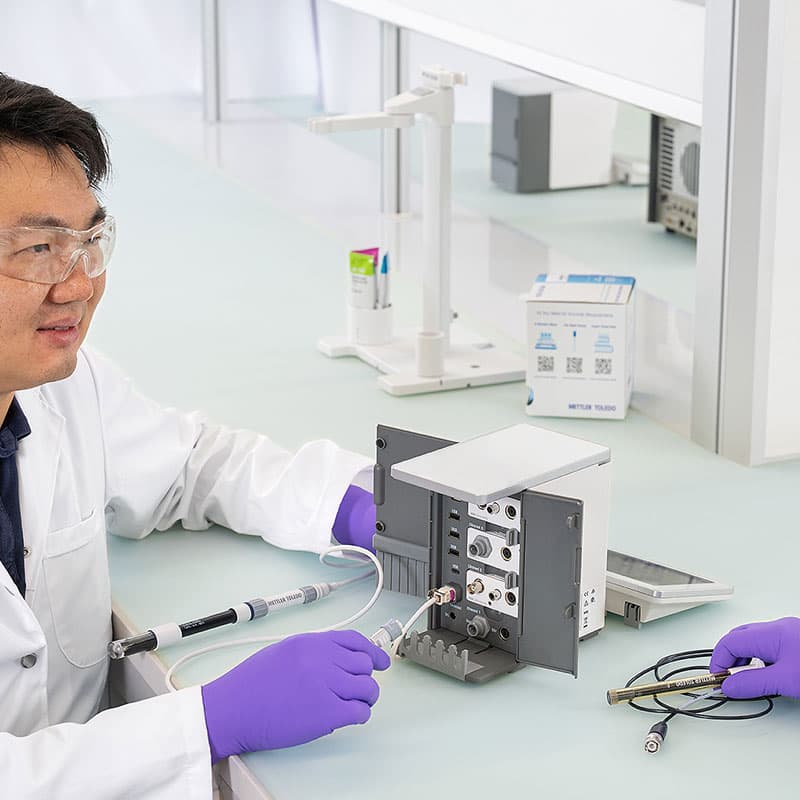

- Sensor includes a signal bridge and a sensor cable, both of which are detachable and can be ordered separately.
- Can be supplied as a base unit, if using a non-digital electrode.

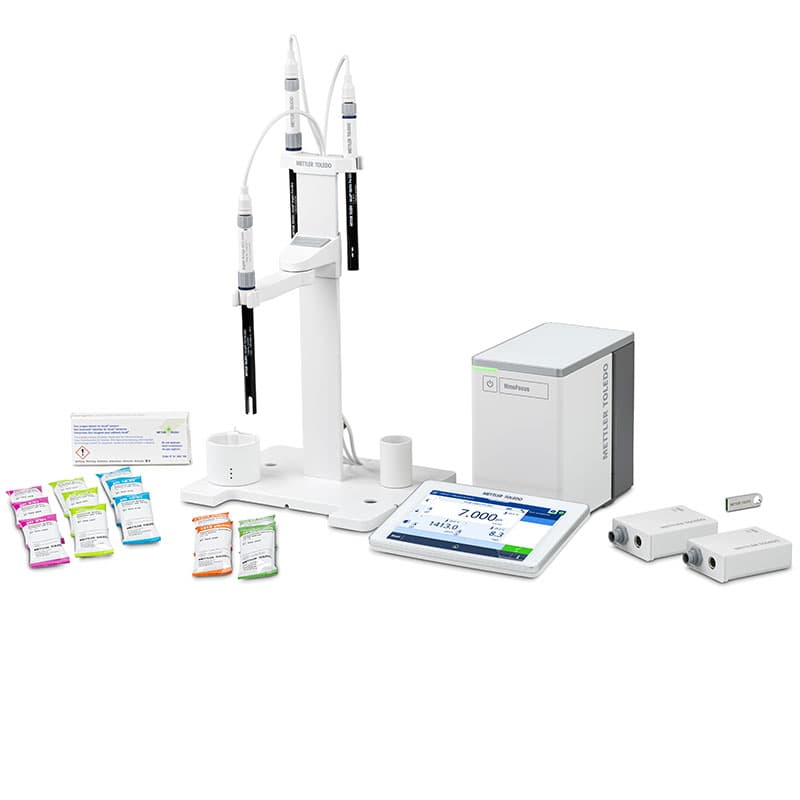

All NineFocus bases/kits come with the built-in module, an EasyPlace electrode arm, protective cover, suction cup control terminal, cable terminal (0.3 m), User Manual, power adapter, and test certificate.

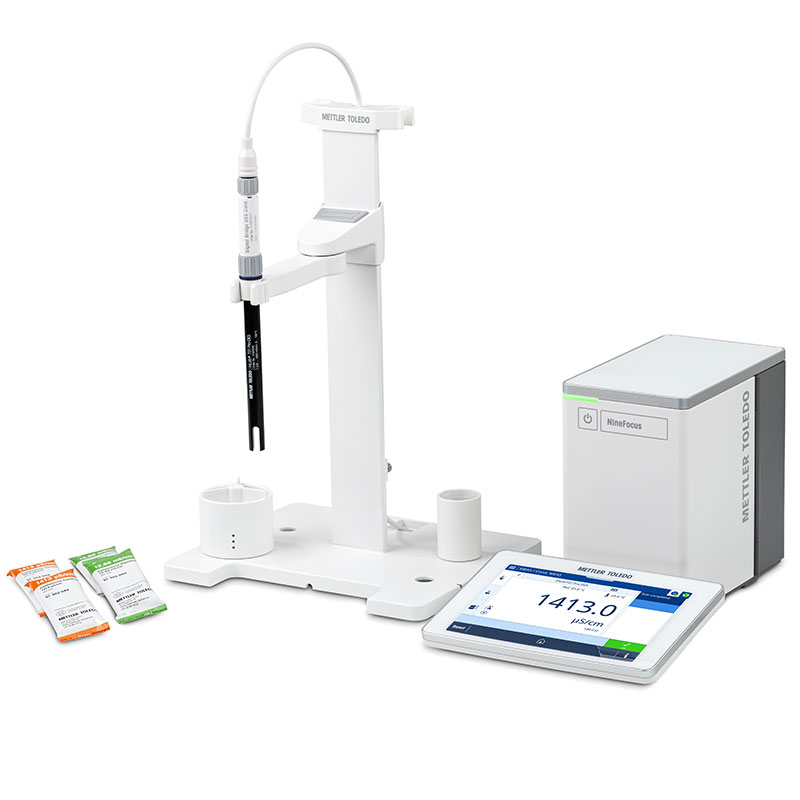

The Conductivity Meter NineFocus NF3000 Kit also includes:
- An InLab 731 Pro-DES sensor.
- Calibration standards kit consisting of 3 x pH 4.01, 7.00 and 10.01 buffer sachets, and 2 x 2 conductivity sachets (1413 μS/cm and 12.88 mS/cm).
- Signal bridge DES pH/Redox, Signal bridge DES Cond.
- 1 x Digital Measurement Module (DMM) DES.
- 2 x Cable DES 1.2 m.
| Parameter | Conductivity |
| Channel | Single-channel |
| Version kit | Ready-to-measure kit |
| Sensor | InLab 731 Pro-DES |
| Conductivity measuring range | 0.001 μS/cm – 2000 mS/cm |
| Conductivity resolution | 0.001 – 0.1 |
| Conductivity accuracy (±) | 0.5% |
| Temperature range | -30 °C – 130 °C |
| mV accuracy (±) | 0.1 |
| Temperature range | -30 °C – 130 °C |
| Temperature resolution | 0.1 °C |
| Temperature accuracy (±) | ±0.1 °C between 0 °C and 100 °C |
| Ease of Use | Calibration Support Guided verification Multilingual Menu Simple Methods Touch screen |
| Security and compliance | 21 CFR part 11 support GLP Password protection Program SOPs into methods User management |
| Memory Size | 3000 result sets |
| Data Transfer | PC Printer USB stick |
| Flexibilty and modularity | Barcode reader LabX software Stirrer Upgrade for additional parameters |
| Protection Rating | IP52 |
| Sensor Included | Generalist sensor |
| Languages | Chinese Simplified Chinese Traditional English French German Italian Polish Portuguese Russian Spanish Thai Turkish |
| Display Type | 7″ Colour TFT |
| Meter Type | Benchtop Single-Channel |
| mV measuring range | -2000..2000 mV |
| Dimensions | 111 x 178 x 325 mm |
| Weight | 1604 g |

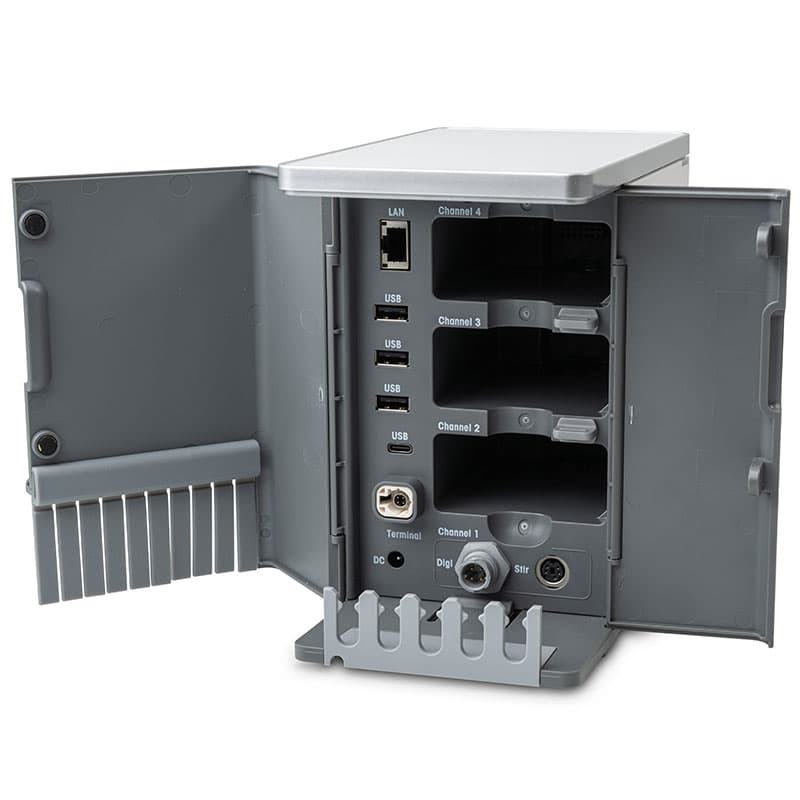

| Connectors | ALTW 4PIN HSD LAN Mini-DIN USB A USB C |
| Compatible with Intelligent sensor management (ISM) | No |
| Portable Meter | No |
