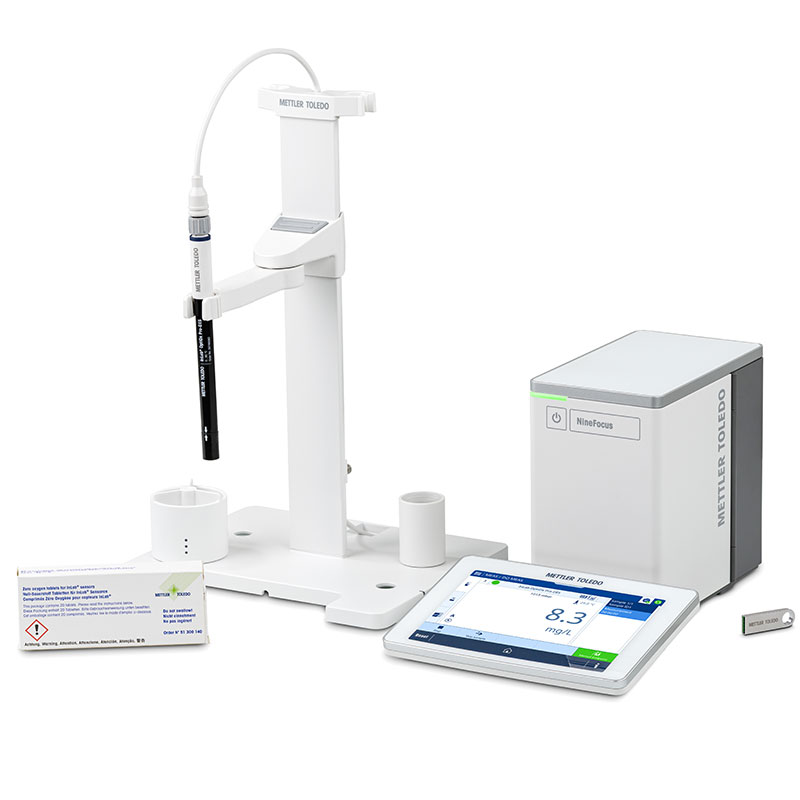

Dissolved Oyxgen Meter NineFocus NF4000 Kit
Manufactured by Mettler Toledo
Designed for determining dissolved oxygen in applications like laboratory research and wastewater treatment, the Dissolved Oyxgen Meter NineFocus NF4000 Kit comes with the OptiOx Pro-DES sensor. Unlike other sensors in the NineFocus range, this sensor doesn’t need a signal bridge.
It comes with a built-in Digital Measurement Module (DMM) for measuring up to four parameters (pH, redox, conductivity, and Dissolved Oxygen).
The design enables you to seamlessly swift between different parameters by simply changing the sensor. Along with the core parameters, you can expand the meter analysis productivity by adding additional modules.
The fully flexible user management system ensures data integrity and compliance by allowing you to tailor user groups to suit any need or situation and protect the settings from unwanted changes.
Benefits
- Detachable terminal with 7” touchscreen for flexible placement options, increasing usability and convenience.
- Ideal for labs with limited benchspace.
- User management system helps maintain accurate records and ensure traceability.
- Full compatibility with analogue sensors (e,g., InLab ISM sensor) using analogue module.
- IP52 rating protects internal components against limited dust ingress and water drips.
- Intuitive One Click™ user interface in 14 languages simplifies operation, saves time, and reduces errors.
- Sensor diagnostics with user guidance for troubleshooting reduces downtime, monitors sensor condition along its full lifespan and minimising errors. The algorithm also comes back with a suggested electrode for your application.
- Automatic data transfer to LabX supports accurate transcription and full compliance with industry regulatory standards, e.g., CFR 21 Part 11 and ALCOA++.
- Conductivity & pH calibration service available.
- Can be supplied as a base unit, if using a non-digital electrode.
All NineFocus bases/kits come with the built-in module, an EasyPlace electrode arm, protective cover, suction cup control terminal, cable terminal (0.3 m), User Manual, power adapter, and test certificate.
The Dissolved Oyxgen Meter NineFocus NF4000 Kit also includes:
- An InLab Expert Pro-DES sensor and an InLab 731 Pro-DES sensor.
- Calibration standards kit, consisting of DO zero oxygen tablets.
- 1 x cable DES 1.2 m.
- Laboratory research.
- Wastewater treatment.
| Parameter | DO |
| Channel | Single-channel |
| Version kit | Ready-to-measure kit |
| Sensor | InLab OptiOx Pro-DES |
| DO measuring range | 0.000 – 50 mg/l (ppm) |
| DO resolution | 0.001 |
| DO accuracy (±) | ± 10% from 20 – 50,± 0.2 mg/l from 8 – 20,± 0.1 mg/l from 0 – 8 |
| Temperature Range | -30 °C – 130 °C |
| Temperature resolution | 0.1 °C |
| Temperature accuracy (±) | ±0.1°C between 0°C and 100°C |
| Ease of Use | Simple Methods,Multilingual Menu,Calibration Support,Guided verification,Touch screen |
| Security and compliance | Password protection,GLP,21 CFR part 11 support,User management,Program SOPs into methods |
| Memory Size | 3000 result sets |
| Data Transfer | PC,Printer,USB stick |
| Flexibility and modularity | Upgrade for additional parameters,Stirrer,Barcode reader,LabX Software |
| Protection Rating | IP52 |
| Compatible with Intelligent sensor management (ISM) | No |
| Connectors | USB A,USB C,ALTW 4PIN,LAN,Mini-DIN,HSD |
| Dimensions | 111 x 178 x 325 mm |
| Display Type | 7″ Colour TFT |
| Languages | English,Italian,Polish,Russian,French,Portuguese,Chinese Simplified,Chinese Traditional,German,Spanish,Thai,Turkish |
| Meter Type | Benchtop Single-Channel |
| mV measuring range | -2000..2000 mV |
| Portable Meter | No |
| Product Line | NineFocus |
| Sensor Included | Generalist Sensor |
| Weight | 1604 g |
