Walk In Environmental Chambers – Walk In Climatic Chamber

Walk In Environmental Chambers – Walk In Climatic Chamber

Manufactured by Dycometal

Walk In Environmental Chambers – Walk In Climatic Chambers from Dycometal in Spain.

AML are the exclusive UK agent for Dycometal, we fully support for sales, installation, service and calibration.

Our large walk in chambers modular meaning these are a bespoke solution without the bespoke cost!

Typical sizes are from 700 litres to over 300,000 litres!

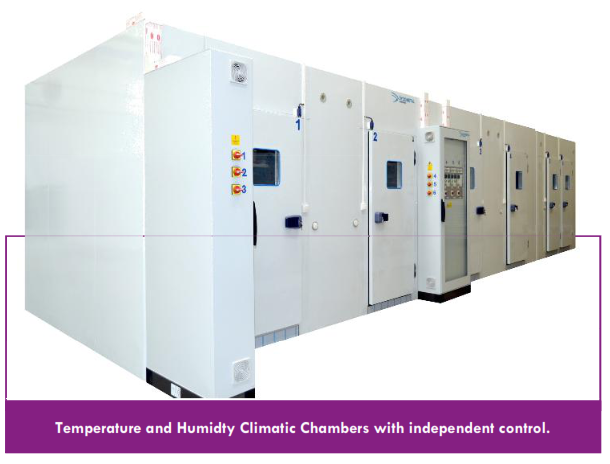

Walk In Environmental Chambers – Walk In Climatic Chambers

We can offer custom walk in environmental chambers to suit your application exactly. The design is based on the Dycometal MODUBLOCK system which completely modular and means chambers can be located anywhere in a building. Furthermore should you need to move the chamber after installation the chamber can be dismantled and moved.

Typical applications:

Automotive, defence, electronic, pharma, aerospace & packaging etc.

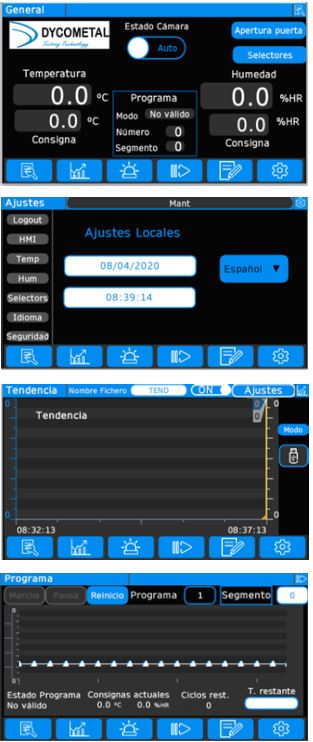

Walk In Environmental Chambers Features:Environmental-Chamber-Climatic-Chamber- Optional Controls
  • Highly accurate separate Eurotherm controllers for both the temperature and humidity control systems.
  • Optional digital logging of the temperature and RH profile during use.
  • Low running costs due to high density insulation.
  • Options for different interior finishes: lacquered or stainless steel.
  • Exterior: lacquered or stainless steel.
  • Access door: 1800 x 850 mm, other sizes as an option, door locked with key.
  • Internal door aperture system.
  • Observation window.
  • Safety systems to ensure conditions are met in the event of a controller failure.
  • Access port, 80 mm, other sizes on request
  • High precision RTD temperature probe and humidity capacitive sensor.Interior light.
  • Flexible options for the placing of the cooling and humidification system.
  • Automated error and fault management
  • Optional sun or plant growth lighting.

Typical Specifications

  • Volumes: From 700 to more than 300.000 liters
  • Temperature range: -70ºC, -40ºC, -25ºC or 0ºC to +90ºC
  • Humidity range: From 20% to 98% RH.
  • Temperature Stability: ±0,1 ºC to ±0,5ºC
  • Temperature Uniformity: ±0,5 ºC to ±1,5ºC
  • Humidity stability: ±1%RH
  • Humidity Uniformity: ±1%RH to ±3%RH

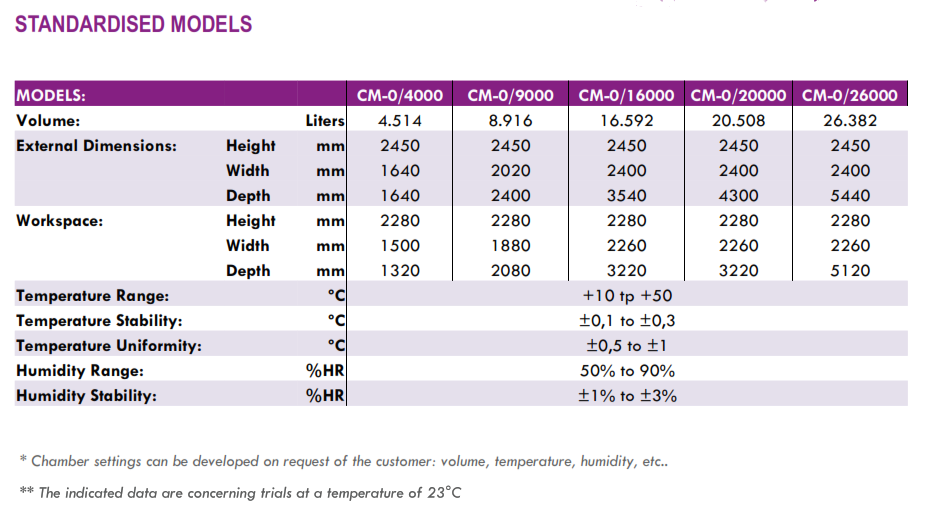

Extra Large Environmental ChambersStandard Models
